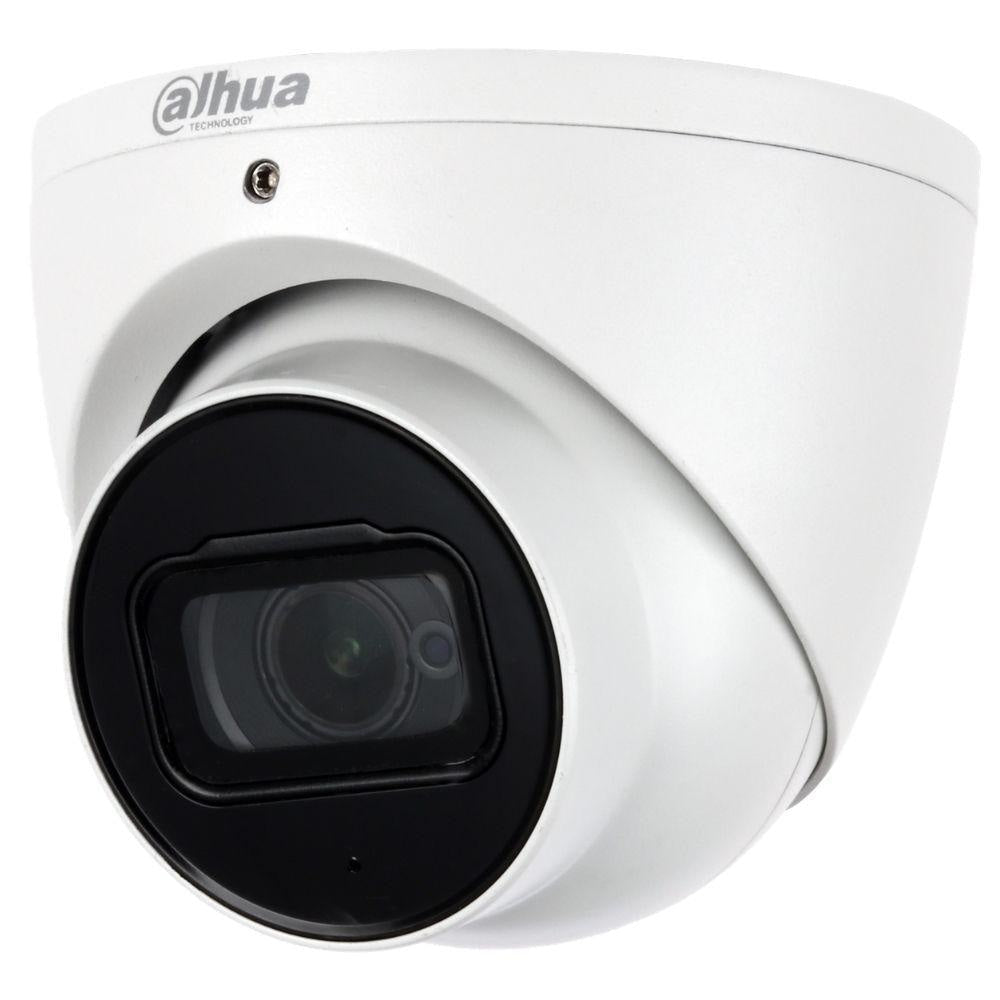

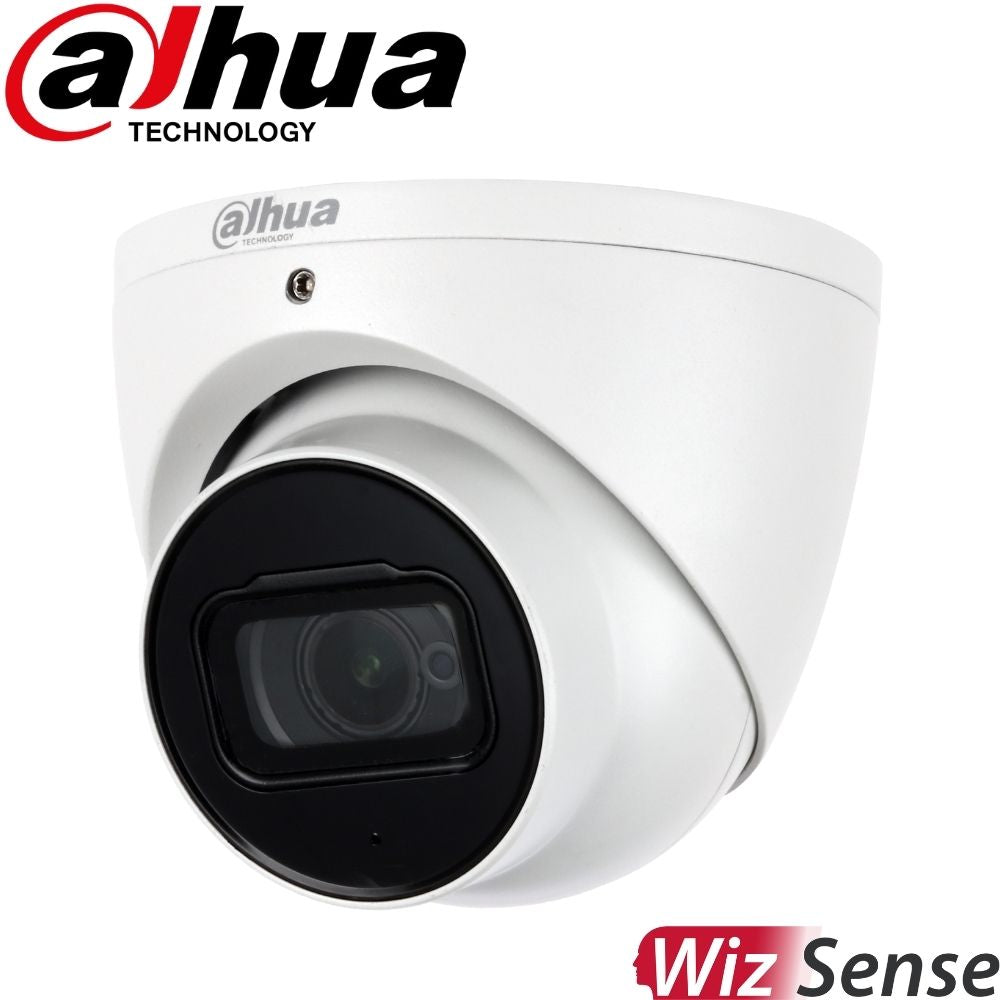

Dahua IPC-HDW3641TM-AS Security Camera: 6MP Turret, Fixed 2.8mm, WizSense + Starlight

Dahua IPC-HDW3641TM-AS Security Camera: 6MP Turret, Fixed 2.8mm, WizSense + Starlight

  • Records up to 6 Megapixel resolution.
  • Equipped with a 2.8mm Fixed lens.
  • Supports up to 3072 × 1728 resolution.
  • Features up to H.265 high-efficiency video encoding and Triple-Streaming.
  • Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection.
  • Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
  • Target is tracked and triggers real time alerts to smart device through the iOS/Android app
  • Starlight technology generates clear images in near-complete darkness.
  • Equipped with a Built-In Microphone.
  • Built-in Infrared LED with a maximum IR distance of 50 meters (164 feet).
  • 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Supports Power-Over-Ethernet (PoE) installations.
  • Abnormality Detection: Motion Detection, Video Tampering, Defocus Detection; Scene Changing, Audio Detection, No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • 3 Years Back-to-Base Manufacturer Warranty!
  • Product SKU: DH-IPC-HDW3641TMP-AS-0280B
  • Order within
Available: In Stock
$165.00 $175.00
Color
White
Black

Dahua IPC-HDW3641TM-AS Security Camera

WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.

Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • Records up to 6 Megapixel resolution.
  • Equipped with a 2.8mm Fixed lens.
  • Supports up to 3072 × 1728 resolution.
  • Features up to H.265 high-efficiency video encoding and Triple-Streaming.
  • Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection.
  • Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
  • Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
  • Starlight technology generates clear images in near-complete darkness.
  • Equipped with a Built-In Microphone.
  • Built-in Infrared LED with a maximum IR distance of 50 meters (164 feet).
  • 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Supports Power-Over-Ethernet (PoE) installations.
  • Abnormality Detection: Motion Detection, Video Tampering, Defocus Detection; Scene Changing, Audio Detection, No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • 3 Years Back-to-Base Manufacturer Warranty!

Dahua IPC-HDW3641TM-AS Security Camera

WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.

Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.

Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.

Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.

Features

  • Records up to 6 Megapixel resolution.
  • Equipped with a 2.8mm Fixed lens.
  • Supports up to 3072 × 1728 resolution.
  • Features up to H.265 high-efficiency video encoding and Triple-Streaming.
  • Supports AI Perimeter Protection allowing differentiation and recognition of vehicles and humans when using tripwire and intrusion detection.
  • Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
  • Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
  • Starlight technology generates clear images in near-complete darkness.
  • Equipped with a Built-In Microphone.
  • Built-in Infrared LED with a maximum IR distance of 50 meters (164 feet).
  • 120 dB Wide Dynamic Range (WDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
  • Supports Power-Over-Ethernet (PoE) installations.
  • Abnormality Detection: Motion Detection, Video Tampering, Defocus Detection; Scene Changing, Audio Detection, No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Voltage Detection.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • 3 Years Back-to-Base Manufacturer Warranty!

Dahua IPC-HDW3641TM-AS Security Camera

SMD Plus
With an intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.

Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video and reduces the cost of storage and transmission.

Perimeter Protection
With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In the restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection are based on the target type (such as tripwire, intrusion, fast-moving, parking detection, loitering detection, and gathering detection) are largely reduced.

Starlight
Dahua Starlight technology mainly applies to the environment of low illumination, and it can provide clear colourful video. Even in an environment of minimum illumination, this technology can guarantee a good image effect.

Wide Dynamic Range
With advanced Wide Dynamic Range (WDR) technology, the Dahua network camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high brightness environment or with backlight shadow.

Weather-Proof IP67 Rating
The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can works normally after soaking in 1-meter deep water for 30 minutes.

Wide Voltage Range
The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to the outdoor environment with unstable voltage.

Dahua IPC-HDW3641TM-AS Security Camera


Camera
Image Sensor 1/2.7” 6Megapixel progressive scan CMOS
Max. Resolution 3072(H) x 1728(V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3 s–1/100000 s
Min. Illumination 0.005 Lux @F1.6
S/N Ratio >56 dB
Illumination Distance 50 m (164.0 ft)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚
Lens
Lens Type Fixed-focal
Mount Type M12
Focal Length 2.8 mm; 3.6 mm
Max. Aperture F1.6

Field of View

2.8 mm: Horizontal 99° × Vertical 53° × Diagonal 115°
3.6 mm: Horizontal 80° × Vertical 43° × Diagonal 94°
Iris Type Auto

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
Professional and Intelligent
IVS (Perimeter Protection) Tripwire; intrusion (Recognition of human and vehicle)
Intelligent Search Work together with Smart NVR to perform a refined intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Smart Codec Smart H.265+/ Smart H.264+

Video Frame Rate

Mainstream (3072 × 1728@1–20 fps/2688 × 1520@1–25/30 fps)
Substream (704 × 576@1–25 fps/704 × 480@1–30 fps)
Third stream (1920 × 1080@1–25/30 fps)
Stream Capability 3 streams

Resolution

3072 × 1728
2592 × 1944
2688 × 1520
2560 × 1440
2304 × 1296
1080p (1920 × 1080)
1.3M (1280 × 960)
720p (1280 × 720)
D1 (704 × 576/704 × 480)
VGA (640 × 480)
CIF (354 × 288/354 × 240)
Bit Rate Control CBR/VBR

Video Bit Rate

H.264: 32 Kbps–8192 Kbps
H.265: 19 Kbps–8192 Kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation Yes
White Balance Auto/Natural/Street Lamp/Outdoor/Manual/Regional/Custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; AAC; G.723
Alarm
Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network
Network RJ-45 (10/100 Base-T)
SDK and API Yes
Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

Interoperability ONVIF (Profile S/Profile G/Profile T), CGI, Milestone, Genetec, P2P
User/Host 20 Users
Storage FTP; SFTP; Micro SD Card (support max. 256 G); Dahua Cloud; NAS

Browser

IE: IE8 and later
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Phone IOS; Android
Certification

Certification

EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55024
EN 50130-4
EN55035
Power
Power Supply 12V DC (±30%), PoE (802.3af)
Power Consumption <7.2W
Environment
Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions -40° C to +60° C (-40° F to +140° F)
Protection Grade IP67
Structure
Casing Metal
Dimensions Φ106 mm × 93.6 mm (4.17” × 3.69”)
Net Weight 0.55 kg (1.21 lb)
Gross Weight 0.71 kg (1.57 lb)


Dahua IPC-HDW3641TM-AS Security Camera

These downloadable documents should provide more information regarding the product.

Dahua IPC-HDW3641TM-AS Security Camera

The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.

Dahua Technology Company Introduction

Dahua Company Introduction

Dahua WizSense Technology

Dahua Starlight Technology
