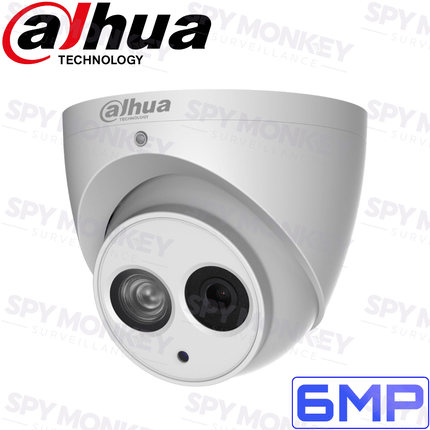

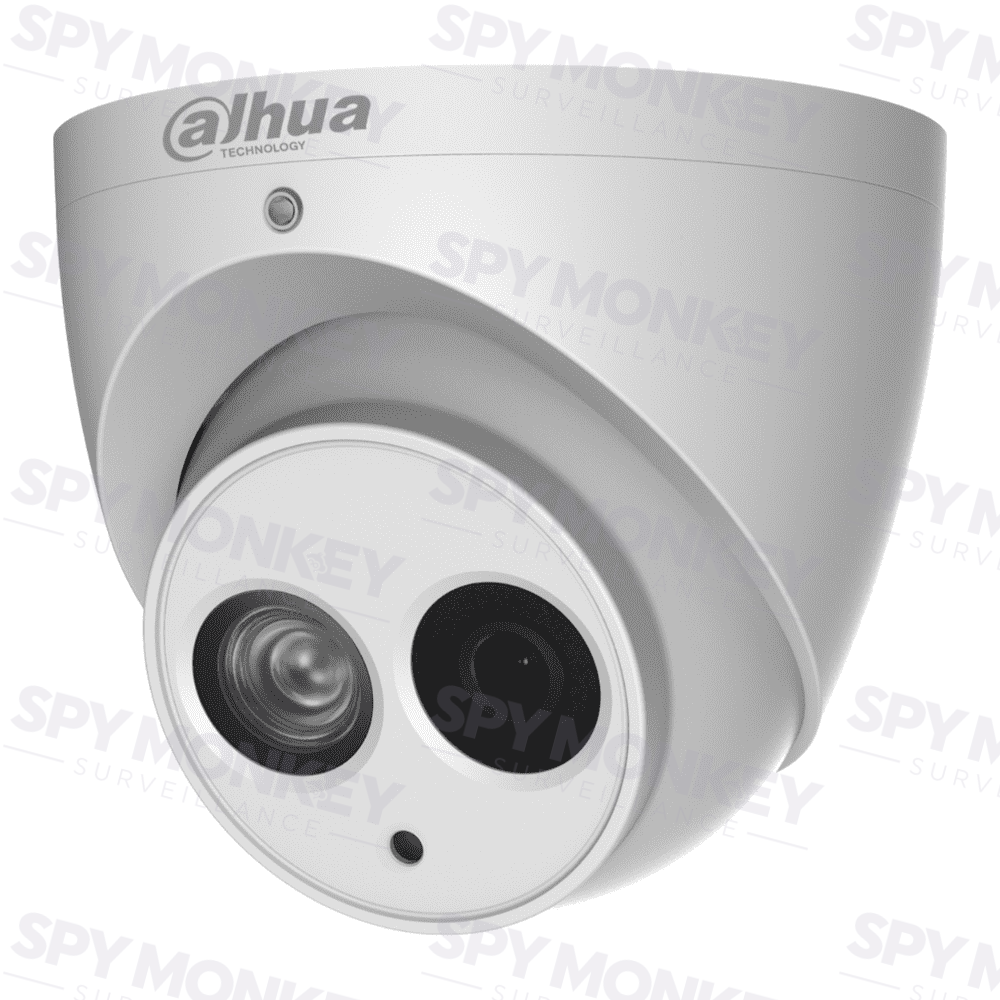

Dahua DH-IPC-HDW4631EMP-0280B Security Camera: 6MP Fixed Lens Eyeball, Built-In Mic

Dahua DH-IPC-HDW4631EMP-0280B Security Camera: 6MP Fixed Lens Eyeball, Built-In Mic

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265/H.264 triple-stream encoding
  • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
  • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Built-in Mic
  • 1 IR LED Length 50m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
  • IP67 Weather Proof
  • WARRANTY: 3 years back-to-base manufacturer warranty
  • Product SKU: DH-IPC-HDW4631EMP-0280B
  • Order within
Available: In Stock
$155.00
Wishlist Compare

The Dahua DH-IPC-HDW4631EM is a high resolution, fixed lens eye-ball camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

FEATURES

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265/H.264 triple-stream encoding
  • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
  • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Built-in Mic
  • 1 IR LED Length 50m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
  • IP67 Weather Proof



The Dahua DH-IPC-HDW4631EM is a high resolution, fixed lens eye-ball camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

FEATURES

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265/H.264 triple-stream encoding
  • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
  • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Built-in Mic
  • 1 IR LED Length 50m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
  • IP67 Weather Proof



Dahua IPC-HDW4631EM Security Camera

Camera
Image Sensor 1/2.9” 6Megapixel progressive scan CMOS
Effective Pixels 3072(H) x 2048(V)
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.04Lux/F1.6( Color,1/3s,30IRE)



0.4Lux/F1.6( Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio More than 50dB
IR Distance Distance up to 50m (164ft)
IR On/Off Control Auto/ Manual
IR LEDs 1
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm optional)
Max. Aperture F1.6(F1.6)
Angle of View H: 98° (69°), V: 67° (48°)
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.9m (1.7m)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range Pan:0˚~360˚; Tilt:0˚~78˚; Rotation:0˚~360˚
Intelligence
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video
Compression H.265+/H.265/H.264+/H.264
Streaming Capability 3 Streams
Resolution (3072×2048)/(3072×1728)/(2592×1944)/(2688×1520)/(2560×1440)/(2304×1296)/1080P(1920×1080)/SXGA(1280×1024)/1.3M(1280× 960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)
Sub Stream: D1(1~25/30fps)
Third Stream: 1080P(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 10240Kbps



H.265: 14K ~ 9984Kbps

Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711a/ G.711Mu/ AAC/ G.726
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;



FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Inter-operability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS



Local PC for instant recording

Micro SD card 128GB

Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, Easy4ip
Smart Phone IOS, Android
Certifications
Certifications CE (EN 60950:2000)



UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface Built-in Mic
RS485 N/A
Alarm N/A
Electrical
Power Supply DC12V, PoE (802.3af)(Class 0)
Power Consumption <6W
Environmental
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Construction
Casing Metal

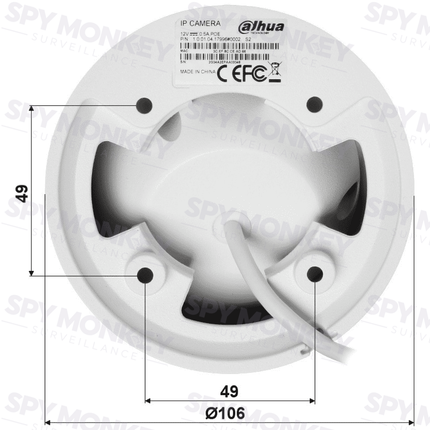

Dimensions Φ106mm×93.7mm (4.17”×3.69”)
Net Weight 0.47Kg (1.04lb)
Gross Weight 0.65Kg (1.43lb)
