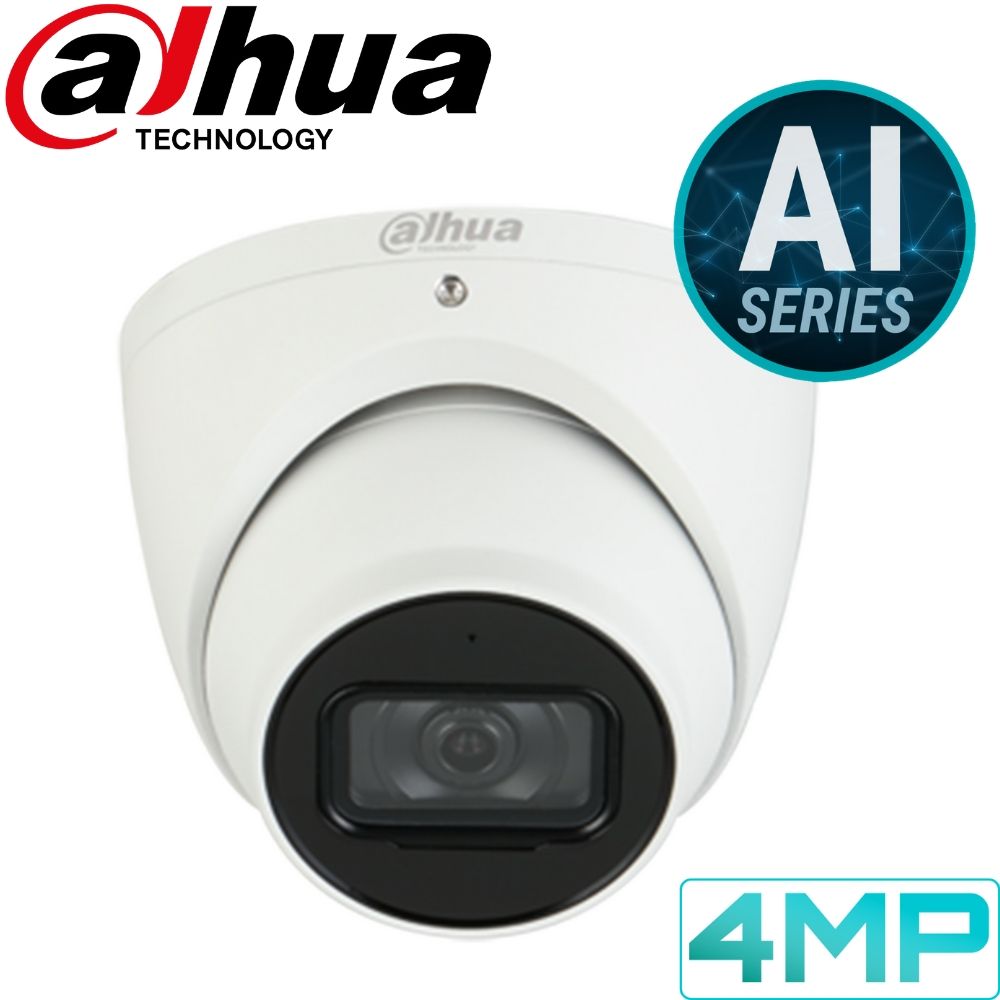

Dahua IPC-HDW5442TM-AS Security Camera: 4MP Fixed Turret, AI Series
For an alternative model try the Dahua IPC-HDW5541TM-ASE (Click to View).
- 1/1.8” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)
- Wide Dynamic Range 140dB WDR, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC, Back Light Compensation BLC
- Smart Detections - Tripwire, Intrusion, Object Abandonment, Face Detection
- Artificial Intelligence - Face Image Capture, Perimeter Monitoring, People Counting, and more
- Digital Surveillance System for smartphone, tablet & PC - Supports Live streaming of your cameras from anywhere in the world
- 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- Built-in MIC
- Max. IR LEDs Length 50 m
- Micro SD memory
- IP67 "Weatherproof" protective casing
- WARRANTY: 3 years back-to-base manufacturer warranty
- Product SKU: IPC-HDW5442TM-AS
- Order within
For an alternative model try the Dahua IPC-HDW5541TM-ASE (Click to View).
The Dahua IPC-HDW5442TM-AS Security Camera is part of the Dahua AI Series. The Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.
FEATURES
- 1/1.8” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)
- Wide Dynamic Range 140dB WDR, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC, Back Light Compensation BLC
- Smart Detections - Tripwire, Intrusion, Object Abandonment, Face Detection
- Artificial Intelligence - Face Image Capture, Perimeter Monitoring, People Counting, and more
- Digital Surveillance System for smartphone, tablet & PC - Supports Live streaming of your cameras from anywhere in the world
- 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- Built-in MIC
- Max. IR LEDs Length 50 m
- Micro SD memory
- IP67 "Weatherproof" protective casing
- WARRANTY: 3 years back-to-base manufacturer warranty
For an alternative model try the Dahua IPC-HDW5541TM-ASE (Click to View).
The Dahua IPC-HDW5442TM-AS Security Camera is part of the Dahua AI Series. The Dahua AI series products adopt the most advanced AI technologies, including deep learning algorithms that primarily target people and vehicles, which provides higher flexibility and accuracy for end-users. This enables the Dahua AI series to offer various advanced applications such as Face Recognition, ANPR, Metadata, People Counting, traffic data statistics, etc. The complete lineup of Dahua AI includes network (PTZ) cameras, network video recorders, servers, and platform management products. Beyond seeing the world, the power of AI allows devices to perceive the environment and understand the world in a better way.
FEATURES
- 1/1.8” 4 Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding
- 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)
- Wide Dynamic Range 140dB WDR, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC, Back Light Compensation BLC
- Smart Detections - Tripwire, Intrusion, Object Abandonment, Face Detection
- Artificial Intelligence - Face Image Capture, Perimeter Monitoring, People Counting, and more
- Digital Surveillance System for smartphone, tablet & PC - Supports Live streaming of your cameras from anywhere in the world
- 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- Built-in MIC
- Max. IR LEDs Length 50 m
- Micro SD memory
- IP67 "Weatherproof" protective casing
- WARRANTY: 3 years back-to-base manufacturer warranty
Dahua IPC-HDW5442TM-AS
Image Sensor |
1/1.8” 4Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
2688 (H) × 1520 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
512 MB/128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.002 Lux@F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
Distance up to 50 m (164 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Aperture Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) |
Pan/Tilt/Rotation |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Artificial Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
Support face image capture |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
Tripwire, intrusion (Recognition of a vehicle and people), fast-moving, loitering detection, parking detection and people gathering |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Intelligence |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Event Trigger |
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Intelligence |
Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Heat Map |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
H.265,H.264,H.264B,H.264H, MJPEG (sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 Streams |
Resolution |
2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Stream: 1080P (1 fps–16 fps) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode |
BLC/HLC/WDR (140 dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Off/On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest |
Off/On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
0°/90°/180°/270° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Off/On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off/On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access |
20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage |
NAS;FTP;SFTP Micro SD card 256 GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer |
IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone |
iOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Interface |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in MIC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC 12V (±30%), PoE (802.3af) (Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<7.2W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30° C to +60° C (-22° F to +140° F)/Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-30° C to +60° C (-22° F to +140° F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
Φ106 mm × 99.2 mm (4.17” × 3.91”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.55 kg (1.21 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.71 kg (1.57 lb) |
