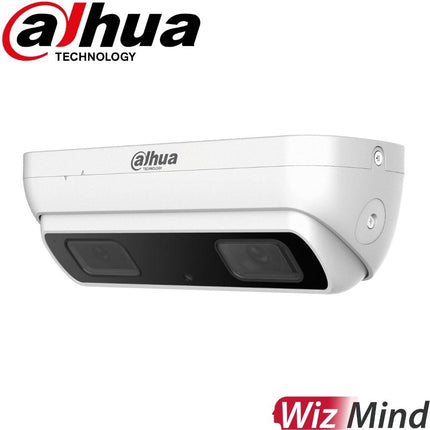

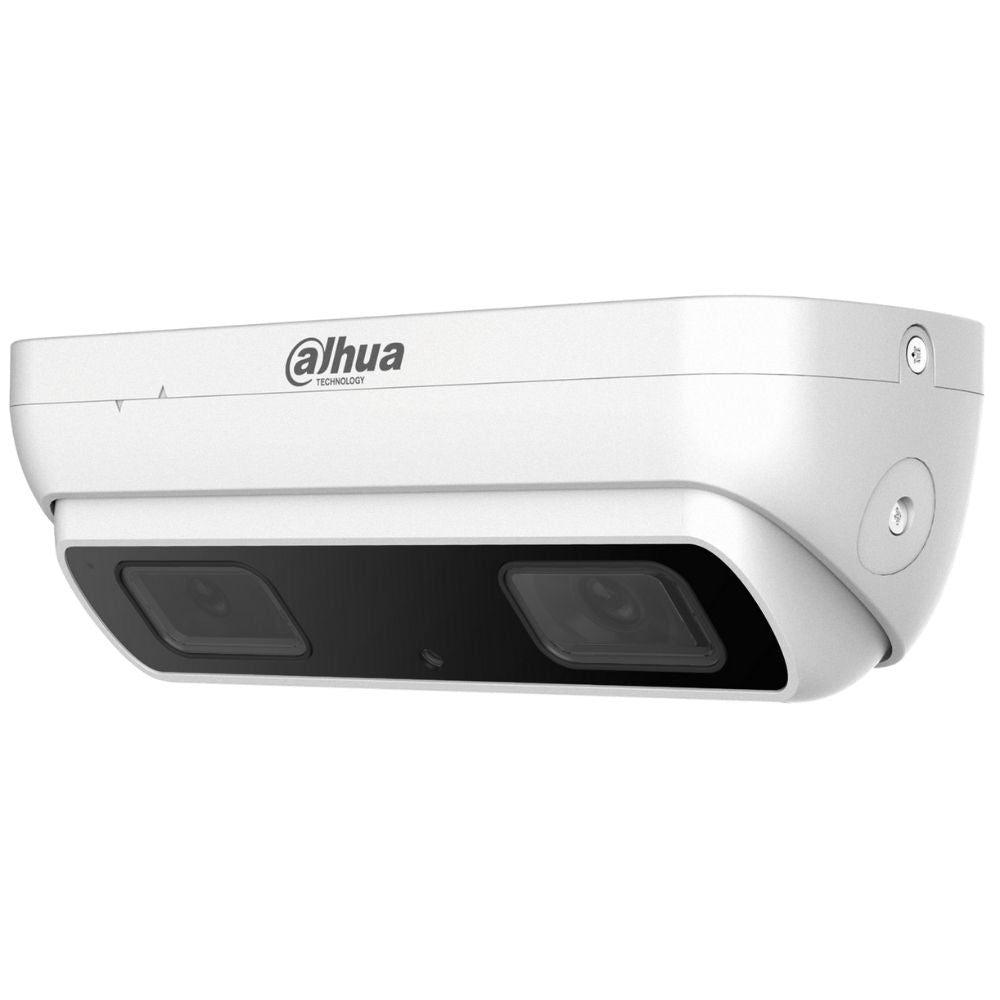

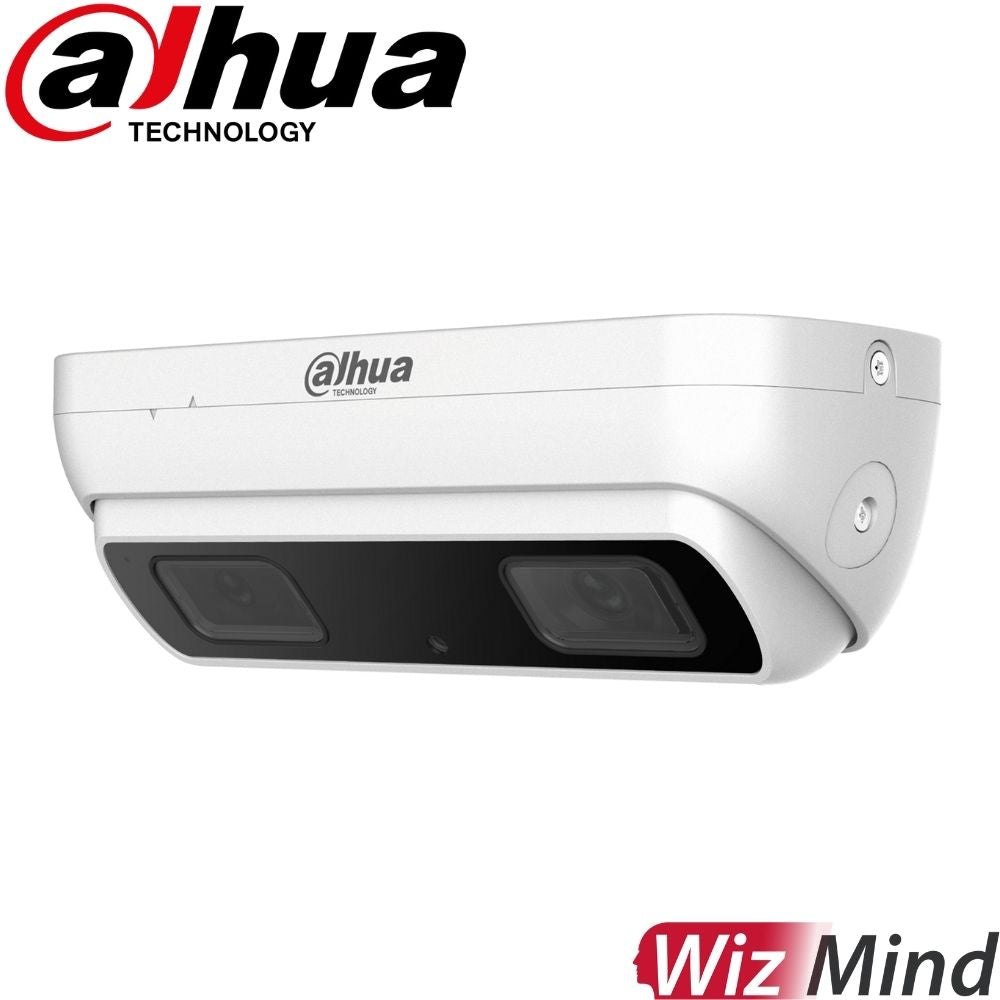

Dahua IPC-HDW8341X-3D Security Camera
Engineered to provide precise, reliable, and comprehensive security intelligence, Dahua's WizMind Technology offers Body Temperature Monitoring, Face Recognition, and Number-Plate Recognition to ensure public safety and improve overall operational efficiency. It also provides People Counting, Privacy Protection, Heat-Mapping, Ultra Long-Distance monitoring, Thermal Imaging, and Smart Tracking on capable devices.
Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.
Features
Dahua IPC-HDW8341X-3D Security Camera
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
Two 1/2.8”3Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
2048(H)x1536(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
512MB/4096MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.009Lux/F1.8 (Color, 1/3s, 30IRE) 0.08Lux/F1.8 (Color, 1/30s, 30IRE) 0Lux/F1.8(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
Distance up to 10m(33ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8mm (3.6mm) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.8 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H: 106° (80°), V:80° (58°) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.6m (0.9m) |
Pan/Tilt/Rotation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Tilt:-10?~70?; |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Artificial Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
People Counting |
line crossing people counting, region people counting, Height filter, loitering filter |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Event Trigger |
Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Intelligence |
Heatmap |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
H.265/H.264H/MJPEG(Sub Stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Support H.265+/H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
3MP(2048×1536)/ 1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480) / VGA(640x480)/ CIF(352×288/342x240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream: 3MP (1~25fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream 1: D1 (1 ~ 25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream 2: 6MP (1~7fps, For Debugging Only) |
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate |
H.264: 192~ 10240Kbps H.265: 80~ 6144Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR) / Color / B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode |
BLC / HLC / WDR(120dB) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
Off / On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest |
Off / On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
RJ-45 (100/1000Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP; FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;SNMP;TLS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF Profile S&G, API |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access |
10 Users/20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage |
NAS Local PC for instant recording Mirco SD card 128GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer |
IE, Chrome, Firefox, Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
1 port (For Adjustment Only) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
2/1 channel In/Out (RCA), Built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
2 channel In: 5mA 5VDC 2 channel Out: 300mA 12VDC |
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, PoE (IEEE 802.3af)(Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
< 12W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
204mmx78mmx62mm (8.03"x3.07"x2.44") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.8kg (1.76lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.09kg (2.40lb) |
