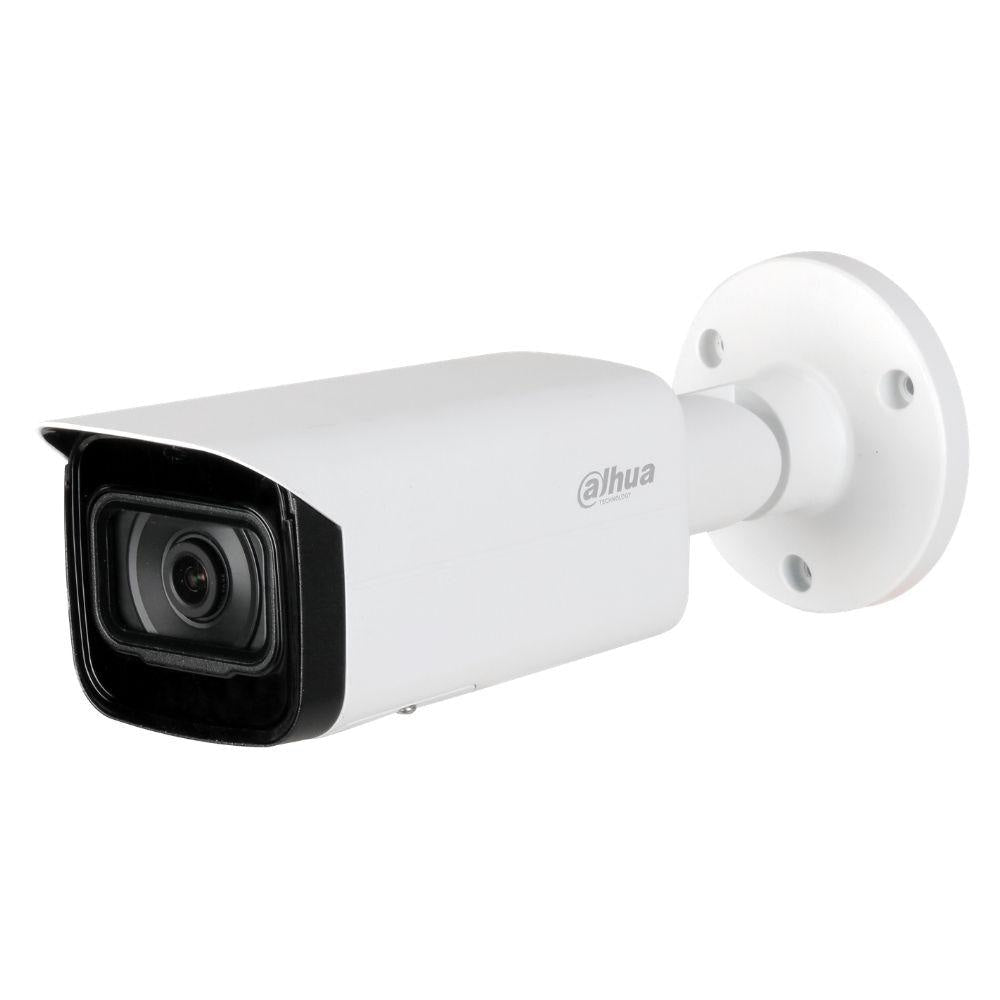

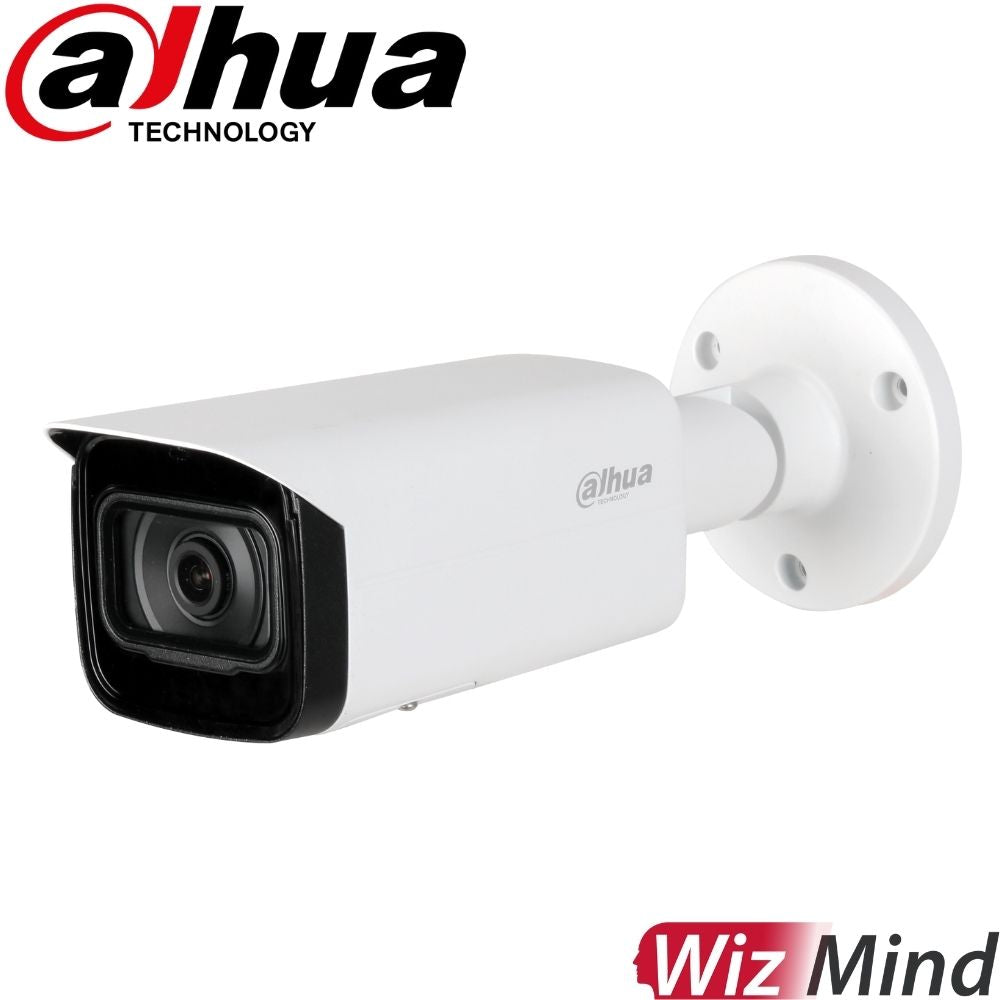

Dahua Security Camera: 4MP Bullet, 2.8mm, WizMind AI - DH-IPC-HFW5442TP-S-0280B

SKU DH-IPC-HFW5442TP-S-0280B
by Dahua
Save $68.00 Save $68.00
Original price $331.00
Original price $331.00 - Original price $331.00
Original price $331.00
Current price $263.00
$263.00 - $263.00
Current price $263.00
Description
Description

Dahua IPC-HFW5442T-S Security Camera

Engineered to provide precise, reliable, and comprehensive security intelligence, Dahua's WizMind Technology offers Body Temperature Monitoring, Face Recognition, and Number-Plate Recognition to ensure public safety and improve overall operational efficiency. It also provides People Counting, Privacy Protection, Heat-Mapping, Ultra Long-Distance monitoring, Thermal Imaging, and Smart Tracking on capable devices.

Dahua's Starlight Technology generates crystal clear images in near-complete darkness. A high-performing sensor and special Dahua algorithms combine to capture images in low-light and no-light environments. The innovation behind Dahua’s Starlight technology provides the best image capture to help maximize your security solution.

Features

  • Records up to 4 Megapixel (Full HD) resolution.
  • Equipped with a 2.8mm Fixed lens.
  • Supports up to 2688 × 1520 pixels Full High Definition resolution.
  • Features up to H.265 high-efficiency video encoding and Triple-Streaming.
  • With suitable devices, WizMind Technology, utilize features like Face Recognition, Number-Plate Recognition, Human and Vehicle Metadata, People Counting, Heat Map, Stereo Analysis, Smart Tracking, Temperature Monitoring, and more!
  • Capture clear and crisp images under low-light conditions with Dahua's Starlight Technology.
  • Supports PoE "Power-Over-Ethernet" installations.
  • 140 dB Wide Dynamic Range WDR. 3D Digital Noise Reduction 3D DNR.
  • Day/Night Infrared Cut Removal ICR. Auto White Balance AWB. Automatic Gain Control AGC. Backlight Compensation BLC. Highlight Compensation HLC. Region of Interest ROI.
  • Supports MicroSD Card Storage up to 256 Gigabytes.
  • Resilient "Weather-Proof" Ingress Protection Rating (IP67).
  • Durable "Vandal-Proof" Impact Protection Rating (IK10).
  • 3 Years Back-to-Base Manufacturer Warranty!

    Tech Specs
    Tech Specs

    Dahua IPC-HFW5442T-S Security Camera

    Camera

    Image Sensor

    1/1.8” 4Megapixel progressive scan CMOS

    Effective Pixels

    2688 (H) × 1520 (V)

    RAM/ROM

    512 MB/128 MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual, 1/3 s–1/100000 s

    Minimum Illumination

    0.002 Lux@F1.6

    IR Distance

    Distance up to 50 m (164 ft)

    IR On/Off Control

    Auto/Manual

    IR LEDs

    4

    Lens

    Lens Type

    Fixed-focal

    Mount Type

    Board-in

    Focal Length

    2.8 mm, 3.6 mm, 6.0 mm

    Max. Aperture

    F1.6

    Angle of View

    H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°

    Aperture Type

    Fixed

    Close Focus Distance

    1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)

    Pan/Tilt/Rotation

    Pan/Tilt/Rotation Range

    Pan: 0?–360?; Tilt: 0?–90?; Rotation: 0?–360?

    Artificial Intelligence

    Face Detection

    Support face image capture

    Perimeter Protection

    Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering)

    People Counting

    Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

    General Intelligence

    Event Trigger

    Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

    General Intelligence

    Object Abandoned/Missing

    Heat Map

    Yes

    Video

    Compression

    H.265, H.264, H.264B, H.264H,

    MJPEG (sub stream)

    Smart Codec

    Yes

    Streaming Capability

    3 Streams

    Resolution

    2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

    Frame Rate

    Main Stream: 2688 × 1520 (1 fps–25/30 fps)

    2560 × 1440 (1 fps–25/30 fps)

    1920 × 1080 (1 fps–50/60 fps)

    Sub Stream: D1 (1 fps–25/30 fps)

    D1 (1 fps–50/60 fps)

    Third Stream: 1080P (1 fps–16 fps)

    Bit Rate Control

    CBR/VBR

    Bit Rate

    H.264: 32 Kbps–8192 Kbps

    H.265: 19 Kbps–8192 Kbps

    Day/Night

    Auto (ICR)/Color/B/W

    BLC Mode

    BLC/HLC/WDR (140 dB)

    White Balance

    Auto/Natural/Street Lamp/Outdoor/Manual

    Gain Control

    Auto/Manual

    Noise Reduction

    3D DNR

    Motion Detection

    Off/On (4 Zone, Rectangle)

    Region of Interest

    Off/On (4 Zone)

    Electronic Image Stabilization (EIS)

    N/A

    Smart IR

    Yes

    Defog

    Yes

    Flip

    0°/90°/180°/270°

    Mirror

    Off/On

    Privacy Masking

    Off/On (4 Area, Rectangle)

    Audio

    Compression

    N/A

    Network

    Ethernet

    RJ-45 (10/100 Base-T)

    Protocol

    IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

    Interoperability

    ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

    Streaming Method

    Unicast/Multicast

    Max. User Access

    20 Users

    Edge Storage

    NAS;FTP;SFTP

    Micro SD card 256 GB

    Web Viewer

    IE (versions newer than IE8), Chrome,

    Firefox, Safari (versions newer than Safari 12)

    Management Software

    Smart PSS, DSS, DMSS

    Smart Phone

    iOS, Android

    Certifications

    Certifications

    CE-LVD: EN60950-1

    CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

    FCC: 47 CFR FCC Part 15, Subpart B

    UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

    Interface

    Audio Interface

    N/A

    RS485

    N/A

    Alarm

    N/A

    Electrical

    Power Supply

    DC 12V (±30%), PoE (802.3af) (Class 0)

    Power Consumption

    <8.4W

    Environmental

    Operating Conditions

    -30° C to +60° C (-22° F to +140° F)/Less than 95% RH

    Storage Conditions

    -30° C to +60° C (-22° F to +140° F)

    Ingress Protection

    IP67

    Vandal Resistance

    IK10

    Construction

    Casing

    Metal

    Dimensions

    244.1 mm × 79.0 mm × 75.9 mm (9.61” × 3.11” × 2.99”)

    Net Weight

    0.815 kg (1.80 lb)

    Gross Weight

    1.08 kg (2.38 lb)

    Downloads
    Downloads

    Dahua IPC-HFW5442T-S Security Camera

    These datasheets may provide more information regarding the product.

      Videos
      Videos

      Dahua IPC-HFW5442T-S Security Camera

      The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.

      Dahua Technology Company Introduction

      Dahua Company Introduction

      Dahua WizMind Technology

      Dahua Starlight Technology
