Description

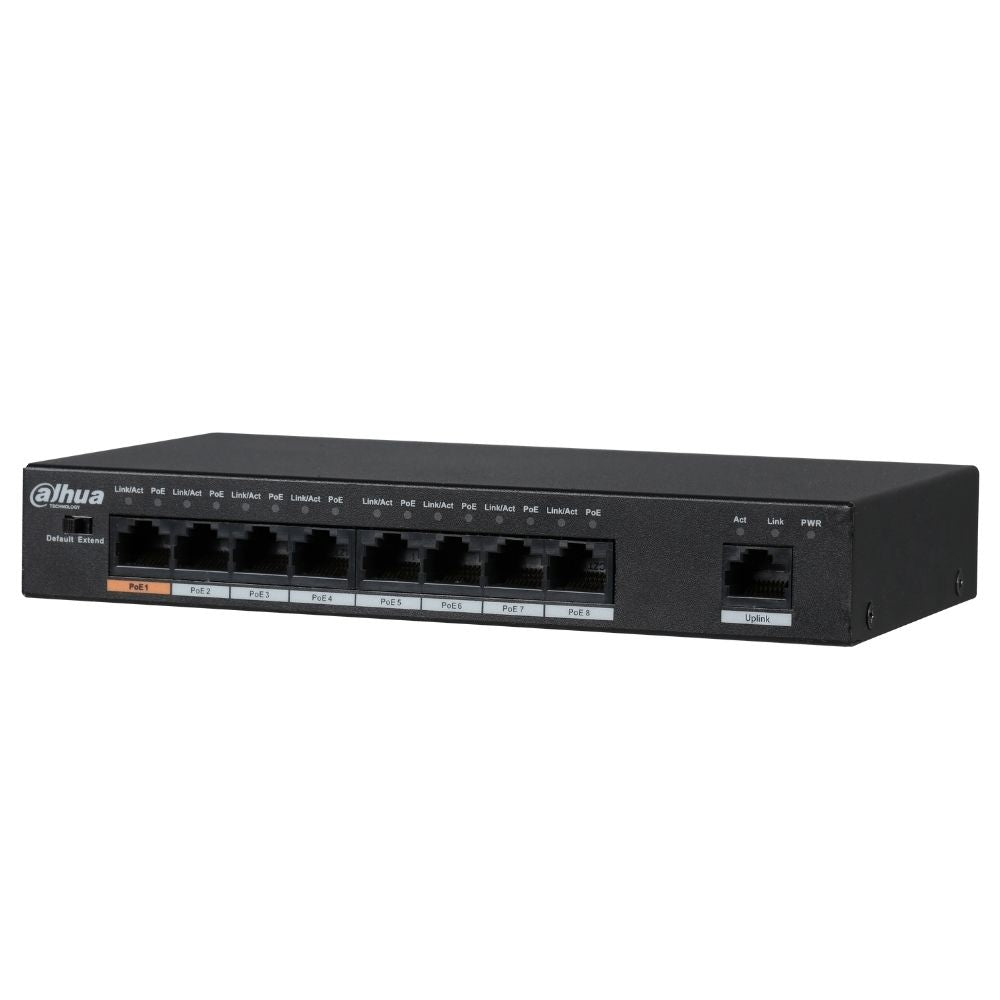

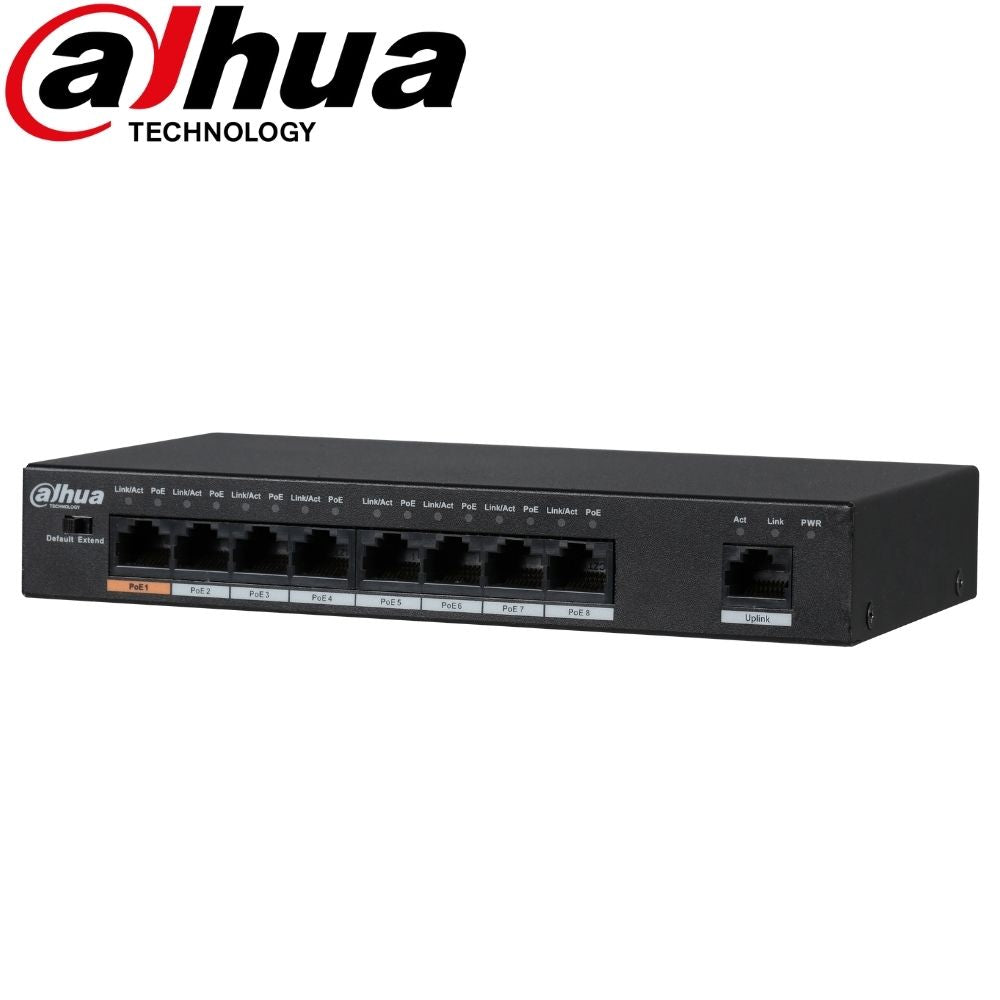

Dahua PFS3009-8ET-96 Ethernet Switch is an 8-port fast ethernet switch, which supports 250 meters of long-distance PoE transmission. It provides 8 x 10/100Mbps PoE ports and a 1 x 100 Mbps uplink port. The product is equipped with two transmission modes (Default/Extend), which are controlled by a DIP switch.
Features
- Ethernet Switch 9-Ports: 8 x 10/100 Mbps PoE, 1 x 100 Mbps Uplink.
- Supports PoE power management.
- Supports wall-mount installation and an anti-theft lock hole.
- Port 1 Supports Hi-PoE 60W (Orange Port): Suitable for powering high-power devices.
- MAC auto-learning and aging, MAC address capacity is 2K
- RJ45 port supports 10/100 Mbps self-adaptation.
- Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards.
- Supports long-distance Power-Over-Ethernet transmission up to 250 meters.
- Layer two commercial switch.
- 3 Years Back-to-Base Manufacturer Warranty!
More Info
Dahua PFS3009-8ET-96 Ethernet Switch
Hi-PoE 60W (Orange Port): In addition to the IEEE802.3af and IEEE802.3at standards, the orange port also supports a maximum power output of 60W for powering high-power devices.
Long Distance PoE: By dialling or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
Downloads
Tech Specs
Dahua PFS3009-8ET-96 Ethernet Switch
Technical Speci?cation |
Model |
DH-PFS3009-8ET-96 |
Ethernet Port |
1*10/100 Base-T
8*10/100 Base-T (PoE power supply)
|
PoE Power Consumption |
Port1?60W, Port2-8?30W, Total?96W |
PoE PIN Assignment |
1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) |
PoE Power Management |
Support |
PoE Protocol |
IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE |
Switching Capacity |
1.8Gbps |
Packet Forwarding Rate |
1.34Mpps |
Packet Buffer Memory |
768Kb |
MAC Table Size |
2K |
Flow Control |
Enable by default |
Application Humidity |
5%~95% |
Power |
DC 48~57V power adapter |
Lightning Protection |
Common Mode 4KV
Differential Mode 2KV
|
ESD Protection |
Air Discharge 8KV
Contact Discharge 6KV
|
Working Temperature |
-10°C~55°C |
Weight |
490g |
Dimension(W×D×H) |
190mm×100mm×30mm |
