Description

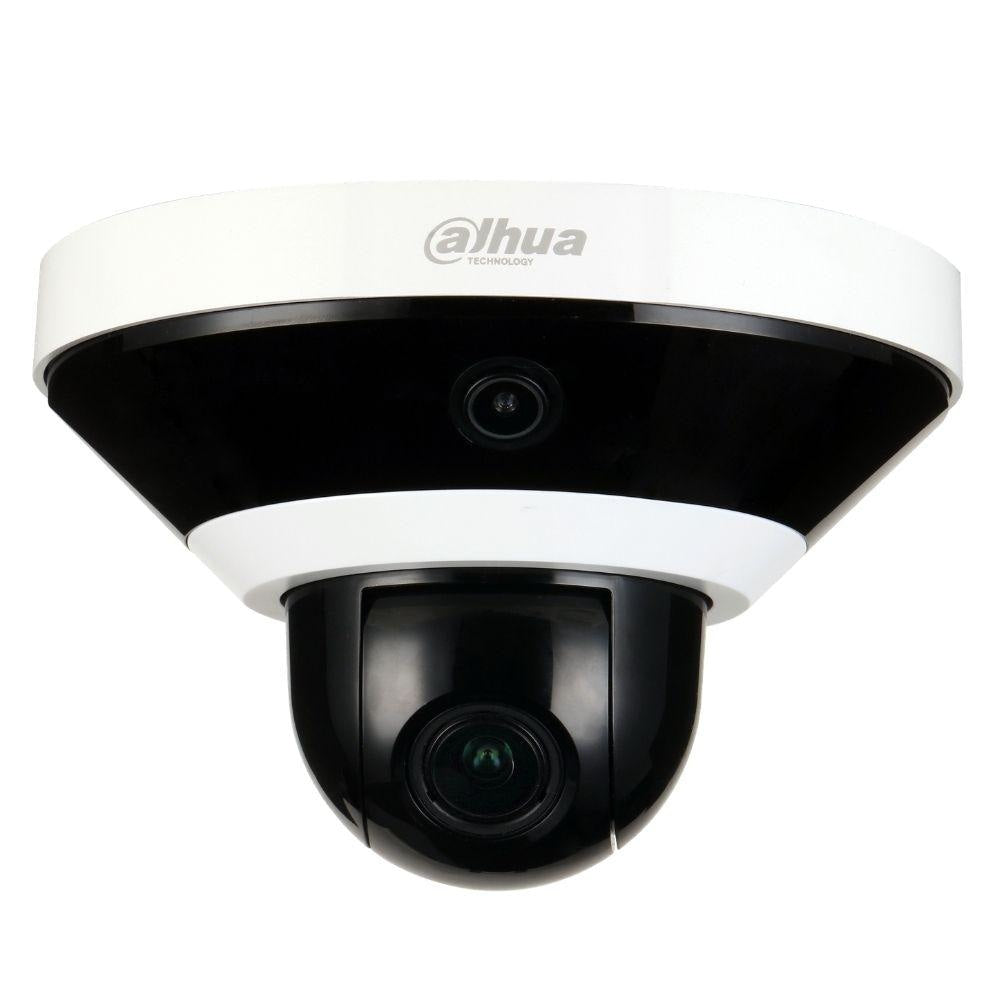

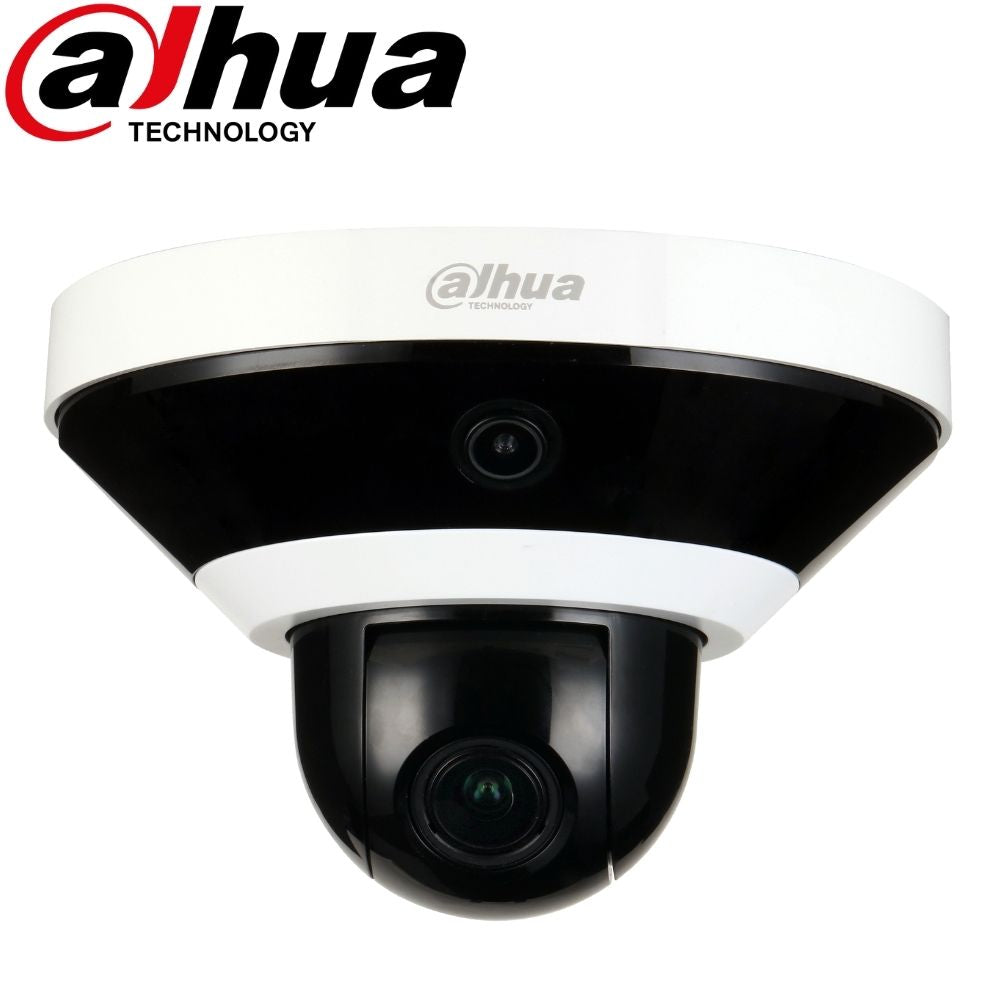

Dahua PSDW5631S-B360 Security Camera
Panoramic Cameras provide coverage of a wide, horizontal area to detect the activity of people, and vehicles. Because of the wide-area coverage, a single panoramic IP camera can be an attractive alternative to purchasing and placing multiple cameras. This device is capable of a 360° panoramic view.
Dahua's Pan-Tilt-Zoom cameras are designed to allow better monitoring through remotely controlling the direction of the device. PTZ cameras are often equipped with powerful zoom capabilities to improve in-demand visual clarity for points or targets of interest.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Features
- Records up to 2 Megapixel resolution.
- Equipped with 3 x 2mm Fixed lens and a 2.7~13.5mm Motorized PTZ lens.
- Supports up to 1920 × 1080 resolution.
- Features up to H.265+ high-efficiency video encoding and Dual-Streaming.
- ?Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
-
Pan-Tilt-Zoom allows remotely controlling the direction and the zoom to provide in-demand coverage towards points of interest.
- Capable of up to 16x Digital Zoom and up to 5x Optical Zoom.
- Digital Wide Dynamic Range (DWDR). 3D Digital Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
-
This device is capable of a 360° panoramic view.
- Built-in Infrared LED, with a maximum range of 15 meters.
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua PSDW5631S-B360 Security Camera
Panoramic Camera |
Image Sensor |
Three 1/2.7” 2Megapixel CMOS |
Effective Pixels |
3x1920(H)x1080(V) |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.03Lux/F2.2( Color, 1/3s, 30IRE)
0.2Lux/F2.2( Color, 1/30s, 30IRE)
0.03Lux/F2.2( B/W, 1/3s, 30IRE)
0.2Lux/F2.2( B/W, 1/30s, 30IRE)
|
IR Distance |
Distance up to 15m(49ft) |
IR On/Off Control |
Auto/ Manual |
IR LEDs |
6 |
Panoramic Lens |
Lens Type |
Fixed |
Mount Type |
Board-in |
Focal Length |
2mm |
Aperture Type |
Fixed |
Max. Aperture |
F2.2 |
Angle of View |
H: 136?, V:78? |
PTZ Camera |
Image Sensor |
1/2.7” 2Megapixel CMOS |
Effective Pixels |
1920(H)x1080(V) |
RAM/ROM |
1024MB/128MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1~1/30000s |
Minimum Illumination |
0.02Lux/F1.8( Color, 1/3s, 30IRE)
0.1Lux/F1.8( Color, 1/30s, 30IRE)
0.02Lux/F1.8( B/W, 1/3s, 30IRE)
0.2Lux/F1.8( B/W, 1/30s, 30IRE)
|
PTZ Lens |
Lens Type |
Motorized |
Mount Type |
Board-in |
Focal Length |
2.7mm~13.5mm |
Aperture Type |
Auto |
Max. Aperture |
F1.8 |
Angle of View |
H: 105.9?~33.3?, V: 56?~18.7? |
Optical Zoom |
5x |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
W |
44m(144ft) |
18m(59ft) |
9m(30ft) |
4.5m(15ft) |
T |
133m
(436ft)
|
53m
(174ft)
|
26m
(85ft)
|
13m
(43ft)
|
PTZ |
Pan/Tilt Range |
Pan: 0° ~ 355° endless; Tilt: 0° ~ 80° |
Manual Control Speed |
Pan: 32° ~51° /s; Tilt: 22° ~40° /s |
Presets Speed |
Pan: 51° /s ; Tilt: 40° /s |
Presets |
80 |
Speed Setup |
Human-oriented focal Length/ speed adaptation |
Power up Action |
Auto restore to previous PTZ and lens status after power failure |
Protocol |
DH-SD, Pelco-P/D (Auto recognition) |
Intelligence |
IVS |
Tripwire, Intrusion |
Video |
Compression |
H.265/H.264/H.264B/H.264H/MJPEG(sub stream) |
Smart Codec |
Support H.265+/H.264+ |
Streaming Capability |
2 Streams |
Resolution |
Panoramic Camera |
1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240)
|
PTZ Camera |
1080P(1920x1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640×480)/CIF(352×288/352x240) |
Frame Rate |
Panoramic Camera |
Main Stream: 1080P(1~25fps) |
Sub Stream: D1(1 ~ 25fps) |
PTZ Camera |
Main Stream: 1080P(1~25fps) |
Sub Stream: D1(1~25fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
Panoramic Camera |
H.265: (16Kbps~ 6144Kbps)
H.264: (32Kbps~ 8192Kbps)
|
PTZ Camera |
H.265: 4Kbps~ 8192Kbps
H.264: 8Kbps~ 7168Kbps
|
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / DWDR |
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detetion |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization(EIS) |
N/A |
Smart IR |
N/A |
Defog |
N/A |
Digital Zoom |
16x |
Flip |
0°/90°/180°/270° |
Mirror |
Support |
Privacy Masking |
Panoramic Camera |
Off / On (4 Area, Rectangle) |
PTZ Camera |
Off / On (24 Area, Rectangle) |
Audio |
Compression |
G.711a/G.711Mu/AAC/ G.726 |
Network |
Ethernet |
RJ-45 (100/1000Base-T) |
Protocol |
HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP |
Interoperability |
ONVIF Profile T, CGI |
Streaming Method |
Unicast / Multicast |
Max. User Access |
10 Users/20 Users |
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 256GB
|
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
Smart PSS, DSS, DMSS |
Smart Phone |
IOS, Android |
Certifications |
Certifications |
CE:EN 60950-1
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|
Interface |
Video Interface |
N/A |
Audio Interface |
1/1 channel In/Out |
RS485 |
1 Port |
Alarm |
3 channel In: 5mA 5VDC
2 channel Out: 300mA 12V
|
Electrical |
Power Supply |
DC12V(±30%), PoE(802.3at)(Class 4) |
Power Consumption |
DC12V:7.2W 14.8W(IR+PTZ+Zoom)
PoE:7.4W 16.1W(IR+PTZ+Zoom)
|
Environmental |
Operating Conditions |
-10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH |
Strorage Conditions |
-10° C ~ +50° C (-14° F ~ +122° F) / Less than 95% RH |
Ingress Protection |
N/A |
Vandal Resistance |
N/A |
Construction |
Casing |
Metal+Plastic |
Dimensions |
?172mm×123.4mm(?6.77”×4.86”) |
Net Weight |
0.78kg(1.72lb) |
Gross Weight |
1.13kg(2.5lb) |
