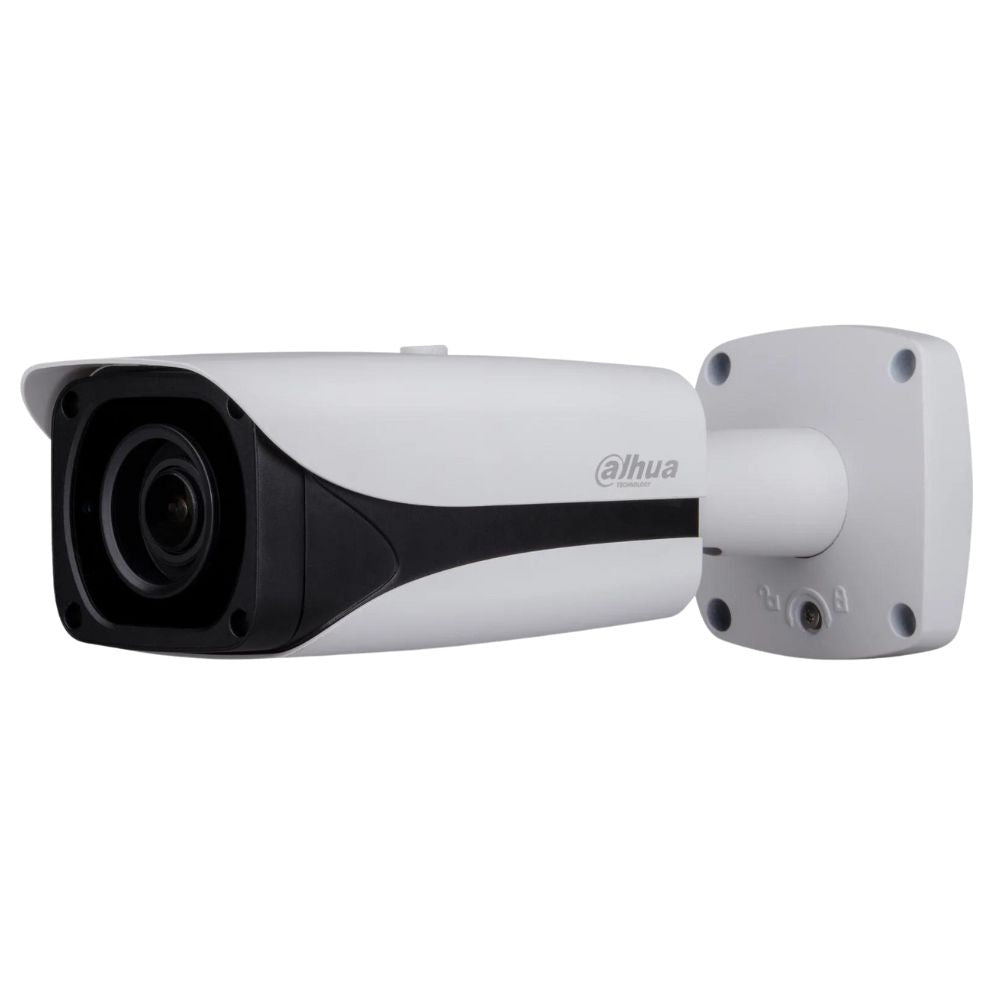

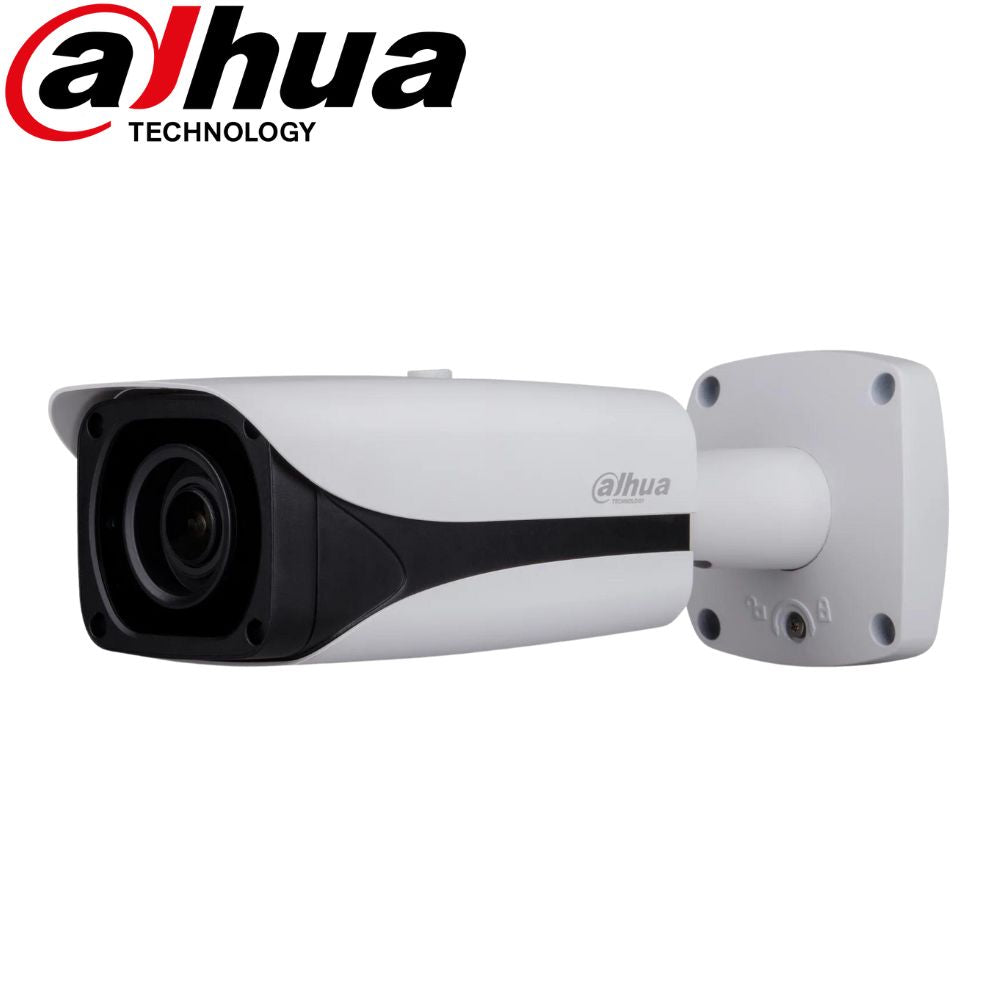

The Dahua DH-HAC-HFW3231EP-ZT-2712 is a 2MP Starlight HDCVI IR bullet camera optimized for mission-critical deployments where both image quality and system simplicity matter. It delivers crisp full HD video, 100 m IR night vision, true WDR for high-contrast environments, and flexible multi-interface output — all while leveraging existing coaxial infrastructure with HD‑CVI. Ideal for mid- to large‑scale installations demanding durability and reliability.
Key Features
-
Starlight Sensor – High-sensitivity 1/2.8″ CMOS delivers sharp colour images in ultra-low-light (0.005 Lux).
-
True WDR (120 dB) – Balances bright and dark regions in scenes with harsh lighting contrast.
-
Motorised Varifocal Lens (2.7–12 mm) – Offers remote zoom and focus for flexible field-of-view adjustments.
-
Smart IR (up to 100 m) – IR LEDs dynamically adjust illumination to avoid overexposure and retain detail at various distances.
-
Tri‑Output Video (CVI / SDI / CVBS) – Supports HD‑CVI, SD standard, and SDI simultaneously for versatile deployment.
-
Real‑Time Long‑Distance Transmission – Up to 800 m over coax, or 300 m via UTP, with simultaneous power, video, audio and control.
-
Built-In Audio & Alarm Support – Includes one audio input and one alarm input/output for integration with external systems.
-
Durable Design (IP67 & IK10) – Rugged aluminium housing withstands dust, water immersion, and impacts. Operates between –30 °C to +60 °C.
Perfect For:
- Parking Lots & Warehouses
- Perimeter Security
- Schools & Offices
- Retail & Storefronts
Installer Tips
-
Mounting Height: Ideal at 3–4 m for best Smart IR (100 m range).
-
Remote Setup: Adjust 2.7–12 mm motorised lens via coax OSD or DVR.
-
Video Output: Choose HD-CVI, CVBS, or SDI using dual BNCs—ensure DVR matches.
-
Smart IR: Manually tune to avoid overexposure in close-range scenes.
-
Power: Use DC 12 V or AC 24 V with surge protection.
-
Lighting Test: Check image in both day and night (Starlight, WDR features).
-
Secure Mounting: IK10-rated; pair with anti-vandal brackets (e.g., PFA152-E).
Downloads
Quick-Read Specs
| Spec |
Detail |
| Resolution |
1080p (1920 × 1080), up to 30 fps |
| Sensor |
1/2.8″ CMOS, 2.1 MP (1945 × 1097 pixels) |
| Lens |
Motorised varifocal 2.7–12 mm, Auto‑Iris |
| Field of View (H) |
approx. 95° (wide) to 36° (telephoto) |
| Low‑Light |
0.005 Lux @ F1.4, Color (30 IRE); IR on = 0 Lux |
| Smart IR Range |
Up to 100 m with auto brightness adjustment |
| WDR |
True 120 dB WDR (BLC/HLC/WDR modes) |
| Noise Reduction |
2D/3D NR |
| Video Outputs |
HDCVI + CVBS + SDI via individual BNC ports |
| Audio/Alarm |
1 × Audio In, 1 × Alarm In/Out |
| Power Consumption |
Max ~16.6 W with IR active |
| Power Supply |
AC 24 V ±25% or DC 12 V ±25% |
| Weather / Vandal |
IP67 • IK10 rated aluminum housing |
| Operating Conditions |
–30 °C to +60 °C, ≤95% RH (no condensation) |
| Dimensions / Weight |
273.2 × 95.0 × 95.0 mm; net 1.16 kg |
| DORI (Wide / Tele) |
Detect: 48 m / 133 m · Observe: 19 m / 53 mRecognize: 10 m / 27 m · Identify: 5 m / 13 mciteturn0search9turn0search4 |
Extra Info
Starlight Performance & Low-Light Clarity
An ultra-sensitive Starlight sensor enables this camera to maintain vivid colours and detail even in near-darkness, ideal for properties, driveways, or perimeters with poor lighting.
True 1080p with Motorised Lens
Remote control of the 2.7–12 mm auto-iris lens ensures accurate framing and sharp focus without physical adjustments — perfect for variable scenes or multi-site installations.
Smart IR Illumination
Equipped with four IR LEDs and Smart IR, the camera ensures consistent illumination during night vision—bright enough at long distances yet prevents IR washout at close range.
Flexible Video & System Interfaces
Dual BNC ports allow simultaneous HD (CVI) and analog (CVBS) output, with additional SDI. Also includes OSD menu control over coax, microphone input, and alarm triggers.
Long-Distance HD Transmission Over Coax
HD‑CVI allows simultaneous video, power, audio, and control via a single coax cable—supporting up to 800 m for 1080p signal with ultra-low latency.
3D Noise Reduction & Electronic Defogging
Advanced 2D/3D NR and defog modes help clean video under challenging environmental conditions, improving clarity in foggy or dusty installations.
Ultra-Rugged Build for Harsh Environments
Rated IP67 for water/dust resistance and IK10 for impact protection. Built to endure extreme temperature fluctuations, voltage variability (±25%), and lightning surges.
Elegant, Low-Profile Design
Featuring a discreet dark-glass faceplate and sleek aluminium body, this camera blends into modern environments while conveying a professional, project-grade aesthetic.
Q&A
Q: Does this camera provide true 1080p video?
A: Yes — it offers up to 30 fps at full HD 1080p resolution with accurate detail and minimal latency.
Q: Can I change the zoom or focus remotely?
A: Yes. The motorised 2.7–12 mm auto-iris lens supports remote zoom and focus via the DVR or coax OSD, ideal for flexible positioning.
Q: How far can it see at night?
A: The Smart IR LEDs provide illumination up to approximately 100 meters, balancing brightness across close and distant scenes.
Q: Is it vandal-resistant?
A: Yes. With IK10-rated housing, it can resist impacts equivalent to a 55 kg force (~120 lbs).
Q: Can I upgrade from analog without rewiring?
A: Absolutely. HD‑CVI supports HD video and control over existing coaxial cables, making upgrades straightforward and cost-effective.
Q: Can it integrate with alarms or audio systems?
A: Yes. It includes a built-in audio input and alarm in/out ports, enabling integration with sirens, sensors, or intercom devices.
