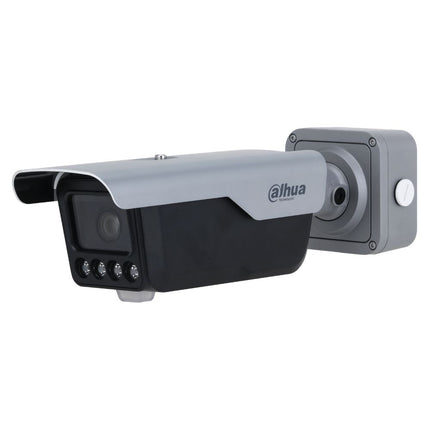

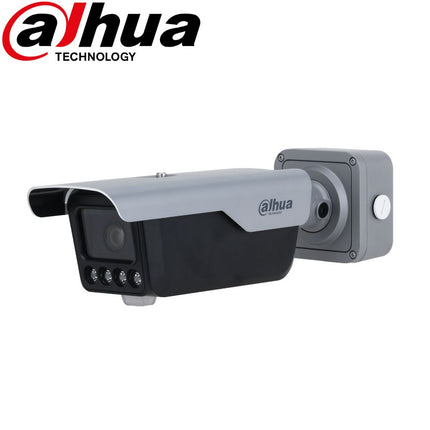

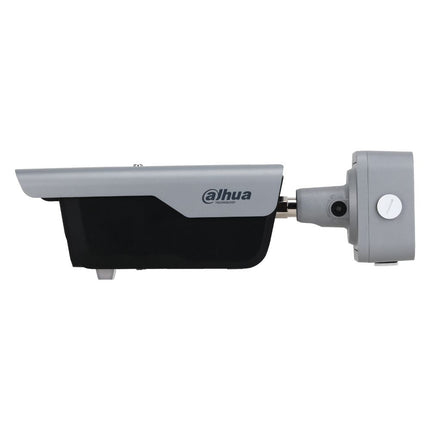

Dahua Security Camera: 4MP ANPR, 8mm–32mm Motorised - DHI-ITC413-PW4D-IZ3

Description

Description

Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colours. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.

Suitable for shopping malls, hospitals, schools, communities, office buildings and stations.

Camera Features

  • High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
  • Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
  • Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
  • Built-in LED for simplified installation and commissioning.
  • All-in-one structure with junction box and bracket, and it is also low power consumption.
  • IP67 and IK10 rated.
  • Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
  • Easily adapts to scenarios through its motorized vari-focal lens.

Datasheet
Tech Specs

Camera

Image Sensor

1/1.8" CMOS

Image Resolution

2688 × 1520

Electronic Shutter Speed

Auto/Manual 1/25 s–1/100,000 s

Max. Detection Speed

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h

Min. Illumination

DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1:
0.001 Lux@F1.4 (Color, 30 IRE)
0.0002 Lux@F1.4 (B/W, 30 IRE)
0 Lux (Illuminator on)
DHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3:
0.001 Lux@F1.6 (Color, 30 IRE)
0.0002 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)

ROM

4 GB

RAM

1 GB

S/N Ratio

>56 dB

Scanning System

progressive scanning

Lens

Focal Length

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

2.7 mm–12 mm
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

8 mm–32 mm

Field of View

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
H: 92° (W)—46.1° (T)
V: 49° (W)—26.0° (T)
D: 109° (W)—52.8° (T)
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
H: 39.9° (W)—15.1° (T)
V: 21.8° (W)—8.5° (T)
D: 46.6° (W)—17.4° (T)

Focus Control

Auto, area focus, manual

Number of Lens

1

Lens Type

Motorized Vari-focal

Max. Aperture

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:1.6

Iris Control

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W:

(DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

60.4 m (198.16 ft)

24.2 m

(79.40 ft)

12.1 m

(39.70 ft)

6.0 m

(19.68 ft)

T:

(DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

128.7 m (422.24 ft)

51.5 m (168.96 ft)

25.7 m

(84.32 ft)

12.9 m

(42.32 ft)

W:

(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

160.0 m (524.93 ft)

64.0 m (209.97 ft)

32.0 m (104.99 ft)

16.0 m (52.49 ft)

T:

(DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

406.9 m (1334.97 ft)

162.8 m (534.12 ft)

81.4 m (267.06 ft)

40.7 m (133.53 ft)

Illuminator

Illuminator Number

4

Illuminator On/Off Control

Auto, manual

Illuminator Type

DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm)
DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:Dual Illuminators (730 nm IR/warm light)

Illumination Distance

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
ANPR: 10 m (32.81 ft)
Video monitoring: 30 m (98.43 ft)
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
ANPR: 30 m (98.43 ft)
Video monitoring: 60 m (196.85 ft)

Smart Illumination

According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time.

Infrared Wavelength

DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm
DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:730 nm

Video

Video Resolution

Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

Stream

PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps);
NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)

Video Compression

H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M

Video Bit Rate

H.264B: 2,179 kbps–13,074 kbps
H.264M: 2,179 kbps–13,074 kbps
H.264H: 2,179 kbps–13,074 kbps
H.265: 2,179 kbps–13,074 kbps
MJPEG: 6,537 kbps–39,223 kbps

Scene Self-adaptation (SSA)

Yes

Gain Control

Manual; Auto

Noise Reduction

3D NR

Region of Interest (RoI)

Yes, 3

Image Tampering Prevention

Yes. Watermarks can be added to videos and images. The watermark can also be verified.

Bit Rate Control

CBR; VBR

Function

Storage

Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G

Restricted List/Trusted List

Allowlist: 110,000
Blocklist: 110,000

IVS

Intrusion detection, loitering detection, up to 4 areas can be set.

Basic Event

Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.

Sound and Light Alarm

Yes, blue & red indicator, and supports broadcasting custom audio.

Alarm Linkage

Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence

Capture Distance

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

3 m–8 m (9.84 ft–26.25 ft)
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

8 m–30 m (26.25 ft–98.43 ft)

Detected Width

DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

3 m–4 m (9.84 ft–13.12 ft)
DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

6 m–8 m (19.69 ft–26.25 ft)

Network

Network Protocol

HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

API

Yes

SDK

Yes

Interoperability

ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P

Management Software

DSS Pro; DSS Express; Cybercity; Smart PSS

Security

Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

Browser

Plug in:
IE 9, 10, 11.
Chrome 52 and earlier versions
Firefox 42 and earlier versions
No plug in:
Chrome 92 and later versions


Image Encoding Format

JPEG

Image Setting

Brightness; contrast; saturation; gamma; sharpness; gain; white balance

Day/Night

IR filter, support three modes: color/B/W/auto

WDR

140 dB

HLC

Yes

BLC

Yes

White Balance

Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp

Digital Detail Enhancement (DDE)

Yes

OSD Overlay

Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

Audio

Audio Port

Yes

Built-in MIC

Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k.

Built-in Speaker

Yes; Power: 2 W

Port

Audio Output

1 channel (RCA port)

Network Port

RJ-45 (10/100/1000 self-adaptive Ethernet Port)

Alarm Input

2, optocoupler input (wet node on-off value: 5 V)

Alarm Output

2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers

RS-485

2 (half duplex,Transparent,DHRS,Push Data through Serial Port)

Reset Button

Yes

Wiegand

1 channel, SHA-1 26 bit

Performance

Maximum Number of Passed Vehicles

10,000

Max. Number of Connections

10

Intelligence

AI Recognition

Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate.

Video Metadata

Displays the intelligent frame, plate and vehicle paths.

Vehicle Brand

Recognizes 147 vehicle logos.

Vehicle Color

Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.

Vehicle Type Recognition

Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup

Country and Region Supported by ANPR

Baseline support:
GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon)
Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia)
Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana)
North America (United States, Canada)
Can be customized:
Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, Mauritius

Capture Rate

In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%

Recognition Rate

In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%

General

Remote control

Yes

Communication Band

433 MHz; 868 MHz

Remote Control Distance

15 m (49.21 ft) (In an open, undisturbed environment)

Power Supply

12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W

Power Consumption

Power consumption in different conditions:
No lighting < 6 W
Lighting <12 W
Speaker and Red/Blue Light Warning on < 17 W

Protection

IK10; IP67

Material

Aluminum alloy body+Plastic

Product Dimensions

395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" ×

5.03") (L × W × H)

Packaging Dimensions

447.0 mm × 240.0 mm × 233.0 mm (17.60" × 9.45" × 9.17")

Net Weight

2.3 kg (5.07 lb)

Gross Weight

3.2 kg (7.05 lb)

Storage Humidity

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Temperature

≤ 95% (non-condensing)

Operating Temperature

–30 °C to +65 °C (–22 °F to +149 °F)

Operating Humidity

10%–90% (non-condensing)

Certifications

CE-EMC; CE-LVD; CE-RED; FCC

3-Years Warranty

The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

Please get in touch with our support team at support@secsource.com.au or 1300-049-519.

  • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
  • We will not cover inbound shipping of the return to us.
  • We will cover outbound shipping for any replacements to the customer.
  • We will need the serial number of the product and your order number.
  • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.

Dahua Security Camera: 4MP ANPR, 8mm–32mm Motorised - DHI-ITC413-PW4D-IZ3

Product form

SKU: DHI-ITC413-PW4D-IZ3

$1,461.00 $1,213.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Description

    Description

    Using deep learning algorithms, Smart ANPR Camera can recognize vehicles, license plates, vehicle brands and vehicle colours. It can be used in scenarios that require vehicle detection and recognition. It also supports using IVS to detect events, and triggers sound and light alarms. The camera can perform various functions without being connected to other devices, which not only greatly improves the security of factories and compounds, but also simplifies the installation process. The camera is dustproof, waterproof, and tamper-proof, and is IP67 rated and IK10 rated.

    Suitable for shopping malls, hospitals, schools, communities, office buildings and stations.

    Camera Features

    • High-performance CMOS image sensor and processor that supports continuously extracting metadata 24/7.
    • Adopts intelligent deep learning algorithms and supports recognition of unlicensed vehicles and the type, brand and color of vehicles.
    • Built-in signal port, data port, communication port and remote controllers assist in controlling external devices such as entry and exit barriers.
    • Built-in LED for simplified installation and commissioning.
    • All-in-one structure with junction box and bracket, and it is also low power consumption.
    • IP67 and IK10 rated.
    • Supports intrusion and loitering detection and triggers light and voice alarms when perimeter events occur to actively deter targets. Custom audios can also be imported and edited.
    • Easily adapts to scenarios through its motorized vari-focal lens.

    Datasheet
    Tech Specs

    Camera

    Image Sensor

    1/1.8" CMOS

    Image Resolution

    2688 × 1520

    Electronic Shutter Speed

    Auto/Manual 1/25 s–1/100,000 s

    Max. Detection Speed

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:80 km/h
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:120 km/h

    Min. Illumination

    DHI-ITC413-PW4D-Z1,DHI-ITC413-PW4D-IZ1:
    0.001 Lux@F1.4 (Color, 30 IRE)
    0.0002 Lux@F1.4 (B/W, 30 IRE)
    0 Lux (Illuminator on)
    DHI-ITC413-PW4D-Z3,DHI-ITC413-PW4D-IZ3:
    0.001 Lux@F1.6 (Color, 30 IRE)
    0.0002 Lux@F1.6 (B/W, 30 IRE)
    0 Lux (Illuminator on)

    ROM

    4 GB

    RAM

    1 GB

    S/N Ratio

    >56 dB

    Scanning System

    progressive scanning

    Lens

    Focal Length

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

    2.7 mm–12 mm
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

    8 mm–32 mm

    Field of View

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
    H: 92° (W)—46.1° (T)
    V: 49° (W)—26.0° (T)
    D: 109° (W)—52.8° (T)
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
    H: 39.9° (W)—15.1° (T)
    V: 21.8° (W)—8.5° (T)
    D: 46.6° (W)—17.4° (T)

    Focus Control

    Auto, area focus, manual

    Number of Lens

    1

    Lens Type

    Motorized Vari-focal

    Max. Aperture

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:1.4
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:1.6

    Iris Control

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:DC-Iris
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:P-Iris

    DORI Distance

    Lens

    Detect

    Observe

    Recognize

    Identify

    W:

    (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

    60.4 m (198.16 ft)

    24.2 m

    (79.40 ft)

    12.1 m

    (39.70 ft)

    6.0 m

    (19.68 ft)

    T:

    (DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1)

    128.7 m (422.24 ft)

    51.5 m (168.96 ft)

    25.7 m

    (84.32 ft)

    12.9 m

    (42.32 ft)

    W:

    (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

    160.0 m (524.93 ft)

    64.0 m (209.97 ft)

    32.0 m (104.99 ft)

    16.0 m (52.49 ft)

    T:

    (DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3)

    406.9 m (1334.97 ft)

    162.8 m (534.12 ft)

    81.4 m (267.06 ft)

    40.7 m (133.53 ft)

    Illuminator

    Illuminator Number

    4

    Illuminator On/Off Control

    Auto, manual

    Illuminator Type

    DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:IR (850 nm)
    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:Dual Illuminators (730 nm IR/warm light)

    Illumination Distance

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:
    ANPR: 10 m (32.81 ft)
    Video monitoring: 30 m (98.43 ft)
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:
    ANPR: 30 m (98.43 ft)
    Video monitoring: 60 m (196.85 ft)

    Smart Illumination

    According to the brightness of the environment, the camera automatically adjusts the intensity of its light to reveal the details of moving targets. Devices with warm light can automatically adjust the light intensity according to the time.

    Infrared Wavelength

    DHI-ITC413-PW4D-IZ1, DHI-ITC413-PW4D-IZ3:850 nm
    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-Z3:730 nm

    Video

    Video Resolution

    Main stream: 4M (2688 × 1520)/1080p (1920 × 1080)/720p (1280 × 720)
    Sub stream: 720p (1280 × 720)/960H (960 × 576, 960 × 480)/D1 (704 × 576, 704 × 480)/CIF (352 × 288, 352 × 240)

    Stream

    PAL: Main stream (2688 × 1520@25 fps, 1920 × 1080@25 fps, 1280 × 720@25 fps), sub stream (1280 × 720@25 fps, 960 × 576@25 fps, 704 × 576@25 fps, 352 × 288@25 fps);
    NTSC: Main stream (2688 × 1520@30 fps, 1920 × 1080@30 fps, 1280 × 720@30 fps), sub stream (1280 × 720@30 fps, 960 × 480@30 fps, 704 × 408@30 fps, 352 × 240@30 fps)

    Video Compression

    H.264H; H.264B; H.264M by default; H.265; MJPEG; H.264M

    Video Bit Rate

    H.264B: 2,179 kbps–13,074 kbps
    H.264M: 2,179 kbps–13,074 kbps
    H.264H: 2,179 kbps–13,074 kbps
    H.265: 2,179 kbps–13,074 kbps
    MJPEG: 6,537 kbps–39,223 kbps

    Scene Self-adaptation (SSA)

    Yes

    Gain Control

    Manual; Auto

    Noise Reduction

    3D NR

    Region of Interest (RoI)

    Yes, 3

    Image Tampering Prevention

    Yes. Watermarks can be added to videos and images. The watermark can also be verified.

    Bit Rate Control

    CBR; VBR

    Function

    Storage

    Bult-in TF card port. Supports Kingston 16 G, 32 G, 128 G, 256 G; Dahua card 16 G, 32 G, 128 G, 256 G; SanDisk 16 G, 32 G, 128 G, 256 G

    Restricted List/Trusted List

    Allowlist: 110,000
    Blocklist: 110,000

    IVS

    Intrusion detection, loitering detection, up to 4 areas can be set.

    Basic Event

    Alarms for events of defocus, no storage card, storage card no space, storage card error, network disconnection, IP conflict, and illegal access.

    Sound and Light Alarm

    Yes, blue & red indicator, and supports broadcasting custom audio.

    Alarm Linkage

    Upload to FTP/Memory card, notify monitoring center, send e-mail, trigger alert output, snapshot and active deterrence

    Capture Distance

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

    3 m–8 m (9.84 ft–26.25 ft)
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

    8 m–30 m (26.25 ft–98.43 ft)

    Detected Width

    DHI-ITC413-PW4D-Z1, DHI-ITC413-PW4D-IZ1:

    3 m–4 m (9.84 ft–13.12 ft)
    DHI-ITC413-PW4D-Z3, DHI-ITC413-PW4D-IZ3:

    6 m–8 m (19.69 ft–26.25 ft)

    Network

    Network Protocol

    HTTP; Https; 802.1x; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; IPv4/v6; NTP; SFTP;DDNS; SNMP; PPPoE

    API

    Yes

    SDK

    Yes

    Interoperability

    ONVIF (Profile S/Profile T); CGI; ITSAPI; P2P

    Management Software

    DSS Pro; DSS Express; Cybercity; Smart PSS

    Security

    Username and password; MAC address; HTTPS; IEEE 802.1x; network access control

    Browser

    Plug in:
    IE 9, 10, 11.
    Chrome 52 and earlier versions
    Firefox 42 and earlier versions
    No plug in:
    Chrome 92 and later versions


    Image Encoding Format

    JPEG

    Image Setting

    Brightness; contrast; saturation; gamma; sharpness; gain; white balance

    Day/Night

    IR filter, support three modes: color/B/W/auto

    WDR

    140 dB

    HLC

    Yes

    BLC

    Yes

    White Balance

    Auto; Regional Custom; Manual; Outdoor; Natural; Street Lamp

    Digital Detail Enhancement (DDE)

    Yes

    OSD Overlay

    Supports overlay of time; address (position of channel), lane (number/direction), plate (number and color), vehicle (speed, color, type)

    Audio

    Audio Port

    Yes

    Built-in MIC

    Yes; Pick-up distance: 3 m (9.84 ft), Sampling Rate: 48 k.

    Built-in Speaker

    Yes; Power: 2 W

    Port

    Audio Output

    1 channel (RCA port)

    Network Port

    RJ-45 (10/100/1000 self-adaptive Ethernet Port)

    Alarm Input

    2, optocoupler input (wet node on-off value: 5 V)

    Alarm Output

    2, relay output (2A 30 VDC/0.5A 125 VAC), which can connect to devices such as barriers

    RS-485

    2 (half duplex,Transparent,DHRS,Push Data through Serial Port)

    Reset Button

    Yes

    Wiegand

    1 channel, SHA-1 26 bit

    Performance

    Maximum Number of Passed Vehicles

    10,000

    Max. Number of Connections

    10

    Intelligence

    AI Recognition

    Recognizes vehicle types, vehicle signs, vehicle color, vehicle plate, plate, vehicle without plate.

    Video Metadata

    Displays the intelligent frame, plate and vehicle paths.

    Vehicle Brand

    Recognizes 147 vehicle logos.

    Vehicle Color

    Recognizes 12 colors: Grey, black, white, silver, blue, green, purple, red, orange, pink, brown, and yellow.

    Vehicle Type Recognition

    Recognizes 10 vehicle types: Large Bus, Heavy Truck, Medium Truck, Sedan, Van, Light Truck, Medium Bus, SUV, MPV, Pickup

    Country and Region Supported by ANPR

    Baseline support:
    GCC (U.A.E., Saudi Arabia, Morocco, Oman, Iraq, Egypt, Jordan, Qatar, Kuwait, Bahrain, Lebanon)
    Europe (Netherlands, France, Germany, Britain, Italy, Poland, Belgium, Bulgaria, Serbia, Slovakia, Spain, Denmark, Turkey, Israel, Czech Republic, Bosnia and Herzegovina, Switzerland, Austria, Hungary, Romania, Lithuania, Latvia, Sweden, Estonia, Portugal, Greece, Slovenia, Luxembourg, Palestine, Lebanon, Ireland, Finland, Norway, Croatia, North Macedonia)
    Russian-speaking regions (Russia, Ukraine, Kyrgyzstan, Uzbekistan, Moldova, Lithuania, Latvia, Georgia, Azerbaijan, Turkmenistan)
    SADC (Uruguay, Paraguay, Brazil, Argentina, Chile, Colombia, Peru, Ecuador, Guyana)
    North America (United States, Canada)
    Can be customized:
    Mongolia, Japan, Philippines, Vietnam, Laos, Cambodia, myanmar, Thailand, Malaysia, Singapore, Indonesia, Bangladesh, India, Pakistan, Curacao, Mexico, Guatemala, Costa Rica, Australia, New Zealand, Tunisia, Algeria, Ethiopia, Tanzania, Uganda, Equatorial Guinea, Nigeria, Zambia, Mozambique, South Africa, Mauritius

    Capture Rate

    In the recommended installation and lighting condition, the vehicle capture rate ≥ 99%

    Recognition Rate

    In the recommended installation and lighting condition, the recognition rate for positive and departing vehicles≥ 96%; the recognition rate for European vehicle plates ≥ 98%

    General

    Remote control

    Yes

    Communication Band

    433 MHz; 868 MHz

    Remote Control Distance

    15 m (49.21 ft) (In an open, undisturbed environment)

    Power Supply

    12 VDC, 2 A and POE:802.3at,Type 2,Class 4,(44V to 57V), 0.455A to 0.351A,max.20W

    Power Consumption

    Power consumption in different conditions:
    No lighting < 6 W
    Lighting <12 W
    Speaker and Red/Blue Light Warning on < 17 W

    Protection

    IK10; IP67

    Material

    Aluminum alloy body+Plastic

    Product Dimensions

    395.0 mm × 120.8 mm × 127.8 mm (15.55" × 4.76" ×

    5.03") (L × W × H)

    Packaging Dimensions

    447.0 mm × 240.0 mm × 233.0 mm (17.60" × 9.45" × 9.17")

    Net Weight

    2.3 kg (5.07 lb)

    Gross Weight

    3.2 kg (7.05 lb)

    Storage Humidity

    –40 °C to +70 °C (–40 °F to +158 °F)

    Storage Temperature

    ≤ 95% (non-condensing)

    Operating Temperature

    –30 °C to +65 °C (–22 °F to +149 °F)

    Operating Humidity

    10%–90% (non-condensing)

    Certifications

    CE-EMC; CE-LVD; CE-RED; FCC

    3-Years Warranty

    The Dahua 3-Year Manufacturer Warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, we will mediate the warranty process with the manufacturer for you. We will handle this as fast and efficiently as possible. We will not wait for the manufacturer to send your replacement, when your item is determined to be faulty we will send you a new replacement as soon as possible.

    Please get in touch with our support team at support@secsource.com.au or 1300-049-519.

    • The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
    • We will not cover inbound shipping of the return to us.
    • We will cover outbound shipping for any replacements to the customer.
    • We will need the serial number of the product and your order number.
    • Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.

    Recently viewed products
