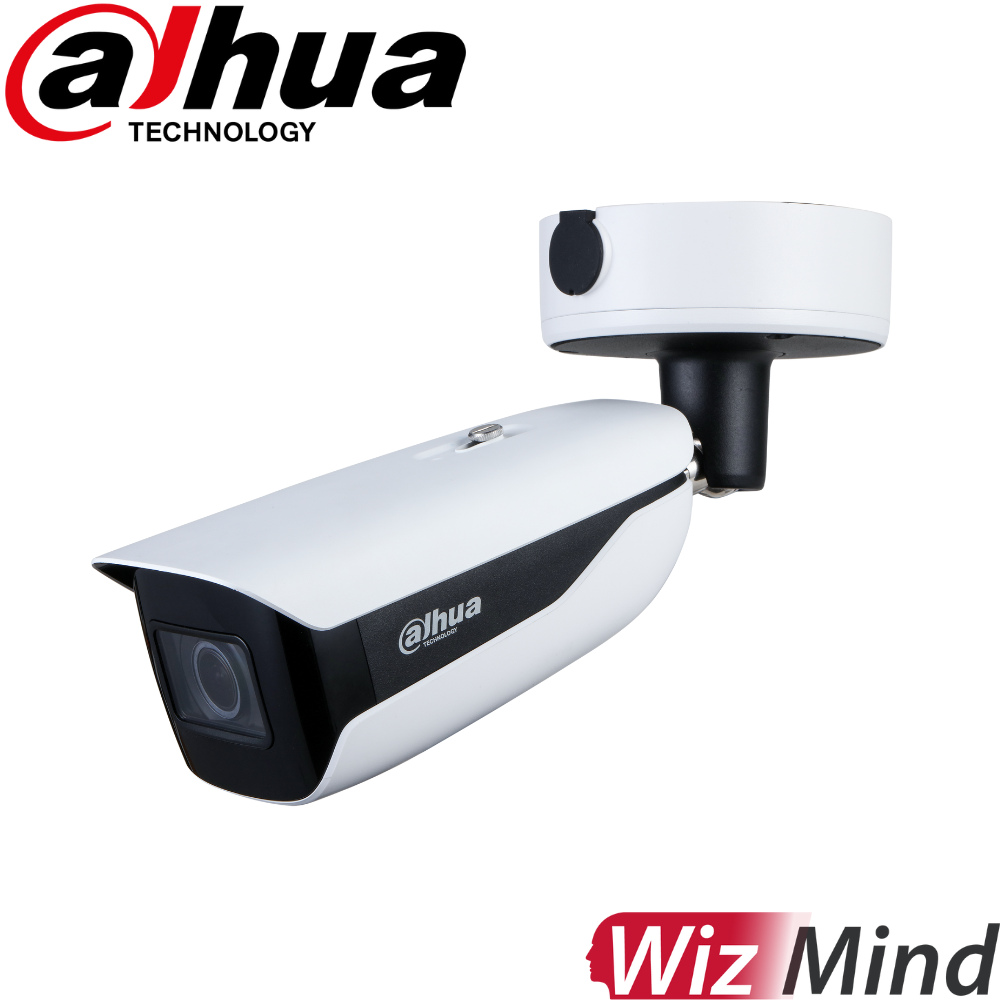

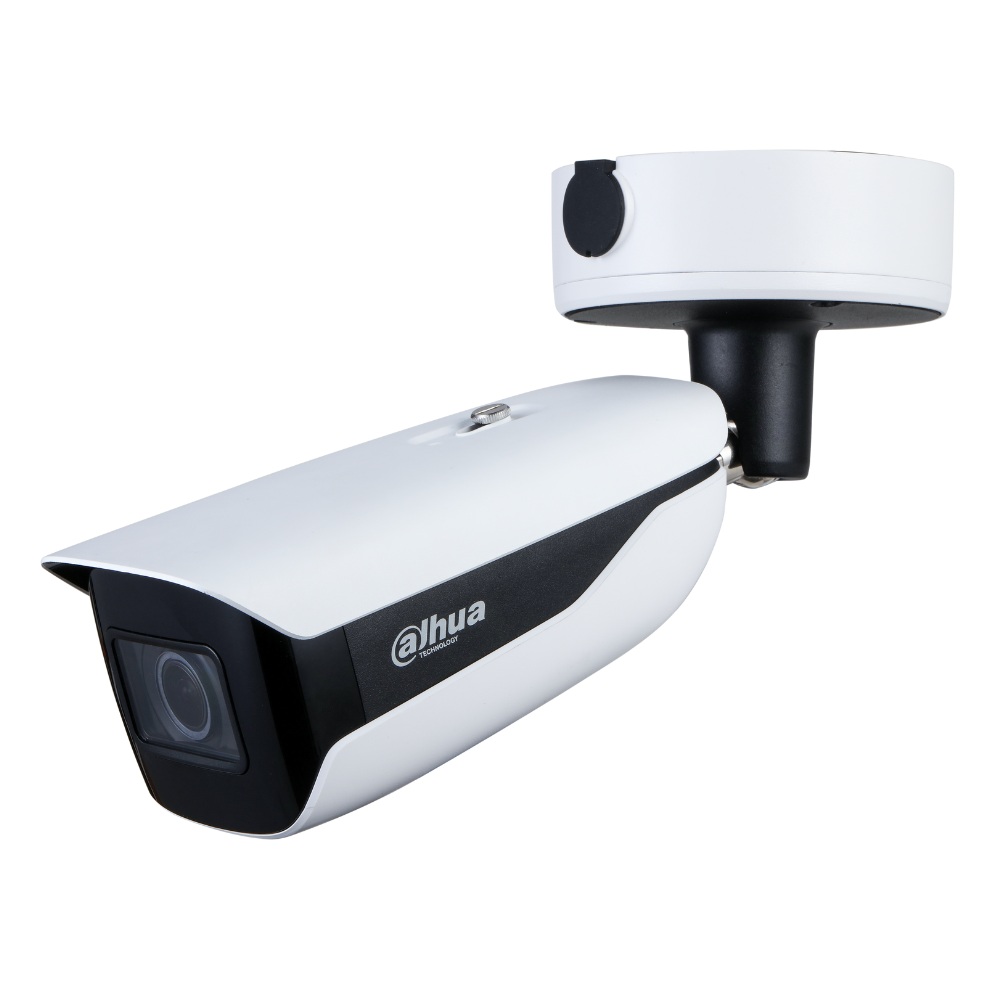

The DH-IPC‑HFW5442H‑ZE is a smart bullet camera designed for precision outdoor surveillance. With motorised zoom, long‑range IR, and onboard AI analytics, it delivers reliable, intelligent monitoring for businesses and public spaces. Robust build quality ensures performance in harsh environments.
Key Features
-
Motorised 2.7–12 mm Lens – Easily adjust zoom remotely for wide-area coverage or zoomed detail.
-
60 m IR + Starlight+ – Captures clear, low-light colour footage and sharp night vision.
-
Face Detection & Attributes – On-device facial capture with age, gender, mask, and expression tagging.
-
Perimeter Protection (IVS) – Detects human/vehicle intrusion reliably with minimal false alarms.
-
People Counting & Queue Monitoring – Built-in analytics for foot traffic and queue management insights.
-
Smart H.265+ Compression – Reduces storage and bandwidth needs by around 70%.
-
IP67 + IK10 + ePoE – Durable and vandal-resistant with extended cable capability up to 800 m.
-
Audio I/O Ports – External mic/speaker support enables voice recording or alerts.
Perfect For:
- Retail entrances with customer behaviour monitoring
- Parking lots or gated communities
- School and campus perimeter surveillance
- Public transport platforms
- Loading docks or entry checkpoints
- Industrial or government facility exteriors
Install Tips
- Use motorised zoom post-install to fine-tune framing via NVR or app.
- Leverage ePoE for runs up to 800 m without extra cabling.
- Mount at ~3 m to optimize face capture and zone detection.
- Enable queue analytics for customer zones using Smart PSS or DSS.
- Pair with AI-capable NVR to activate smart search or analytics logs.
- Add microSD and configure overwrite for local backup during outages.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
4 MP (2688×1520 @30 fps) |
| Lens |
2.7–12 mm motorised zoom, F1.8 |
| Night Vision |
60 m IR (4 LEDs) + Starlight+ |
| Deterrence |
AI-based alerts (no siren/light) |
| AI Features |
Face Detection, Perimeter Protection, People Counting |
| Audio |
1 in / 1 out (3.5 mm jacks) |
| Storage |
microSD 256 GB, NAS, FTP/SFTP |
| Power |
12 V DC / PoE / ePoE |
| Weatherproofing |
IP67, IK10, optional anti-corrosion |
| Compression |
Smart H.265+, H.264+ |
Extra Info
Starlight+ Low-Light & 60 m IR
This camera features a large 1/1.8-inch sensor, designed to deliver exceptional low-light performance. It can capture full-color images in lighting as low as 0.003 lux, making it highly effective in environments where traditional cameras would switch to black and white or struggle to produce a usable image. In addition, built-in infrared (IR) LEDs provide night vision coverage up to 60 meters, ensuring crystal-clear surveillance in complete darkness. This combination makes the camera ideal for:
- Parking lots
- Warehouses
- Perimeters and open fields
- Any location with variable or poor lighting conditions
AI Analytics Suite
The camera includes an integrated AI engine capable of performing intelligent video analysis directly on the device. This includes:
-
Human and vehicle classification, significantly reducing false alarms from irrelevant motion (e.g., animals, wind-blown objects).
-
Face detection with metadata tagging such as age range, gender, facial expression, and mask detection—all processed on the edge, preserving bandwidth and speeding up review and search functions.
These advanced capabilities are especially valuable for perimeter protection, access control zones, and business intelligence applications.
People Counting & Queue Management
With support for up to 4 configurable zones, this camera enables real-time people counting and queue monitoring—vital for:
- Retail spaces
- Banks
- Public transportation hubs
-
Customer service areas
The system can trigger alerts based on crowd density, queue length, or dwell time, helping businesses optimize staffing, reduce wait times, and improve customer flow. Historical reports can also support operational planning and compliance with occupancy guidelines.
Smart Compression (H.265+)
Leveraging Smart H.265+ compression, the system automatically adjusts encoding settings based on scene complexity and motion activity. This delivers:
- Significant storage savings
- Lower bandwidth usage
-
Improved performance in network-constrained environments
It’s particularly beneficial in multi-camera installations, long-term video retention setups, or cloud-connected systems where data efficiency is crucial.
Robust Construction & ePoE
Built for durability, the camera features:
-
IK10-rated vandal-resistant housing, protecting against impacts and tampering
-
IP67 weatherproof sealing, making it suitable for outdoor deployments in all weather conditions
-
Optional anti-corrosion coating, ideal for coastal, industrial, or chemically exposed locations
Additionally, enhanced Power over Ethernet (ePoE) allows for long-distance transmission of both power and data (up to 800 meters), reducing infrastructure costs and simplifying installation in large-scale or hard-to-wire areas.
While the DH-IPC-HFW5442H-ZE does not feature built-in AcuPick, it fully supports AcuPick functionality when paired with a Dahua AI-capable NVR. The camera sends advanced metadata—including face detection, people counting, and perimeter intrusion—which the NVR uses to enable fast, AI-driven video search and filtering.
Benefits via AI NVR Integration:
- Search by human or vehicle presence
- Filter playback using traits like mask, gender, or clothing
- Skip irrelevant footage and jump to key events instantly
- Use AI-driven logs and smart snapshots from camera metadata
Q&A
Q: Can this record in color at night?
A: Yes. The Starlight+ sensor captures full-color images in very low light (down to 0.003 lux). In total darkness, it switches to IR-based black-and-white night vision up to 60 m.
Q: Does this camera have a siren or flashing lights?
A: No. This model does not include active deterrence features like lights or sirens.
Q: Will it work with other NVR brands?
A: Yes. It supports ONVIF (Profiles S/G/T), making it compatible with most third-party NVRs.
Q: Can I listen and talk through the camera?
A: It has a built-in mic and audio input/output, but two-way talk depends on your NVR or software setup.
Q: What’s the difference between this and a TiOC model?
A: TiOC models include active deterrence features like red/blue lights and sirens. This camera focuses on analytics and durability.
Q: How much recording can a 256GB card store?
A: Depending on bitrate and settings, roughly 1–2 weeks of continuous recording.
Q: Can I use this without an NVR?
A: Yes. With a microSD card installed, it can record independently for local playback via the app or browser.
