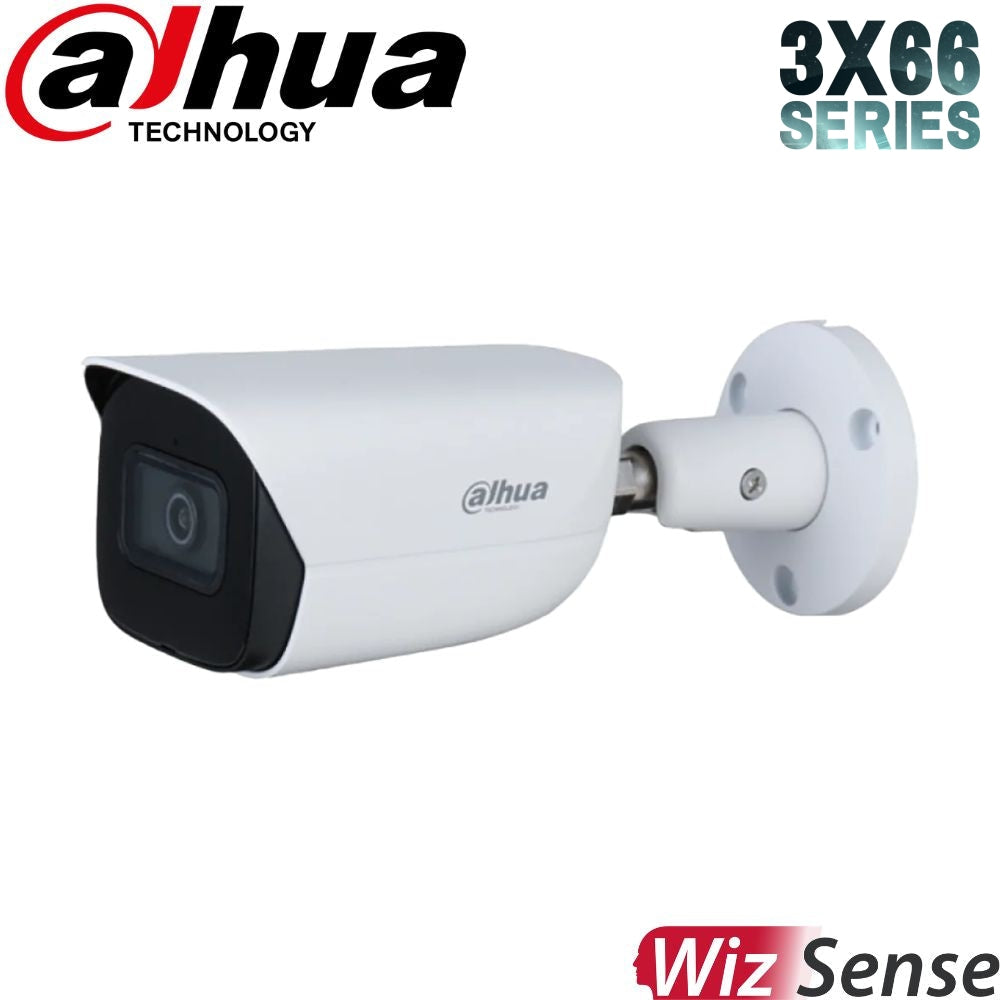

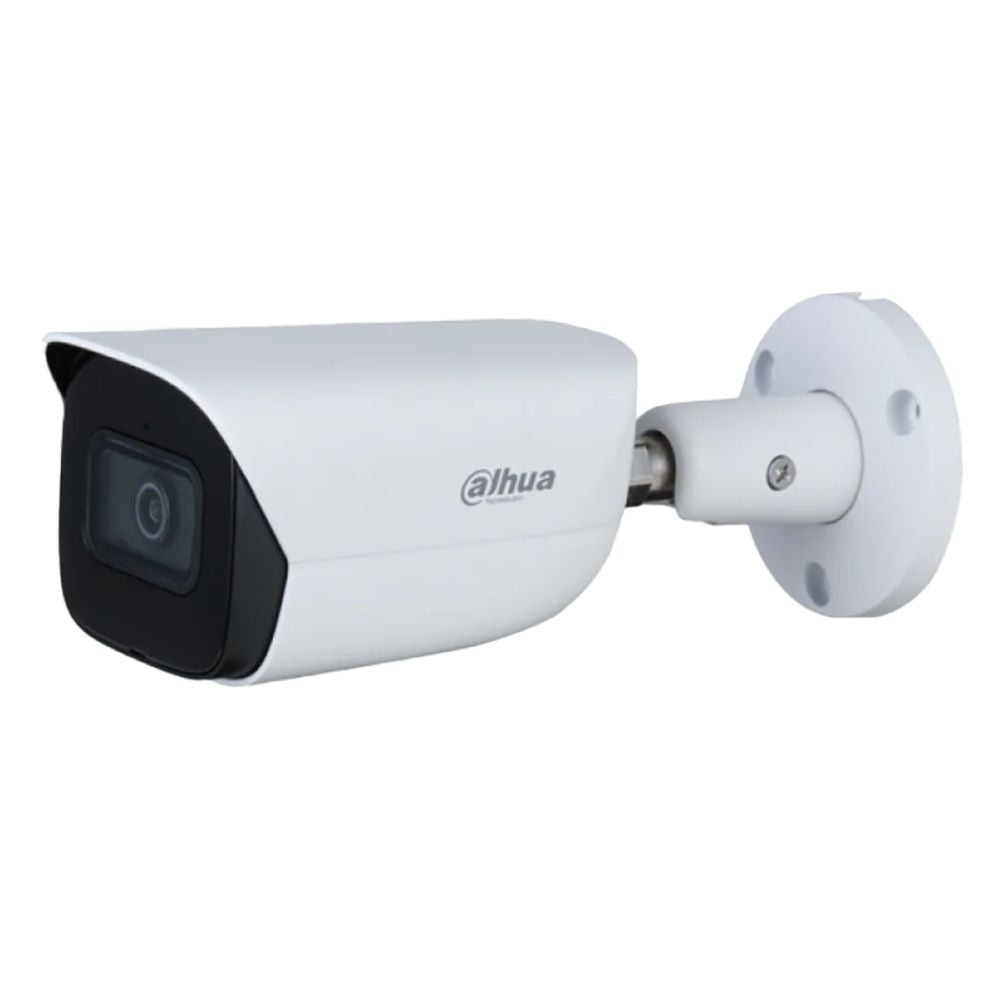

The DH-IPC-HFW3466EP-AS-AUS is a fixed-focal bullet network camera designed for users who need clear and reliable outdoor monitoring. Whether you're securing a storefront, warehouse, or property perimeter, this camera helps identify people and vehicles day or night. With smart motion detection and weatherproof housing, it fits both commercial and residential needs.
Key Features
-
Smart Motion Detection (SMD 4.0) – Reduces false alarms by filtering out irrelevant movement like animals.
-
AI Scene Self-Adaption (AI SSA) – Adjusts image settings in real time based on lighting or weather conditions.
-
Perimeter Protection – Accurately detects humans and vehicles for effective zone security.
-
50m IR Night Vision – Captures clear images in total darkness up to 50 meters away.
-
Built-in Mic – Records audio to provide better context during playback.
-
Flexible Lens Options – Choose from 2.8mm, 3.6mm, or 6mm for wider or more focused views.
-
Smart H.265+/H.264+ Compression – Saves bandwidth and storage without compromising video quality.
-
IP67 Weather Rating – Built tough for outdoor environments, resisting dust and rain.
Perfect For:
- Home entrances
- Small businesses
- Warehouses
- Outdoor parking areas
- Garage driveways
- Retail shopfronts
Install Tips
-
Mount at 8–10ft high for optimal face and license plate capture.
-
Use 2.8mm lens for wide angles near entrances; 6mm for longer distances.
-
PoE recommended for simple single-cable installation.
-
Pair with Dahua AI NVR to enable Quick Pick and Smart Search features.
-
Use waterproof junction box like PFA130-E for outdoor cable protection.
-
Adjust IR settings manually if mounting near reflective surfaces.
Downloads
Quick-Read Specs Card
| Spec |
Details |
| Resolution |
4MP (2688 × 1520) |
| Lens Options |
2.8mm / 3.6mm / 6mm |
| Night Vision |
50m IR range |
| AI Features |
SMD 4.0, Perimeter Protection, AI SSA |
| Deterrence |
N/A (no siren/lights) |
| Audio |
Built-in Mic, 1 In/Out (AS version only) |
| Storage |
microSD up to 256GB |
| Power |
12VDC or PoE (802.3af) |
| Weather Rating |
IP67 |
Extra Info
SMD 4.0 (Smart Motion Detection)
SMD 4.0 uses AI to detect and classify motion caused specifically by people and vehicles. This helps eliminate alerts from pets, shadows, or waving trees, ensuring only relevant events are recorded.
AI SSA (Scene Self-Adaption)
AI SSA automatically adapts the image settings to different lighting or weather conditions—such as fog, rain, or backlight—so you always get a clear and balanced picture, day or night.
Quick Pick with AI NVR
When used with a compatible AI NVR, Quick Pick makes it easy to find and filter human or vehicle footage from motion events—saving time during playback and investigations.
Smart Codec Technology
Dahua’s Smart H.265+ and H.264+ reduce video file sizes while keeping clarity, optimizing both bandwidth use and storage costs—ideal for long-term recording.
Cybersecurity Protection
Includes security features like video encryption, account lockout, IP filtering, and secure firmware updates—helping prevent unauthorized access to your system.
Q&A
Q: Can this camera record in colour at night?
A: No, it uses IR for night vision, which produces black and white images in low light.
Q: Does it have audio recording?
A: Yes, it has a built-in microphone for capturing audio.
Q: Can I use this camera without an NVR?
A: Yes, it supports microSD card storage up to 256GB for standalone recording.
Q: Will it work with third-party NVRs?
A: Yes, it supports ONVIF and is compatible with most NVR brands.
Q: How long can a 256GB SD card record?
A: This depends on resolution, frame rate, and compression, but expect several days to weeks with H.265+.
Q: What is the difference between AS and S versions?
A: Only the AS version includes audio I/O and alarm I/O support.
Q: Can I turn off the IR lights?
A: Yes, the IR illuminator can be controlled manually via the settings.
Q: Is this camera suitable for rain or dusty areas?
A: Absolutely. It has an IP67 weather rating for full outdoor durability.
Comparison Table
Standard vs Pro Model Comparison
| Feature |
Standard – DH-IPC-HFW3466EP-AS-AUS |
Pro – DH-IPC-HFW5849T1-ZAS |
| Series |
WizSense 3 Series |
WizSense Pro Series |
| Resolution |
4MP (2688×1520) |
8MP (3840×2160 / 4K) |
| Lens Type |
Fixed-focal (2.8mm / 3.6mm / 6mm) |
Motorised varifocal (2.7–13.5mm) |
| Night Vision |
50m IR only |
Full-color night vision (Warm LED), IR + Dual Light |
| AI Features |
SMD 4.0, Perimeter Protection, AI SSA, Quick Pick |
SMD 4.0, Perimeter, AI SSA, Auto Tracking |
| Audio |
Built-in Mic (AS model supports audio I/O) |
Built-in Mic + Speaker (2-Way Audio) |
| Deterrence |
No lights or siren |
Red/blue lights + built-in siren |
| Storage |
microSD up to 256GB |
microSD up to 512GB |
| Power |
12VDC / PoE (802.3af) |
12VDC / PoE (802.3af) |
| WDR |
120dB |
130dB |
| Low Light Performance |
Starlight, F1.4 lens |
Full-color Starlight+, F1.0 lens |
| Weather Rating |
IP67 |
IP67 |
| Installation Type |
Simple bullet, no zoom |
Motorised zoom + rem |
Summary Recommendation
Choose the Pro model (DH-IPC-HFW5849T1-ZAS) if you need:
- 4K resolution for ultra-clear forensic-level detail
- Full-color night vision and active deterrence features (lights + siren)
- Motorised zoom for flexible coverage of large or variable areas
- Professional-grade surveillance for high-risk or critical sites
- Two-way audio and advanced AI features like auto tracking
Choose the Standard model (DH-IPC-HFW3466EP-AS-AUS) if you need:
- Solid AI features like SMD 4.0 and perimeter protection at a lower cost
- Clear IR night vision for general business or home use
- Simple fixed-lens camera with reliable performance
- Easy setup with smart compression to save bandwidth and storage
- A tough, weatherproof camera for everyday outdoor monitoring
