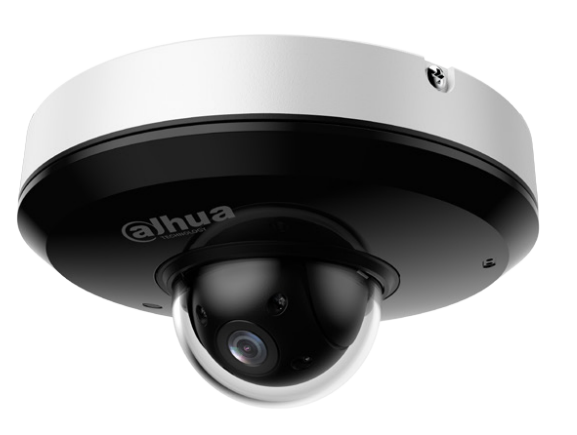

The Dahua DH-SD1A404DB-GNY is a compact 4MP PTZ Network Camera with 4x optical zoom and Starlight performance, designed for high-detail surveillance in small to mid-sized environments. Featuring smooth pan/tilt control, AI-powered WizSense analytics, and reliable night vision, it delivers flexible and intelligent monitoring for indoor and outdoor installations.
Key Features
-
4MP High-Resolution Video – 2560 × 1440 at 25/30fps for clear, detailed footage
-
Starlight Technology – Captures full-color images in ultra-low light (0.005 lux)
-
WDR (120 dB) – Maintains image clarity in strong backlight and dark areas
-
20m IR Range – Infrared night vision for low-light and night monitoring
-
Pan-Tilt-Zoom (PTZ) – 355° pan, 90° tilt with presets and patrol tours
-
Smart Codec (H.265+) – Saves up to 70% bandwidth and storage
-
IVS + SMD 3.0 – Human and vehicle detection with reduced false alarms
-
Face Detection – Face capture and enhancement support
-
Edge Storage – Supports microSD cards up to 512 GB
Downloads
Perfect For:
-
Entrance and lobby monitoring with AI-based human detection
-
Retail stores and small parking areas requiring flexible zoom
-
Residential surveillance needing compact PTZ coverage
-
Schools and hallways with event-triggered monitoring
-
Any location needing remote PTZ control with intelligent alerts
Install Tips
-
Mount it with flexibility – Compatible with wall, ceiling, pole, and corner mounts (PFA/PFB series).
-
Set PTZ tours and presets – Ideal for monitoring multiple zones automatically.
-
Enable SMD 3.0 – Greatly reduces false alarms caused by animals or lighting changes.
- Works best in covered outdoor or indoor areas for optimal IR performance.
-
Power via PoE to simplify installation and reduce cable clutter.
Quick-Read Specs
| Spec |
Details |
| Resolution |
4MP (2560 × 1440) |
| Optical Zoom |
4x (2.8 mm – 12 mm) |
| Field of View |
H: 96.9° – 31.6° |
| Night Vision |
Up to 20 m IR |
| AI Detection |
IVS, SMD 3.0, Face Detection |
| PTZ Range |
Pan: 0°–355°, Tilt: 5°–90° |
| Storage |
microSD up to 512 GB, NAS |
| Power |
DC 12V / PoE (802.3af) |
| Durability |
IP66, IK08 |
| Smart Codec |
H.265+, H.264+ |
Extra Info
Compact PTZ Functionality with Pro-Level Control
Despite its small form factor, this camera delivers true Pan-Tilt-Zoom (PTZ) capability with support for 300 presets, 8 patrol tours, and power-off memory. It automatically resumes monitoring paths after reboot or inactivity, making it ideal for entryways, corridors, and parking areas.
AI-Driven Smart Detection
Powered by Dahua WizSense AI, the camera accurately detects humans and vehicles, filtering out false alarms from rain, animals, or lighting changes. IVS rules such as tripwire and intrusion detection ensure fast and reliable alerts.
Efficient Smart H.265+ Compression
Using Smart H.265+, the camera dynamically optimizes bitrate based on scene activity and Region of Interest (ROI), saving up to 70% storage and bandwidth without sacrificing image quality.
Durability for All Weather Conditions
With IP66 weatherproofing, IK08 impact resistance, and surge protection, the camera operates reliably in temperatures from -30°C to +60°C, making it suitable for demanding indoor and outdoor deployments.
