Description

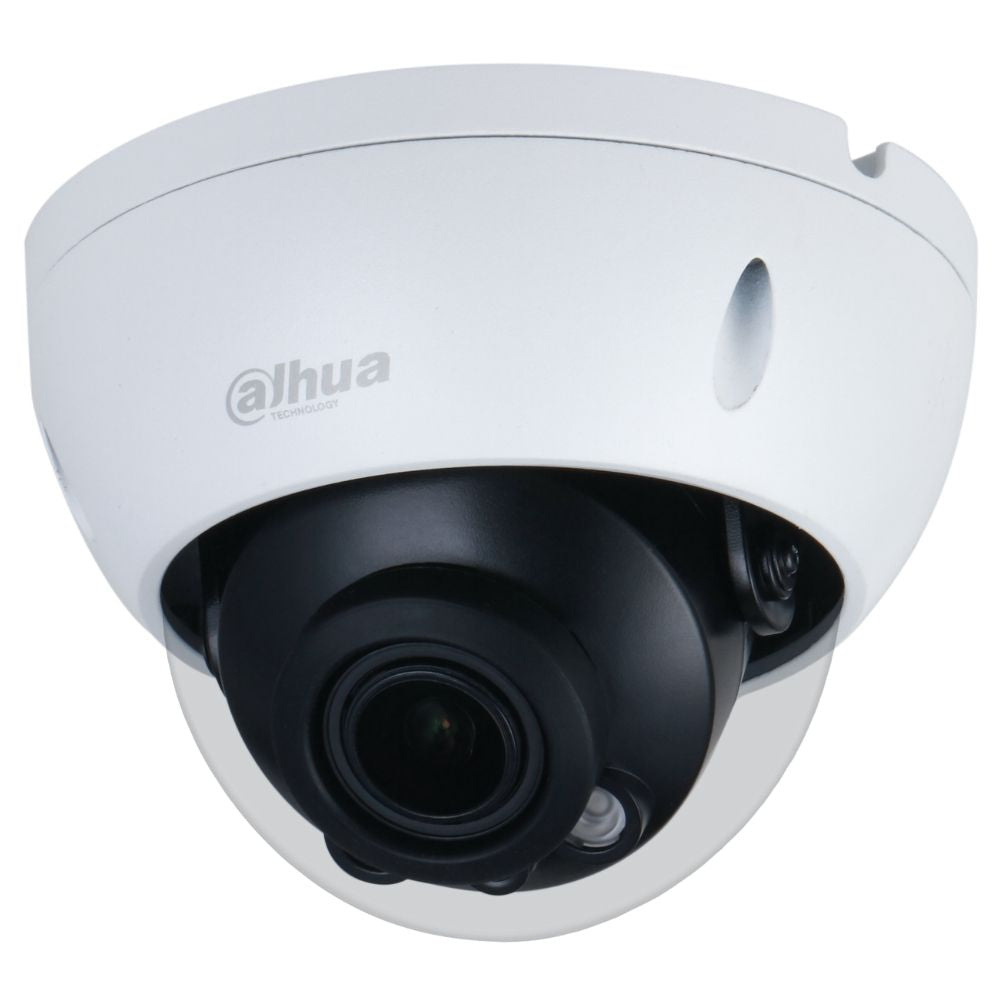

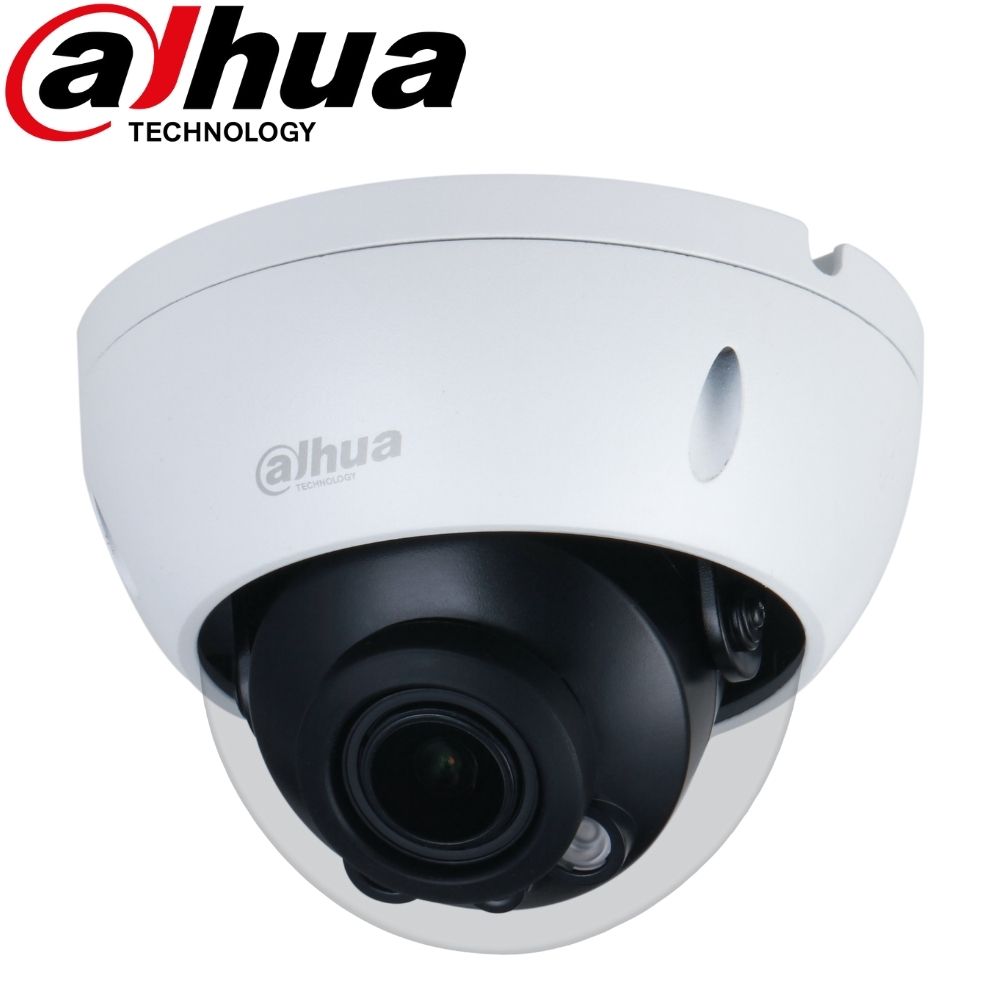

The Dahua DH-IPC-HDBW2431RP-ZAS-27135-S2 camera offers 4MP resolution with a motorised 2.7mm ~ 13.5mm varifocal lens. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.
Enjoy full access to your camera no matter where you are through the integrated app for smartphone and tablet, which allows Live monitoring and the ability to control certain features of your camera as well as playback. On board micro SD card storage up to 256GB enables backup recording when the camera is disconnected from the system. This IP camera features an IP67 weather-proof construction for total protection in any outdoor weather and an IK10 Vandal resistant housing.
As with all our products and brands, this is an original Dahua product from Australian stock and comes with full Dahua manufacturer warranty.
Features
- 1/3” 4 Megapixel CMOS image sensor, low illuminance, high image definition
- 2.7mm ~13.5mm motorised optical zoom lens
-
H.265 codec, high compression rate, ultra-low bit rate
-
Outputs 4MP (2560 × 1440)@25/30 fps, Max. supports 4MP (2688 × 1520)@20 fps
-
Intelligent IVS Smart Detection: Intrusion, tripwire
- WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Digital Surveillance System for smartphone, tablet & PC - Supports Live streaming of your cameras from anywhere in the world
-
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal ac- cess, voltage detection
-
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256GB Micro SD card
-
Built-in IR LED, max IR distance: 40m
- IP67 Weatherproof, IK10 Vandal Protection
- Supports PoE
- WARRANTY: 3 years back-to-base manufacturer warranty
More Info
Dahua Security Camera: 4MP Motorised Dome 2.7-13.5mm - DH-IPC-HDBW2431RP-ZAS-27135-S2
Supports POE Power Over Ethernet
No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.
Wide Dynamic Range
This camera is equipped with industry leading wide dynamic range (WDR) technology, which produces vivid pictures even in the most intensely contrasted lighting conditions. It’s ideal for applications where both bright and low lighting conditions change quickly. True WDR (120dB) optimises both the bright and dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
With built-in intelligent video analytics this camera has the ability to detect and analyse moving objects for enhanced video surveillance.
Environmental
With a temperature range of -30 °C to +60 °C (-22 °F to +140 °F), this camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP67 rating makes it suitable for demanding outdoor applications.
Smart H.265+
Deliver high quality video without straining the network, Smart H.265+ is the optimised implementation of H.265. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing savings of up to 70% of bandwidth and storage when compared with standard video compression.
Region of Interest
ROI is a video intelligence innovation designed to maximise image quality, network bandwidth and storage capacity. The system can monitor an allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
Video Management Software, Smart PSS & DSS - Smartphone/Tablet/PC
You always have full access to your camera no matter where you are through software for PC and mac, and the integrated app for smartphone and tablet, which allows Live monitoring, the ability to control certain features of your camera as well as playback, setting alarms and smart detections.
Easy4ip Cloud
Easy 4ip is a user-friendly surveillance cloud platform that connects devices to a global cloud network. It enables Live streaming from mobile devices or PC, alarm notifications to your device, cloud storage, cloud upgrade for updating firmware and security for your personal data.
Downloads
Tech Specs
Dahua Security Camera: 4MP Motorised Dome 2.7-13.5mm - DH-IPC-HDBW2431RP-ZAS-27135-S2
Camera |
Image Sensor |
1/3” 4Megapixel progressive CMOS |
Max. Resolution |
2688 (H) × 1520 (V) |
ROM |
128 MB |
RAM |
128 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100000 s |
Min. Illumination |
0.008 Lux @ F1.5 |
S/N Ratio |
>56 dB |
Illumination Distance |
40 m (131.23 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355° |
Lens |
Lens Type |
Motorized vari-focal |
Mount Type |
?14 |
Focal Length |
2.7 mm–13.5 mm |
Max. Aperture |
F1.5 |
Field of View |
Horizontal: 104°–27°
Vertical: 55°–15°
Diagonal: 124°–31° |
Iris Type |
Fixed |
Close Focus Distance |
0.8 m–0.8 m (2.62 ft–2.62 ft) |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
W |
64 m
(209.97 ft) |
25.6 m
(83.99 ft) |
12.8 m
(41.99 ft) |
6.4 m
(21 ft) |
T |
220 m
(721.78 ft) |
88 m
(288.71 ft) |
44 m
(144.36 ft) |
22 m
(72.18 ft) |
Smart Event |
IVS |
Tripwire; intrusion |
Video |
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+/ Smart H.264+ |
Video Frame Rate |
Main stream:
2688 × 1520 (1 fps-20 fps)
2560 × 1440 (1 fps-25/30 fps)
Sub stream:
704 × 576 (1 fps-25 fps)
704 × 480 (1 fps-30 fps)
|
Stream Capability |
2 streams |
Resolution |
2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 ×480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
|
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control |
Auto/Manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest(RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 2688 × 1520 resolution and lower.) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Audio Compression |
G.711a; G.711Mu; G.726 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception; local alarm |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
User/Host |
20 |
Storage |
FTP; Micro SD card (support max. 256 G); NAS; SFTP |
Browser |
IE
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
IOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel In: 5mA 5VDC |
Alarm Output |
1 channel Out: 300mA 12VDC |
Power |
Power Supply |
12V DC/PoE (802.3af) |
Power Consumption |
< 6.5W |
Environment |
Operating Conditions |
-30°C to +60°C (-22°F to +140°F)/less than ? 95% RH |
Storage Temperature |
-40°C to +60°C (-40°F to +140°F) |
Protection |
IP67, IK10 |
Structure |
Casing |
Metal |
Dimensions |
?122 mm × 88.9 mm (?4.80" × 3.50") |
Net Weight |
0.47 kg (1.04 lb) |
Gross Weight |
0.63 kg (1.39 lb) |
