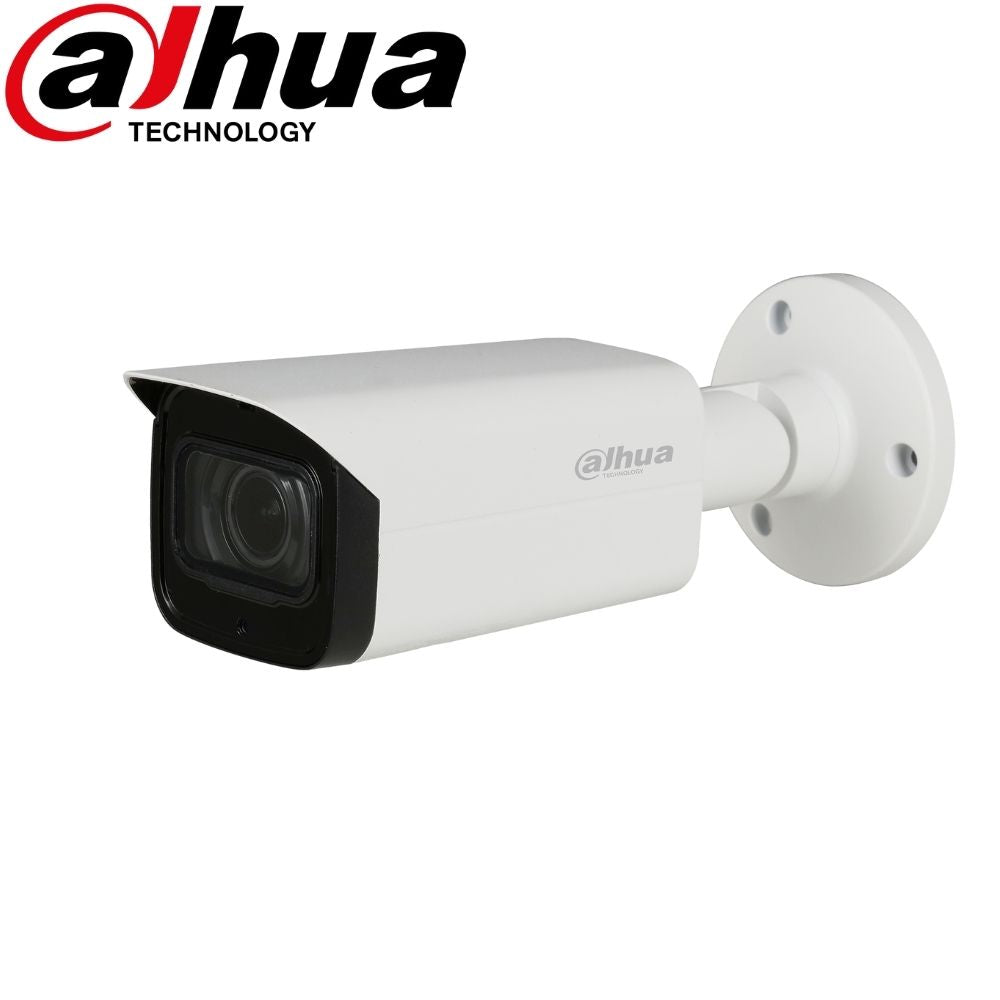

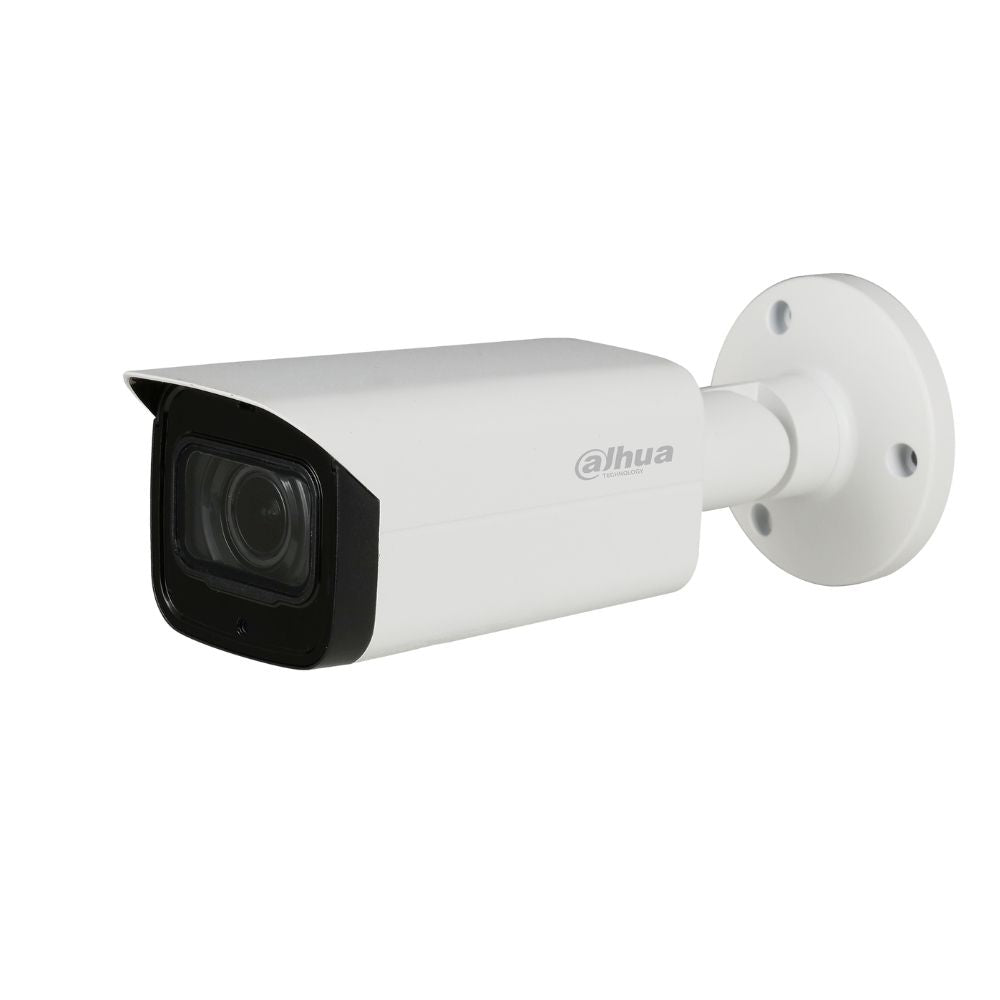

Dahua Security Camera: 5MP Bullet, 2.7-13.5mm HDCVI - HAC-HFW2501TP-Z-A-27135
Experience a 5-megapixel video with the simplicity of reusing existing coaxial infrastructure. The 5MP starlight HDCVI camera presents a high-quality image with rich details even under extreme low-light conditions. The camera also features broadcast-quality audio to provide enhanced supplementary evidence collection. It offers various motorized/fixed lens models with 120dB true WDR and HD/SD switchable output. The higher resolution and starlight feature makes the 5MP HDCVI camera an ideal choice for mid to large-size businesses and projects where both highly reliable surveillance and construction flexibility are needed.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending a control signal or triggering an alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distances without any loss. It supports up to 700m transmission for 5MP HD video via coaxial cable and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua's test laboratory.
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance systems, making itself the best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
With the adoption of large-sized high-performance sensors, the camera is able to provide incomparable performance even under extreme lowlight environments. The starlight feature allows more details to be captured and accurate colour to be recognized at night or in scenes with limited illumination.
Audio information is used as supplementary evidence in video surveillance applications. The HDCVI camera supports audio signal transmission over coaxial cable. In addition, it adopts unique audio processing and transmission technology that best restores source audio and eliminates noise, guaranteeing the quality and effectiveness of collected audio information.
The camera supports multiple video formats including HDCVI, CVBS, and other two common HD analog formats in the market. A DIP switch located on the cable allows you to quickly toggle formats, further simplifying installation and debugging. This feature makes the camera compatible with not only XVRs but also most existing HD/SD DVRs.
Wide Dynamic Range
Embedded with industry-leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
3DNR is a noise reduction technology that detects and eliminates random noises by comparing two sequential frames. Dahua’s advanced 3DNR technology allows remarkable noise reduction with little impact on sharpness, especially under limited lighting conditions. Besides, the advanced 3DNR effectively decreases the bandwidth and saves storage space.
The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.
Supporting ±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
|Image Sensor||1/2.8" CMOS|
|Effective Pixels||2592(H)×1944(V), 5MP|
|Electronic Shutter Speed||PAL: 1/4s~1/100,000s|
|Minimum Illumination||0.005Lux/F1.3, 30IRE, 0Lux IR on|
|S/N Ratio||More than 65dB|
|IR Distance||Up to 80m (262feet)|
|IR On/Off Control||Auto / Manual|
|Lens Type||Motorized lens / Fixed iris|
|Angle of View||H: 102°~29°|
|Focus Control||Auto / Manual|
|Close Focus Distance||200mm|
|Pan / Tilt / Rotation|
|Pan/Tilt/Rotation||Pan: 0° ~ 360°|
|Tilt: 0° ~ 90°|
|Rotation: 0° ~ 360°|
|Frame Rate||20fps@5MP, 25/30fps@4MP, 25/30fps@1080P|
|Video Output||1-channel BNC high definition video output / CVBS video output (DIP switch)|
|Day/Night||Auto (ICR) / Manual|
|BLC Mode||BLC / HLC / WDR|
|White Balance||Auto / Manual|
|Smart IR||Auto / Manual|
|Certifications||CE (EN55032, EN55024, EN50130-4)|
|FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014)|
|UL (UL60950-1+CAN/CSA C22.2 No.60950-1)|
|Audio Interface||1ch in & Built-in Mic|
|Power Supply||12V DC ±30%|
|Power Consumption||Max. 12.4W (12V DC, IR on)|
|Operating Conditions||-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH|
|* Start up should be done at above -30°C (-22°F)|
|Storage Conditions||-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH|
|Ingress Protection & Vandal Resistance||IP67|
|Net Weight||0.77kg (1.70lb)|
|Gross Weight||1.03kg (2.27lb)|
