Description
Experience 5MP full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Pro series 5MP HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with 120 dB true WDR and a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
Starlight technology generates clear colour images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Max 25 fps@5MP (16:9 video output)
- Starlight, 120 dB true WDR, 3D NR
- CVI/CVBS/AHD/TVI switchable
- Built-in mic
- 2.7 mm–13.5 mm motorized lens
- Max. IR length 60 m, Smart IR
- IP67, 12V DC±30%
Downloads
Tech Specs

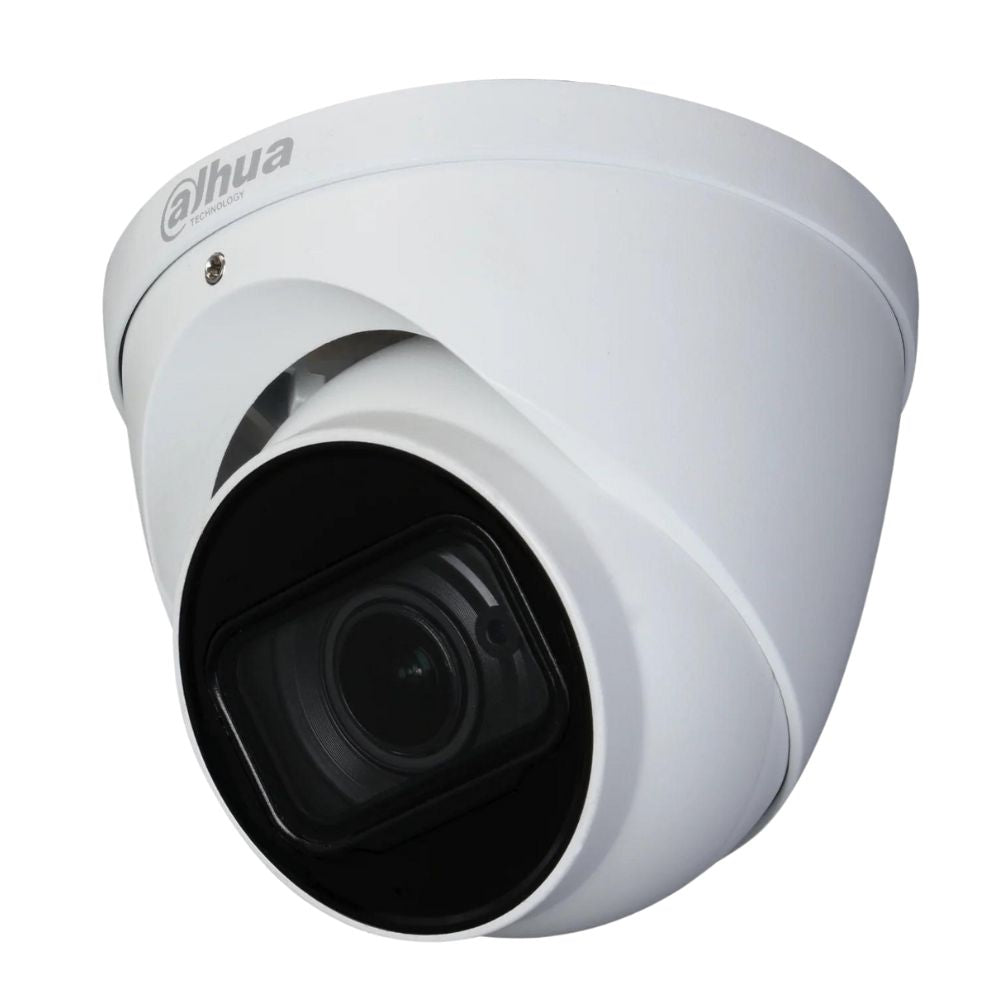

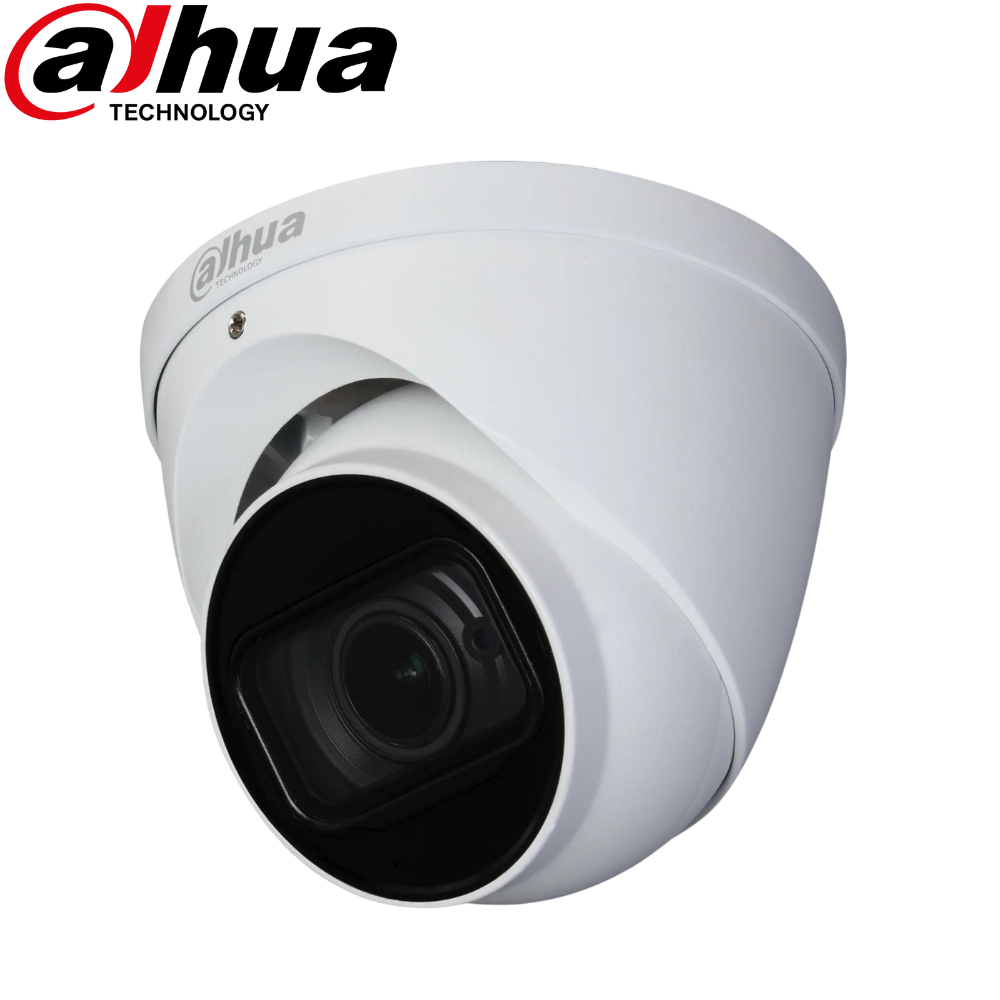

Dahua Security Camera: 5MP Turret, 2.7~13.5mm, HDCVI, Starlight Pro - DH-HAC-HDW2501TP-Z-A-27135
Camera |
Image Sensor |
1/2.7 inch CMOS |
Max. Resolution |
2880 (H) × 1620 (V) |
Pixel |
5MP |
Scanning System |
Progressive |
Electronic Shutter Speed |
PAL: 1/3 s–1/100,000 s
NTSC: 1/4 s–1/100,000 s |
S/N Ratio |
> 65 dB |
Min. Illumination |
0.001 Lux/F1.6; 30IRE; 0 Lux IR on |
Illumination Distance |
60 m (196.9 ft) |
Illuminator On/Off Control |
Auto; manual |
Illuminator Number |
2 |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
Lens |
Lens Type |
Motorized vari-focal |
Auto Focus |
Yes |
Mount Type |
φ14 |
Focal Length |
2.7 mm–13.5 mm |
Max. Aperture |
F1.6 |
Field of View |
Horizontal: 31.4°–113°
Vertical: 17.6°–58°
Diagonal: 36°–138°
|
Iris Type |
Fixed iris |
Close Focus Distance |
0.8 m (2.6 ft) |
DORI distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.7mm |
64.0 m
(210.0 ft)
|
25.6 m
(84.0 ft)
|
12.8 m
(42.0 ft)
|
6.4 m
(21.0 ft)
|
13.5mm |
210.0 m
(689.0 ft)
|
84.0 m
(275.6 ft)
|
42.0 m
(137.8 ft)
|
21.0 m
(68.9 ft)
|
Video |
Frame Rate |
CVI:
PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps
AHD:
PAL: 4M@25 fps
NTSC: 4M@30 fps
TVI:
PAL: 4M@25 fps
NTSC: 4M@30 fps
CVBS:
PAL: 960H
NTSC: 960H
|
Resolution |
5M (2880 × 1620); 4M (2560 × 1440);
1080p (1920 × 1080); 960H (960 × 576/960 × 480)
|
Day/Night |
Auto switch by ICR |
BLC |
BLC/HLC/WDR/HLC-Pro |
WDR |
120 dB |
White Balance |
Auto; manual |
Gain Control |
Auto; manual |
Noise Reduction |
3D NR |
Smart Illumination |
Yes |
Digital Zoom |
4x |
Defog |
Electronic defog |
Mirror |
Off/On |
Privacy Masking |
Off/On (8 areas, rectangle) |
Certifications |
Certifications |
CE (EN55032:2015, EN 61000-3-2:2014,
EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014,
EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
|
Port |
Audio Interface |
One channel built-in mic |
Video Output |
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) |
Power |
Power Supply |
12V DC ±30% |
Power Consumption |
Max. 7.9W (12V DC, IR on) |
Environmental |
Operating Temperature |
–30°C to +60°C (–22°F to +140°F); < 95%
(non-condensation)
|
Storage Temperature |
–30°C to +60°C (–22°F to +140°F); < 95%
(non-condensation)
|
Protection Grade |
IP67 |
Structure |
Casing |
Metal throughout the whole casing |
Camera Dimensions |
Φ122 mm × 104.8 mm (Φ4.8" × 4.13") |
Net Weight |
0.60 kg (1.30 lb) |
Gross Weight |
0.76 kg (1.70 lb) |
