Dahua IPC-HDW4631EM-ASE Security Camera: 6MP Fixed Lens Eyeball, Built-In Mic

SKU DH-IPC-HDW4631EMP-ASE-0280B
by Dahua
Sold out
Original price $246.00
Original price $246.00 - Original price $246.00
Original price $246.00
Current price $225.00
$225.00 - $225.00
Current price $225.00
Lens: 2.8mm
Description
Description

This camera has been replaced by a new model the Dahua IPC-HDW5541TM-ASE (Click to View).

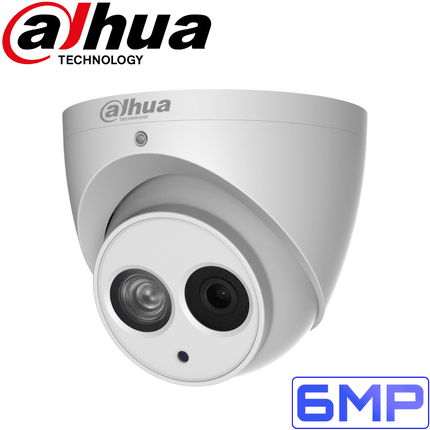

The Dahua DH-IPC-HDW4631EM-ASE is a high resolution, fixed lens eye-ball camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

FEATURES

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265+/H.265/ H.264+/H.264 triple-stream encoding
  • 20fps @ 6MP (3072x2048), 25/30 fps @ 4MP (2688x1520
  • Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens (3.6mm optional)
  • Built-in Mic
  • 1 IR LED Length 50m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GBPoE Support
  • IP67 Weather Proof

Tech Specs
Tech Specs

DH-IPC-HDW4631EM-ASE

Camera

Image Sensor

1/2.96 Megapixel progressive scan CMOS

Effective Pixels

3072(H) x 2048(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.04Lux/F1.6( Color, 1/3s,30IRE)

0.4Lux/F1.6( Color, 1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 50m (164ft)

IR On/Off Control

Auto/ Manual

IR LEDs

1

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm optional)

Max. Aperture

F1.6(F1.6)

Angle of View

H: 98° (69°), V: 67° (48°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m (1.7m)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0?~360?; Tilt:0?~78?; Rotation:0?~360?

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

(3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P(1920×1080)/ SXGA(1280×1024)/ 1.3M(1280× 960)/ 720P(1280×720)/ D1(704×576/ 704×480)/ CIF(352×288/ 352×240)

Frame Rate

Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/ Natural/ Street Lamp/ Outdoor/ Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

Built-in Mic

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

<6W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

?106mm× 93.7mm (4.17×3.69)

Net Weight

0.47Kg (1.04lb)

Gross Weight

0.65Kg (1.43lb)
