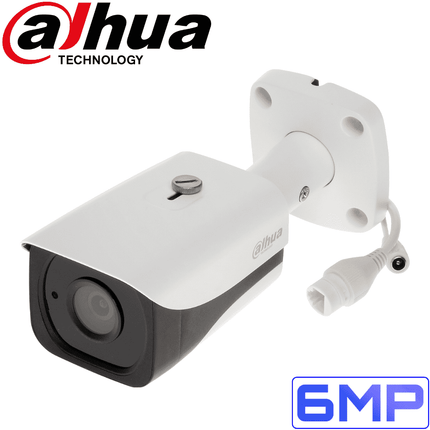

Dahua IPC-HFW4631E-SE Security Camera: 6MP Fixed Lens Mini-Bullet, IP67

Description

Description

This camera has been replaced by a new model, the Dahua IPC-HFW2831S-S-S2 (Click to View).

The Dahua DH-IPC-HFW4631E-SE is a high resolution, fixed lens mini-bullet camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

Features

  • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
  • H.265+/H.265/ H.264+/H.264 triple-stream encoding
  • 20fps@ 6MP(3072x 2048), 25/30fps @4MP (2688x1520)
  • Intelligent Video System (IVS) - Tripwire, Intrusion, Abandoned/Missing Object
  • Wide Dynamic Range (120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
  • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, Smart PSS, DSS & DMSS
  • 2.8mm fixed lens (3.6mm optional)
  • 2 IR LEDs With Max. Distance of 40m
  • Storage - NAS, Local PC for instant recording & Mirco SD card 128GB
  • PoE Support
  • IP67 Weather Proof
  • WARRANTY: 3 years back-to-base manufacturer warranty

Downloads
Tech Specs

DH-IPC-HFW4631E-SE

Camera

Image Sensor

1/2.9” 6Megapixel progressive scan CMOS

Effective Pixels

3072(H) x 2048(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3(4)~1/100000s

Minimum Illumination

0.04Lux/F1.6( Color, 1/3s,30IRE)

0.4Lux/F1.6( Color, 1/30s,30IRE)

0Lux/F1.6 (IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 40m (131ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

2.8mm (3.6mm optional)

Max. Aperture

F1.6(F1.6)

Angle of View

H: 98° (69°), V: 67° (48°)

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

0.9m(1.7m)

Pan/Tilt/Rotation

Pan/ Tilt/ Rotation Range

Pan:0?~360?; Tilt:0?~90?; Rotation:0?~360?

Intelligence

IVS

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/ H.264+/H.264

Streaming Capability

3 Streams

Resolution

(3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P(1920×1080)/ SXGA(1280×1024)/ 1.3M(1280× 960)/ 720P(1280×720)/ D1(704×576/ 704×480)/ CIF(352×288/ 352×240)

Frame Rate

Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 1080P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(120dB)

White Balance

Auto/ Natural/ Street Lamp/ Outdoor/ Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL: UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af) (Class 0)

Power Consumption

<6.5W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

180mm× 70mm× 70mm (7.09”× 2.76”× 2.76”)

Net Weight

0.41kg (0.91lb)

Gross Weight

0.53 kg (1.17lb)
Videos

Read more

Dahua IPC-HFW4631E-SE Security Camera: 6MP Fixed Lens Mini-Bullet, IP67

Product form

SKU: DH-IPC-HFW4631E-SE

Out of stock

$237.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    This camera has been replaced by a new model, the Dahua IPC-HFW2831S-S-S2 (Click to View).

    The Dahua DH-IPC-HFW4631E-SE is a high resolution, fixed lens mini-bullet camera designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports a reminder function and is fully protected from dust and water, certified to IP67 standards.

    Features

    • 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
    • H.265+/H.265/ H.264+/H.264 triple-stream encoding
    • 20fps@ 6MP(3072x 2048), 25/30fps @4MP (2688x1520)
    • Intelligent Video System (IVS) - Tripwire, Intrusion, Abandoned/Missing Object
    • Wide Dynamic Range (120dB), Day/Night(ICR), 3D DNR, AWB, AGC, BLC
    • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, Smart PSS, DSS & DMSS
    • 2.8mm fixed lens (3.6mm optional)
    • 2 IR LEDs With Max. Distance of 40m
    • Storage - NAS, Local PC for instant recording & Mirco SD card 128GB
    • PoE Support
    • IP67 Weather Proof
    • WARRANTY: 3 years back-to-base manufacturer warranty

    Downloads
    Tech Specs

    DH-IPC-HFW4631E-SE

    Camera

    Image Sensor

    1/2.9” 6Megapixel progressive scan CMOS

    Effective Pixels

    3072(H) x 2048(V)

    RAM/ROM

    512MB/32MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual, 1/3(4)~1/100000s

    Minimum Illumination

    0.04Lux/F1.6( Color, 1/3s,30IRE)

    0.4Lux/F1.6( Color, 1/30s,30IRE)

    0Lux/F1.6 (IR on)

    S/N Ratio

    More than 50dB

    IR Distance

    Distance up to 40m (131ft)

    IR On/Off Control

    Auto/ Manual

    IR LEDs

    2

    Lens

    Lens Type

    Fixed

    Mount Type

    Board-in

    Focal Length

    2.8mm (3.6mm optional)

    Max. Aperture

    F1.6(F1.6)

    Angle of View

    H: 98° (69°), V: 67° (48°)

    Optical Zoom

    N/A

    Focus Control

    Fixed

    Close Focus Distance

    0.9m(1.7m)

    Pan/Tilt/Rotation

    Pan/ Tilt/ Rotation Range

    Pan:0?~360?; Tilt:0?~90?; Rotation:0?~360?

    Intelligence

    IVS

    Tripwire, Intrusion, Object Abandoned/Missing

    Advanced Intelligent Functions

    Face Detection

    Video

    Compression

    H.265+/H.265/ H.264+/H.264

    Streaming Capability

    3 Streams

    Resolution

    (3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P(1920×1080)/ SXGA(1280×1024)/ 1.3M(1280× 960)/ 720P(1280×720)/ D1(704×576/ 704×480)/ CIF(352×288/ 352×240)

    Frame Rate

    Main Stream: 6MP (1~20fps), 4MP(1~25/30fps)

    Sub Stream: D1(1~25/30fps)

    Third Stream: 1080P(1~25/30fps)

    Bit Rate Control

    CBR/VBR

    Bit Rate

    H.264: 24K ~ 10240Kbps

    H.265: 14K ~ 9984Kbps

    Day/Night

    Auto(ICR) / Color / B/W

    BLC Mode

    BLC / HLC / WDR(120dB)

    White Balance

    Auto/ Natural/ Street Lamp/ Outdoor/ Manual

    Gain Control

    Auto/Manual

    Noise Reduction

    3D DNR

    Motion Detection

    Off / On (4 Zone, Rectangle)

    Region of Interest

    Off / On (4 Zone)

    Electronic Image Stabilization (EIS)

    N/A

    Smart IR

    Support

    Defog

    N/A

    Digital Zoom

    16x

    Flip

    0°/90°/180°/270°

    Mirror

    Off / On

    Privacy Masking

    Off / On (4 Area, Rectangle)

    Audio

    Compression

    N/A

    Network

    Ethernet

    RJ-45 (10/100Base-T)

    Protocol

    HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

    FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

    UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP;

    IGMP; SNMP

    Interoperability

    ONVIF, PSIA, CGI

    Streaming Method

    Unicast / Multicast

    Max. User Access

    10 Users /20 Users

    Edge Storage

    NAS

    Local PC for instant recording

    Micro SD card 128GB

    Web Viewer

    IE, Chrome, Firefox, Safari

    Management Software

    Smart PSS, DSS, Easy4ip

    Smart Phone

    IOS, Android

    Certifications

    Certifications

    CE (EN 60950:2000)

    UL: UL60950-1

    FCC: FCC Part 15 Subpart B

    Interface

    Video Interface

    N/A

    Audio Interface

    N/A

    RS485

    N/A

    Alarm

    N/A

    Electrical

    Power Supply

    DC12V, PoE (802.3af) (Class 0)

    Power Consumption

    <6.5W

    Environmental

    Operating Conditions

    -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

    Storage Conditions

    -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

    Ingress Protection

    IP67

    Vandal Resistance

    N/A

    Construction

    Casing

    Metal

    Dimensions

    180mm× 70mm× 70mm (7.09”× 2.76”× 2.76”)

    Net Weight

    0.41kg (0.91lb)

    Gross Weight

    0.53 kg (1.17lb)
    Videos

    Read more
