Description

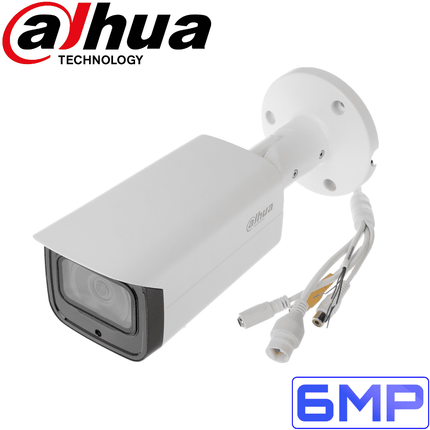

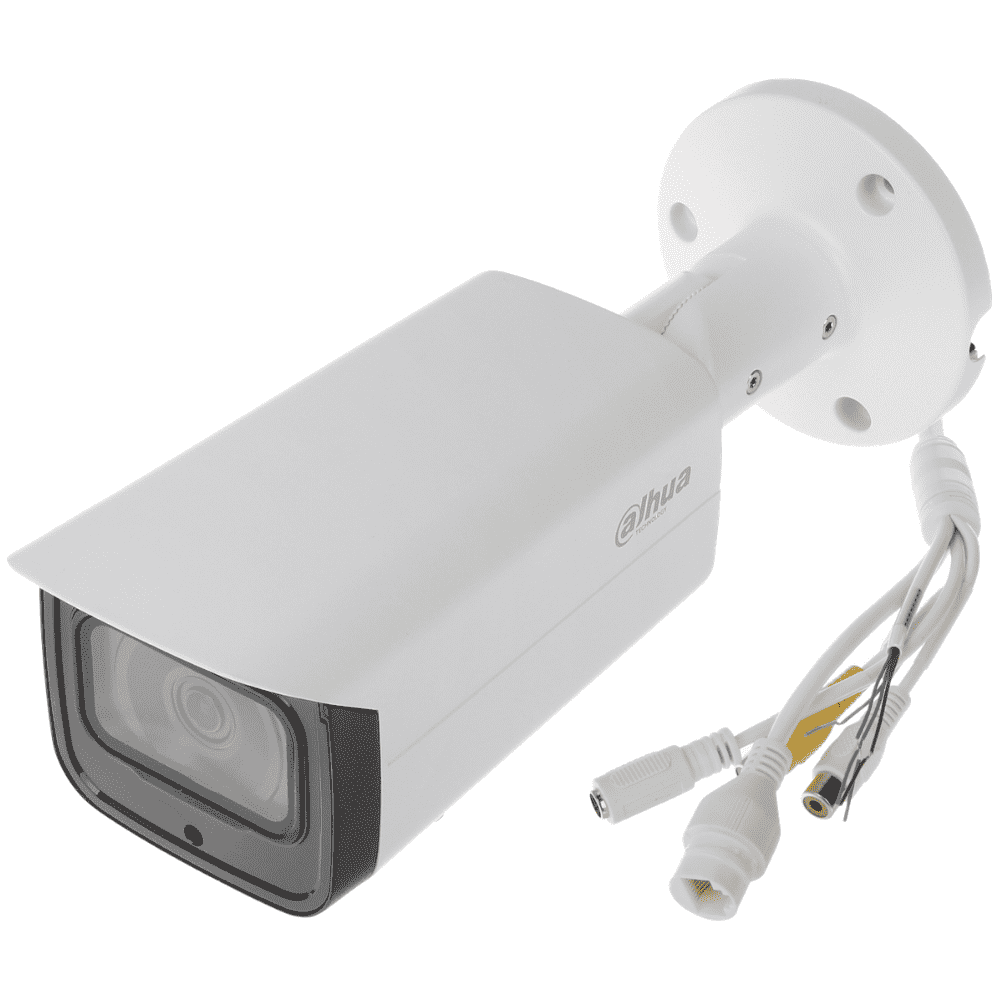

The Dahua DH-IPC-HFW4631T-ASE is a high resolution, fixed lens mini-bullet camera designed to perform in challenging recording conditions. A primary feature of this camera is its extensive infrared range, reaching up to 80 metres. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series also features smart IR technology and intelligent image analysis techniques. The camera is fully protected from dust and water, certified to IP67 standards.
Features
- 1/2.9” 6 Megapixel progressive scan STARVIS CMOS
-
H.265 & H.264 triple-stream encoding
- 20fps@6MP(3072x2048), 25/30fps@4MP(2688x1520)
-
Intelligent Video System - Tripwire, Intrusion, Abandoned/Missing Object & Face Detection
- Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
- Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS & Easy4ip
-
2.8mm fixed lens (3.6mm, 6mm optional)
-
4 IR LEDs With Max. Range of 80m
- Storage - NAS, Local PC for instant recording & Mirco SD card 128GB
-
PoE Support
-
IK10 Vandal Resistant
-
IP67 Weather Proof
- WARRANTY: 3 years back-to-base manufacturer warranty
Downloads
Tech Specs
DH-IPC-HFW4631T-ASE
Camera |
Image Sensor |
1/2.9” 6Megapixel progressive scan CMOS |
Effective Pixels |
3072(H) x 2048(V) |
RAM/ROM |
512MB/32MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.04Lux/F1.6 ( Color, 1/3s,30IRE)
0.4Lux/F1.6 ( Color, 1/30s,30IRE)
0Lux/F1.6 (IR on)
|
S/N Ratio |
More than 50dB |
IR Distance |
Distance up to 60m (197ft) |
IR On/Off Control |
Auto/ Manual |
IR LEDs |
4 |
Lens |
Lens Type |
Fixed |
Mount Type |
Board-in |
Focal Length |
2.8mm (3.6mm, 6mm optional) |
Max. Aperture |
F1.6(F1.6, F1.6) |
Angle of View |
H: 98° (69°, 48°), V: 67° (48°, 34°) |
Optical Zoom |
N/A |
Focus Control |
Fixed |
Close Focus Distance |
0.9m(1.7m, 3.9m) |
Pan/Tilt/Rotation |
Pan/ Tilt/ Rotation Range |
Pan:0?~360?; Tilt:0?~90?; Rotation:0?~360? |
Intelligence |
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions |
Face Detection |
Video |
Compression |
H.265+/H.265/ H.264+/H.264 |
Streaming Capability |
3 Streams |
Resolution |
(3072×2048)/ (3072×1728)/ (2592×1944)/ (2688×1520)/ (2560×1440)/ (2304×1296)/ 1080P(1920×1080)/ SXGA(1280×1024)/ 1.3M(1280× 960)/ 720P(1280×720)/ D1(704×576/ 704×480)/ CIF(352×288/ 352×240) |
Frame Rate |
Main Stream: 6MP (1~20fps), 4MP(1~25/30fps) |
Sub Stream: D1(1~25/30fps) |
Third Stream: 1080P(1~25/30fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps
|
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR(120dB) |
White Balance |
Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detetion |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization (EIS) |
N/A |
Smart IR |
Support |
Defog |
N/A |
Digital Zoom |
16x |
Flip |
0°/90°/180°/270° |
Mirror |
Off / On |
Privacy Masking |
Off / On (4 Area, Rectangle) |
Audio |
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
|
Interoperability |
ONVIF, PSIA, CGI |
Streaming Method |
Unicast / Multicast |
Max. User Access |
10 Users /20 Users |
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB
|
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
Smart PSS, DSS, Easy4ip |
Smart Phone |
IOS, Android |
Certifications |
Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|
Interface |
Video Interface |
N/A |
Audio Interface |
1/1 channel In/Out |
RS485 |
N/A |
Alarm |
1 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
|
Electrical |
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
Power Consumption |
<11W |
Environmental |
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection |
IP67 |
Vandal Resistance |
IK10 |
Construction |
Casing |
Metal |
Dimensions |
244.1mm× 79mm× 75.9mm (9.61”× 3.11” ×2.99”) |
Net Weight |
0.815kg (1.80lb) |
Gross Weight |
1.08kg (2.38lb) |
