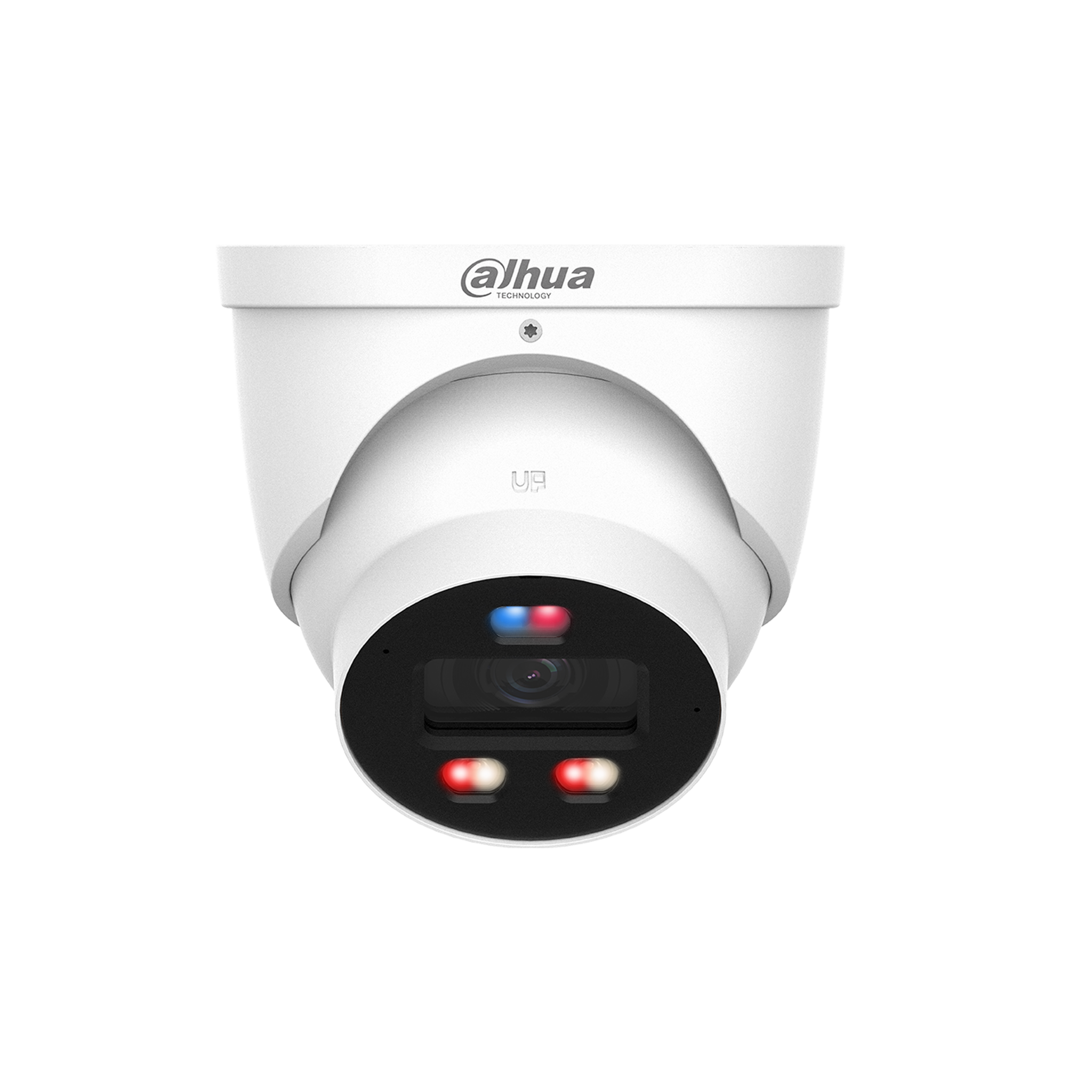

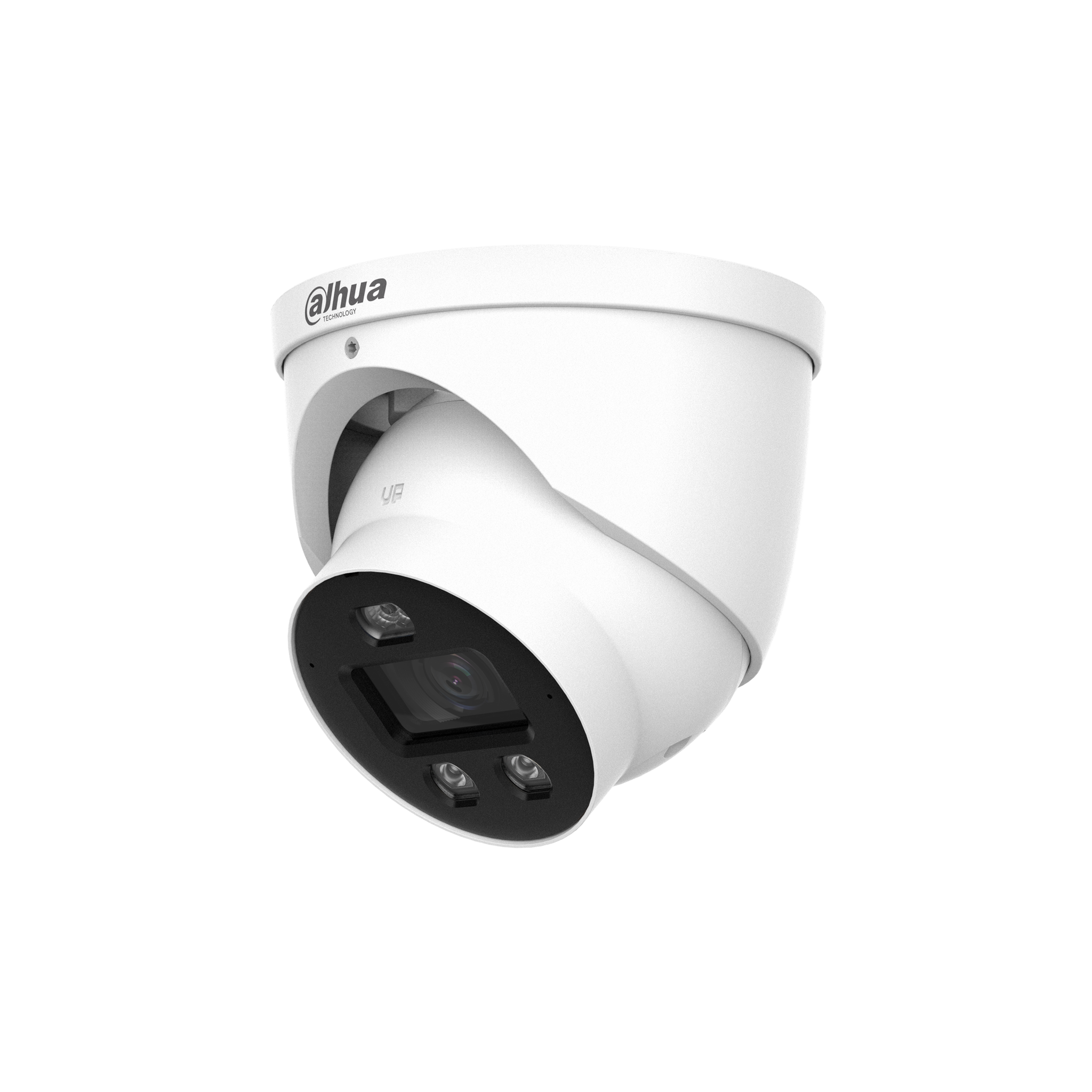

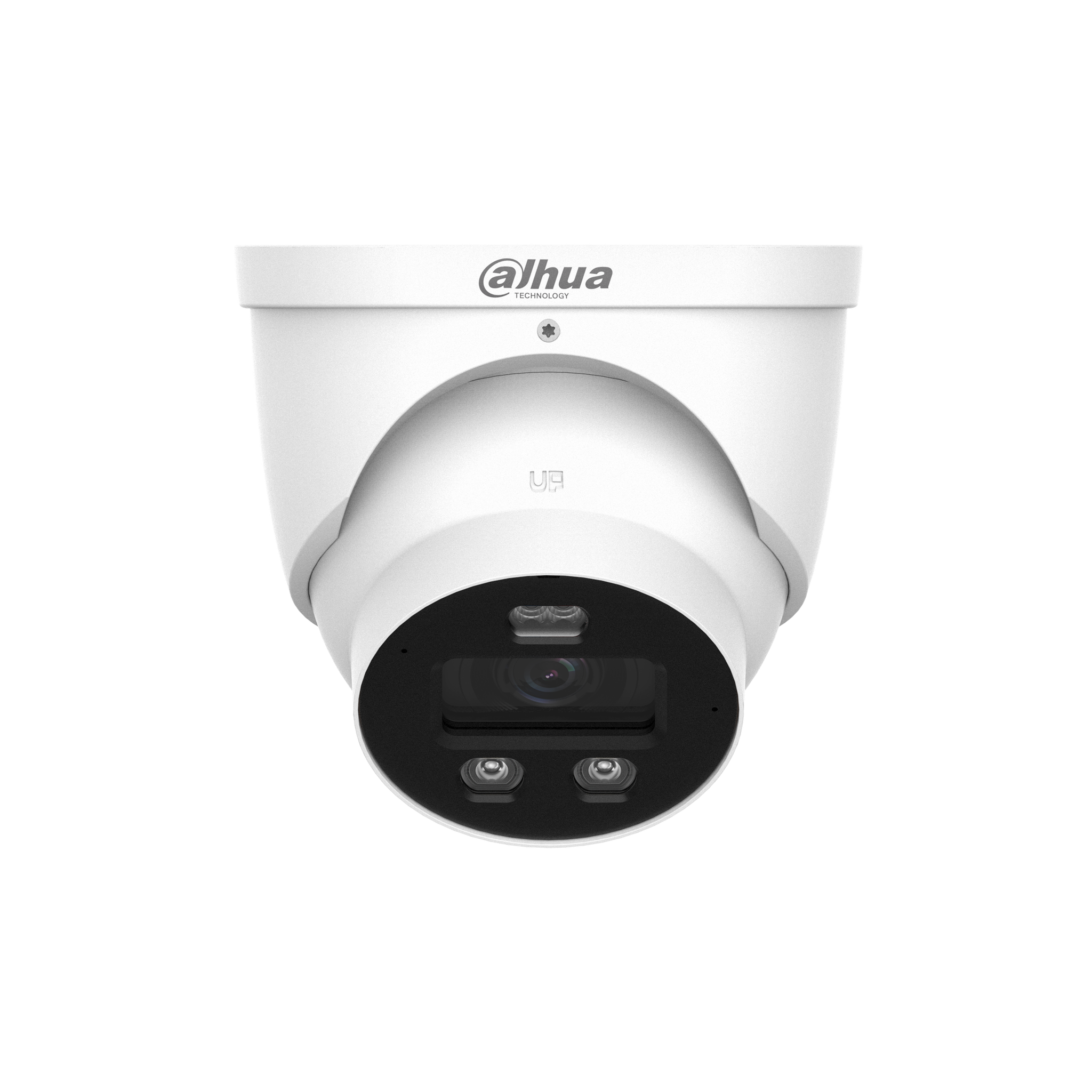

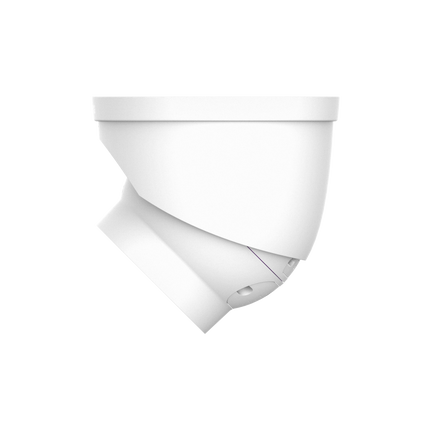

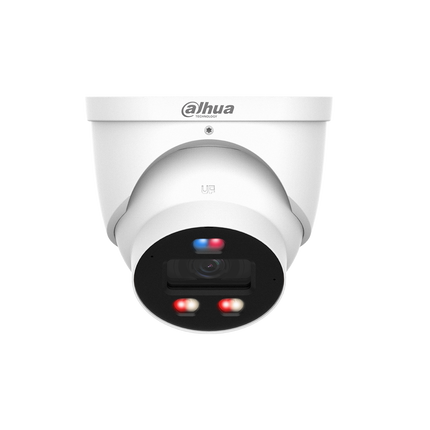

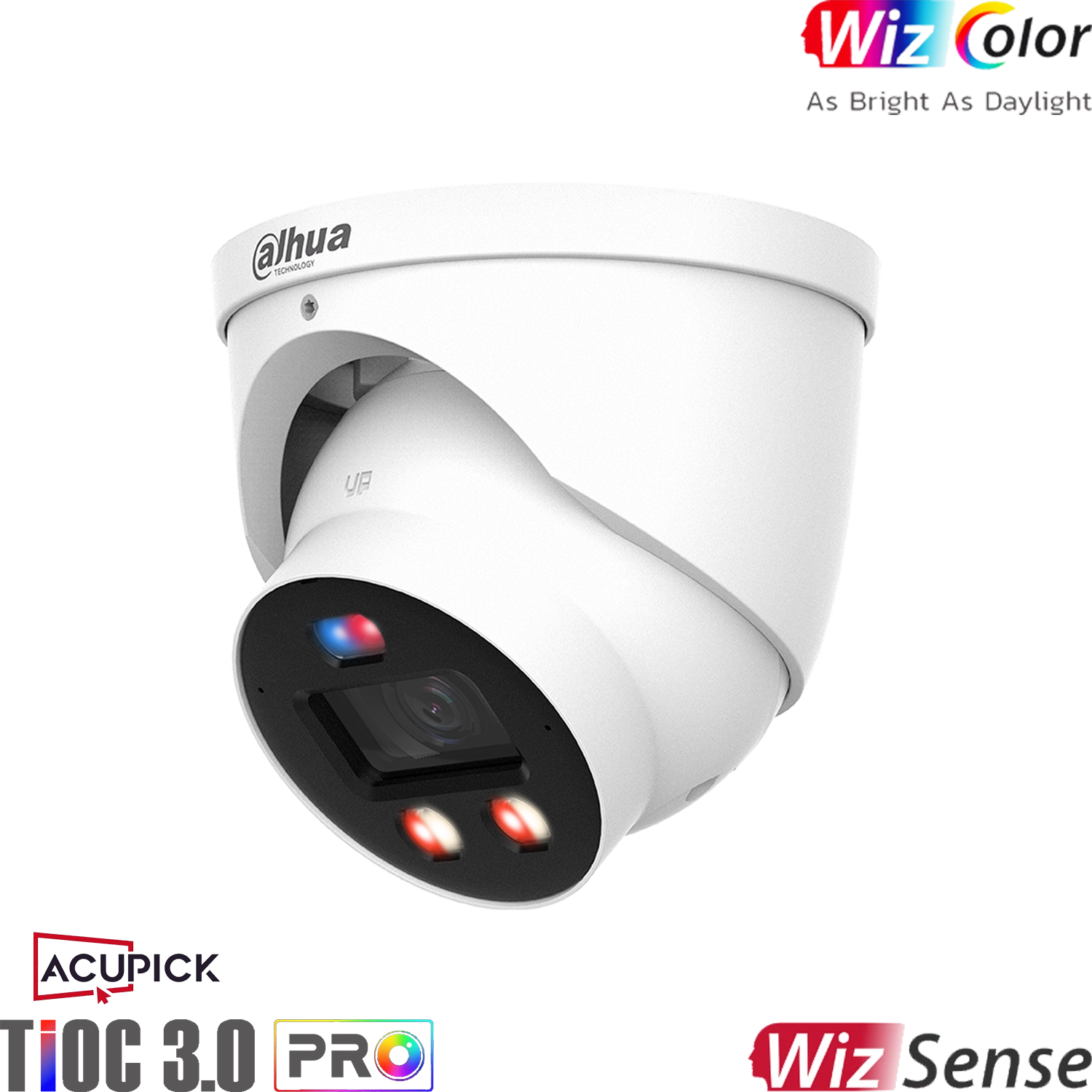

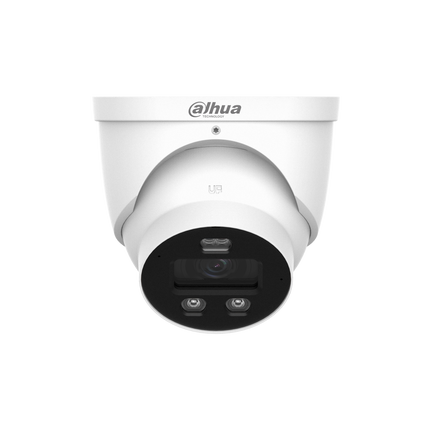

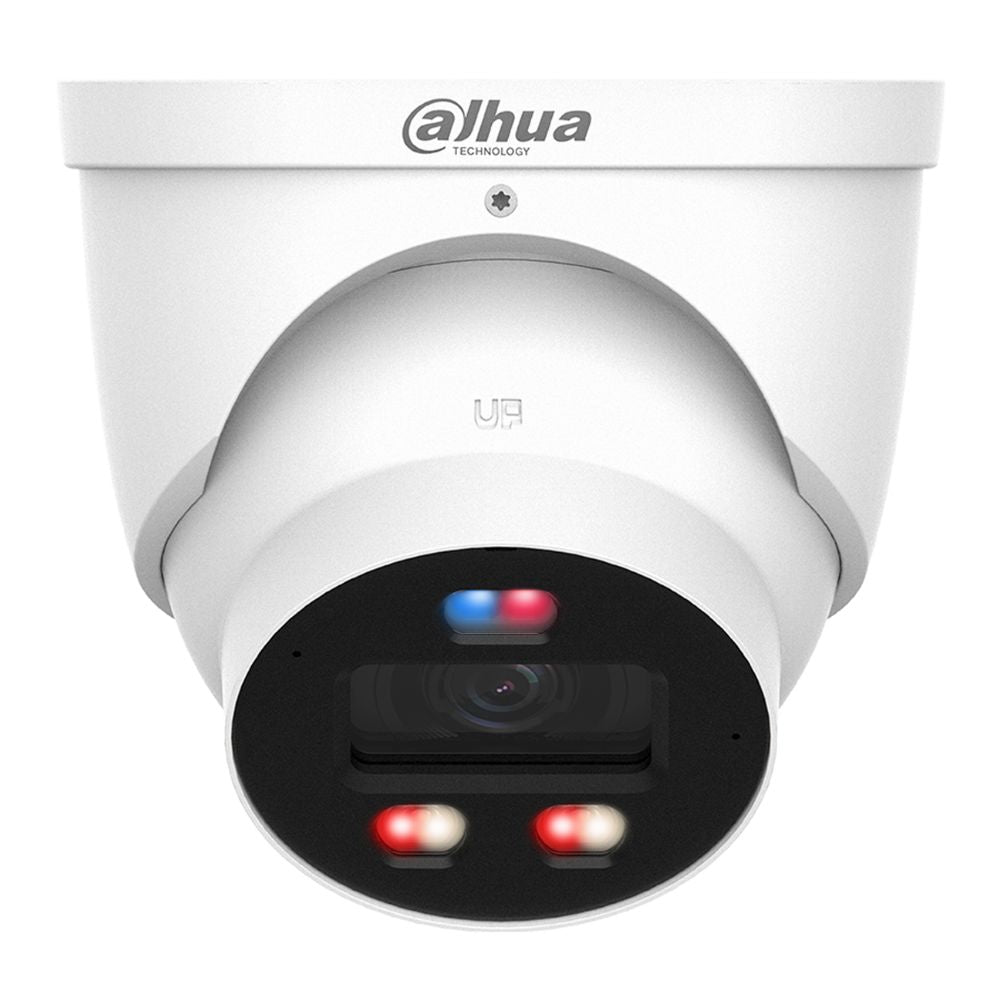

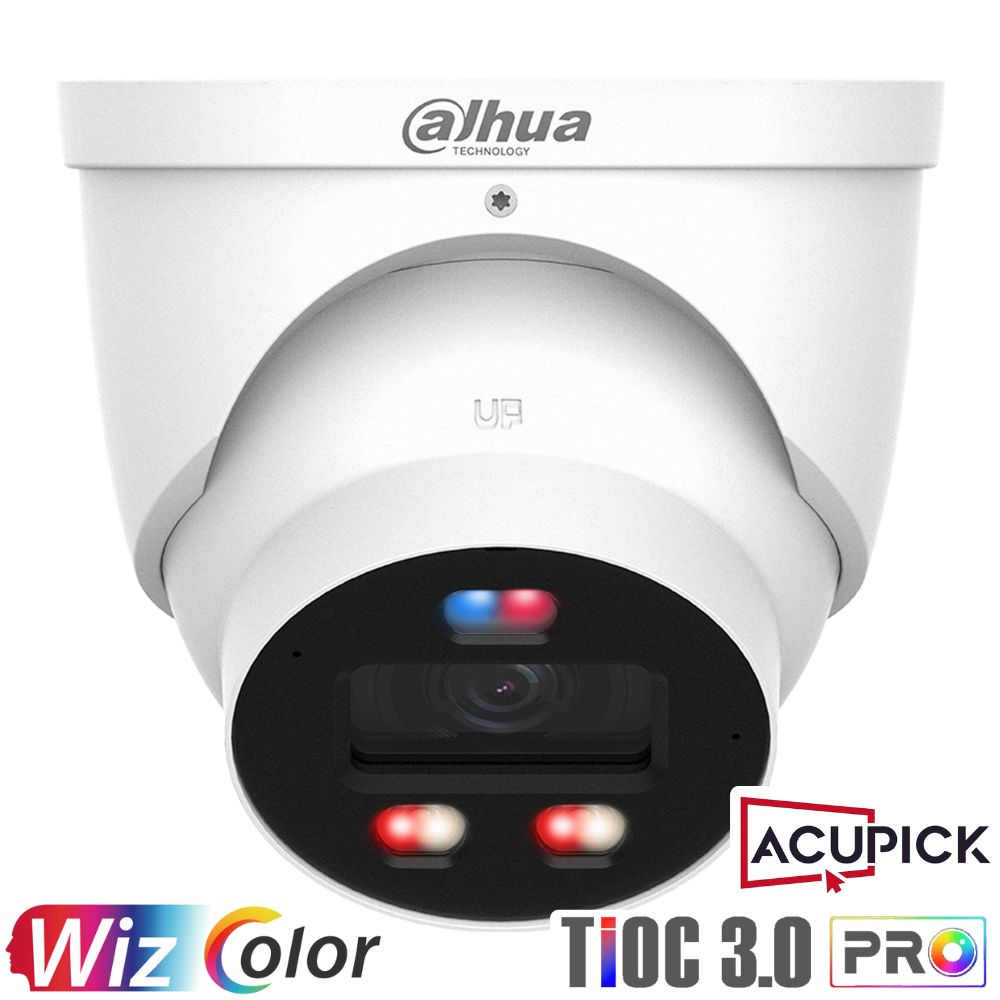

The Dahua IPC-HDW3649H-AS-PV-PRO-ANZ is a 6MP eyeball network camera designed for proactive surveillance. With AI features such as SMD 4.0, intelligent perimeter monitoring, and smart dual light deterrence, it enhances security by combining detection and real-time response. Its IP67-rated casing, built-in microphone and speaker, and up to 30 meters of IR/warm light coverage make it ideal for indoor or outdoor deployment.
Key Features
-
SMD 4.0 Detection – Detects and classifies humans and vehicles with higher accuracy, reducing false alarms.
-
Active Deterrence – Red and blue warning lights plus sound alerts to deter intruders in real time.
-
Dual Light Night Vision (30m) – Automatically switches between IR and warm light for 24/7 visibility.
-
AI SSA & Smart Events – Scene Self-Adaptation (SSA) optimizes image settings for dynamic environments.
-
MicroSD Recording – Supports local recording up to 512GB with optional NAS or FTP storage.
-
Two-Way Audio – Built-in microphone and speaker support real-time communication and alerting.
-
Smart Codec (H.265+/H.264+) – Reduces storage and bandwidth usage without compromising video quality.
-
Built-in Alarm I/O – One input and one output for external sensors or sirens.
Perfect For:
- Building perimeters
- Warehouse exteriors
- Driveways and gates
- School entrances
- Gas stations
- Small business storefronts
Installer Tips
- Mount between 2.5–4 meters for optimal human/vehicle detection.
- Use warm light mode to enhance night color footage in monitored zones.
- Configure alarm schedules and event triggers using a Dahua NVR or DMSS app.
- PoE simplifies installation—no separate power adapter required.
- Adjust sound/light deterrence settings through the web interface.
Downloads
Quick-Read Specs
| Feature |
Details |
| Resolution |
6MP (3288 × 1850) |
| Lens |
Fixed 2.8mm or 3.6mm |
| Night Vision |
IR & warm light, up to 30m |
| AI Features |
SMD 4.0, SSA, Intrusion/Tripwire Detection |
| Audio |
Built-in Mic + Speaker (Two-Way Talk) |
| Storage |
MicroSD up to 512GB, NAS, FTP |
| Power |
12VDC / PoE (802.3af) |
| Protection |
IP67 (Weatherproof) |
What is TIOC?
TiOC stands for Three-in-One Camera, combining Full-Colour Video, Active Deterrence, and AI Detection into one powerful security solution.
With TiOC cameras, you get:
-
Full-Colour Footage 24/7 – even at night, thanks to Smart Dual Illuminators.
-
Smart AI Detection – accurately identifies humans and vehicles, filtering out false
alarms caused by animals, trees, or shadows.
-
Active Deterrence – red and blue warning lights plus a loud siren to stop intruders in their tracks.
These features work together to give you fast, accurate alerts and clear footage any time of day.
How Does It Work?
1. Full-Colour Night Vision with Smart Dual Illuminators
TiOC cameras automatically switch between infrared and LED lighting. When no threat is detected, they use discreet IR. When a person or vehicle enters the scene, the LED lights activate to record in full colour—helping you capture every detail clearly.
2. AI-Powered Detection
Using SMD 4.0 (Smart Motion Detection) and Perimeter Protection, the camera can tell the difference between a person, vehicle, animal, or object. This means:
- You get alerts only when it matters.
- False alarms are reduced to less than 1%.
3. Active Deterrence
When a genuine threat is detected, the camera activates built-in red and blue strobe lights along with a loud audible siren to immediately deter intruders. This proactive response helps prevent incidents before they occur. Users can schedule deterrence features to operate during specific hours—such as overnight—or customise them to suit their needs. For added convenience, a one-touch disarm function allows quick cancellation of the siren when necessary.
Extra Info
Smart Dual Illumination
This camera uses both infrared and warm white light to provide smart lighting control at night. IR is used by default to remain discreet, but when motion is detected in defined areas, the warm light activates to capture colour video. Once the subject leaves, the camera switches back to IR — a system that balances visibility, power consumption, and environmental impact.
SMD 4.0 (Smart Motion Detection)
SMD 4.0 goes far beyond traditional motion detection. It applies deep learning algorithms to distinguish between real threats like people or cars, and harmless motion like pets or falling leaves. When paired with a compatible Dahua AI NVR, you can use Quick Pick to rapidly search for motion events by human or vehicle criteria.
AcuPick
AcuPick leverages advanced back-end processing to help you locate individuals or vehicles across large timelines. It minimizes playback time and narrows down recordings to the most relevant events, especially useful for investigations or verifying past incidents.
AI Scene Self-Adaption (SSA)
The SSA feature analyzes environmental lighting and automatically fine-tunes brightness, contrast, and colour balance to ensure consistent image quality. It’s especially useful in outdoor or mixed-light environments where conditions shift throughout the day.
Active Deterrence
The camera includes flashing red and blue warning lights, a built-in speaker, and pre-recorded (or custom) voice alerts to actively deter potential intruders. This not only captures attention but can prevent incidents from escalating — particularly effective in retail, construction, or unmonitored home entry points.
One-Tap Arming/Disarming
With the Dahua mobile app, users can instantly enable or disable event responses like lights, audio alarms, and recording rules. This flexibility is useful in situations where alerts aren’t needed — such as when family members are at home — but can be reactivated with a single tap when leaving the premises.
Cybersecurity Protections
Dahua builds in strong cybersecurity protections including encrypted video streams, secure firmware updates, and access controls. This guards against data breaches or unauthorized remote access — a key consideration for business and home networks alike.
More About AcuPick - Smart Video Seach with Precision AI
Dahua’s AcuPick technology revolutionises video surveillance by using advanced AI to pinpoint people or vehicles across recorded footage with remarkable speed and accuracy. Instead of scrubbing through hours of video manually, AcuPick enables users to filter footage by specific targets, drastically cutting down search times and boosting operational efficiency. Integrated into a range of Dahua cameras (including TiOC series) and compatible NVRs, AcuPick delivers a seamless and intelligent search experience.
Highlights of AcuPick:
AI-Driven Precision:
AcuPick leverages intelligent algorithms to differentiate between human and vehicle activity, refining search results to what truly matters.
Smart Filtering:
Search footage using key attributes like clothing colour or vehicle type—no need to know the exact time an incident occurred.
Instant Video Recall:
With just a few clicks, users can zero in on critical moments, improving response times and streamlining investigations.
False Alarm Reduction:
By filtering out irrelevant motion, AcuPick helps reduce nuisance alerts, leading to more reliable monitoring.
Flexible Deployment:
Whether through Dahua's smart cameras or NVR integration, AcuPick fits into a wide range of security setups.
Practical Applications:
-
Retail & Offices: Track customer flow or monitor for unauthorized access.
-
Car Parks & Garages: Instantly retrieve footage of accidents or suspicious activity.
-
Public Spaces: Quickly find persons of interest using visual identifiers.
-
Residential Estates: Enhance safety by identifying vehicle movements or visitors.
AcuPick transforms surveillance from reactive monitoring to proactive intelligence, saving time while elevating security across the board.
Q&A
Q: Can this camera record in full color at night?
A: Yes. When warm light mode is active, it captures full-color footage even in darkness.
Q: Does it support two-way audio out of the box?
A: Yes. It has a built-in microphone and speaker, supporting real-time communication.
Q: Can I use this camera without a recorder?
A: Yes. You can record to a microSD card and manage video through the Dahua DMSS app or web browser.
Q: Is it suitable for commercial outdoor environments?
A: Absolutely. Its IP67-rated casing and active deterrence features make it a strong fit for outdoor use.
Q: Can I disable the light or sound alarm?
A: Yes. Both can be independently enabled, disabled, or scheduled via the camera settings.
Comparison Table
IPC-HDW3849H-AS-PV-ANZ-S2 vs. IPC-HDW3649H-AS-PV-PRO-ANZ - What’s New?
| Feature |
IPC-HDW3849H-AS-PV-ANZ-S2 |
IPC-HDW3649H-AS-PV-PRO-ANZ |
| Series |
Lite Series |
PRO Series |
| Megapixels |
8MP (4K) |
6MP |
| Image Sensor |
1/2.7" CMOS |
1/1.8" CMOS (larger, better in low light) |
| Resolution |
3840 × 2160 @ 25/30 fps |
3200 × 1800 @ 25/30 fps |
| Lens Options |
2.8mm fixed |
2.8mm or 3.6mm fixed |
| IR Distance |
Up to 30m |
Up to 40m |
| Warm Light Distance |
Up to 30m |
Up to 40m |
| Smart Dual Light |
Yes (IR + White Light) |
Yes (IR + White Light) |
| Two-Way Audio |
Yes (Built-in mic & speaker) |
Yes (Built-in mic & speaker) |
| Active Deterrence |
Red & Blue flashing lights + siren |
Red & Blue flashing lights + siren |
| AI Functions |
SMD 4.0, Perimeter Protection |
SMD 4.0, Perimeter Protection, AI SSA |
| AI SSA (Scene Self-Adaption) |
No |
Yes |
| Video Compression |
H.265 / H.264 |
H.265 / H.264 |
| WDR (Wide Dynamic Range) |
120dB |
130dB |
| Built-in Storage |
MicroSD up to 256GB |
MicroSD up to 512GB |
| Protection |
IP67 |
IP67 |
| Power |
|
|
Summary Recommendation
Choose the IPC-HDW3849H-AS-PV-ANZ-S2 model if you need:
- Higher resolution (8MP), better suited for broader views or identification at a distance. Lite Series model—great value, basic AI.
Choose the IPC-HDW3649H-AS-PV-PRO-ANZ model if you need:
- Better sensor, AI SSA support, higher WDR and IR/warm light range. Lower resolution (6MP) but better low-light clarity due to the bigger sensor and enhanced AI processing. PRO Series.
