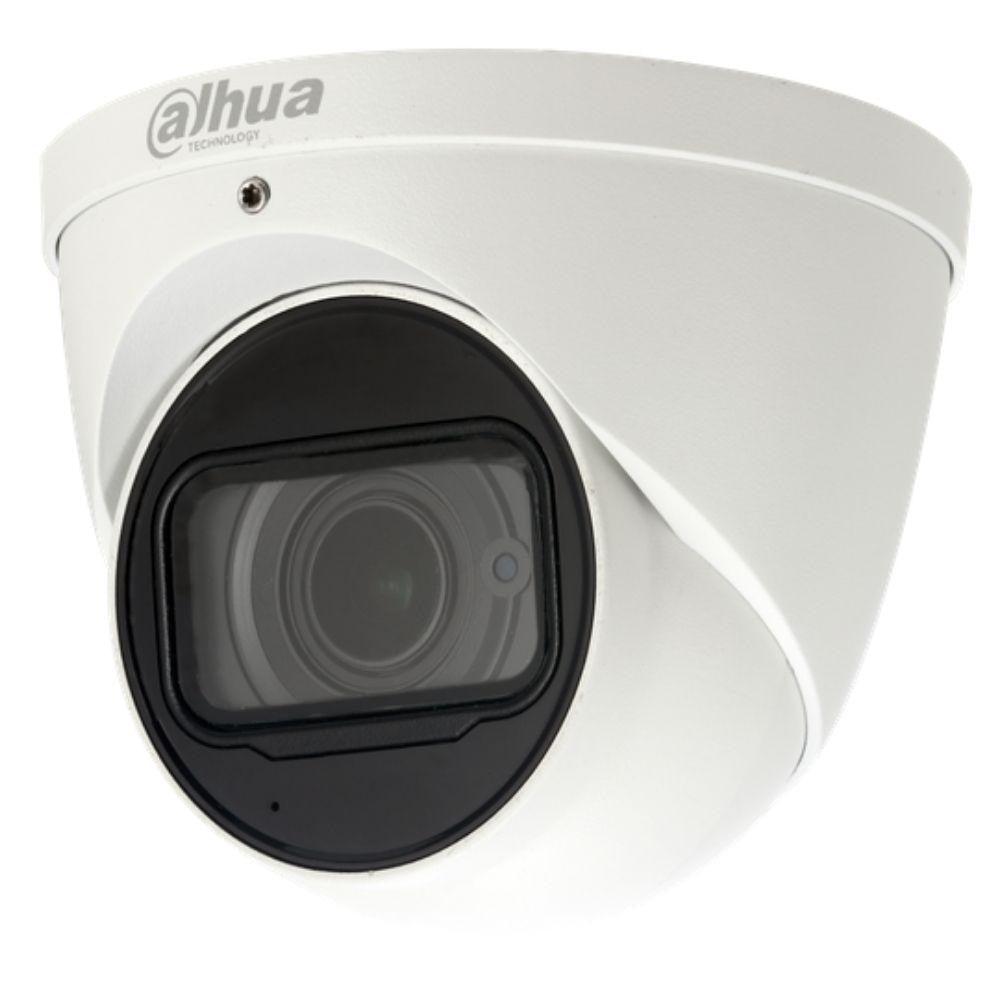

Dahua IPC-HDW5631R-ZE Security Camera
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire, Abandoned Object, Missing Object, Face Detection, and Intrusion Detection.
Features
Dahua IPC-HDW5631R-ZE Security Camera
Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.9” 6Megapixel progressive scan CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels |
3072(H)x2048(V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM |
512MB/32MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination |
0.03Lux/F1.6 (Color, 1/3s, 30IRE) 0.3Lux/F1.6 (Color, 1/30s, 30IRE) 0Lux/F1.6(IR on) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
More than 50dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance |
Distance up to 50m (164ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control |
Auto/ Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs |
2 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Motorized/ Auto Iris(DC) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
Board-in |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.7mm~13.5mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture |
F1.6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View |
H:91°~27° , V:58°~18° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom |
5x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control |
Motorized |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
0.3m |
Pan/Tilt/Rotation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan:0?~360?; Tilt:0?~78?; Rotation:0?~360? |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Advanced Intelligent Functions |
Face Detection |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
H.265+/H.265/H.264+/H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability |
3 Streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
6M(3072×2048)/5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/ D1(704×576/704×480)/ VGA(640×480)/ CIF(352×288/352×240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate |
Main Stream: 6M(1~20fps)/4M(1~25/30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub Stream: D1(1~25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third Stream: 720P(1~25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto(ICR) / Color / B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC Mode |
BLC / HLC / WDR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto/Manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D DNR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detetion |
Off / On (4 Zone, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest |
Off / On (4 Zone) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart IR |
Support |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom |
16x |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip |
0°/90°/180°/270° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Off / On |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet |
RJ-45 (10/100Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF, PSIA, CGI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method |
Unicast / Multicast |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access |
10 Users /20 Users |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage |
NAS Local PC for instant recording Micro SD card 128GB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer |
IE, Chrome, Firefox, Safari |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS, DSS, Easy4ip |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone |
IOS, Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE (EN 60950:2000) UL: UL60950-1 FCC: FCC Part 15 Subpart B |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Interface |
Built-in Mic |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
DC12V, PoE(802.3af)(Class 0) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<8.5W |
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance |
N/A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
?122mm×104mm( 4.8”×4.09”) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
0.6Kg (1.32lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
0.76Kg (1.67lb) |
