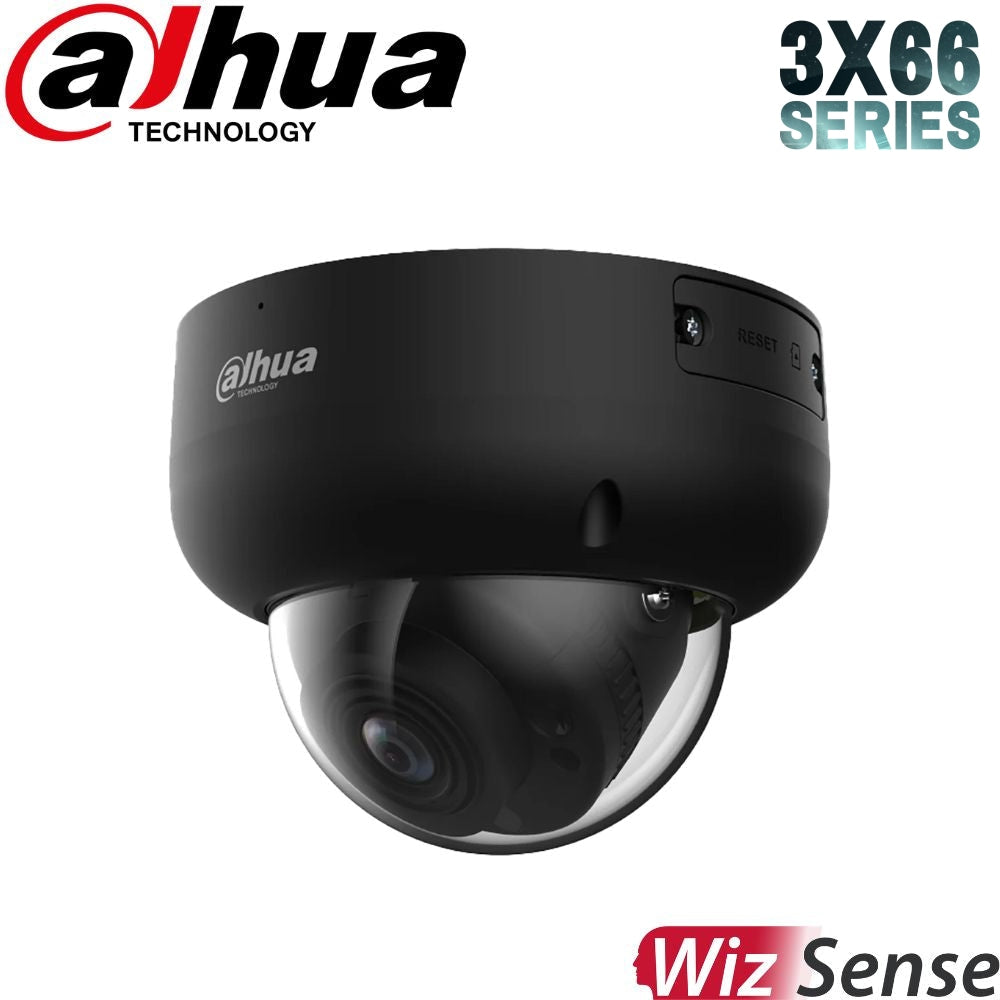

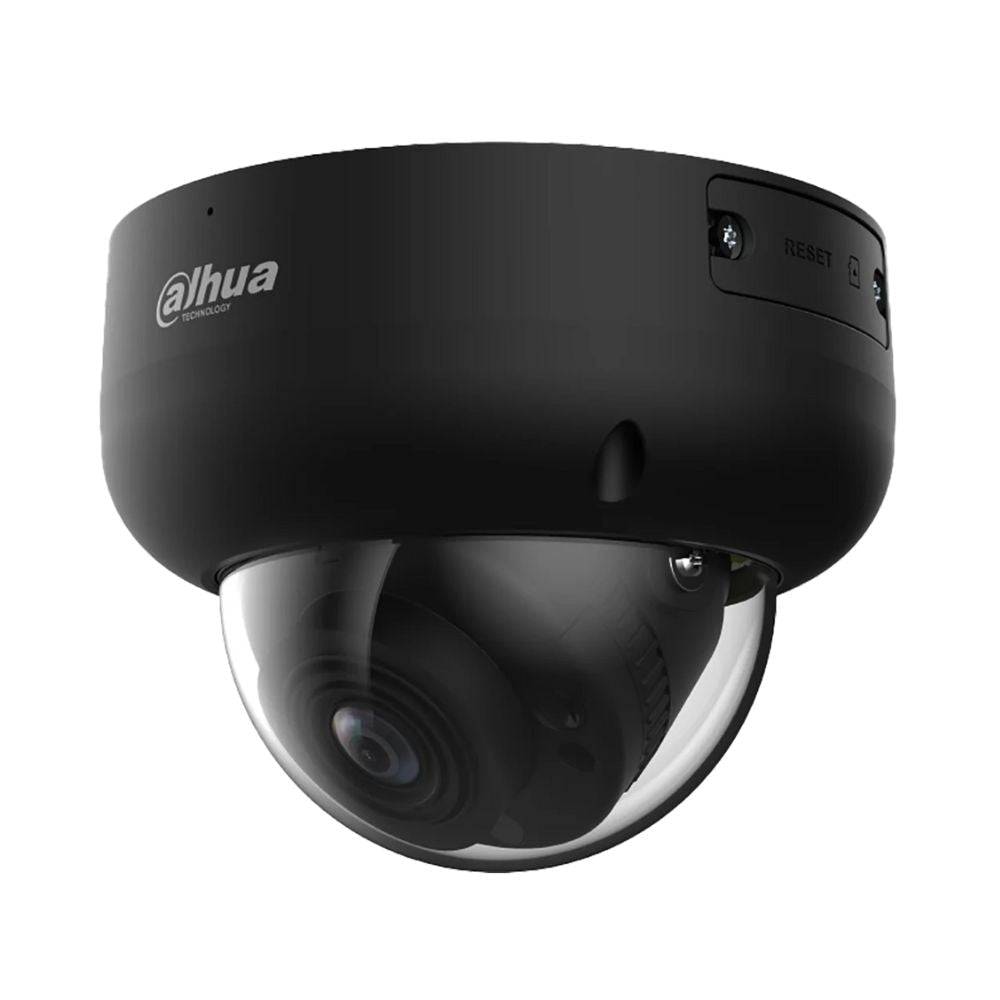

The Dahua IPC-HDBW3866RP-ZAS-AUS is a robust AI-powered 8MP dome camera with a motorized zoom lens, making it ideal for flexible indoor or outdoor surveillance. With advanced AI features, built-in microphone, IR up to 40m, and vandal-resistant design, it’s built for reliability in high-risk or harsh environments.
Key Features
-
AI Detection with Perimeter Protection: Classifies human and vehicle movement to reduce false alerts.
-
Motorized Vari-Focal Lens (2.7–13.5mm): Adjust zoom remotely for wide or focused views.
-
IR Night Vision (40m): Captures clear images in darkness with 3 powerful IR LEDs.
-
SMD 4.0 + Quick Pick: Improves accuracy and speeds up review when paired with an AI NVR.
-
AI SSA Scene Adjustment: Optimizes image settings based on lighting and weather conditions.
-
Built-in Mic + Audio I/O: Adds real-time audio capture and 2-way communication support.
-
Rugged Design (IP67 + IK10): Dust-tight, water-resistant, and vandal-resistant housing.
-
Smart H.265+/H.264+ Compression: Cuts bandwidth and storage costs with intelligent encoding.
Perfect For:
- School campuses and building entrances
- Car parks and drive-through lanes
- Warehouses and distribution centers
- Government facilities
- Public transport terminals
-
Apartment complexes
Install Tips
- Use the 2.7mm end of the lens for wide-area coverage and 13.5mm for focused distances.
- Install 2.5–4m high for best detection of humans/vehicles in open spaces.
- Connect to Dahua AI NVRs to enable Quick Pick and smarter playback.
- Ensure dome cover is clean to prevent IR reflection/glare at night.
-
Use PoE for simpler power/data integration.
Downloads
Quick-Read Specs Card
| Feature |
Details |
| Resolution |
8MP (3840 × 2160) |
| Lens Options |
Motorized 2.7–13.5mm |
| Night Vision |
IR up to 40m |
| Deterrence |
N/A |
| AI Features |
SMD 4.0, AI SSA, Quick Pick |
| Audio |
Built-in Mic + RCA audio I/O |
| Storage |
microSD up to 256GB |
| Power |
12VDC / PoE (802.3af) |
| Weather Rating |
IP67, IK10 |
Extra Info
Motorized Zoom Lens (2.7–13.5mm)
Remotely adjust zoom and focus to capture either wide-area views or detailed close-ups without manually repositioning the camera. Ideal for covering entry points, driveways, or large open spaces.
SMD 4.0 + Quick Pick
Smart Motion Detection 4.0 uses AI to detect only humans and vehicles, filtering out false alarms from rain, pets, or foliage. When paired with an AI NVR, Quick Pick allows rapid searching of footage involving specific object types.
AI Scene Self-Adaption (AI SSA)
Automatically adjusts camera settings to deal with challenging lighting, including backlight, fog, shadows, and flickering—delivering consistently clear and optimized images in real-world environments.
Built-In Audio & Alarms
Includes an integrated microphone and support for external audio and alarm I/O, enabling real-time alerts, audio evidence, and two-way communication setups. Perfect for interactive security systems.
Robust Protection (IP67 + IK10)
Built with a durable metal housing, this camera withstands dust, water, and physical impact. Certified for both indoor and outdoor environments, even in vandal-prone or exposed locations.
Cybersecurity-Ready
Protects your surveillance network with encrypted video streams, firmware integrity verification, secure boot, and user authentication protocols—guarding against unauthorized access or tampering.
While the IPC-HDBW3866RP-ZAS-AUS does not feature built-in AcuPick, it supports AcuPick search functions when connected to an AI-capable Dahua NVR. The camera sends AI metadata (e.g., face detection, people counting, perimeter classifications) that the NVR uses for smart filtering and playback search.
Benefits via AI NVR Integration:
- Search by human or vehicle presence
- Filter playback using traits like mask, gender, or clothing
- Skip irrelevant footage and jump to key events instantly
- Use AI-driven logs and smart snapshots from camera metadata
Q&A
Does this camera record in color at night?
No, it uses IR illumination, so images are black and white in low light.
What does IK10 mean?
It’s a vandal-resistant rating — the camera can withstand strong impact (like hammer strikes).
Can I control zoom remotely?
Yes, the vari-focal lens is motorized and adjustable via the NVR or web interface.
Does the mic record continuously?
Yes, by default. You can change this in the settings.
How far does the IR night vision reach?
Up to 40 meters in darkness.
Can I disable audio or IR?
Yes, both can be toggled through the camera settings.
Will it work with third-party NVRs?
Yes — ONVIF compliant. Advanced AI features may require Dahua AI NVRs.
Is it suitable for high-crime areas?
Yes, with its IK10 rating, AI filtering, and audio capture, it’s a great choice for securing vulnerable locations.
