Description

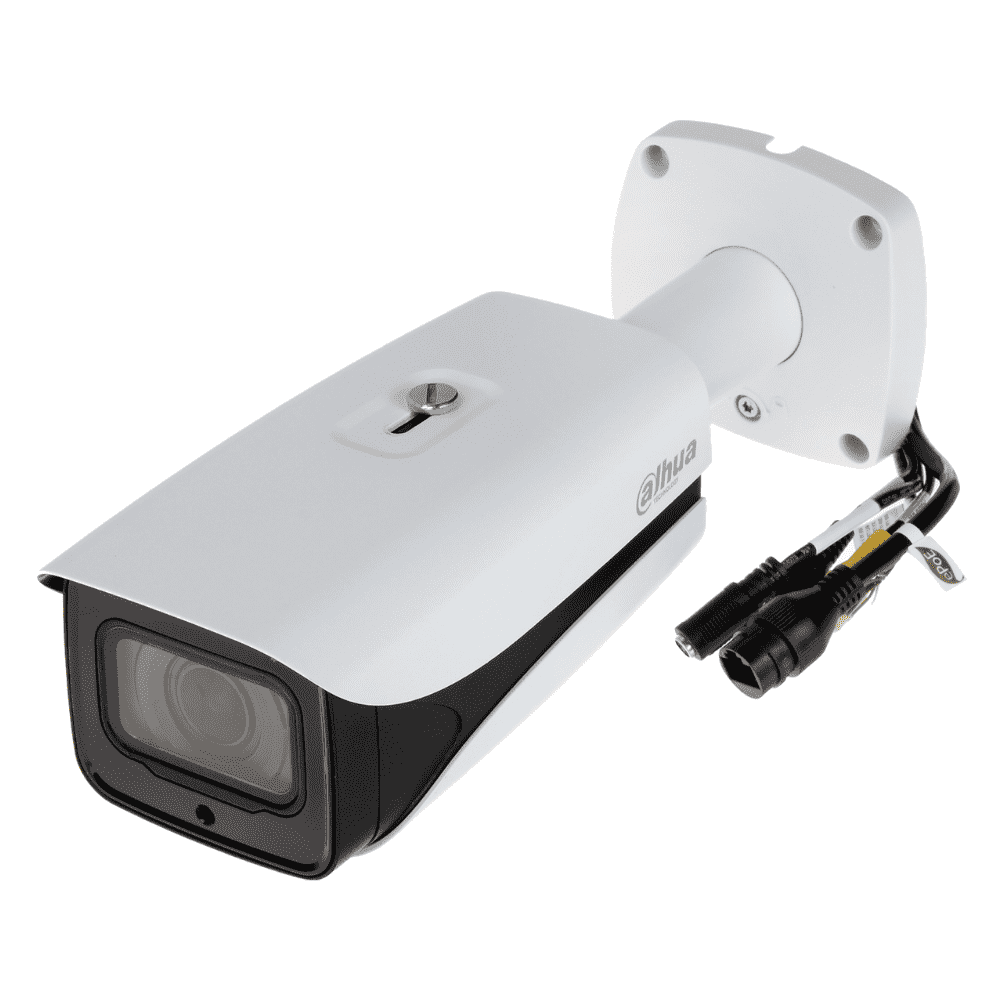

The Dahua DH-IPC-HFW5831E-ZE is a high resolution, motorised varifocal camera with 4X optical zoom designed to perform in challenging recording conditions. With upgraded H.265+ encoding technology, the Eco-savvy series brings high efficient video compression capability, saving both bandwidth and storage. The series features smart IR technology and intelligent image analysis techniques. This series supports reminder function,and is fully protected from dust and water, certified to IP67 and vandal resistant to IK10 standards.
Features
- 1/2.5” 8 Megapixel progressive scan STARVI CMOS
-
H.265+ triple-stream encoding
- 15fps@4K(3840×2160),25/30fps@3Mp(2304×1296)
- Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC & Back Light Compensation BLC
- Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, CMS(DSS/PSS) & DMSS
- 2.7mm ~12mm motorized lens
-
4 IR LEDs With Max. Range of 50m
-
Storage - NAS, Local PC for instant recording & Mirco SD card 128GB
-
PoE Support
- IK10
- IP67
- WARRANTY: 3 years back-to-base manufacturer warranty
Downloads
Tech Specs
Camera - DH-IPC-HFW5831E-ZE |
Image Sensor |
1/2.5” 8Megapixel progressive scan CMOS |
Effective Pixels |
3840(H)x2160(V) |
RAM/ROM |
512MB/32MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual, 1/3~1/100000s |
Minimum Illumination |
0.05Lux/F1.4 (Color, 1/3s, 30IRE)
0.2Lux/F1.4 (Color, 1/30s, 30IRE)
0Lux/F1.4(IR on)
|
S/N Ratio |
More than 50dB |
IR Distance |
Distance up to 50m (164ft) |
IR On/Off Control |
Auto/ Manual |
IR LEDs |
4 |
Lens |
Lens Type |
Motorized/ Auto Iris(DC) |
Mount Type |
Board-in |
Focal Length |
2.7mm~12mm |
Max. Aperture |
F1.4 |
Angle of View |
H:110°~40° , V:58°~23° |
Optical Zoom |
4x |
Focus Control |
Motorized |
Close Focus Distance |
0.3m |
Pan/Tilt/Rotation |
Pan/ Tilt/ Rotation Range |
Pan:0?~360?; Tilt:0?~90?; Rotation:0?~360? |
Intelligence |
IVS |
Tripwire, Intrusion, Object Abandoned/Missing |
Advanced Intelligent Functions |
Face Detection |
Video |
Compression |
H.265+/H.265 /H.264+/H.264 |
Streaming Capability |
3 Streams |
Resolution |
4K(3840×2160)/ 6M(3072×2048)/ 5M(3072x1728)/ 5M(2592×1944)/ 4M(2688×1520)/ 3M(2048x1536)/ 3M (2304×1296)/ 1080P (1920×1080)/ 1.3M(1280x960)/ 720P (1280×720)/ D1(704×576/ 704×480)/
VGA(640×480)/ CIF(352×288/352×240)
|
Frame Rate |
Main Stream: 4K(1~15fps)/3M(1~25/30fps) |
Sub Stream: D1(1~25/30fps) |
Third Stream: 720P(1~25/30fps) |
Bit Rate Control |
CBR/VBR |
Bit Rate |
H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps |
Day/Night |
Auto(ICR) / Color / B/W |
BLC Mode |
BLC / HLC / WDR |
White Balance |
Auto/ Natural/Street Lamp/ Outdoor/ Manual |
Gain Control |
Auto/Manual |
Noise Reduction |
3D DNR |
Motion Detetion |
Off / On (4 Zone, Rectangle) |
Region of Interest |
Off / On (4 Zone) |
Electronic Image Stabilization (EIS) |
N/A |
Smart IR |
Support |
Defog |
N/A |
Digital Zoom |
16x |
Flip |
0°/90°/180°/270° |
Mirror |
Off / On |
Privacy Masking |
Off / On (4 Area, Rectangle) |
Audio |
Compression |
G.711a/ G.711Mu/ AAC/ G.726 |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;
IGMP; SNMP
|
Interoperability |
ONVIF, PSIA, CGI |
Streaming Method |
Unicast / Multicast |
Max. User Access |
10 Users /20 Users |
Edge Storage |
NAS
Local PC for instant recording
Mirco SD card 128GB
|
Web Viewer |
IE, Chrome, Firefox, Safari |
Management Software |
Smart PSS, DSS, Easy4ip |
Smart Phone |
IOS, Android |
Certifications |
Certifications |
CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B
|

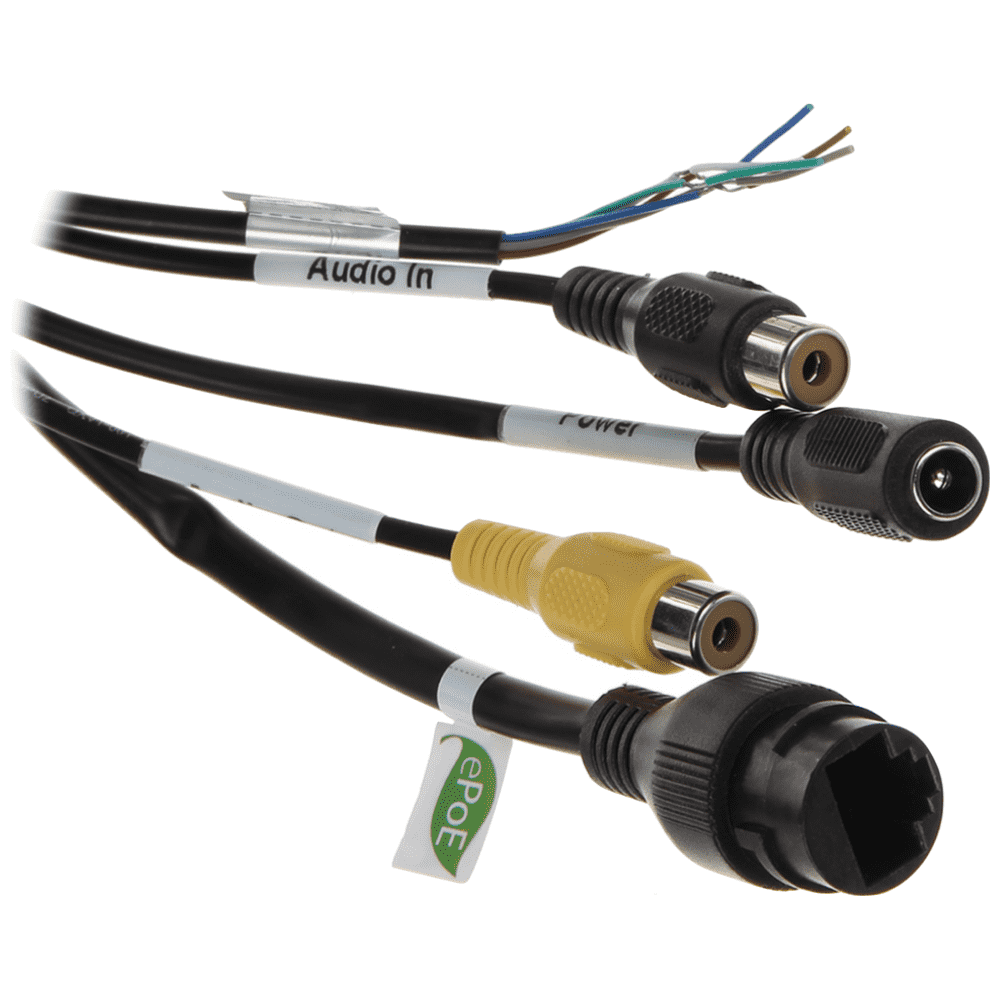

Interface |
Video Interface |
N/A |
Audio Interface |
1/1 channel In/Out |
RS485 |
N/A |
Alarm |
2 channel In: 5mA 5VDC
1 channel Out: 300mA 12VDC
|
Electrical |
Power Supply |
DC12V, PoE (802.3af)(Class 0) |
Power Consumption |
<12.95W |
Environmental |
Operating Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Strorage Conditions |
-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
Ingress Protection |
IP67 |
Vandal Resistance |
IK10 |
Construction |
Casing |
Metal |

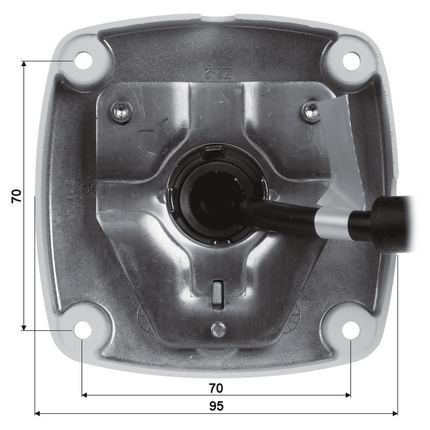

Dimensions |
273.2mm× 95.0mm× 95.0mm (10.76”× 3.74”× 3.74”) |
Net Weight |
1.11Kg (2.44lb) |
Gross Weight |
1.51Kg (3.33lb) |
