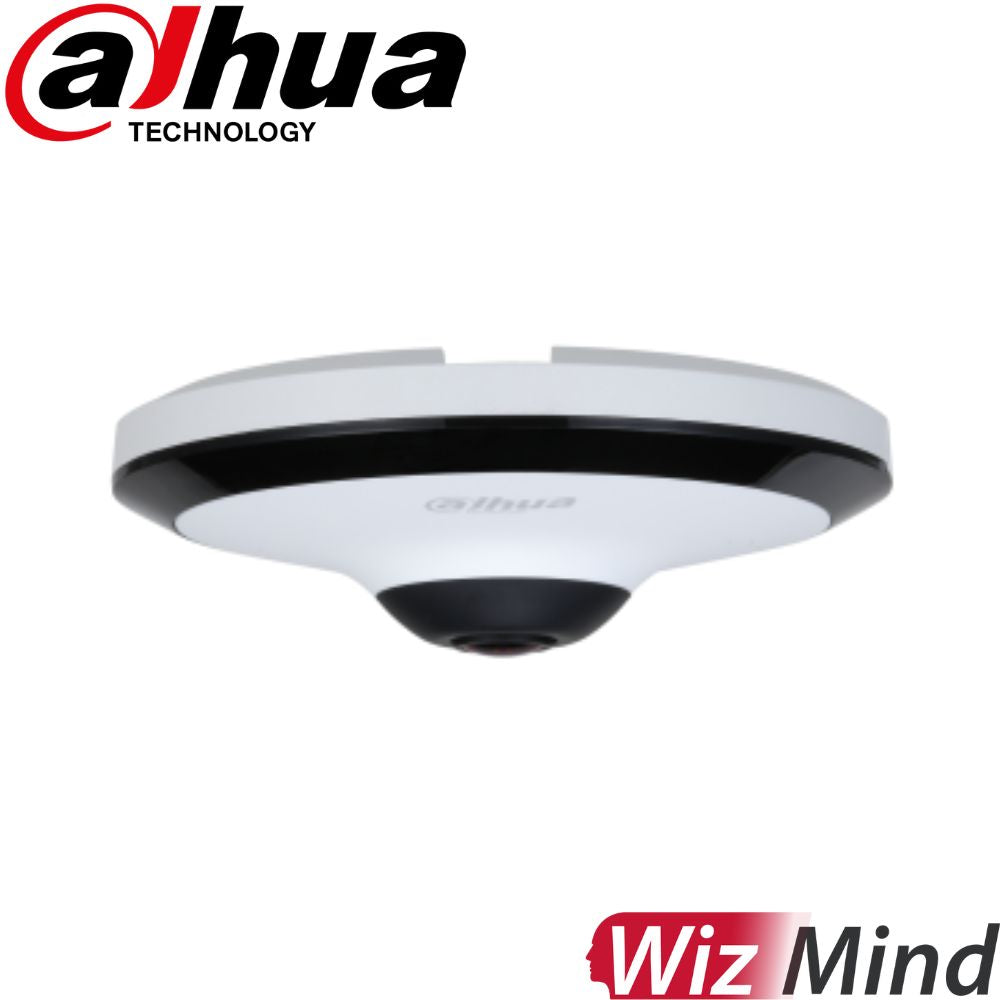

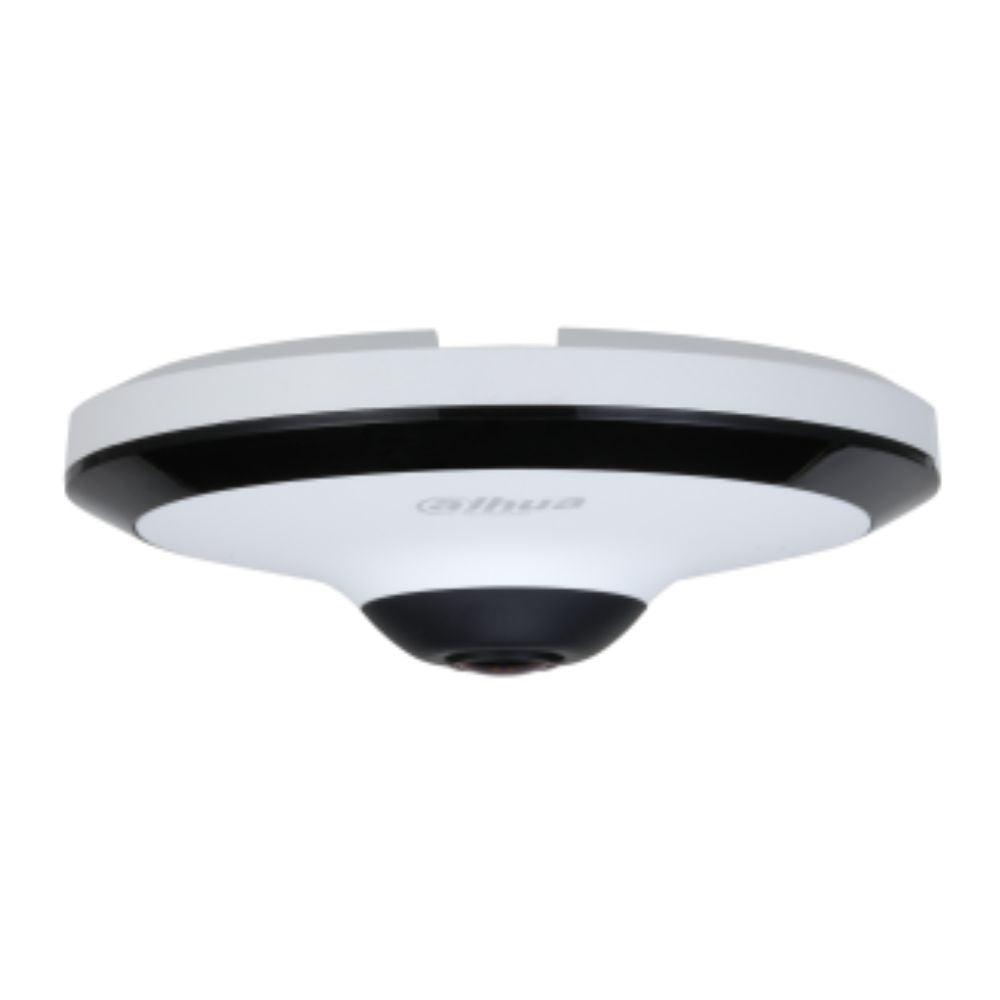

The Dahua IPC-EW5541-AS is a powerful 5MP fisheye network camera equipped with a 1.4 mm lens for full 360° panoramic coverage. Built on the WizMind platform, it features intelligent people counting, heat mapping, tripwire, and intrusion detection—ideal for commercial surveillance needing wide-area visibility with AI analytics.
Key Features
-
360° Panoramic View – Covers an entire room with no blind spots using a single camera.
-
5MP Starlight Sensor – Delivers crystal-clear video in low-light environments.
-
IR Night Vision (10 m) – Infrared LEDs ensure visibility in total darkness.
-
People Counting & Heat Map – Monitor foot traffic patterns and occupancy in real time.
-
Tripwire & Intrusion Detection – Built-in AI can identify human activity with precision.
-
Smart H.265+ Compression – Reduce bandwidth and storage without sacrificing quality.
-
Built-in Mic + Audio I/O – Record audio or connect external speakers for two-way talk.
-
Cyber Secure – Built-in encryption, secure boot, and HTTPS ensure data integrity.
Perfect For:
- Retail stores and supermarkets
- Hotel lobbies and event halls
- Airport terminals and waiting areas
- Banking institutions
- Warehouses and logistics centers
- Open-plan offices and meeting rooms
Install Tips
- Mount at ceiling height for optimal 360° overhead visibility.
- Use PoE for easier installation with just one cable.
- Adjust analytics settings (people count, heat map) via Smart PSS or NVR interface.
- Match with compatible Dahua NVR for best performance in intelligent search & reporting.
- Enable WDR in high contrast indoor environments for balanced lighting.
Downloads
Quick-Read Specs Card
| Feature |
Specification |
| Resolution |
5MP (2592 × 1944) |
| Lens |
1.4 mm Fixed, 360° FOV |
| Night Vision |
3 IR LEDs, up to 10 m |
| AI Features |
People Counting, Heat Map, Tripwire, Intrusion |
| Audio |
Built-in Mic + RCA In/Out |
| Storage |
MicroSD up to 256 GB |
| Smart Codec |
Smart H.265+ / Smart H.264+ |
| Power |
12V DC / PoE |
| Streams |
Triple-streaming supported |
| Cyber Security |
Encrypted boot, HTTPS, Trusted Upgrade |
| Build |
Metal + Plastic, Ø126.2 mm |
Extra Info
Fisheye Lens – Total Room Coverage
This camera is equipped with a 1.4 mm ultra-wide-angle fisheye lens, enabling it to capture a complete 180° view horizontally, vertically, and diagonally. It’s specifically designed for indoor ceiling-mounted installations, providing seamless floor-to-ceiling and wall-to-wall coverage from a single vantage point. This eliminates the need for multiple cameras in large open spaces such as retail floors, lobbies, classrooms, or conference halls.
People Counting with In-Area Number Tracking
The integrated people counting analytics allow the camera to track the number of individuals in a specific area in real time. If the predefined occupancy limit is exceeded, it can trigger alerts or alarms, ensuring businesses comply with capacity regulations or safety protocols. This is especially valuable in environments such as retail stores, transportation terminals, and event venues where crowd control is crucial.
Heat Map Function
The camera includes an intelligent heat mapping feature, which uses motion data over time to generate visual representations of high-traffic zones and dwell areas. These heat maps help businesses understand customer movement patterns, identify popular product displays, or optimize store layouts and staffing based on actual behavior insights.
Triple Streaming Support
With triple video stream capability, the camera can simultaneously output three different streams tailored for various uses:
- A high-resolution stream for full-quality recording,
- A medium-resolution stream for real-time viewing on local monitors,
- And a low-bandwidth stream optimized for mobile devices or remote access.
This ensures optimal performance across devices without overwhelming storage or network resources.
Cybersecurity Hardened
Engineered with robust cybersecurity features, the camera safeguards your system and footage from unauthorized access and tampering. It includes:
-
Encrypted video transmission,
-
Trusted execution environment,
-
X.509 digital certificate support,
-
Account lockout policies, and
-
Secure firmware updates.
These features make it suitable for sensitive deployments where data integrity and system protection are paramount.
While the IPC-EW5541-AS does not feature built-in AcuPick, it supports AcuPick search functions when connected to an AI-capable Dahua NVR. The camera sends AI metadata (e.g., face detection, people counting, perimeter classifications) that the NVR uses for smart filtering and playback search.
Benefits via AI NVR Integration:
- Search by human or vehicle presence
- Filter playback using traits like mask, gender, or clothing
- Skip irrelevant footage and jump to key events instantly
- Use AI-driven logs and smart snapshots from camera metadata
Q&A
Does this camera have PTZ?
No physical PTZ, but you can digitally pan, tilt, and zoom within the 360° image.
Can I record audio with this camera?
Yes, it has a built-in mic and also supports RCA audio input/output for two-way talk setups.
Is this suitable for outdoor use?
Not ideal for outdoor use—it lacks IP67 weatherproofing. Best for indoor ceiling installations.
How does heat mapping work?
It collects foot traffic data over time and visually shows where people gather most using color intensity.
Can I view it on mobile?
Yes. It works with the Dahua DMSS mobile app for iOS and Android.
Does it need an NVR?
No, but pairing with a Smart NVR unlocks intelligent search and long-term recording. It can record locally to an SD card (up to 256 GB).
Can it detect when too many people are in one area?
Yes. You can configure thresholds, and it will trigger an alert when that limit is exceeded.
