NEW Series 2!!
Now with smart Dual Illuminators. The TIOC 2.0 camera can monitor at night with infrared and when motion is detected activate its auxiliary illuminator light for full Colour recording.

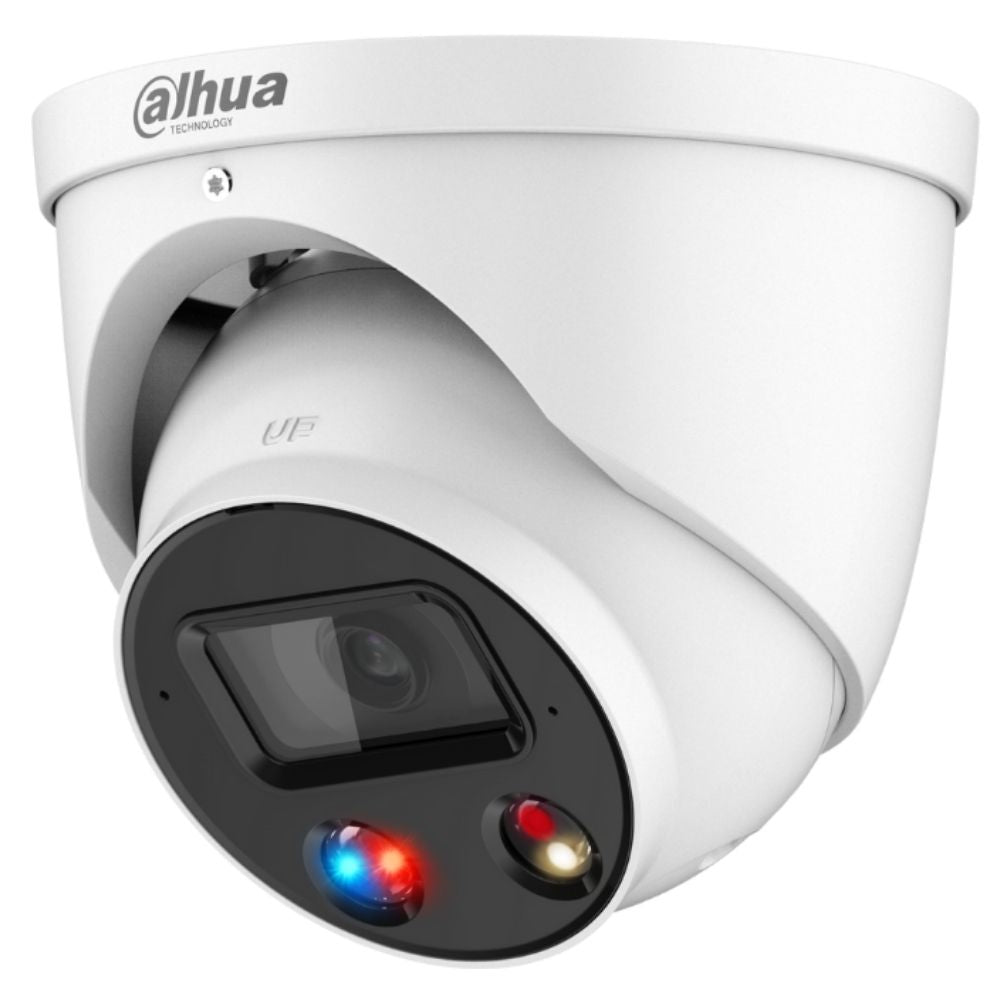

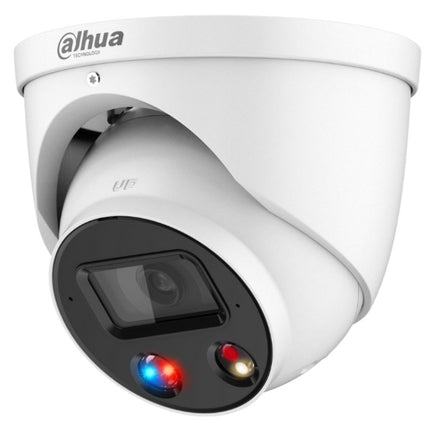

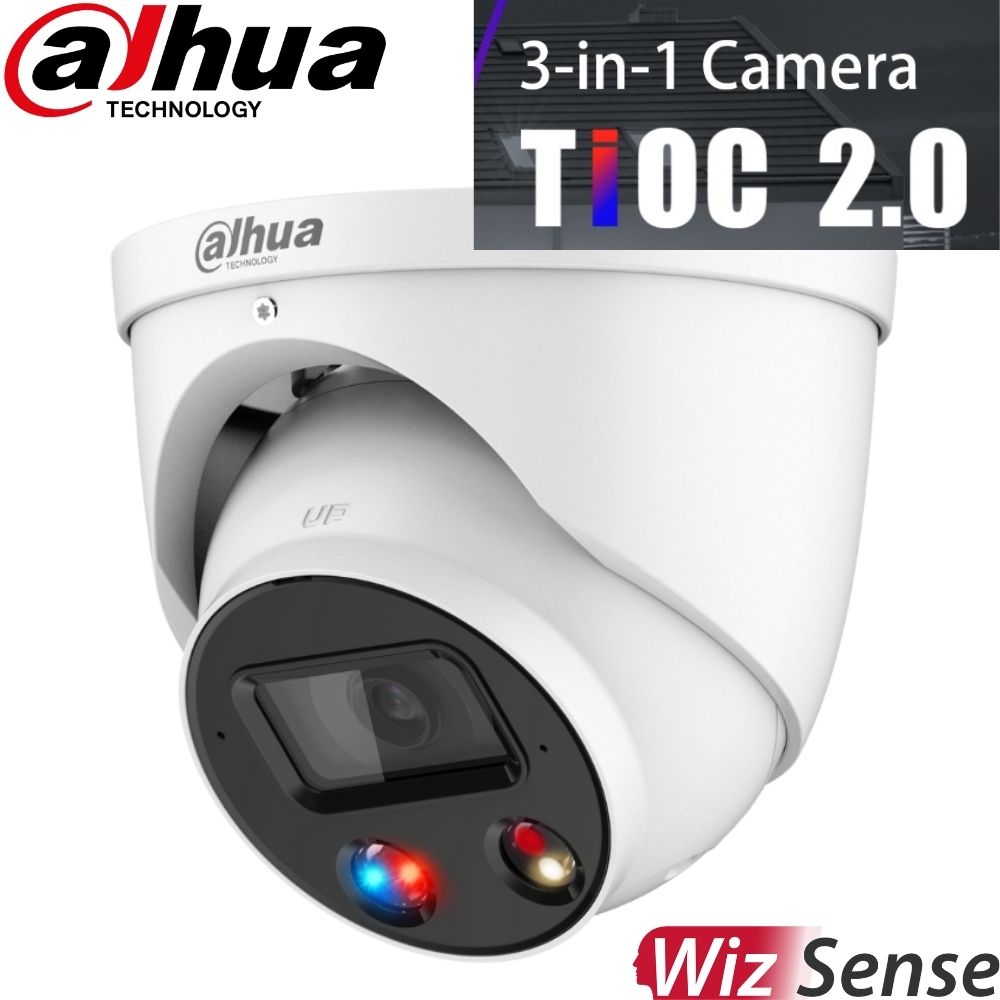

The Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 is an 8 Megapixel (4K), 3 in one camera, otherwise known as the TiOC. The 3 standout features being AI Wizsense, an AI chip with a deep learning algorithm, full-colour technology for colour recording at night and active deterrence features utilising a built-in siren, red and blue strobe lights, and a microphone and loudspeaker, also providing 2-way audio. The camera is a powerhouse of features providing a unique and highly effective surveillance solution. Active deterrence can be used to its full potential or disarmed to suit the security requirement.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs. TiOC can accurately identify potential risks and effectively warn off intruders protecting life and property.
Full Colour uses a warm LED light that enables the camera to capture 24/7 vivid colour video even in the dark. Significantly increases the probability of collecting valid human, vehicle, and event evidence through brighter monitoring. Also works with AI functions to further enhance the probability and accuracy of target recognition and feature extraction with 98% AI accuracy at night.
Active Deterrence camera actively warns off intruders with built-in flashing lights, siren and audible commands. The lights can be configured to steady or flash. The camera is equipped with pre-recorded audible commands with the option to add your own content.
Features
Dahua DH-IPC-HDW3849HP-AS-PV-0280B-S3 Security Camera
Camera |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor |
1/2.8" CMOS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution |
3840 (H) × 2160 (V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM |
128 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM |
512 MB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System |
Progressive |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination |
0.004 lux@F1.0 (Color, 30 IRE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
S/N Ratio |
﹥ 56 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance |
30 m (98.43 ft) (IR) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number |
1 (IR LED) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Fixed-focal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mount Type |
M12 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length |
2.8 mm; 3.6 mm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Field of View |
2.8 mm: Horizontal: 106°× Vertical: 55°× Diagonal: 125° |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Iris Type |
Fixed |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance |
2.8 mm: 2.0 m (6.56 ft) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
2.8 mm |
91.0 m (298.56 ft) |
36.4 m ( 119.42 ft) |
18.2 m (59.71 ft) |
9.1 m (29.86 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
3.6 mm |
107.6 m (353.02 ft) |
43.0 m ( 141.08 ft) |
21.5 m (70.54 ft) |
10.8 m (35.43 ft) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
Professional, intelligent |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS (Perimeter Protection) |
Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD 3.0 |
Less false alarm, longer detection distance |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Codec |
Smart H.265+; Smart H.264+ |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Coding |
AI H.265; AI H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Frame Rate |
Main stream: 3840 × 2160@(1 fps–30 fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Stream Capability |
3 streams |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control |
CBR/VBR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
H.264: 3 kbps–20480 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night |
Auto (ICR)/Color/B/W |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HLC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WDR |
120 dB |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Self-adaptation |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control |
Auto; manual |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction |
3D NR |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection |
OFF/ON (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest (RoI) |
Yes (4 areas) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Illumination |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mirror |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking |
8 areas |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Built-in MIC |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
RJ-45 (10/100 Base-T) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host |
20 (Total bandwidth: 72 M) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage |
FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
IE: IE8/9/11 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software |
Smart PSS; DSS; DMSS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification |
CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1 channel (RCA port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Input |
1 channel in: 5 mA 3V–5 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
1 channel out: 300 mA 12 VDC |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
12 VDC/PoE (802.3af) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
Basic: 2.9 W (12 VDC); 5.0 W (PoE) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions |
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Conditions |
–40 °C to +60 °C (–40 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection Grade |
IP67 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing |
Metal |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions |
110.9 mm × Φ122.0 mm (4.4" × Φ4.8") |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
745 g (163.1 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
915 g (200.6 lb) |
Dahua TiOC Security Camera - DH-IPC-HDW3849HP-AS-PV-0280B-S3
These datasheets may provide more information regarding the product. Click to View.
Dahua TiOC Security Camera - DH-IPC-HDW3849HP-AS-PV-0280B-S3
The videos presented on this product tab may not reflect all the available options and capabilities of this specific product. Some are included to illustrate features and procedures which may be relevant.
Dahua Technology Company Introduction
Dahua Company Introduction
Dahua WizSense Technology
Dahua Starlight Technology
