Description

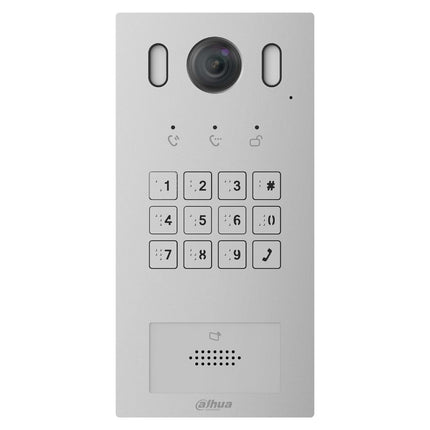

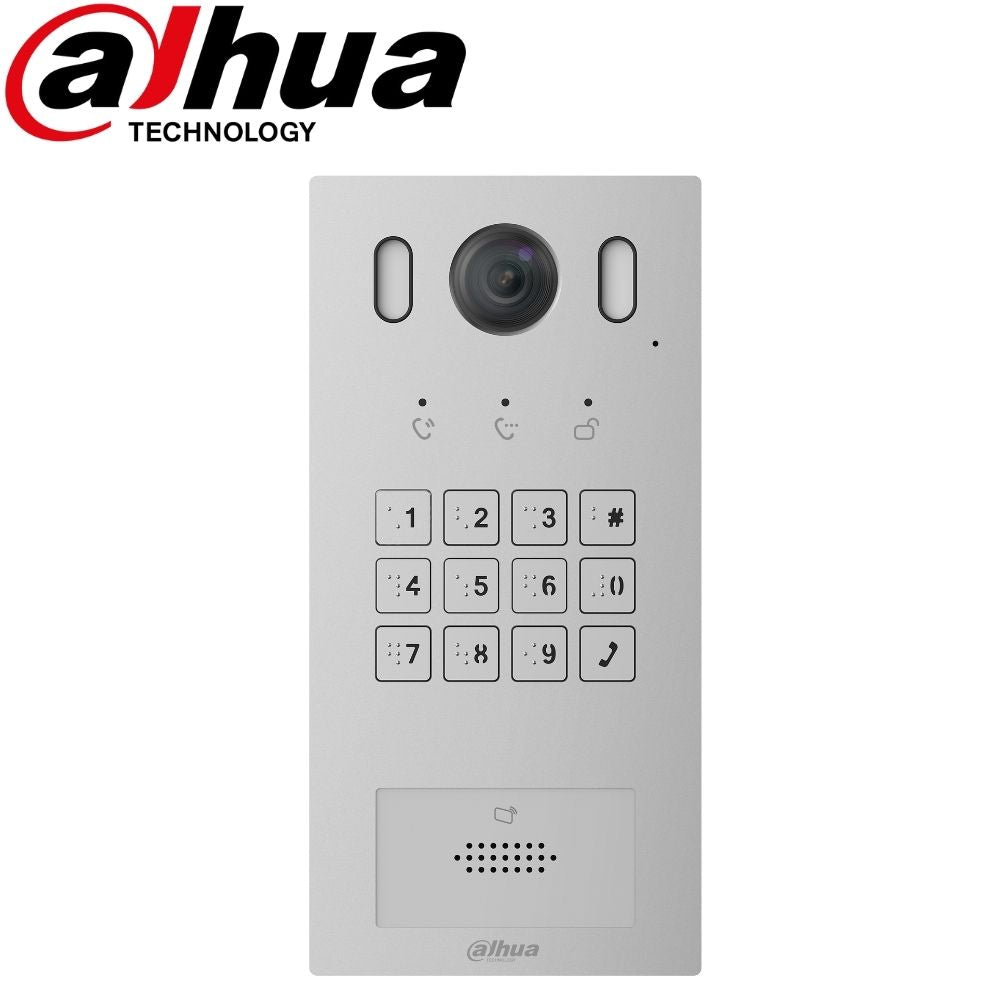

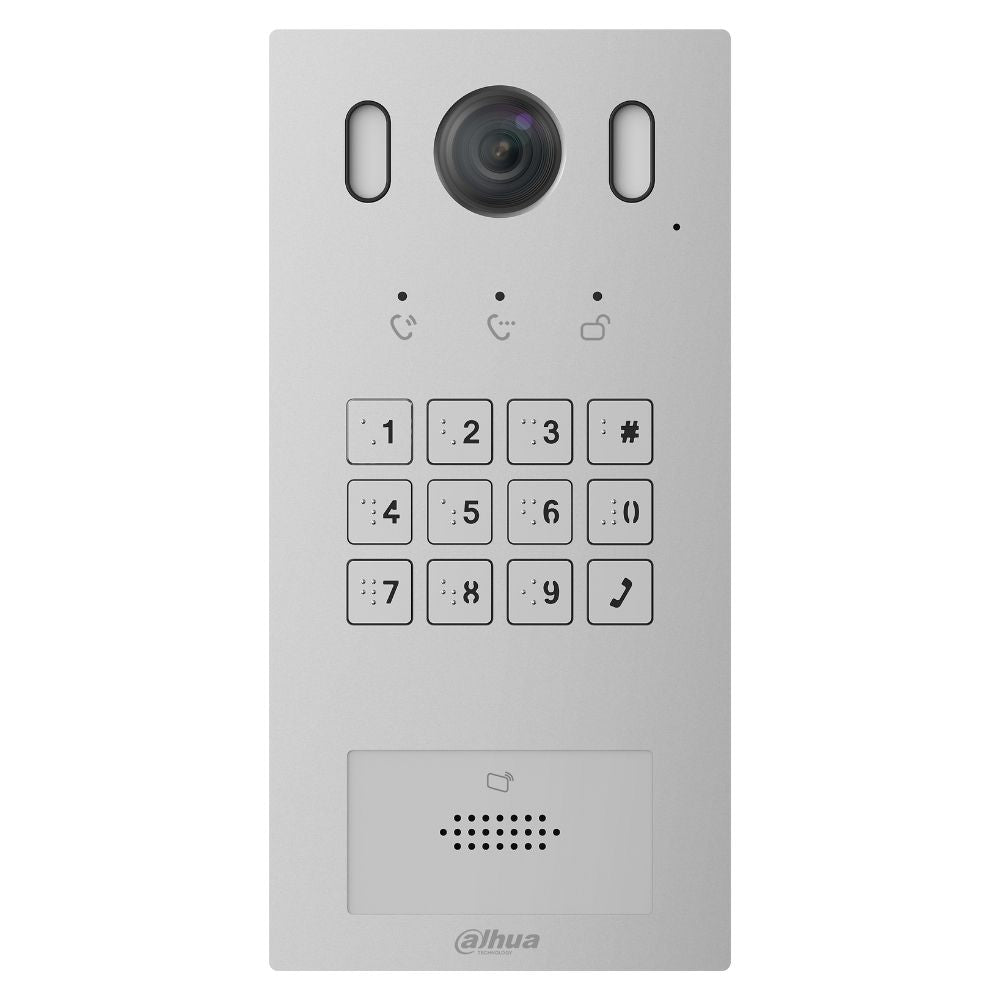

Dahua Villa Outdoor Station - DHI-VTO3221E-P
Features
- Keyboard villa door station
- Supplemental lighting with white light
- 2MP CMOS camera
- Mechanical button with Braille
- Aluminium alloy plate, IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)
- Door release via password and Mifare card
- WARRANTY: 3 Years Back-to-Base Manufacturer Warranty!

Downloads
Tech Specs
Dahua Villa Outdoor Station - DHI-VTO3221E-P |
Technical Specification |
Model |
VTO3221E-P |
System |
Main Processor |
Embedded Micro Processor |
Operation System |
Embedded LINUX OS |
Video |
Video Compression |
H.264 |
Image Sensor |
1/2.9” 2MP CMOS |
Auto Gain Control |
White Light |
Lens |
2mm |
Angle of View |
H:140° V:82° |
Day/Night |
Colour Image |
Audio |
Audio Compression |
G.711 |
Audio Input |
Omnidirectional Mic |
Audio Output |
Built-in Speaker |
Bidirectional Talk |
Support Dual-way Bidirectional talk |
Display |
Screen |
2.3'' OLED |
Operation Mode |
Keypad |
Mechanical Button with Braille |
Reader |
Mifare Card (13.56MHz) |
Interface |
Alarm In/Out |
1/1 |
Door Control |
1 Relay Out |
1 RS485 |
1 Feedback |
1 Exit Button |
Wiegand In |
1 |
Network |
Ethernet |
10M/100Mbps |
Network Protocol |
TCP/IP |
General |
Ingress Protection |
IK08, IP65 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
Tamper Switch |
1 |
Installation |
Surface & Flush |
Material |
Aluminium |
Power |
DC 12V, 2A, PoE(802.3af) |
Power Consumption |
Standby ≤2W, Work ≤7W |
Working Temperature |
﹣40°C~+60°C |
Relative Humidity |
20%~95%RH |
Dimensions |
200mm×98mm×32mm |
Weight |
1.5Kg |
