Description
ION USAGE CALCULATOR: https://ionups.com.au/ups-selector/
Online UPS
Enterprise class rack / tower

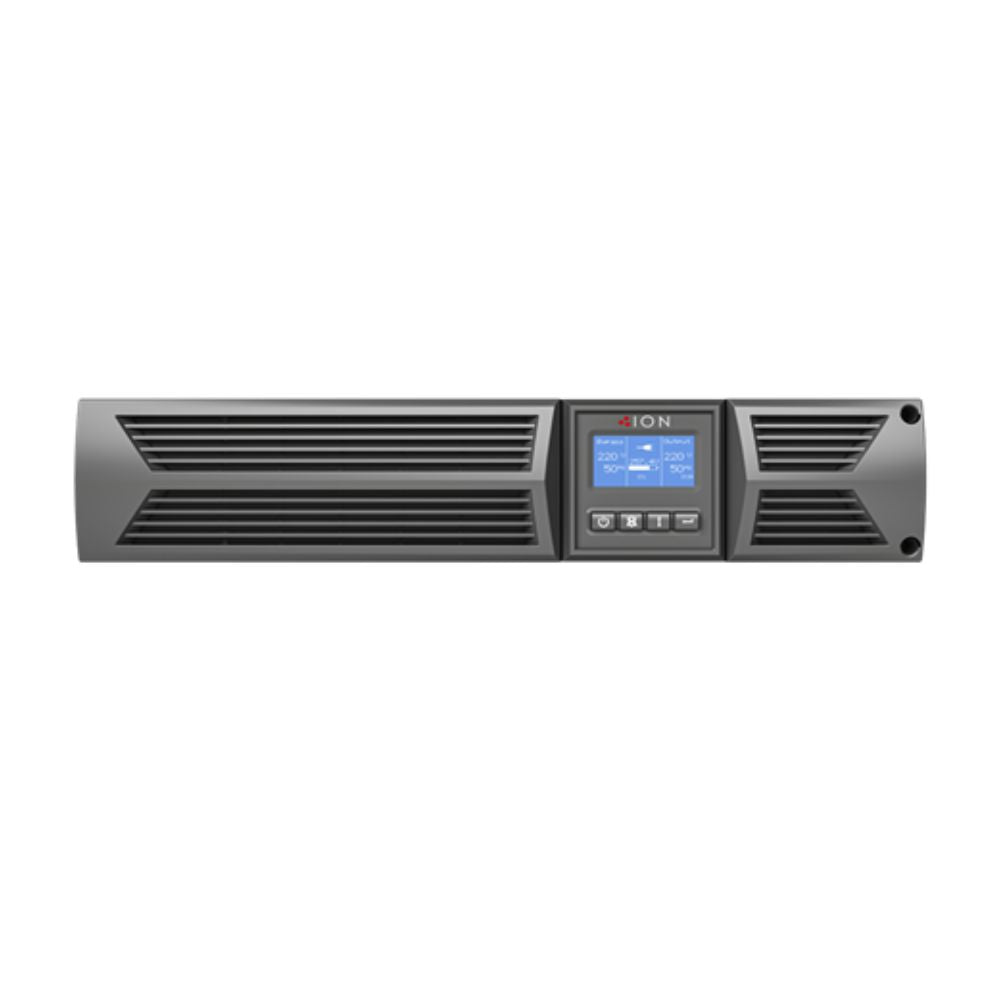

The ION F18 Rack/Tower UPS delivers online power quality and scalable battery runtimes for rack servers, voice and data networks, storage systems and other IT equipment.
With an efficiency rating of >95+, the F18 UPS cuts energy costs while packing up to 3kVA of power into only 2RU of rack space 6kVA of power into only 3RU of rack space and 10kVA of power into only 5RU of rack space.
The F18 UPS range also has a LCD user interface to simplify monitoring. The F18 range is the perfect way to flexibly integrate reliable power supply and protection for high-end computing and applications exposed to potential data loss corruption and downtime.
Downloads
Online UPS Enterprise class/rack tower - F18-10000 - Datasheet
Tech Specs
Online UPS Enterprise class rack / tower F18-10000
| Output Power Capacity |
5400Watts / 6000VA |
9000Watts / 10000VA |
| Max Configurable Power |
5400Watts / 6000VA |
9000Watts / 10000VA |
| Nominal Output Voltage |
Variable 230 - 240VAC |
| Output Voltage Distortion |
≤2% THD (Linear load); ≤5% THD (Non-linear load) |
| Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
| Topology |
Double Conversion Online |
| Waveform Type |
Pure Sine Wave |
| Output Connections |
IEC C13 (4), IEC C19 (2), Hard Wired |
IEC C19 (8), Hard Wired |
| Bypass |
Internal Bypass (Automatic and Manual) and Removable Bypass module |
| Nominal Input Voltage |
230V |
| Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing |
| Input Connections |
Hard Wire 3 wire (1PH+N+G) |
| Line Mode |
12s at 102%-130% Load; 1.5s at 130%-150% Load |
| Battery Mode |
≥ 110 % ± 10%, Fault after 30 Seconds; ≥ 120 % ± 10 %, Fault after 100ms |
| Line Mode |
> 92% |
> 93% |
| Battery Mode |
> 89% |
> 90% |
| ECO Mode |
> 96% |
> 97% |
| Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Typical Recharge Time |
3-6 hour(s) |
| Expected Battery Life (years) |
3-5 years |
| Communications & Management |
| Interface Port(s) |
RS232 / USB / EPO |
| Communications Card Slot |
Optional SNMP / AS400 Card |
| Control Panel |
Load / Battery / Input / Output / Operating Mode Information |
| Audible Alarm |
Yes |
| UPS Dimensions |
F18-6000 |
F18-10000 |
| RU |
3 |
5 |
| Maximum Height |
130mm |
215mm |
| Maximum Width |
440mm |
440mm |
| Maximum Depth |
710mm |
730mm |
| Net Weight |
46 |
82 |
| EBM Dimensions |
FEBM-180 |
FEBM-240 |
| RU |
3 |
3 |
| Maximum Height |
130mm |
130mm |
| Maximum Width |
440mm |
440mm |
| Maximum Depth |
595mm |
595mm |
| Net Weight |
40 |
40 |
| Operating Environment |
0 - 40 °C |
| Operating Relative Humidity |
0 - 95 % |
| Operating Elevation |
0-3000 meters |
| Storage Temperature |
-15 - 45 °C |
| Storage Relative Humidity |
0 - 95 % |
| Storage Elevation |
0-15000 meters |
| Audible Noise at 1 meter from surface of unit |
40.0dBA |
40.0dBA |
| Approvals |
CE |
| Approvals |
3 Year Advanced Replacement* |
