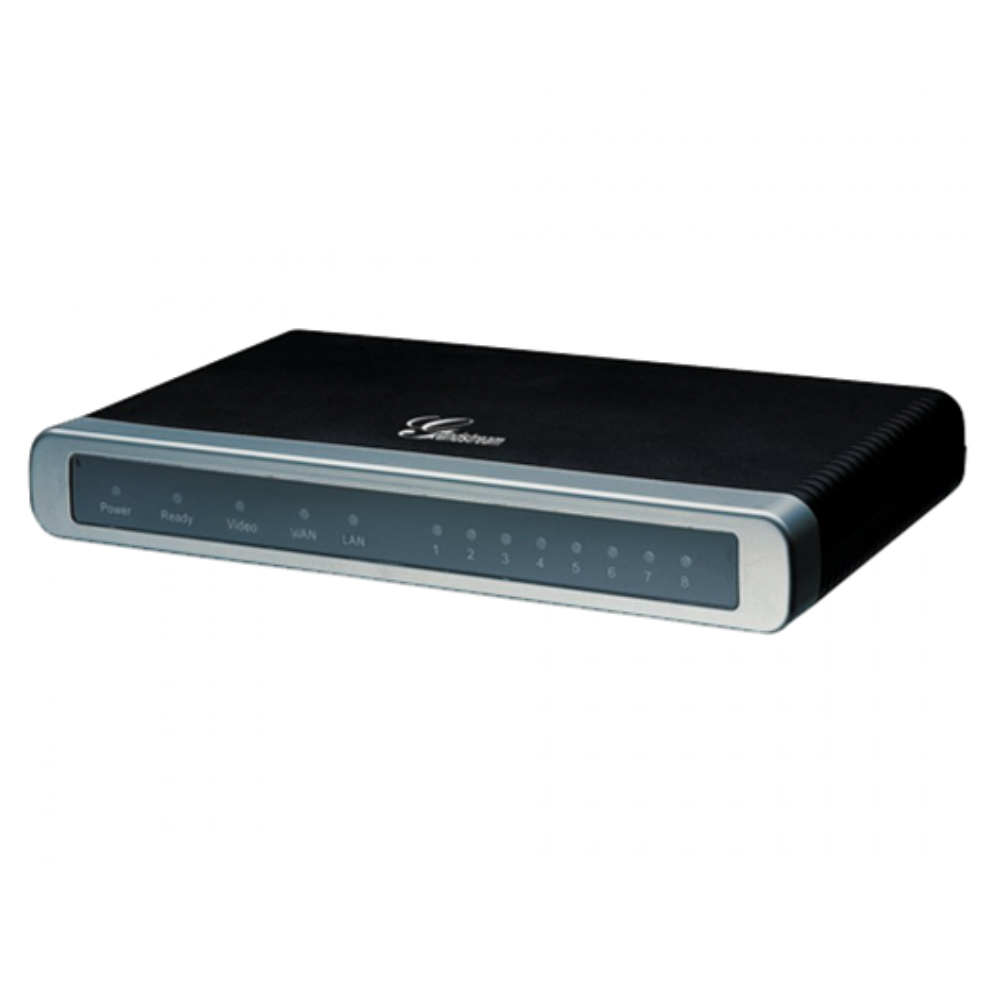

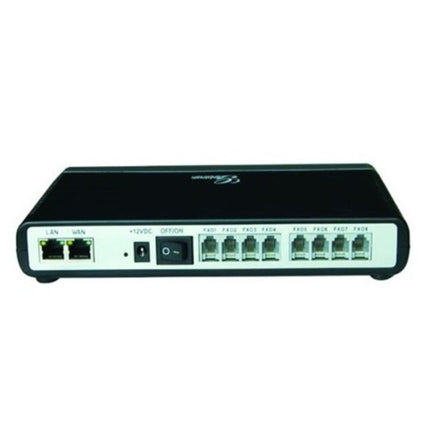

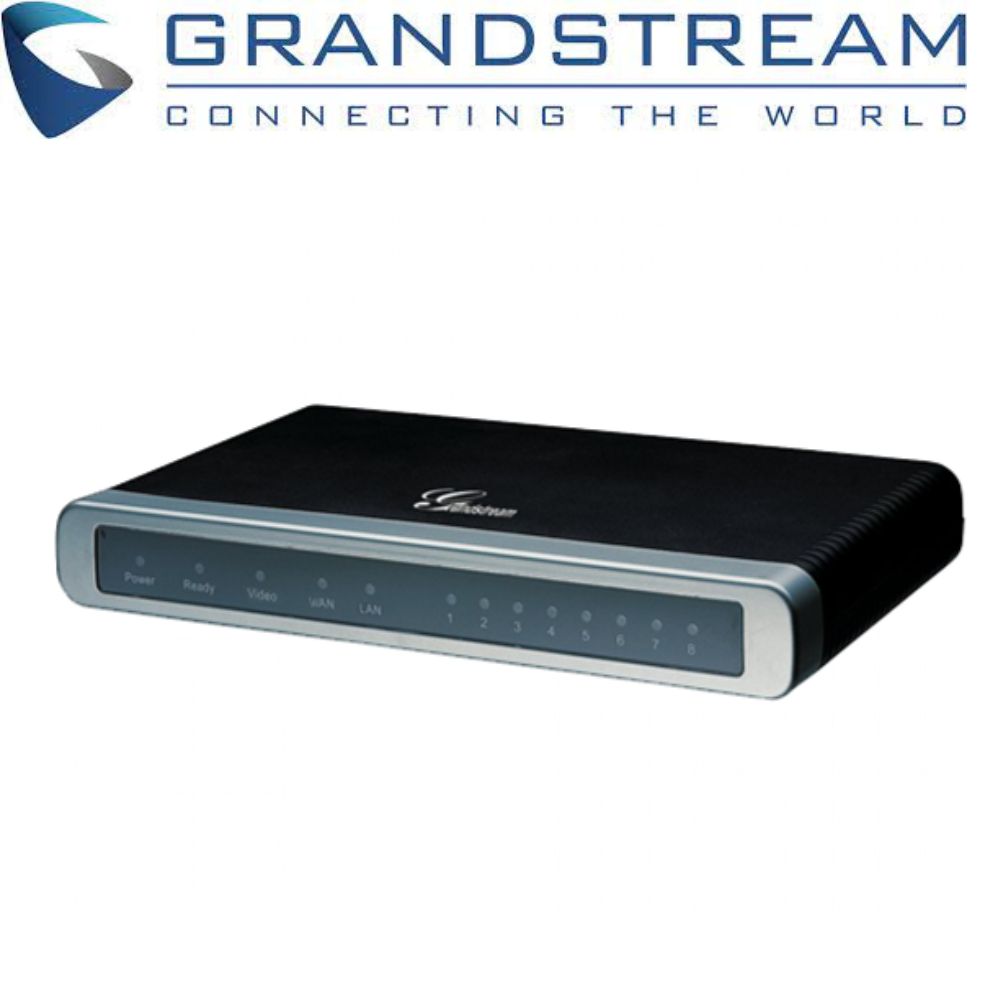

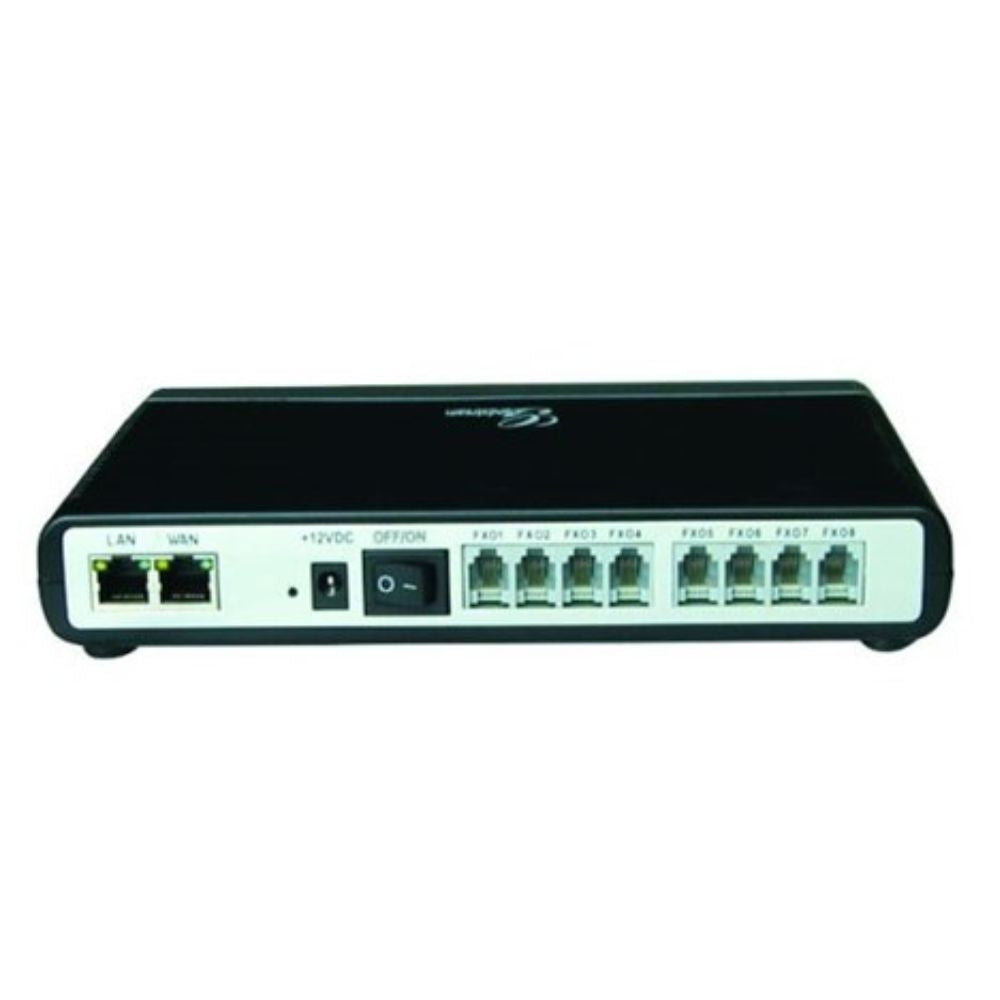

Grandstream 4/8 port FXO Gateways - GXW4104

Description

Description

The GXW410x FXO gateway series enables businesses of all sizes to create and deploy a VoIP and analog hybrid solution. Make deployments easy by seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network.

Features

  • 4 or 8 ports
  • 2 10/100 Mbps network ports
  • Comprehensive codec support, caller ID, flexible dial plans and security protection
  • Advanced security protection with SRTP
  • Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
  • PSTN Failover on power failure
Datasheet
Tech Specs

Grandstream 4/8 port FXO Gateways - GXW4104

Telephone Interfaces GXW4104: 4RJ11 FXO ports
GXW4108: 8 RJ11 FXO ports
Network Interfaces 1 10M/100Mbps, dual RJ45 ports
LED indicators Power, Network and Line LEDs
Voice-over-Packet Capabilities G.168 compiant Echo Cancelation, Dynamic Jitter Buffer, Moderm detection & auto-switch
G.711
PTSN Fail-over Life Line PTSN failover on power failure
Voice Compression G.711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC
DHCP Client Yes, Switched Mode or PPPoE
Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs & auto-switch to G.711 for Fax Pass-through
QoS Diffserve, TOS, 802.1P/Q VLAN tagging
IP Transport Diffserve, TOS, 802.1P/Q VLAN tagging
DTMF Method flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info
IP Signaling SIP (RFC 3261)
SIP Server Profiles & Accounts Per
System 		Up to 2 distinct SIP server profiles per system and independent SIP account per port
Provisioning TFTP and HTTP
Media SRTP
Management Syslog support, HTTPS, telnet, remote mamangement using web browser
Power Output: 12VDC Input: 100-240VAC / 50-60Hz
Environmental Operational: 32-104°F or 0-40°C
Storage: 14-140°F or -10-60°C
Humidity: 10-90% Non-condensing
Dimensions (LxWxH) 230mm x 135mm x 35mm
Mounting Wall mount and desktop
Short & Long Haul REN3: Up to 150ft on 24AWG line
Caller ID Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
Polarity Reversal/Wink Yes
EMC EN55022/EN5504 and FCC part 15 Class B
Safety UL

Read more

Grandstream 4/8 port FXO Gateways - GXW4104

Product form

SKU: GXW4104

$513.24 $499.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    The GXW410x FXO gateway series enables businesses of all sizes to create and deploy a VoIP and analog hybrid solution. Make deployments easy by seamlessly connect multiple locations and all devices within an office to any hosted or on premise IP PBX network.

    Features

    • 4 or 8 ports
    • 2 10/100 Mbps network ports
    • Comprehensive codec support, caller ID, flexible dial plans and security protection
    • Advanced security protection with SRTP
    • Designed and tested for full interoperability with leading IP-PBXs, soft-switches and SIP-based environments
    • PSTN Failover on power failure
    Datasheet
    Tech Specs

    Grandstream 4/8 port FXO Gateways - GXW4104

    Telephone Interfaces GXW4104: 4RJ11 FXO ports
    GXW4108: 8 RJ11 FXO ports
    Network Interfaces 1 10M/100Mbps, dual RJ45 ports
    LED indicators Power, Network and Line LEDs
    Voice-over-Packet Capabilities G.168 compiant Echo Cancelation, Dynamic Jitter Buffer, Moderm detection & auto-switch
    G.711
    PTSN Fail-over Life Line PTSN failover on power failure
    Voice Compression G.711, G.723, G.726 (40/32/24/16), G.729A/B/E, G.728, iLBC
    DHCP Client Yes, Switched Mode or PPPoE
    Fax over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs & auto-switch to G.711 for Fax Pass-through
    QoS Diffserve, TOS, 802.1P/Q VLAN tagging
    IP Transport Diffserve, TOS, 802.1P/Q VLAN tagging
    DTMF Method flexible DTMF transmission method, user interface of in-audio, RFC2833, and/or SIP info
    IP Signaling SIP (RFC 3261)
    SIP Server Profiles & Accounts Per
    System     		Up to 2 distinct SIP server profiles per system and independent SIP account per port
    Provisioning TFTP and HTTP
    Media SRTP
    Management Syslog support, HTTPS, telnet, remote mamangement using web browser
    Power Output: 12VDC Input: 100-240VAC / 50-60Hz
    Environmental Operational: 32-104°F or 0-40°C
    Storage: 14-140°F or -10-60°C
    Humidity: 10-90% Non-condensing
    Dimensions (LxWxH) 230mm x 135mm x 35mm
    Mounting Wall mount and desktop
    Short & Long Haul REN3: Up to 150ft on 24AWG line
    Caller ID Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID
    Polarity Reversal/Wink Yes
    EMC EN55022/EN5504 and FCC part 15 Class B
    Safety UL

    Read more
