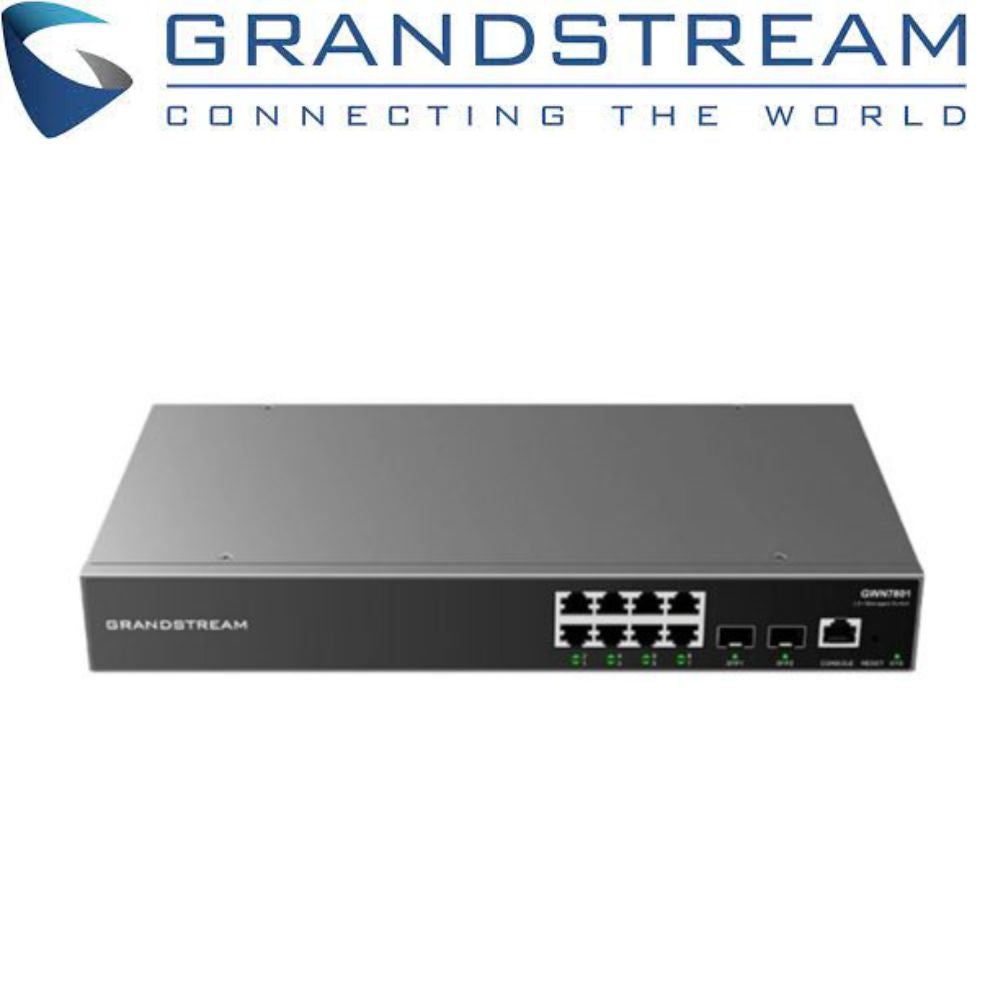

Grandstream Enterprise Layer 2+ Managed Network Switch - GWN7801
Description
Description
Grandstream GWN7801 is a compact, managed network switch that gives you 8 Gigabit Ethernet ports for establishing a professional network at exceptional value. GWN7801 is perfect for small to medium business (SMBs) to connect VoIP phones, IP security cameras, Wi-Fi access points and more. The switch's Gigabit speed lets you future-proof your network while reducing bottlenecking and stablizing your communications. GWN7801 is a Layer 2+ network switch - an enterprise-class switch at an incredible price-point. As a professional-grade device, GWN7801 supports advanced VLAN traffic segmentation, advanced QoS optimization, latency sensitive traffic prioritization and much more. The switch protects your network with a deep selection of security features like DHCP snooping, DoS protection and more.
Features
- 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
- Supports deployment in IPv6 and IPv4 networks
- Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
- Advanced QoS auto detects and prioritizes latencysensitive audio/video/RTP/ VoIP/SIP packets
Datasheet
Tech Specs
Tech Specs
Grandstream Enterprise Layer 2+ Managed Network Switch - GWN7801
| GWN7801 | GWN7801P | GWN7802 | GWN7802P | GWN7803 | GWN7803P |
| Network Protocol | IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| Gigabit Ethernet Ports | 8 | 16 | 24 |
| Gigabit SFP Ports | 2 | 4 |
| Console | 1 |
| # of PoE Ports | / | 8 | / | 16 | / | 24 |
| Integrated Power Supply | 30W | 150W | 30W | 270W | 30W | 400W |
| Max Output Power per PoE Port | / | 30W | / | 30W | / | 400W |
| Max Total PoE Output Power | / | 30W | / | 240W | / | 400W |
| PoE Standards | / | IEEE 802.3af/at | / | IEEE 802.3af/at | / | IEEE 802.3af/at |
| Auxiliary Ports | 1x Reset Pinhole |
| Forwarding Mode | Store-and-forward |
| Total non-blocking throughput | 10Gbps | 20Gbps | 28Gbps |
| Switching Capability | 20Gbps | 40Gbps | 56Gbps |
| Forwarding Rat | 14.88M packets per second | 29.76M packets per second | 41.66M packets per second |
| Packet Buffer | 4.1MB |
| Switching | • 8K static, dynamic and filtering MAC addresses • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN • VLAN virtual interface • GVRP • 8 link aggregation groups • Spanning tree, 64 instances for STP/RTSP/MSTP |
| Multicast | IGMP Snooping, MLD Snooping, MVR |
| QoS/ACL | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6 |
| DHCP | Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets • Port priority • Priority mapping • Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ • Traffic shaping • Rate limit • 1.5K ACL for Ethernet, IPv4 and IPv6 |
| Maintenance | CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) and copper test |
| Security | • User hierarchical management and password protection, HTTPS, SSH, Telnet • 802.1X authentication • AAA authentication including RADIUS, TACACS+ • Storm control • Port isolation, port security, sticky MAC • Filtering MAC address • IP source guard, DoS attack prevention, ARP inspection • DHCP Snooping • Loop protection including BPDU protection, root protection and loopback protection • Kensington Security Slot (Kensington Lock) support |
| Mounting | Desktop/ Wall-Mount | Desktop, wall-mount, or rack-mount (rack-mount brackets included) |
| LEDs | 1x tri-color LED for device tracking and status indication, 10x green LEDs for data ports |
1x tri-color LED for device tracking and status indication, 10x green-color LEDs for data ports, 8x yellow-color LEDs for PoE ports |
1x tri-color LED for device tracking and status indication, 20x green LEDs for data ports |
1x tri-color LED for device tracking and status indication, 20x green-color LEDs for data ports, 16x yellow-color LEDs for PoE ports |
1x tri-color LED for device tracking and status indication, 28x green LEDs fo |
1x tri-color LED for device tracking and status indication, 28x green-color LEDs for data ports, 24x yellow-color LEDs for PoE ports |
| Fan | / | / | 1 | / | 2 | / |
| FCC, CE, RCM, IC, UKCA | Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing) Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing) |
| Dimensions | 30mm(L)*175mm(W)*44(H | 440mm(L)*200mm(W)*44mm(H) |
| Unit Weight(TBD) | 1.8Kg | 2Kg | 2.6Kg | 3Kg | 2.7Kg | 3.3Kg |
| Package Content | Switch, 1x 1.2m(10A) AC Cable, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear |
Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable, 4x Rubber Feet, 2x Lug Ear |
| Compliance | FCC, CE, RCM, IC, UKCA |
