Grandstream Enterprise Layer 2+ Managed Network Switch - GWN7803

Description

Description

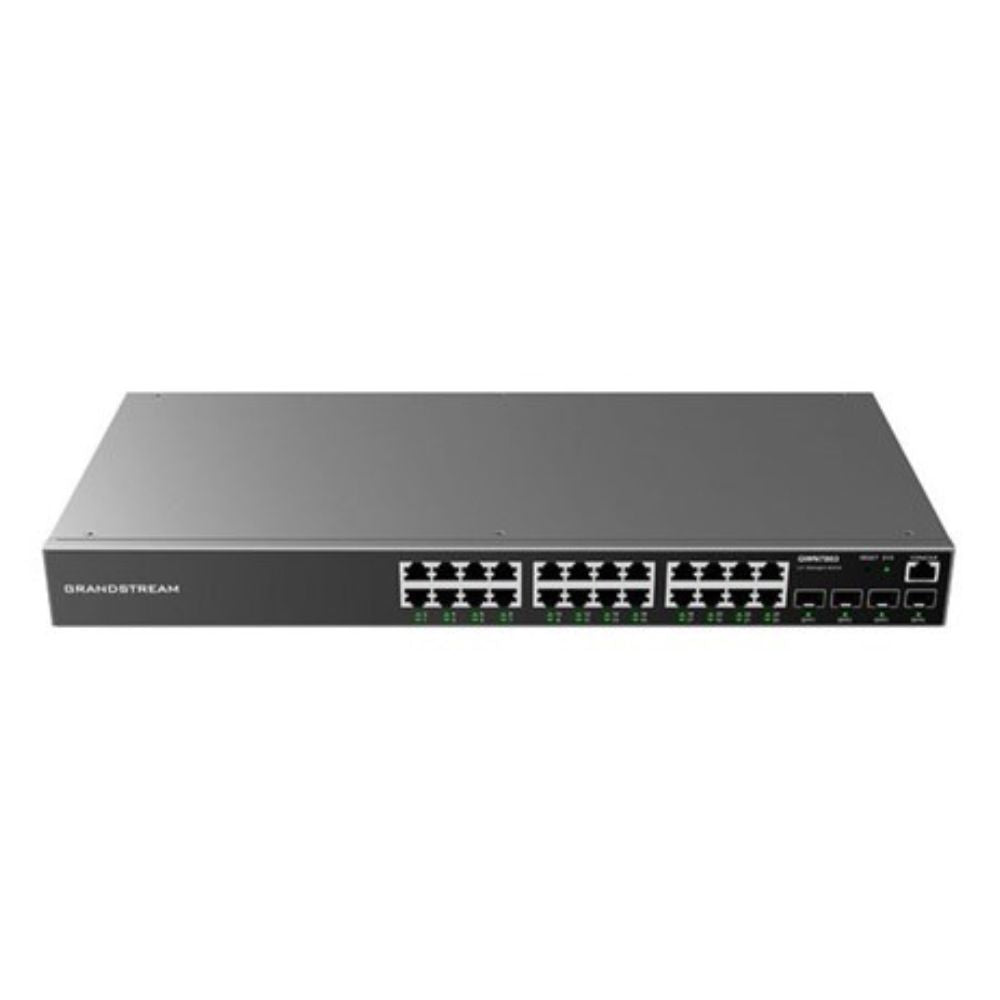

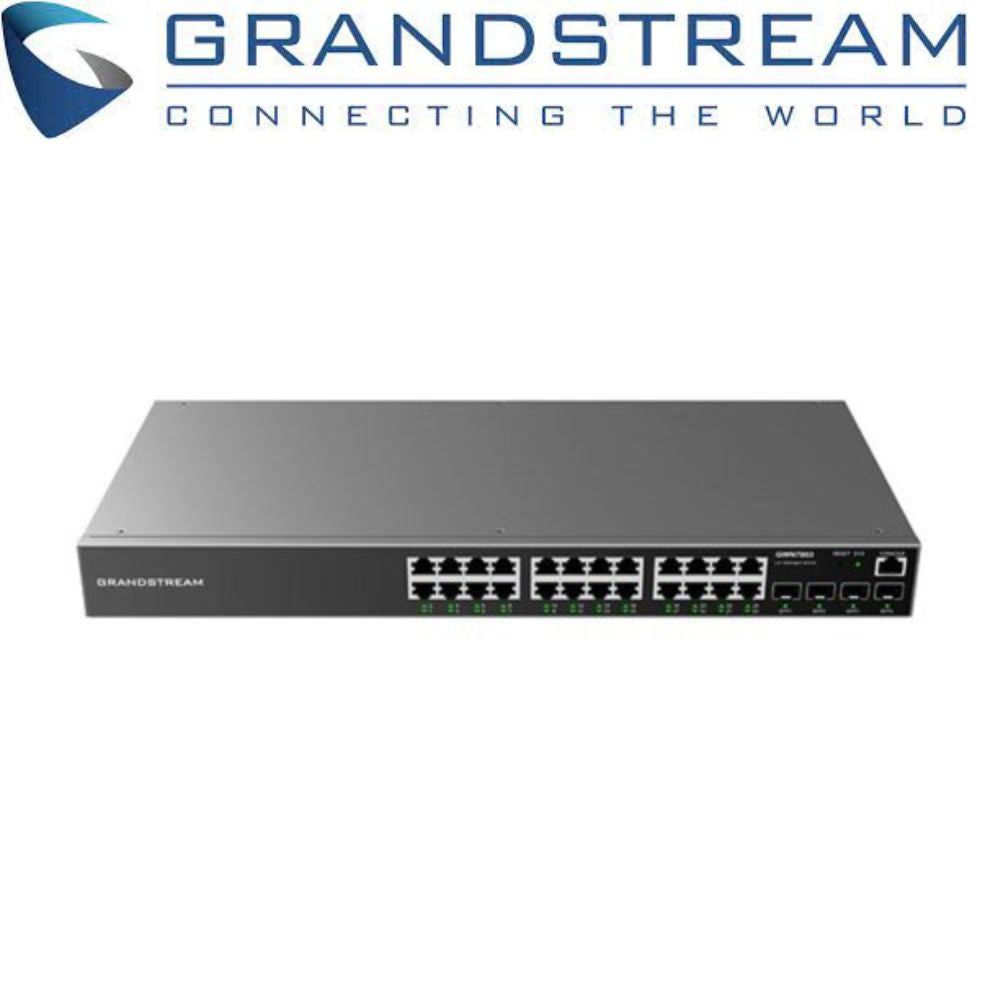

Grandstream GWN7803 Layer 2+ cloud smart switch

Switch Layer 2+ GWN7803 24 Gigabit Ethernet ports and 4 Gigabit SFP ports Support deployment in IPv6 and IPv4 networks Provide quaternary binding of IP, MAC, VLAN & Port; ARP Check, IP Source Protection, DoS Protection, Port Security and DHCP Monitoring Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud Advanced QoS automatically detects and prioritizes high-sensitivity, low-latency audio/video/RTP/VoIP/SIP packets

Features

  • 8/16/24 Gigabit Ethernet ports and 2/4 Gigabit SFP ports
  • Smart power control to support dynamic PoE/PoE+ power allocation per port for the PoE models
  • Supports deployment in IPv6 and IPv4 networks
  • Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
  • Device management via SNMP, RMON, CLI, HTTPS, TR069, GWN Manager, GWN.Cloud
  • Advanced QoS auto detects and prioritizes latencysensitive audio/video/RTP/ VoIP/SIP packets
Datasheet
Tech Specs

Grandstream Enterprise Layer 2+ Managed Network Switch - GWN7803

GWN7801 GWN7801P GWN7802 GWN7802P GWN7803 GWN7803P
Network Protocol IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w,
IEEE 802.1d, IEEE 802.1s
Gigabit Ethernet Ports 8 16 24
Gigabit SFP Ports 2 4
Console 1
# of PoE Ports / 8 / 16 / 24
Integrated Power Supply 30W 150W 30W 270W 30W 400W
Max Output Power per PoE Port / 30W / 30W / 400W
Max Total PoE Output Power / 30W / 240W / 400W
PoE Standards / IEEE 802.3af/at / IEEE 802.3af/at / IEEE 802.3af/at
Auxiliary Ports 1x Reset Pinhole
Forwarding Mode Store-and-forward
Total non-blocking throughput 10Gbps 20Gbps 28Gbps
Switching Capability 20Gbps 40Gbps 56Gbps
Forwarding Rat 14.88M packets per second 29.76M packets per second 41.66M packets per second
Packet Buffer 4.1MB
Switching • 8K static, dynamic and filtering MAC addresses
• 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
• VLAN virtual interface
• GVRP
• 8 link aggregation groups
• Spanning tree, 64 instances for STP/RTSP/MSTP
Multicast IGMP Snooping, MLD Snooping, MVR
QoS/ACL Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6
DHCP Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets
• Port priority
• Priority mapping
• Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
• Traffic shaping
• Rate limit
• 1.5K ACL for Ethernet, IPv4 and IPv6
Maintenance CPU and memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup and restore, syslog, alert, diagnostics including Ping, Traceroute, port
mirroring, UDLD(TBD) and copper test
Security • User hierarchical management and password protection, HTTPS, SSH, Telnet
• 802.1X authentication
• AAA authentication including RADIUS, TACACS+
• Storm control
• Port isolation, port security, sticky MAC
• Filtering MAC address
• IP source guard, DoS attack prevention, ARP inspection
• DHCP Snooping
• Loop protection including BPDU protection, root protection and loopback protection
• Kensington Security Slot (Kensington Lock) support
Mounting Desktop/ Wall-Mount Desktop, wall-mount, or rack-mount (rack-mount brackets included)
LEDs 1x tri-color LED for
device tracking and
status indication,
10x green LEDs for
data ports		 1x tri-color LED for
device tracking and
status indication,
10x green-color LEDs
for data ports,
8x yellow-color LEDs
for PoE ports		 1x tri-color LED for
device tracking and
status indication,
20x green LEDs for
data ports		 1x tri-color LED for
device tracking and
status indication,
20x green-color LEDs
for data ports,
16x yellow-color LEDs
for PoE ports		 1x tri-color LED for
device tracking and
status indication,
28x green LEDs fo		 1x tri-color LED for
device tracking and
status indication,
28x green-color LEDs
for data ports,
24x yellow-color LEDs
for PoE ports
Fan / / 1 / 2 /
FCC, CE, RCM, IC, UKCA Operation: 0°Cto 45°C, humidity 10-90% RH(Non-condensing)
Storage: -10°C to 60°C, humidity: 5% to 95%(Non-condensing)
Dimensions 30mm(L)*175mm(W)*44(H 440mm(L)*200mm(W)*44mm(H)
Unit Weight(TBD) 1.8Kg 2Kg 2.6Kg 3Kg 2.7Kg 3.3Kg
Package Content Switch, 1x 1.2m(10A) AC Cable, 1x Ground
Cable, 4x Rubber Feet, 2x Lug Ear		 Switch, 1x 1.2m(10A) AC Cable, Rack-mounting Standard Brackets, 1x Ground Cable,
4x Rubber Feet, 2x Lug Ear
Compliance FCC, CE, RCM, IC, UKCA

Read more
