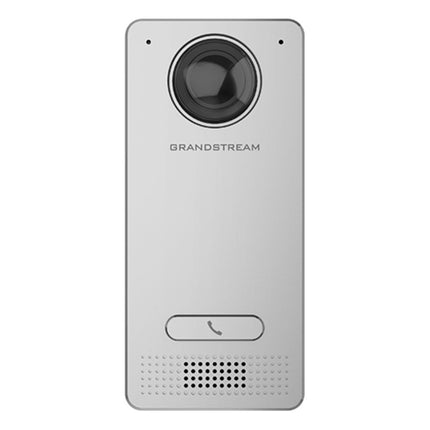

Grandstream HD IP Video Intercom System - GDS3712

Description

Description

The GDS3712 is a hemispheric IP Video Intercom System that also serves as a high-definition IP surveillance camera to offer facility access control and security monitoring for buildings of all sizes. Powered by an advanced Image Sensor Processor (ISP) and state of the art image algorithms, it delivers exceptional performance without blind spots. The GDS3712 IP video intercom system features industry-leading SIP/VoIP for 2-way audio and video streaming to smart phones and SIP phones and the GDS management software. Th is system is equipped with integrated PoE for seamless installation, motion detection for security protection, lighting control switch and more. The GDS3712 can also be managed with GSURF Pro or any ONVIF-compliant video management system. It also offers a flexible HTTP API for easy integration with 3rd party applications and other surveillance systems. The combination of the GDS3712, Grandstream’s IP phones, video phones, and Wave mobile app prov ides a complete end-to-end solution for access control, video intercom, and security recording needs.

Features

  • Powerful video resolutions up to 1080p
  • 2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
  • SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
  • Built with a metal casing to make it weatherproof and vandal resistant
  • Built-in hemispheric camera allows for 180-degree wall-to wall coverage
  • Supports motion detection
  • Integrated PoE to power the device and provide a network connection
  • Built-in microphone and speaker offers voice options and intercom functionality
Datasheet
Tech Specs

Grandstream HD IP Video Intercom System - GDS3712

Video Compression H.264 High Profile / Main Profile / Baseline Profile, Motion JPEG
Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V
Lens Type 1/2”, F2.5, FOV:180°(W) x 150°(H)
Max Video Resolution 1920x1080
Max Frame Rate 30 frames per second
Wide Dynamic Range Yes, up to 120dB
Video Bit Rates 128 Kbps to 4 Mbps, multi-rate for preview & recording
PoE IEEE 802.3af Class3
Embedded Analytics Motion detection (up to 4 privacy masks)
Snapshots Triggered upon Events, Send via email and/or FTP
Multi-Stream Resolution High-performance streaming server allowing multiple simultaneous access
Primary video stream: 1920 x 1080 resolution for continuous full HD recording
Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
Third video stream: 320 x 240 resolution for smartphone applications
Network Protocol TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069, ARP/RARP,
ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
Voice Codecs G.711µ/a-law, G.722, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), AEC
QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Diff Serv, MPLS)
Security User and administrator level RTSP access, MD5 and MD5-sess based authentication, 256-bit AES
encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q
Upgrade/ Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML
configuration file
Audio Input Built-in microphone, up to 1.5m with AEC
Audio Output Built-in HD loudspeaker (2 watts), good up to 3 m
Button 1 call button with Blue LED backlight
Alarm Input 2 Optocoupler Input, Vin < 15V, for door sensor or other low voltage device
Alarm Output 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or
other device
Network Interface 10M/100M auto-sensing
Ingress Protection Weatherproof, vandal resistant, with support for extra back reinforcing metal plate
Mounting On-Wall, or In-Wall (Mount Kit required, sold separately)
Dimensions (H x W x D)
and Weight 		On-Wall: 173mm(H) x 80mm(W) x 36mm(D);
In-Wall: 217mm(H) x 120mm(W) x 11.6mm(D)
Weight: 0.625 kg
Power Supply PoE IEEE 802.3af Class 3
or 12VDC/1A connection (AC power adapter not included)
Temperature and
Humidity 		Operation: -30°C to 60°C (-22°F to 140°F)
Storage: -35°C to 60°C (-31°F to 140°F)
Humidity: 10% to 90% Non-condensing
Protection Class IP66 (EN60529); IK10 (IEC62262)
Compliance CE,FCC,IC,RCM,UKCA

Read more

Grandstream HD IP Video Intercom System - GDS3712

Product form

SKU: GDS3712

$668.02 $649.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    The GDS3712 is a hemispheric IP Video Intercom System that also serves as a high-definition IP surveillance camera to offer facility access control and security monitoring for buildings of all sizes. Powered by an advanced Image Sensor Processor (ISP) and state of the art image algorithms, it delivers exceptional performance without blind spots. The GDS3712 IP video intercom system features industry-leading SIP/VoIP for 2-way audio and video streaming to smart phones and SIP phones and the GDS management software. Th is system is equipped with integrated PoE for seamless installation, motion detection for security protection, lighting control switch and more. The GDS3712 can also be managed with GSURF Pro or any ONVIF-compliant video management system. It also offers a flexible HTTP API for easy integration with 3rd party applications and other surveillance systems. The combination of the GDS3712, Grandstream’s IP phones, video phones, and Wave mobile app prov ides a complete end-to-end solution for access control, video intercom, and security recording needs.

    Features

    • Powerful video resolutions up to 1080p
    • 2 Relay for Electric Lock and Alarm out, 2 Alarm In for Exit button and door sensor
    • SIP video streaming to NVRs, video intercom stations, IP phones, or smart phones simultaneously
    • Built with a metal casing to make it weatherproof and vandal resistant
    • Built-in hemispheric camera allows for 180-degree wall-to wall coverage
    • Supports motion detection
    • Integrated PoE to power the device and provide a network connection
    • Built-in microphone and speaker offers voice options and intercom functionality
    Datasheet
    Tech Specs

    Grandstream HD IP Video Intercom System - GDS3712

    Video Compression H.264 High Profile / Main Profile / Baseline Profile, Motion JPEG
    Image Sensor Resolution 1/2.7”, 2 Megapixel, 1920H x 1080V
    Lens Type 1/2”, F2.5, FOV:180°(W) x 150°(H)
    Max Video Resolution 1920x1080
    Max Frame Rate 30 frames per second
    Wide Dynamic Range Yes, up to 120dB
    Video Bit Rates 128 Kbps to 4 Mbps, multi-rate for preview & recording
    PoE IEEE 802.3af Class3
    Embedded Analytics Motion detection (up to 4 privacy masks)
    Snapshots Triggered upon Events, Send via email and/or FTP
    Multi-Stream Resolution High-performance streaming server allowing multiple simultaneous access
    Primary video stream: 1920 x 1080 resolution for continuous full HD recording
    Secondary video stream: 1280 x 720 resolution for SIP/VoIP video calls
    Third video stream: 320 x 240 resolution for smartphone applications
    Network Protocol TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS local upload and mass provisioning using TR-069, ARP/RARP,
    ICMP, LLDP-MED, DNS, DHCP, SSH, SMTP, TFTP, NTP, STUN, TLS, SRTP
    SIP/VoIP Support Broad interoperability with most 3rd party SIP/VoIP devices and leading SIP/NGN/IMS platforms
    Voice Codecs G.711µ/a-law, G.722, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO), AEC
    QoS Layer 2 QoS (802.1Q, 802.1P) and Layer 3 QoS (ToS, Diff Serv, MPLS)
    Security User and administrator level RTSP access, MD5 and MD5-sess based authentication, 256-bit AES
    encrypted configuration file, TLS, SRTP, HTTPS, 802.1Q
    Upgrade/ Provisioning Firmware upgrade via TFTP/HTTP/HTTPS, mass provisioning using TR-069 or AES encrypted XML
    configuration file
    Audio Input Built-in microphone, up to 1.5m with AEC
    Audio Output Built-in HD loudspeaker (2 watts), good up to 3 m
    Button 1 call button with Blue LED backlight
    Alarm Input 2 Optocoupler Input, Vin < 15V, for door sensor or other low voltage device
    Alarm Output 2 Relay, 125VAC/0.5A or 30VDC/2A, Normal Open or Normal Close, for electric lock, light switch or
    other device
    Network Interface 10M/100M auto-sensing
    Ingress Protection Weatherproof, vandal resistant, with support for extra back reinforcing metal plate
    Mounting On-Wall, or In-Wall (Mount Kit required, sold separately)
    Dimensions (H x W x D)
    and Weight     		On-Wall: 173mm(H) x 80mm(W) x 36mm(D);
    In-Wall: 217mm(H) x 120mm(W) x 11.6mm(D)
    Weight: 0.625 kg
    Power Supply PoE IEEE 802.3af Class 3
    or 12VDC/1A connection (AC power adapter not included)
    Temperature and
    Humidity     		Operation: -30°C to 60°C (-22°F to 140°F)
    Storage: -35°C to 60°C (-31°F to 140°F)
    Humidity: 10% to 90% Non-condensing
    Protection Class IP66 (EN60529); IK10 (IEC62262)
    Compliance CE,FCC,IC,RCM,UKCA

    Read more
