Grandstream High-Performance Outdoor Long-Range Wi-Fi 6 Access Point - GWN7664LR

Description

Description

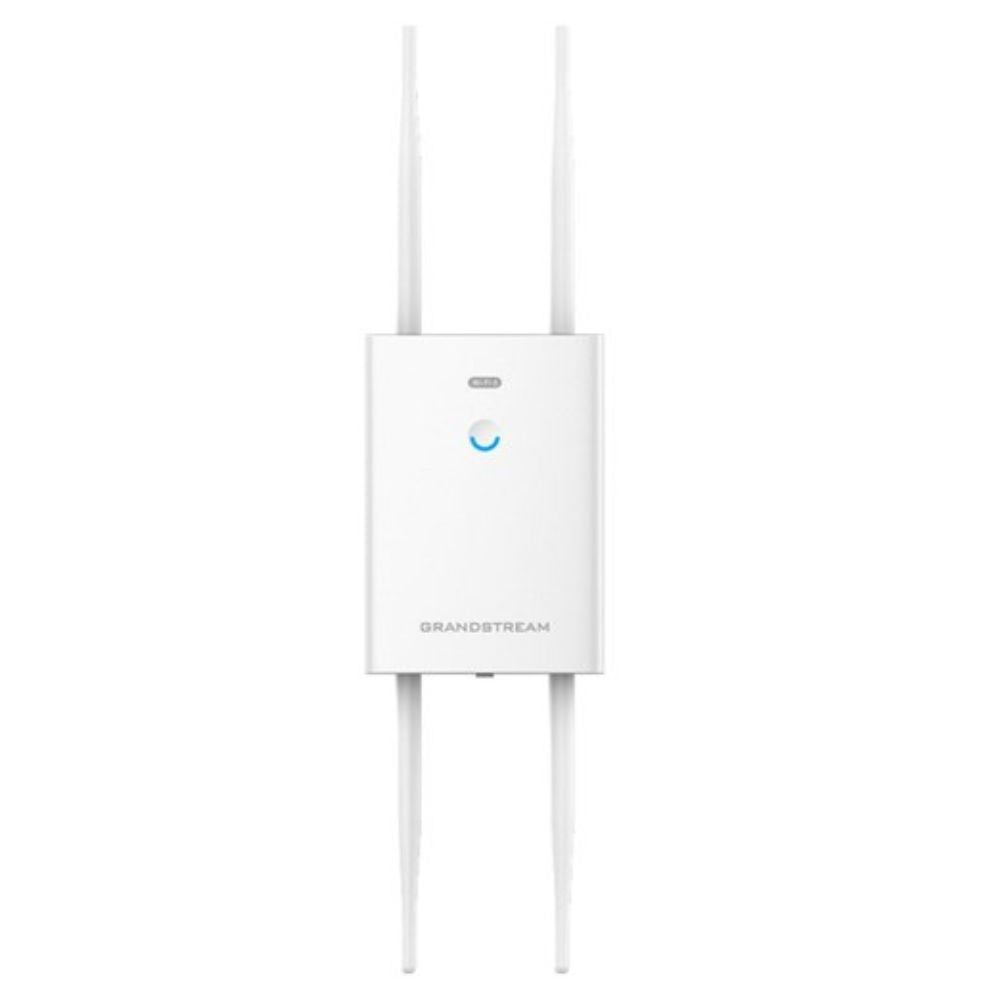

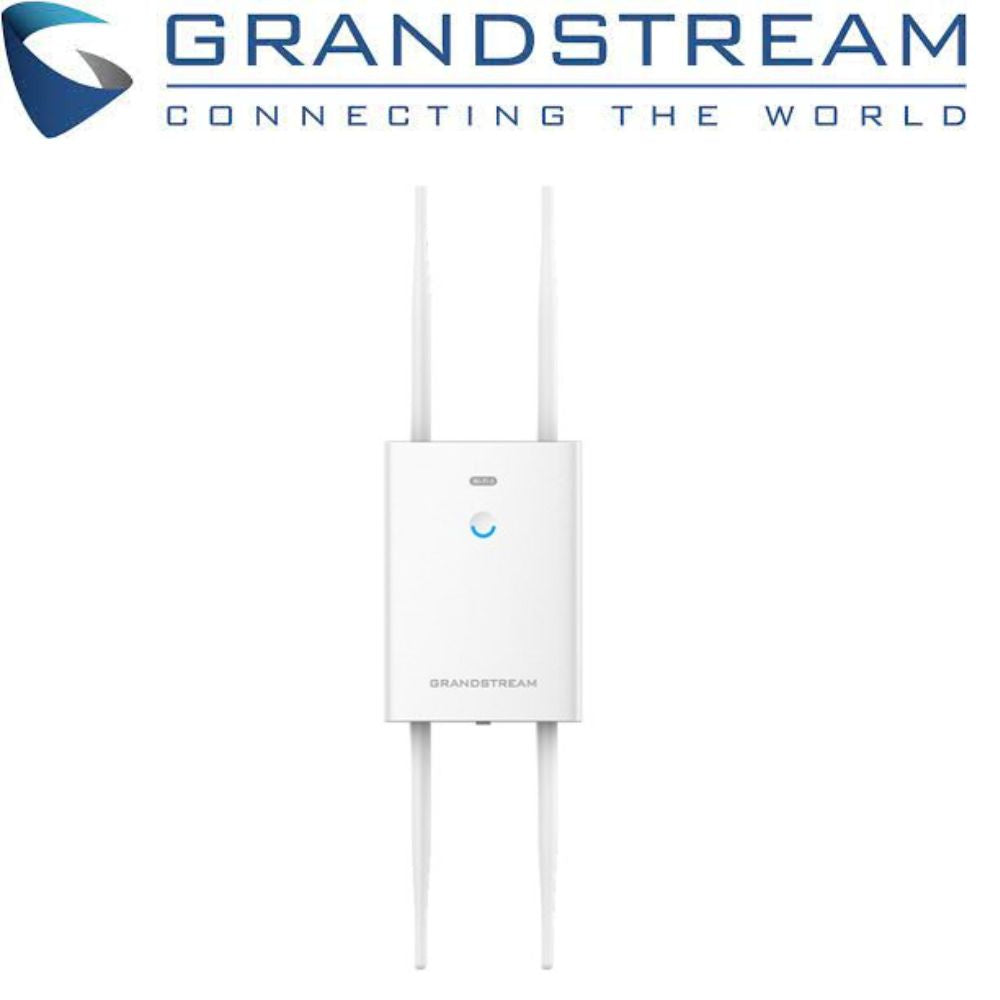

The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features

  • 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
  • Dual-band 4×4:4 MU- MIMO with DL/UL OFDMA technology
  • Support 512 concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
Datasheet
Tech Specs

Grandstream High-Performance Outdoor Long-Range Wi-Fi 6 Access Point - GWN7664LR

Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
Antennas 4 dual band external antennas
2.4GHz, gain 3.5dBi
5 GHz, gain 3.5dBi
Wi-Fi Data Rates 5G:
IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
802.11ac: 6.5 Mbps to 1733 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
2.4G:
IEEE 802.11ax: 8 Mbps to 1147 Mbps IEEE
802.11n: 6.5Mbps to 600Mbps IEEE
802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4GHz radio: 2412 - 2484 MHz
5GHz radio: 5180 - 5825 MHz
*Not all frequency bands can be used in all regions
Channel Bandwidth 2.4G: 20 and 40 MHz (x4)
5G: 20, 40 and 80 MHz (x4)
System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
data/control lockdown via digital signatures, unique security certificate and random default password
per device
MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
Coverage Range Up to 300 meters
*Coverage range can vary based on environment
Maximum TX Power 5G: 25dBm
2.4G: 26dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity 2.4G
802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
5G
802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
MCS11
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 512
Network Interfaces 1x 1G Port and 1x 2.5G Port, supports 3.5Gbps aggregate wired throughput
Auxiliary Ports 1x Reset Pinhole
Mounting Wall mount or pole mount, kits included
LEDs 1 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs
GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy
Efficiencyen Energy
Efficiency 		PoE 802.3af/ 802.3at;
Maximum Power Consumption: 18W
Environmental Operation:-30°Cto 60°C
Storage: -30°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H);
Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);
Package Content GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof Grade IP66-level weatherproof capability when installed vertically
Compliance FCC, CE, RCM, IC, UKCA

Read more

Grandstream High-Performance Outdoor Long-Range Wi-Fi 6 Access Point - GWN7664LR

Product form

SKU: GWN7664LR

$505.09 $489.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    The GWN7664LR is an outdoor 802.11ax 4×4:4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 512 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the GWN7664LR is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

    Features

    • 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughput
    • Dual-band 4×4:4 MU- MIMO with DL/UL OFDMA technology
    • Support 512 concurrent Wi-Fi client devices
    • Up to 300-meter coverage range
    Datasheet
    Tech Specs

    Grandstream High-Performance Outdoor Long-Range Wi-Fi 6 Access Point - GWN7664LR

    Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
    Antennas 4 dual band external antennas
    2.4GHz, gain 3.5dBi
    5 GHz, gain 3.5dBi
    Wi-Fi Data Rates 5G:
    IEEE 802.11ax: 8 Mbps to 2402 Mbps IEEE
    802.11ac: 6.5 Mbps to 1733 Mbps IEEE
    802.11n: 6.5Mbps to 600Mbps
    IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    2.4G:
    IEEE 802.11ax: 8 Mbps to 1147 Mbps IEEE
    802.11n: 6.5Mbps to 600Mbps IEEE
    802.11b: 1, 2, 5.5, 11 Mbps
    IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    *Actual throughput may vary depending on many factors including environmental conditions, distance
    between devices, radio interference in the operating environment and mix of devices in the network
    Frequency Bands 2.4GHz radio: 2412 - 2484 MHz
    5GHz radio: 5180 - 5825 MHz
    *Not all frequency bands can be used in all regions
    Channel Bandwidth 2.4G: 20 and 40 MHz (x4)
    5G: 20, 40 and 80 MHz (x4)
    System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical
    data/control lockdown via digital signatures, unique security certificate and random default password
    per device
    MU-MIMO 4×4:4 2.4GHz, 4×4:4 5GHz
    Coverage Range Up to 300 meters
    *Coverage range can vary based on environment
    Maximum TX Power 5G: 25dBm
    2.4G: 26dBm
    *Maximum power varies by country, frequency band, and MCS rate
    Receiver Sensitivity 2.4G
    802.11b: -99dBm@1Mbps, -91dBm@11Mbps;
    802.11g: -94dBm @6Mbps, -78dBm@54Mbps;
    802.11n 20MHz: -75dBm @MCS7; 802.11n 40MHz:-71dBm @MCS7;
    802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -63dBm @MCS11
    5G
    802.11a: -95dBm @6Mbps, -77dBm @54Mbps;
    802.11n: 20MHz: -74dBm @MCS7; 802.11 n 40MHz: -71dBm @MCS7
    802.11ac 20MHz: -70dBm@MCS8; 802.11ac: HT40:- 66dBm @MCS9; 802.11ac 80MHz: -62dBm @MCS9;
    802.11ax 20MHz: -64dBm @ MCS11; 802.11ax 40MHz: -62dBm @MCS11;802.11ax 80MHz: -59dBm @
    MCS11
    SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
    Concurrent Clients 512
    Network Interfaces 1x 1G Port and 1x 2.5G Port, supports 3.5Gbps aggregate wired throughput
    Auxiliary Ports 1x Reset Pinhole
    Mounting Wall mount or pole mount, kits included
    LEDs 1 tri-color LEDs for device tracking and status indication
    Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
    QoS 802.11e/WMM, VLAN, TOS
    Network Management Embedded controller can manage up to 50 local GWN APs
    GWN.Cloud offers a free cloud management platform for unlimited GWN APs
    GWN Manager offers premise-based software controller for up to 3,000 GWN APs
    Power and Green Energy
    Efficiencyen Energy
    Efficiency     		PoE 802.3af/ 802.3at;
    Maximum Power Consumption: 18W
    Environmental Operation:-30°Cto 60°C
    Storage: -30°C to 60°C
    Humidity: 10% to 90% Non-condensing
    Physical Unit Dimension: 562.3mm(L)x140mm(W)x44.9mm(H);
    Unit + Mounting Kits Dimension: 562.3mm(L)x140mm(W)x66.9mm(H);
    Entire Package Dimension: 260mm(L)x218.5mm(W)x108mm(H);
    Package Content GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
    Weatherproof Grade IP66-level weatherproof capability when installed vertically
    Compliance FCC, CE, RCM, IC, UKCA

    Read more
