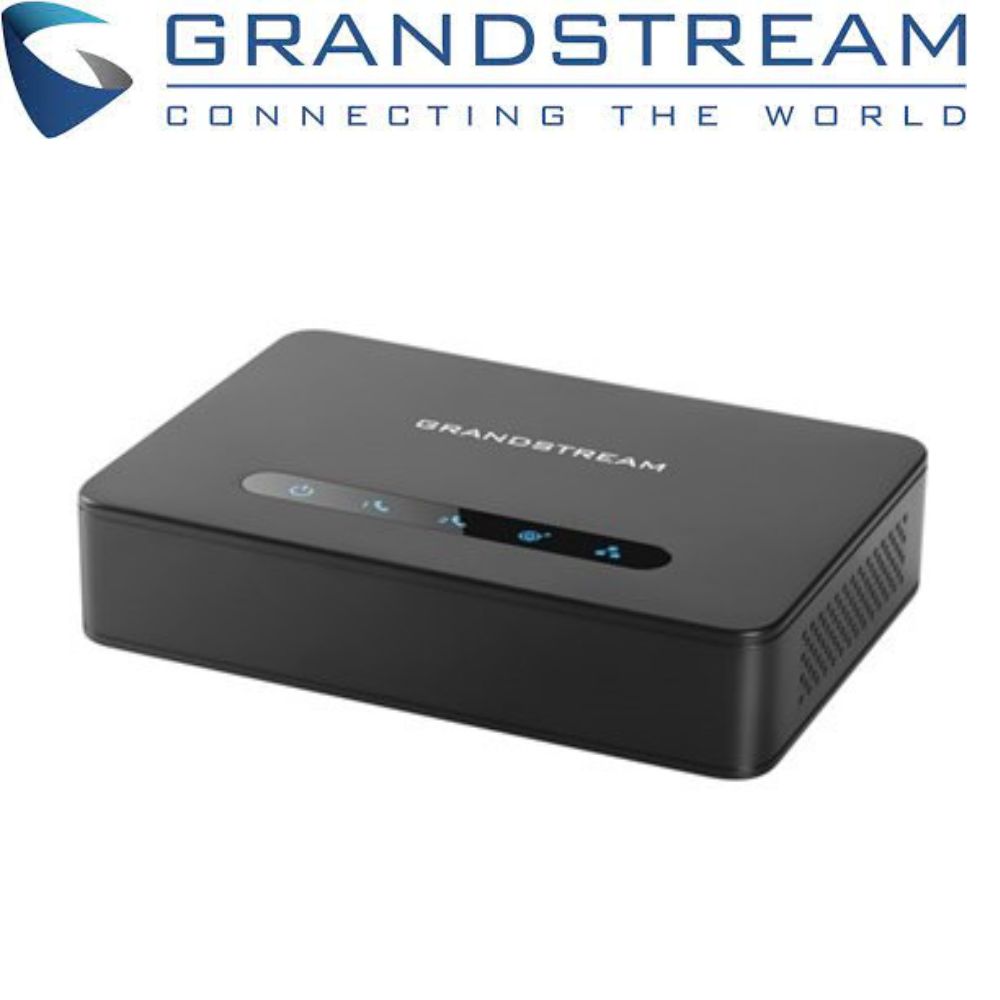

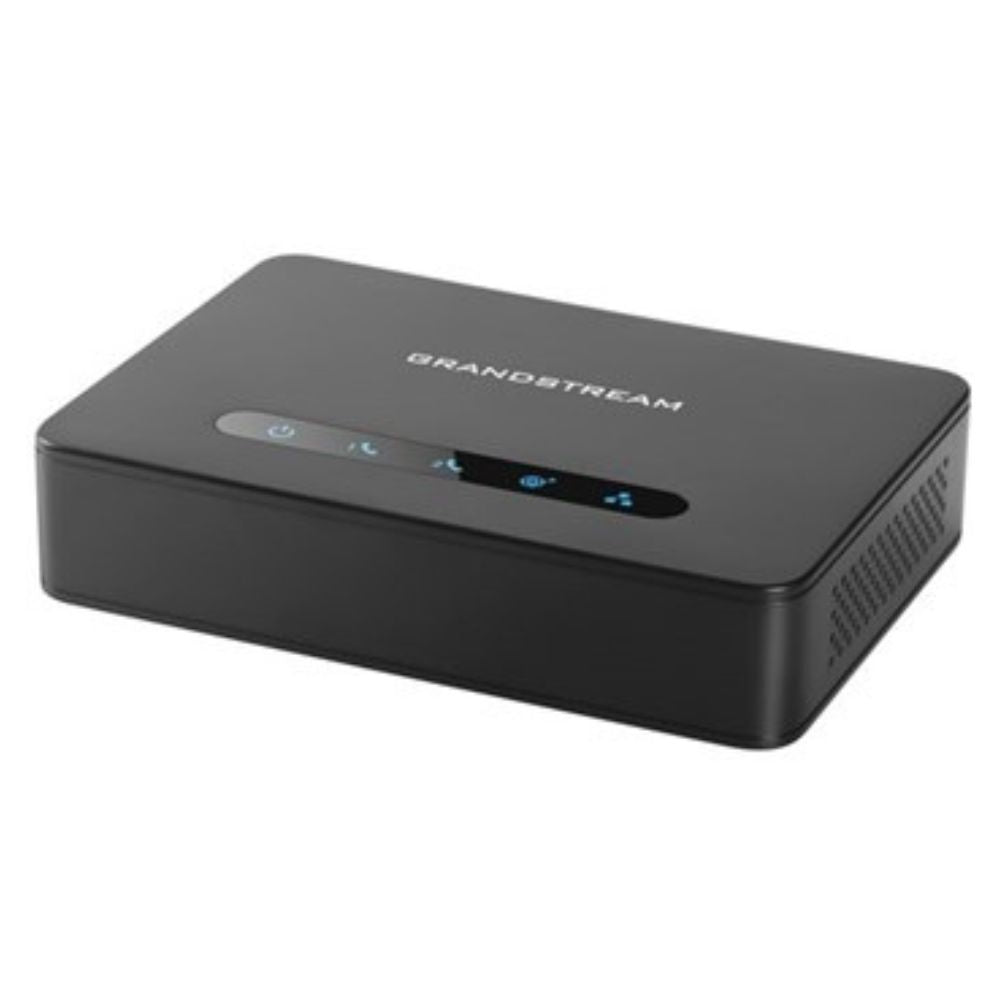

Grandstream Powerful 2-port ATA with Gigabit NAT Router - HT812

Description

Description

The HT812 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT812 comes with 2 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

Features

  • Supports 2 SIP profiles through 2 FXS ports and dual Gigabit ports
  • Includes a built-in NAT router which can handle routing speeds up to 100MBps
  • TLS and SRTP security encryption technology to protect calls and accounts
  • Automated provisioning options include TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to secondary server if main server loses connection
  • Supports T.38 Fax for creating Fax-over-IP
  • Supports a wide range of caller ID formats
  • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
Datasheet
Tech Specs

Grandstream Powerful 2-port ATA with Gigabit NAT Router - HT812

Interfaces
Telephone Interfaces One (1) FXS port
Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45)

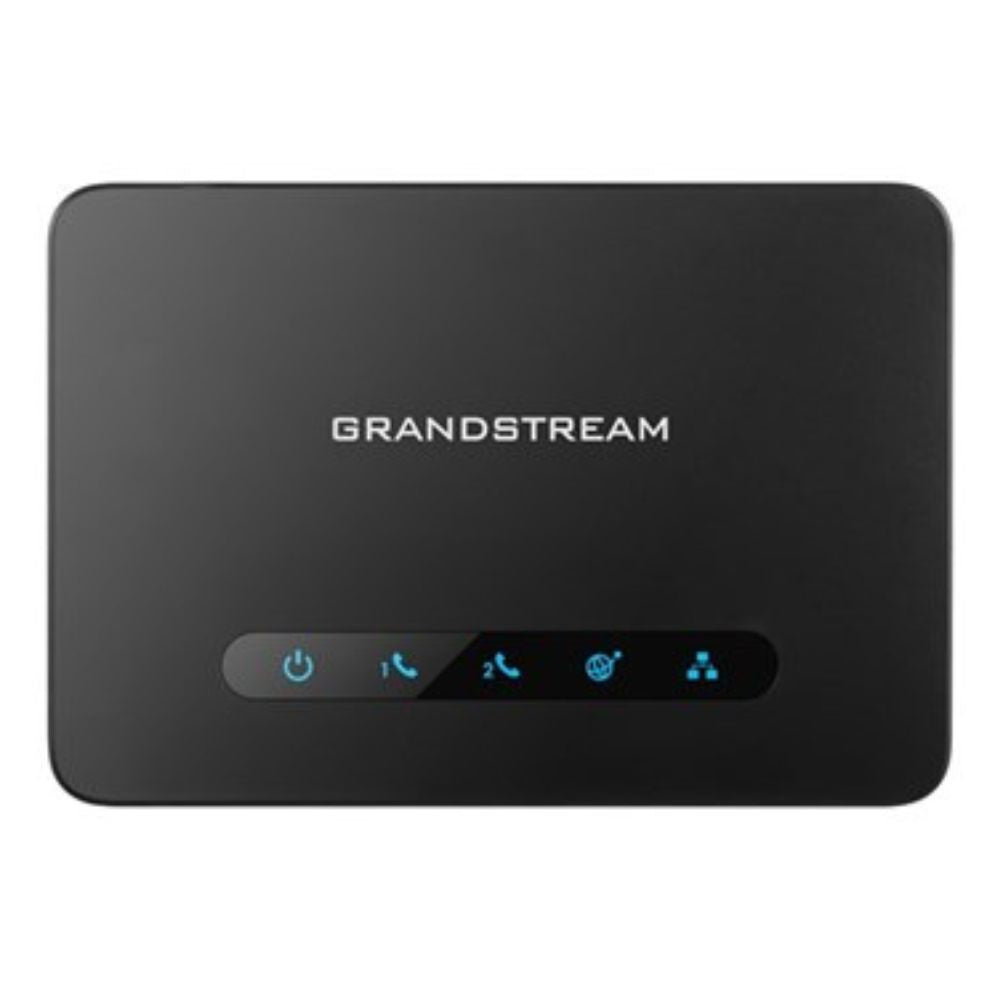

LED Indicators POWER, INTERNET, PHONE
Factory Reset Button Yes
Voice, Fax, Modem
Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
Voice Codecs 6.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
Short/Long Haul Ring Load 2 REN: Up to 1km on 24 AWG
Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
Signaling
Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
QoS Layer 3 (Tos, DiffServ, MPLS)
DTMF Method In-audio, RFC2833 and/or SIP INFO
Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
Security
Media SRTP
Control TLS/SIPS/HTTPS
Management Syslog support, telnet, remote management using web browser
Physical
Universal Power Supply

Input: 100-240VAC, 50-60Hz

Output 5.0VDC/1.0A
Environmental

Operational: 32°-104°F or 0°-40°C

Storage: 14°-140°F or -10° - 60°C

Humidity: 10-90% Non-condensing
Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: TBD
Compliance FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, 5003

Read more

Product form

Grandstream Powerful 2-port ATA with Gigabit NAT Router - HT812

SKU: HT812 Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$134.42 $119.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    Description

    The HT812 delivers powerful VoIP technology and routing capabilities to home and office environments, and allows users to successfully connect their analog devices to a manageable and powerful VoIP network. Built using Grandstream’s market-leading SIP ATA/gateway technology, with millions of units successfully deployed worldwide, this powerful ATA features exceptional voice quality in various applications and environments. The HT812 comes with 2 easy-to-use FXS ports, an integrated Gigabit NAT router, state-of-the-art encryption with a unique security certificate per unit, automated provisioning for volume deployment and device management and outstanding network performance.

    Features

    • Supports 2 SIP profiles through 2 FXS ports and dual Gigabit ports
    • Includes a built-in NAT router which can handle routing speeds up to 100MBps
    • TLS and SRTP security encryption technology to protect calls and accounts
    • Automated provisioning options include TR-069 and XML config files
    • Supports 3-way voice conferencing
    • Failover SIP server automatically switches to secondary server if main server loses connection
    • Supports T.38 Fax for creating Fax-over-IP
    • Supports a wide range of caller ID formats
    • Use with Grandstream’s UCM series of IP PBXs for Zero Configuration provisioning
    Datasheet
    Tech Specs

    Grandstream Powerful 2-port ATA with Gigabit NAT Router - HT812

    Interfaces
    Telephone Interfaces One (1) FXS port
    Network Interfaces One (1) 10/100Mbps auto-sensing ethernet port (RJ45)
    LED Indicators POWER, INTERNET, PHONE
    Factory Reset Button Yes
    Voice, Fax, Modem
    Telephony Features Caller ID display or block, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
    Voice Codecs 6.711 with Annex I (PLC) and Annex II (VAD/CNG), G.723.1, G.729A/B, G.726, iLBC, OPUS, dynamic jitter buffer, advanced line echo cancellation
    Fax Over IP T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass-through
    Short/Long Haul Ring Load 2 REN: Up to 1km on 24 AWG
    Caller ID Bellcore Type 1 & 2, ETSI, BT, NTT, and DTMF-based CID
    Disconnect Methods Busy Tone, Polarity Reversal/Wink, Loop Current
    Signaling
    Network Protocols TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, STUN, SIP (RFC3261), SIP over TCP/TLS, SRTP, TR-069
    QoS Layer 3 (Tos, DiffServ, MPLS)
    DTMF Method In-audio, RFC2833 and/or SIP INFO
    Provisioning and Control HTTP, HTTPS, TELNET, TFTP, TR-069, secure and automated provisioning using AES encryption, syslog
    Security
    Media SRTP
    Control TLS/SIPS/HTTPS
    Management Syslog support, telnet, remote management using web browser
    Physical
    Universal Power Supply

    Input: 100-240VAC, 50-60Hz

    Output 5.0VDC/1.0A
    Environmental

    Operational: 32°-104°F or 0°-40°C

    Storage: 14°-140°F or -10° - 60°C

    Humidity: 10-90% Non-condensing
    Dimension and Weight Dimensions: 100mm x 100mm x 29.5mm Weight: TBD
    Compliance FCC: Part15B CE: EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1 RCM: AS/NZS CISPR22, AS/NZS60950.1, 5003

    Read more
