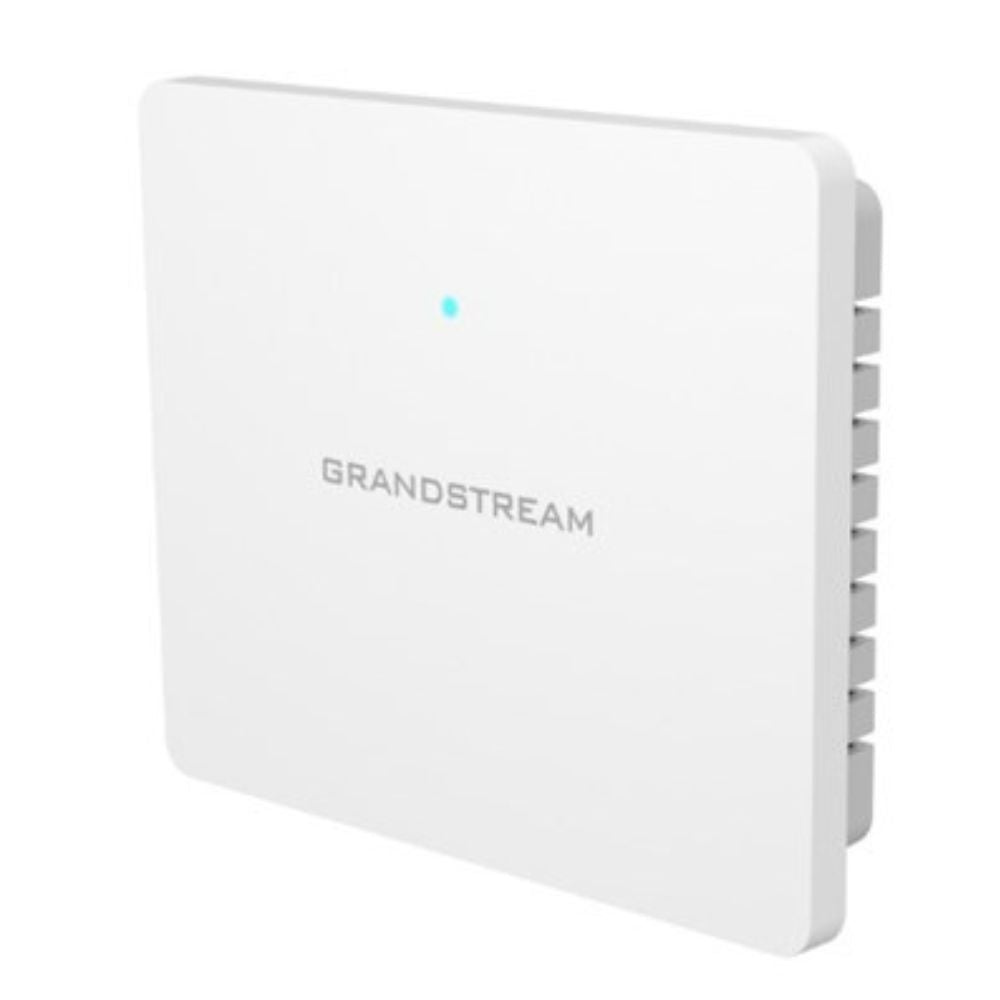

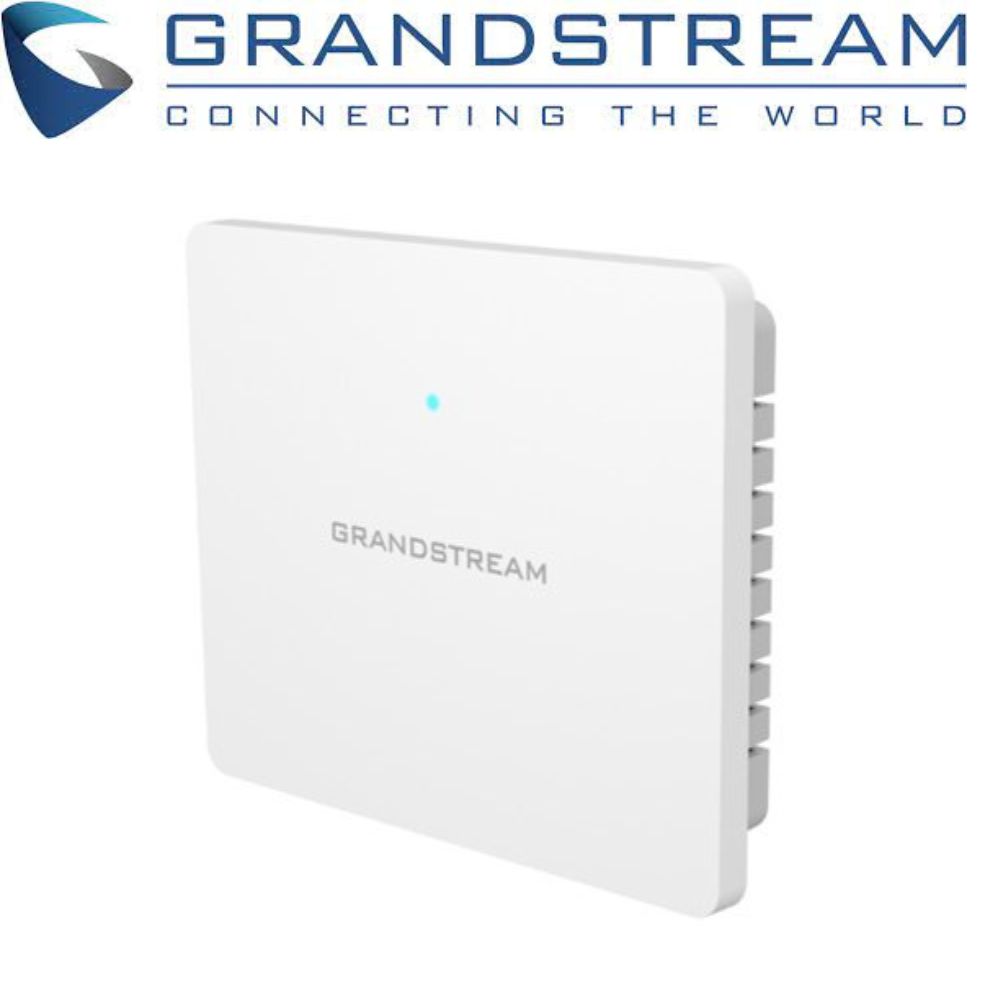

Grandstream Wi-Fi AP with Integrated Ethernet Switch - GWN7602

Description

Description

The GWN7602 is a compact Wi-Fi access point designed for small businesses, homes, offices, hotels and more. It provides three 100Mb ports to provide IP phones, IPTV, computers and similar devices with ethernet while also providing an uplink Gigabit network port with PoE/PoE+. The GWN7602 offers dual band 2x2:2 MIMO technology and a sophisticated antenna design for ideal network throughput that supports up to 80 clients and a 100 meter coverage range.

To ensure easy installation and management, the GWN7602 is supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. The GWN7602 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones. By including support for advanced QoS, lowlatency real-time applications, mesh networks and captive portals, the GWN7602 is a wireless access point built for deployment scenarios with small to medium user density.

Features

  • 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
  • Up to 100 meters coverage range
  • Self power adaptation upon auto detection of PoE/PoE+ and PSE
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Support up to 80 Wi-Fi client devices
  • Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures
  • 3 Year Warranty.
Datasheet
Tech Specs

Grandstream Wi-Fi AP with Integrated Ethernet Switch - GWN7602

Wi-Fi Standards IEEE 802.11a/b/g/n/ac
Antennas 2 dual band internal antennas.
Antenna 1 - 2.4GHz: gain 3.0dBi, 5GHz: gain 3.5dBi
Antenna 2 - 2.4GHz: gain 3.5dBi, 5GHz: gain 3.0dBi
Wi-Fi Data Rates IEEE 802.11ac: 6.5 Mbps to 867Mbps
IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: 6.5Mbps to 300Mbps
IEEE 802.11b: 1, 2, 5.5, 11Mbps
IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
*Actual throughput may vary depending on many factors including environmental conditions, distance
between devices, radio interference in the operating environment and mix of devices in the network
Frequency Bands 2.4 GHz Radio: 2412 – 2484 MHz
5 GHz Radio: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz
*Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU
states.
Channel Bandwidth 2.4G: 20 and 40MHz
5G: 20, 40, 80MHz
System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise
Mesh h 5G radio
Coverage Range Up to 100 meters
*Coverage range can vary based on environment
Maximum TX Power 2.4G: 21 dBm
5G: 21 dBm
*Maximum power varies by country, frequency band, and MCS rate
Receiver Sensitivity 2.4G
802.11b:-96dBm@1Mbps,-88dBm@11Mbps;802.11g:-93dBm@6Mbps, -76dm@54Mbps;
802.11n20MHz:-92dBm@MCS0,-73dBm@MCS7;802.11n40MHz: -88.5dBm@MCS0,-71dBm@MCS7
5G
802.11a: -91dBm@6Mbps, -73.5dBm@54Mbps; 802.11ac:VHT20: -89.5dbm@MCS0, -71.5dBm@
MCS7, -64dBm@MCS8; VHT40: -87.5dBm@MCS0; -69.5dBm@MCS7, -62dBm@MCS9, VHT80:
-83.5dBm@MCS0, -65.5dBm@MCS7, -58.5dBm@MCS9
SSIDs 4 SSID per radio
Concurrent Clients Up to 80

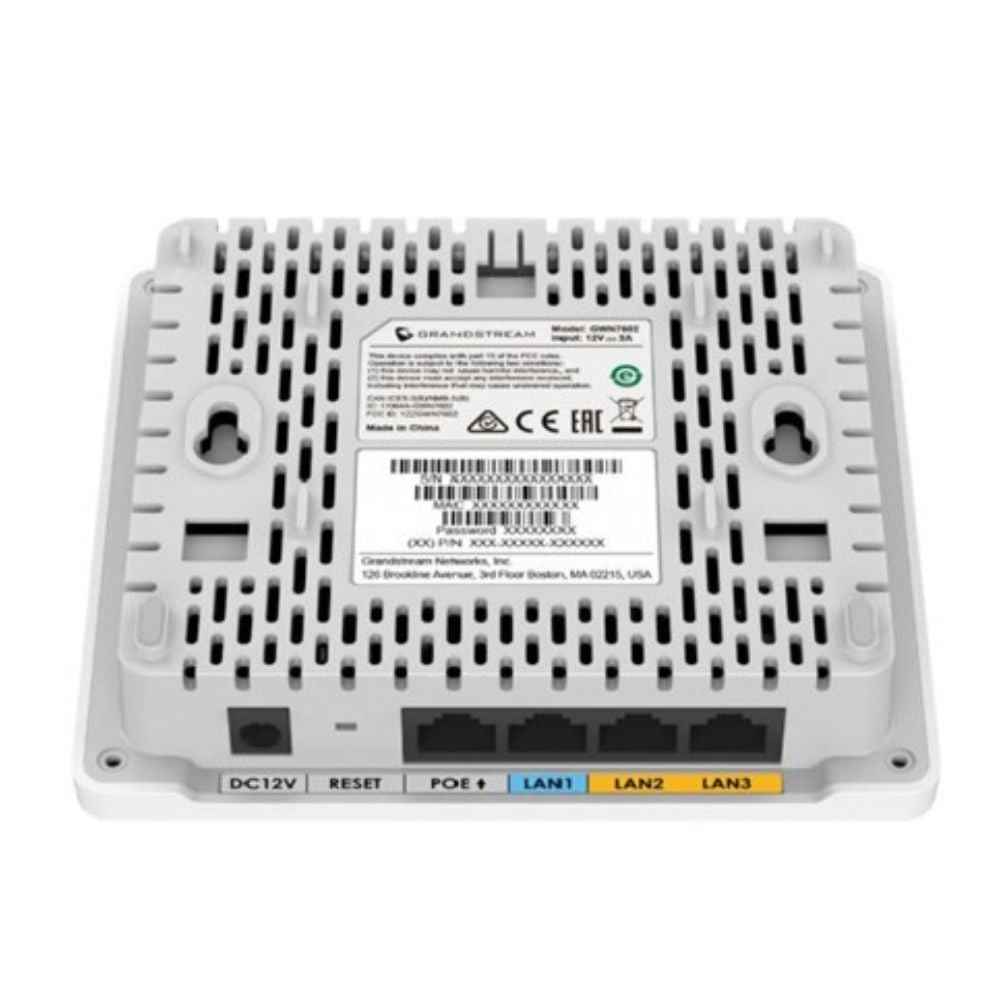

Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+
2 x 10/100M Ethernet port with PSE
1 x 10/100M Ethernet port
Auxiliary Ports 1x Reset Pinhole
Mounting Wall mountable
LEDs 1x tri-color LEDs for device tracking and status indication
Network Protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management GWN.Cloud offers a free cloud management platform for unlimited GWN APs
GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency Support 802.3 az; PoE 802.3af/ 802.3at
PSE max output per port: 6W; Max Consumption: 20 W
Environmental Operation: 0°C to 40°C
Storage: -10°C to 60°C
Humidity: 10% to 90% Non-condensing
Physical Unit Dimension:135 x 115 x 30mm; Unit Weight: 188g
Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 278.5g
Package Content GWN7602 802.11ac Wireless AP, Quick Start Guide
Compliance FCC, CE, RCM, IC

Read more

Grandstream Wi-Fi AP with Integrated Ethernet Switch - GWN7602

Product form

SKU: GWN7602

$134.42 $119.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    Description

    The GWN7602 is a compact Wi-Fi access point designed for small businesses, homes, offices, hotels and more. It provides three 100Mb ports to provide IP phones, IPTV, computers and similar devices with ethernet while also providing an uplink Gigabit network port with PoE/PoE+. The GWN7602 offers dual band 2x2:2 MIMO technology and a sophisticated antenna design for ideal network throughput that supports up to 80 clients and a 100 meter coverage range.

    To ensure easy installation and management, the GWN7602 is supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. The GWN7602 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable voice and video IP phones. By including support for advanced QoS, lowlatency real-time applications, mesh networks and captive portals, the GWN7602 is a wireless access point built for deployment scenarios with small to medium user density.

    Features

    • 1.17Gbps aggregate wireless throughput, 1x Gigabit and 3x 100Mbit wireline speed
    • Up to 100 meters coverage range
    • Self power adaptation upon auto detection of PoE/PoE+ and PSE
    • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
    • Support up to 80 Wi-Fi client devices
    • Advanced QoS to ensure real-time performance of low-latency applications Anti-hacking secure boot and critical data/control lockdown via digital signatures
    • 3 Year Warranty.
    Datasheet
    Tech Specs

    Grandstream Wi-Fi AP with Integrated Ethernet Switch - GWN7602

    Wi-Fi Standards IEEE 802.11a/b/g/n/ac
    Antennas 2 dual band internal antennas.
    Antenna 1 - 2.4GHz: gain 3.0dBi, 5GHz: gain 3.5dBi
    Antenna 2 - 2.4GHz: gain 3.5dBi, 5GHz: gain 3.0dBi
    Wi-Fi Data Rates IEEE 802.11ac: 6.5 Mbps to 867Mbps
    IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    IEEE 802.11n: 6.5Mbps to 300Mbps
    IEEE 802.11b: 1, 2, 5.5, 11Mbps
    IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    *Actual throughput may vary depending on many factors including environmental conditions, distance
    between devices, radio interference in the operating environment and mix of devices in the network
    Frequency Bands 2.4 GHz Radio: 2412 – 2484 MHz
    5 GHz Radio: 5150-5250 MHz, 5250-5350 MHz, 5470-5725 MHz, 5725-5850 MHz
    *Not all frequency bands can be used in all regions. The band 5150-5350 MHz is restricted to indoor use only in all EU
    states.
    Channel Bandwidth 2.4G: 20 and 40MHz
    5G: 20, 40, 80MHz
    System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise
    Mesh h 5G radio
    Coverage Range Up to 100 meters
    *Coverage range can vary based on environment
    Maximum TX Power 2.4G: 21 dBm
    5G: 21 dBm
    *Maximum power varies by country, frequency band, and MCS rate
    Receiver Sensitivity 2.4G
    802.11b:-96dBm@1Mbps,-88dBm@11Mbps;802.11g:-93dBm@6Mbps, -76dm@54Mbps;
    802.11n20MHz:-92dBm@MCS0,-73dBm@MCS7;802.11n40MHz: -88.5dBm@MCS0,-71dBm@MCS7
    5G
    802.11a: -91dBm@6Mbps, -73.5dBm@54Mbps; 802.11ac:VHT20: -89.5dbm@MCS0, -71.5dBm@
    MCS7, -64dBm@MCS8; VHT40: -87.5dBm@MCS0; -69.5dBm@MCS7, -62dBm@MCS9, VHT80:
    -83.5dBm@MCS0, -65.5dBm@MCS7, -58.5dBm@MCS9
    SSIDs 4 SSID per radio
    Concurrent Clients Up to 80
    Network Interfaces 1 x 10/100/1000M uplink Ethernet port with POE/POE+
    2 x 10/100M Ethernet port with PSE
    1 x 10/100M Ethernet port
    Auxiliary Ports 1x Reset Pinhole
    Mounting Wall mountable
    LEDs 1x tri-color LEDs for device tracking and status indication
    Network Protocols IPv4/IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
    QoS 802.11e/WMM, VLAN, TOS
    Network Management GWN.Cloud offers a free cloud management platform for unlimited GWN APs
    GWN.Manager (coming soon) offers premise-based software controller for up to 3,000 GWN APs
    Power and Green Energy Efficiency Support 802.3 az; PoE 802.3af/ 802.3at
    PSE max output per port: 6W; Max Consumption: 20 W
    Environmental Operation: 0°C to 40°C
    Storage: -10°C to 60°C
    Humidity: 10% to 90% Non-condensing
    Physical Unit Dimension:135 x 115 x 30mm; Unit Weight: 188g
    Entire Package Dimension: 171 x 140 x 33mm; Entire Package Weight: 278.5g
    Package Content GWN7602 802.11ac Wireless AP, Quick Start Guide
    Compliance FCC, CE, RCM, IC

    Read more
