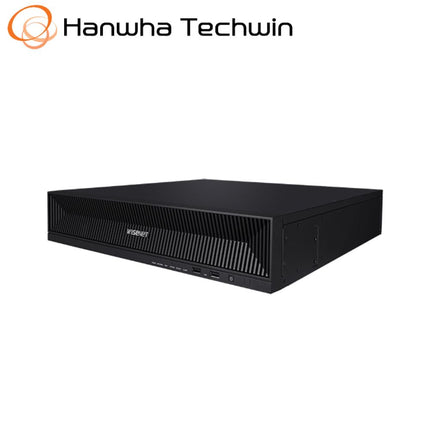

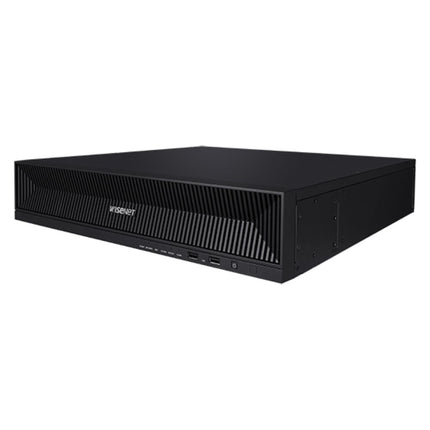

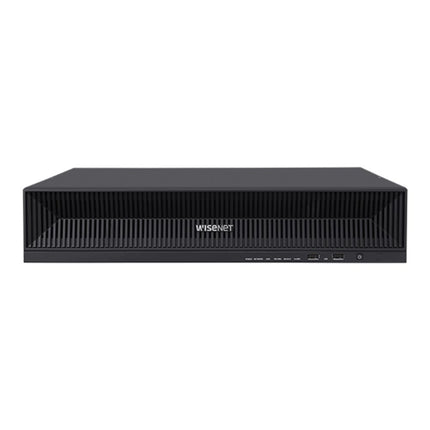

Hanwha Wisenet 16CH PoE NVR, AI Search, H.265, 140Mbps, No HDD (4 SATA 24TB) - XRN-1620SB1

Description

Description

The Hanwha HAN-XRN-1620SB1 is a 16 channel NVR with the ability to record up to 32-megapixels and can produce a HDMI video output at a resolution of up to 3840 x 2160. The NVR can achieve plug and play via the 16 PoE ports, which are capable of up to 140Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 percent, making it a cost-effective solution for a variety of security scenarios.

Features

  • Up to 16CH 32MP supported
  • Max. 140Mbps network camera recording
  • HDMI out
  • User friendly UI / UX
  • AI search support when working with Wisenet AI camera
  • Dynamic Event support
  • New event function of cameras is available without software update
  • H.265, H.264, MJPEG codec supported
  • Plug & play by 16 PoE ports
  • Bookmark management (Up to 100 set)
  • SATA 4ea (Up to 24TB)
Datasheet
Tech Specs

Hanwha Wisenet 16CH POE NVR, AI Search, H.265, 140Mbps, No HDD (4 SATA 24TB) - XRN-1620SB1

Display
Network camera Inputs Max. 16CH
Network camera Resolution 32MP ~ CIF
Network camera Protocols SUNAPI, ONVIF
Decoding Local Display FHD : HDMI & VGA Dual monitor
UHD : HDMI Single monitor
Decoding Multi Screen
Display		 [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ 13/ 16/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Decoding Resolution [Local Monitior]
FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps),
1080p(240fps), D1(480fps)
UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps),
1080p(240fps), D1(270fps)
FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps),
1080p(90fps), D1(200fps)
Clone/Single mode : MAX 15fps when displaying more than 10CH
Expand mode : Up to 9 divisions, Max 15fps when displaying more than 8CH
Performance
Operating
System		 Embedded Linux
Record Compression H.265, H.264, MJPEG
Record Recording
Bandwidth		 Max. 140Mbps
Record Resolution 32MP ~ CIF
Record Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio),
Dynamic Event
Record Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play Playback
Bandwidth		 Max. 32Mbps
Search & Play User Max. 4 Users (Local 1, Remote 3)
Search & Play Simultaneous
playback		 Max. 64CH(Local 16CH, Remote 16CH per user
Search & Play Fisheye
Dewarping		 CMS
Search & Play Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
Search & Play Playback Contro Fast/Slow Forward / Backward, Move one step Up / Down
Storage Supported HDD Up to 6TB
Storage HDD Slot SATA 4ea(Max. 24TB)
Backup File backup BU/Exe(GUI), JPG/AVI(Network)
Backup File backup Multi channel(Up to 16CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client),
SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server,
Client)
DDNS IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client),
SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server,
Client)
Transmission Bandwidth Max. 140Mbps
Audio Input/Output 16 CH(network)
Audio Compression G.711, G.726, AAC(16/48KHz)
Audio Audio
Communication		 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer Supported OS Windows 10, macOS 10.13
Web viewer Supported
browser		 Google Chrome, Microsoft Edge, Mac Safari, Firefox
Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup Register Auto, Manual
Camera Setup Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8
point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR,
Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ Control Via GUI, Webviewer, SPC-2000
PTZ Preset 300 Presets
Smart phone Support Model iOS, Android
Smart phone Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone Control Live 16CH(Multi-Profile Support), Playback 4CH
Smart phone Max. Remote
Users		 Search(3), Live Unicast(10)
Redundancy Failover N+1
Redundancy ARB Support

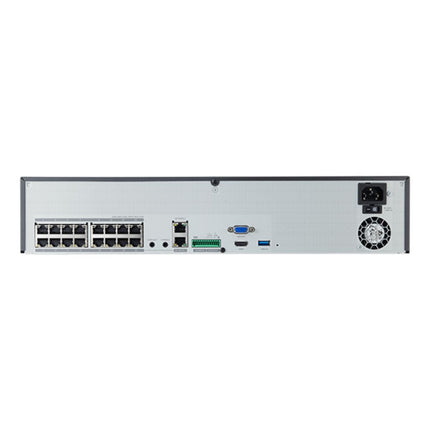

Interface
Front Indicator HDD, Alarm, Power, Record, Backup, Network
Storage OK
HDM 1EA 3840x2160 30Hz
VGA 1EA 1920x1080 60Hz
Audio Out 1EA
Ethernet PoE RJ-45 16EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
Alarm In 4EA, Out 2EA
USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
Power inlet AC 1EA
System
Log Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech,
Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish,
Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption Max. 310W
PoE Budget 200W
Mechanical
Color / Material Black
Dimension (WxHxD) 440 x 89.8 x 428.4 mm
Weight 5.76Kg
Intelligent Analysis
AI Search Object Attribute Compatible for Wisenet AI Camera

Video

Read more

Hanwha Wisenet 16CH PoE NVR, AI Search, H.265, 140Mbps, No HDD (4 SATA 24TB) - XRN-1620SB1

Product form

SKU: XRN-1620SB1

$1,784.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
