| VIDEO |
| Imaging Device |
1/2" 2.17M CMOS |
| Total Pixels |
1,952(H) X 1,113(V) approx 2.17M pixels |
| Effective Pixels |
1,945(H) X 1,097(V) approx 2.13M pixels |
| Scanning System |
Progressive Scan |
| Min. Illumination |
Color : 0.004 Lux (1/30sec, F0.94), B/W : 0.0004 Lux (1/30sec, F0.94) |
| S / N Ratio |
50dB |
| Video Out |
CVBS : 1.0 Vpp / 75O composite, 720 x 480(N), 720 x 576(P), for Installation
USB : Micro USB Type B, 1280 x 720 for Installation |
| LENS |
| Focal Length (Zoom Ratio) |
4.1 ~ 16.4mm (Optical 4x) |
| Max. Aperture Ratio |
F0.94(Wide) ~ F2.4(Tele) |
| Angular Field of View |
H : 100°(Wide) ~ 26.2°(Tele) / V : 54°(Wide) ~ 14.8°(Tele) / D : 116°(Wide) ~ 30°(Tele) |
| Min. Object Distance |
0.7m (2.30ft) |
| Focus Control |
Simple Focus (motorized V/F) / Manual |
| Lens / Mount Type |
DC Auto Iris / Board-in Type |
| PAN / TILT / ROTATE |
| Pan / Tilt / Rotate Range |
±175° / ±73° / ±175° |
| PTR Control |
Remote adjustment (Max. 200 cycles) |
| OPERATIONAL |
| Camera Title |
Off / On (Displayed up to 85 Characters)
- W/W : English / Numeric / Special Characters
- China : English / Numeric / Special / Chinese Characters
- Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by Resolution |
| Day & Night |
Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation |
Off / BLC / HLC / WDR |
| Wide Dynamic Range |
150dB |
| Contrast Enhancement |
SSDR (Off / On) |
| Digital Noise Reduction |
SSNRV (2D + 3D Noise filter) (Off / On) |
| Digital Image Stabilization |
Off / On (Built-in Gyro sensor) |
| Digital PTZ |
24x, Digital PTZ (Preset, Group) |
| Defog |
Off / Auto / Manual |
| Motion Detection |
Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking |
Off / On (32ea, polygonal zones)
- Color : Gray / Green / Red / Blue / Black / White - Mosaic |
| Gain Control |
Off / Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| LDC (Lens Distortion Correction) |
Off / On (5 Levels with min / max) |
| Electronic Shutter Speed |
Minimum / Maximum / Anti Flicker (2 ~ 1/12,000sec) |
| Digital PTZ |
24x, Digital PTZ (Preset, Group) |
| Flip / Mirror |
Off / On, Hallway View : 90°/270° |
| Video & Audio Analytics |
Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis) Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification |
| Alarm I/O |
Input 1ea / Output 1ea |
| Alarm Triggers |
Alarm Input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events |
File Upload Via FTP, E-mail, Notification Via E-mail, Local storage (SD / SDHC / SDXC) or NAS recording at event triggers, External output, DPTZ preset |
| Pixel Counter |
Support |
| NETWORK |
| Ethernet |
RJ-45 (10/100 BASE-T) |
| Video Compression Format |
H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG |
| Resolution |
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate |
H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps |
| Smart Codec |
Manual mode (Area-based : 5ea) |
| WiseStreamII |
Support |
| Video Quality Adjustment |
H.265 / H.264 / MJPEG : Target Bitrate Level Control |
| Bitrate Control Method |
H.265 / H.264 : CBR or VBR, MJPEG : VBR |
| Streaming Capability |
Multiple streaming (Up to 10 Profiles) |
| Audio In |
Selectable (Mic in / Line in), Supply voltage : 2.5VDC (4mA), Input impedance : approx. 2K Ohm |
| Audio Out |
Line out (3.5mm mono jack), Max output level : 1 Vrms |
| Audio Compression Format |
G.711 u-law/G.726 Selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps, AAC-LC : 48Kbps at 16KHz |
| Audio Communication |
Bi-directional (2-way) |
| IP |
IPv4, IPv6 |
| Protocol |
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security |
HTTPS (SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
20 Users at Unicast Mode |
| Edge Storage |
SD / SDHC / SDXC 2Slot (Up to 512GB) - Continuous recording (1st Slot to 2nd Slot)
- Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.
NAS (Network Attached Storage), Local PC for Instant Recording |
| Application Programming Interface |
ONVIF profile S/G, SUNAPI 2.0 (HTTP API), Wisenet Open Platform |
| Webpage Language |
English, Korean, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek |
| Web Viewer |
Supported OS : Windows 7, 8, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer
- Supported Browser : Google Chrome 56, MS Edge 39, Mozilla Firefox 61 (Window 64bit only), Apple Safari 10 (Mac OS X only)
Plug-in Webviewer
- Supported Browser : MS Explore 11, Apple Safari 10 (Mac OS X only) |
| Central Management Software |
SmartViewer, SSM |
| ENVIRONMENTAL |
| Operating Temperature / Humidity |
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -10°C (+14°F) |
| Storage Temperature / Humidity |
-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection / Vandal Resistance |
IP51 / IK08 |
| ELECTRICAL |
| Input Voltage / Current |
12V DC, PoE (IEEE802.3af, Class3) |
| Power Consumption |
Max. 8.6W (12V DC), Max. 10.2W (PoE) |
| MECHANICAL |
| Color / Material |

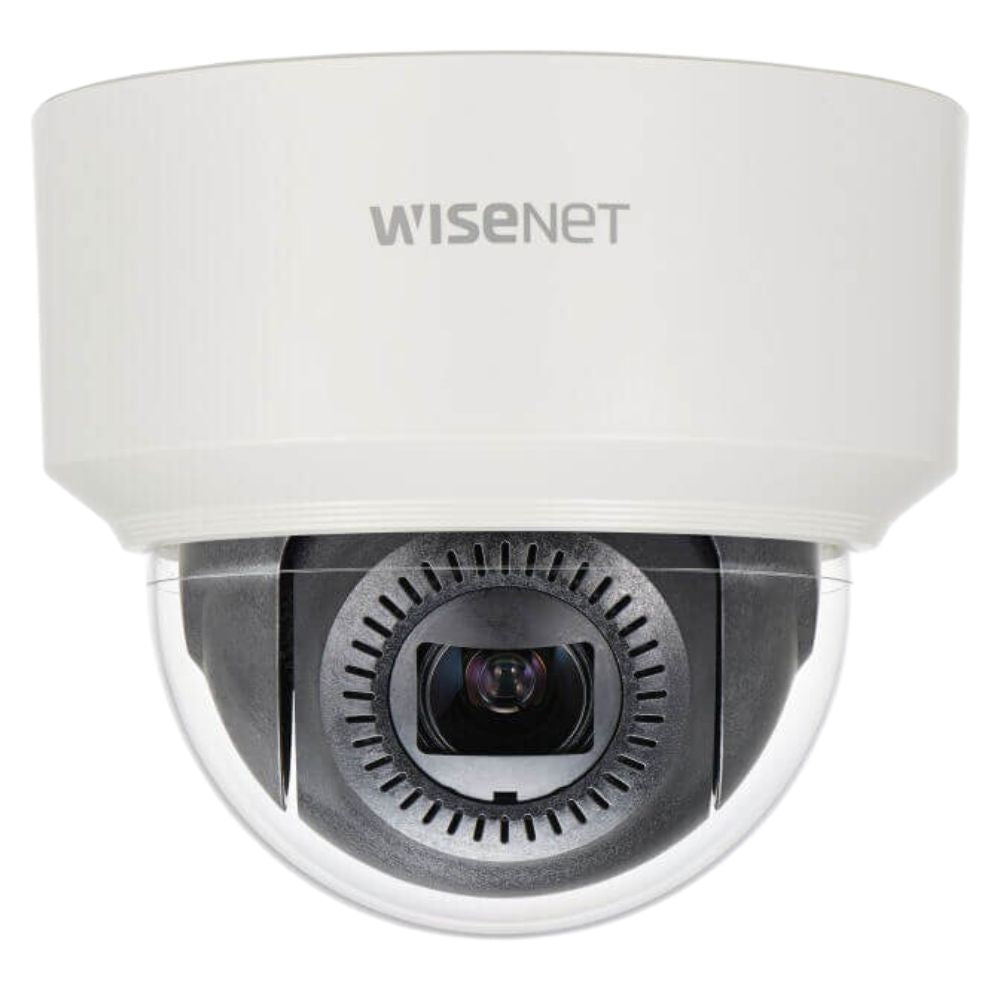

Ivory / Plastic (XND-6085) |
| Dimensions (WxH) |
Ø160.0 x 140.0mm (Ø6.30" x 5.51") |
| Weight |
1.10 kg (2.43 lb) (XND-6085) |
