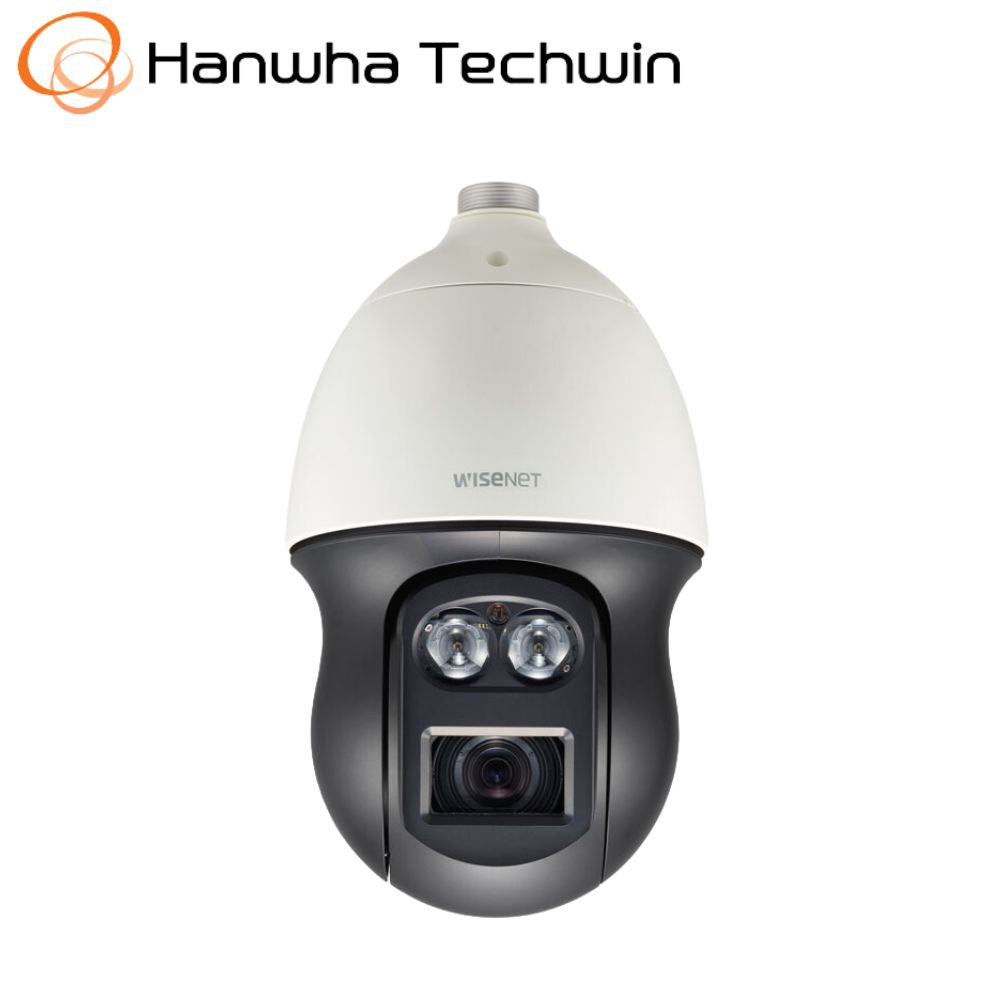

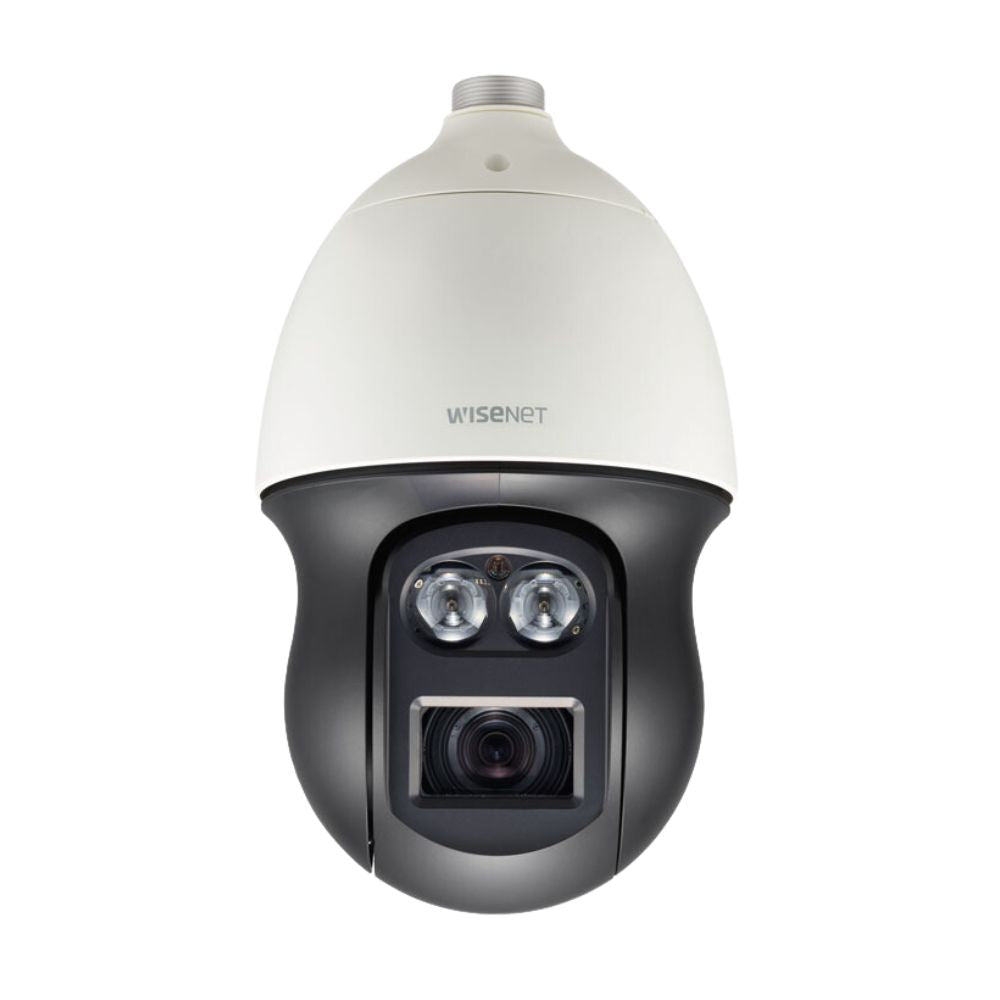

Hanwha Wisenet 2MP Outdoor IR PTZ Camera, H.265, 32x Zoom WDR, IP66, IK10, 4.44-142.6mm - HAN-XNP-6320RH

Description

Description

With cutting-edge WDR technology, the Hanwha HAN-XNP-6320RH conquers limitations found in conventional WDR cameras, while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images, regardless of the environment, or time of day. Using WiseStream II, the HAN-XNP-6320RH reduces data by up to 99% when combined with H.265 compression and through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XNP-6320RH is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features

  • Max. 2MP (1920 x 1080) resolution
  • 16:9 full HD (1080p) resolution support
  • 4.44 - 142.6, (32x)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • WiseStream support
  • DIS with built-in gyro sensor
  • Intelligent video/audio analytics, shock detection
  • Azimuth display (cardinal and intermediate directions)
  • Day & night (ICR), WDR (120dB)
  • MicroSD / SDHC / SDXC 2 memory slots, bi-directional audio support
  • Max. IR viewable length 200m
  • IP66, IK10

Datasheet
Tech Specs

Camera

Sensor

2 MP 1/2.8" CMOS

Focal Length

4.4 to 142.6mm

Maximum Aperture

f/1.6 to 4.4

Zoom

Optical: 32x
Digital

Lens Field of View

Horizontal: 61.8 to 2.19°
Vertical: 36.2 to 1.24°

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.05 Lux
B&W: 0 Lux

Shutter Speed

1/12,000 to 2 Seconds

Video

Streaming Resolution

1920 x 1080 at 60 fps

Supported Video Compression

H.264, H.265, MJPEG

Multi-View Streaming

Yes, 10 Streams

Audio

1- or 2-Way Audio

Two-Way

Audio Formats

AAC, ADPCM, G.711, G.726

Built-In Mic

No

Built-In Speaker

No

Networking

Security

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

Supported Protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)

SUNAPI (HTTP API)

Analytics

Directional Detection, Virtual Line, Fog Detection, Face Detection, Motion Detection, Appear, Disappear, Enter, Exit, Loitering Detection, Tampering Detection, Audio Detection, Sound Classification, Shock Detection

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

System Requirements

Windows OS Support

Windows 7, 8.1, 10

Mac OS Support

macOS 10.12, OS X 10.11, OS X 10.10

Environmental

Operating Temperature

-58 to 131°F / -50 to 55°C

Startup Temperature

-31°F / -35°C

Storage Temperature

-58 to 140°F / -50 to 60°C

Operating Humidity

0 to 89%

IP Rating

IP66

IK Rating

IK10

General

Memory

1024 MB RAM / 256 MB Flash

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

Pan/Tilt

Manual Pan: 360° at 250°/s
Programmed Pan: 360° at 400°/s
Manual Tilt: 95° (-5 to 90°) at 250°/s
Programmed Tilt: 95° (-5 to 90°) at 250°/s

Alarm I/O

4 / 1

I/O Connections

1 x RJ45
1 x Power

IR Range

656' / 199.95 m

Supported Languages

Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Spanish
Swedish
Traditional Chinese
Turkish

Certifications

EAC, UL, as per Manufacturer

Internal Storage

None

External Storage Options

NAS

Power Source

AC, PoE 802.3bt (60 W)

Power Consumption

AC: 83 W
PoE: 51 W

Material of Construction

Plastic

Dimensions

ø: 9.3 x H: 16.1" / ø: 236.9 x H: 407.7 mm

Weight

14.99 lb / 6.8 kg

Packaging Info

Package Weight

24.06 lb

Box Dimensions (LxWxH)

21.5 x 17.7 x 14.2"

Read more
