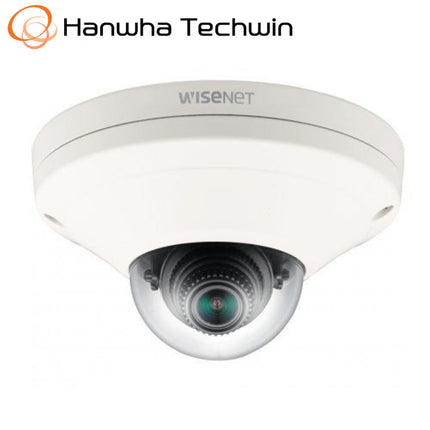

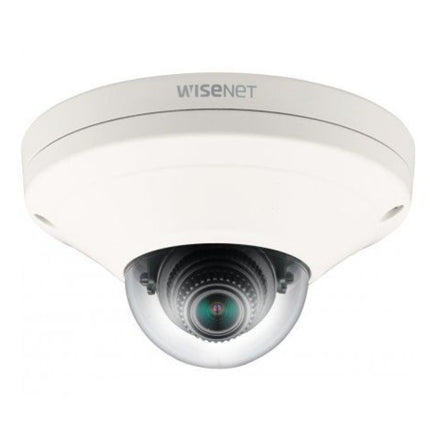

Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.8mm - XNV-6011

Description

Description

Hanwha XNV-6011 conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the XNV-6011 reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The XNV-6011 is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features

  • Max. 2megapixel (1920 x 1080) Resolution
  • Built-in 2.8mm fixed Lens
  • Max. 60fps@all Resolutions (H.265 / H.264)
  • H.265, H.264, MJEPG Codec Support, Multiple Streaming
  • Day & Night (ICR), WDR (150dB), Defog
  • Loitering, Directional Detection, Fog Detection, Defocus Detection, Digital Auto Tracking, Heatmap, People Counting, Queue Management, Tampering
  • Motion Detection, Handover
  • SD / SDHC / SDXC Memory slot (Max. 256GB), PoE / 12V DC
  • Hallway View, WiseStreamII Support
  • IP66, IK10, NEMA4X
  • LDC Support (Lens Distortion Correction)
Datasheet
Tech Specs

Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.8mm - XNV-6011

VIDEO
Imaging Device 1/2.8" 2M CMOS
Total Pixels 1,945(H) x 1,109(V) 2.16M pixels
Effective Pixels 1,945(H) x 1,097(V) 2.13M pixels
Scanning System Progressive Scan
Min. Illumination Color : 0.055 Lux (1/30sec, F2.0)
B/W : 0.055 Lux (1/30sec, F2.0)
S / N Ratio 50dB
Video Output CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
USB : Micro USB type B, 1280 x 720, for installation
LENS
Focal Length (Zoom Ratio) 2.8mm fixed
Max. Aperture Ratio F2.0
Angular Field of View H : 112˚ / V : 62˚ / D : 130˚
Min. Object Distance 0.2m (0.66ft)
Focus Control Manual
Lens / Mount Type Fixed / Board-in Type
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range Pan : 0° ~ +353° / Tilt : 0° ~ +59° / Rotate : 0° ~ +353°
OPERATIONAL
Camera Title Off / On (Displayed up to 85 characters)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max 5), Color (Gray / Green / Red / Blue / Black / White),
Transparency, Auto scale by resolution
Day & Night Auto (Electrical) / Color / B/W
Backlight Compensation Off / BLC / HLC (Masking / Dimming) / WDR
Wide Dynamic Range 150dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRⅤ (2D + 3D Noise Filter) (Off / On)
Digital Image Stabilization Off / On
Defog Off / Auto (input from fog detection) / Manua
Motion Detection Off / On (8ea, 8point polygonal zones), Handover
Privacy Masking Off / On (32ea, polygonal zones)
- Color : Grey / Green / Red / Blue / Black / White - Mosaic
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor (Included Mercury & Sodium)
Contrast Level adjustment
LDC Off / On (5 levels with min / max
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway view : 90˚ / 270˚
Video Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection,
Virtual line, Enter / Exit, (Dis) Appear, Face detection, Motion detection,
Digital auto tracking, People counting, Heatmap, Queue management
Alarm Triggers Motion detection, Video analytics, Network disconnect
Alarm Events File upload via FTP, E-mail, Notification via E-mail,
Local Storage (SD / SDHC / SDXC) or NAS recording at event triggers,
DPTZ preset
Pixel Counter Support
NETWORK
Ethernet RJ-45 (10/100 BASE-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265 / H.264 : Max. 60fps at all resolutions, MJPEG : Max. 30fps
Smart Codec Manual mode (area-based : 5ea)
WiseStreamⅡ Support
Video Quality Adjustment H.265 / H.264 / MJPEG : Target Bitrate Level Control
Bitrate Control Method H.265 / H.264 : CBR OR VBR, MJPEG : VBR
Streaming Capability Multiple Streaming (Up to 10 Profiles)
IP IPv4, IPv6
Protocol TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL / TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMP v1 / v2c / v3 (MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address
Filtering, User access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Max. User Access 20 users at Unicast Mode
Edge Storage SD / SDHC / SDXC (256GB)
- Motion Images recorded in the SD / SDHC / SDXC memory card can be
downloaded. NAS (Network Attached Storage), Local PC for Instant recording
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API), Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese,
Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin WebViewer
- Supported Browser : Google Chrome 54, MS Edge 38, Mozilla Firefox 49
(Window 64bit only), Apple Safari 10 (Mac OS X only) Plug-in WebViewer
- Supported Browser : MS Explore 11, Apple Safari 9 (Mac OS X only)
Central Management Software SmartViewer, SSM
ENVIRONMENTAL
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH
*Start up should be done at above -20˚C (-4°F)
Storage Temperature / Humidit -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10, NEMA4X
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class3)
Power Consumption Max 6.5W
MECHANICAL
Color / Material Ivory / Metal
Dimensions (WxH) Ø112.8 x 63.7mm (Ø4.44" x 2.51")
Weight 420g (0.93 lb)

Video

Read more

Hanwha Wisenet 2MP Outdoor Mini Dome Camera, H.265, 60fps, 150dB WDR, 2.8mm - XNV-6011

Product form

SKU: XNV-6011

$496.00 Incl. GST
