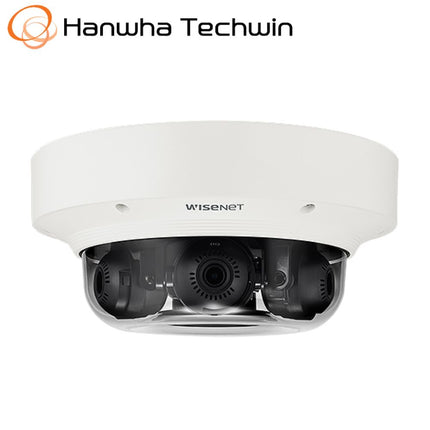

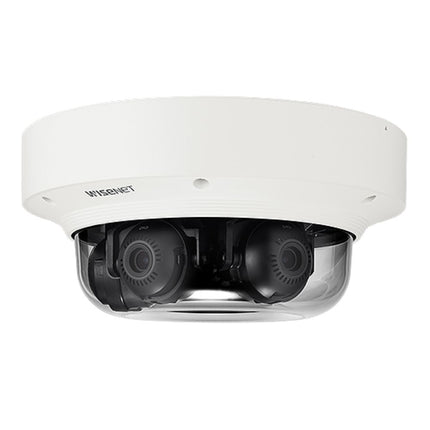

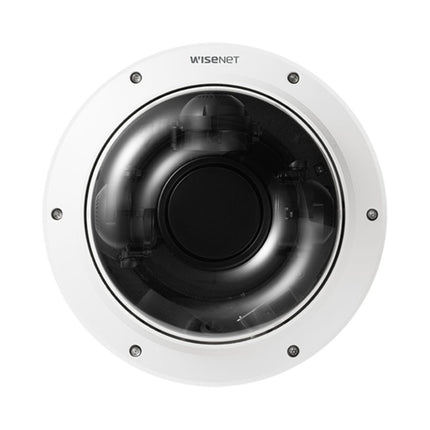

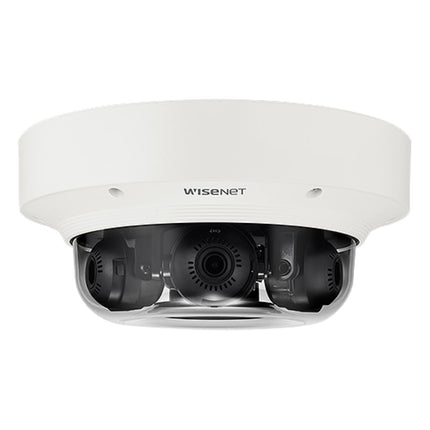

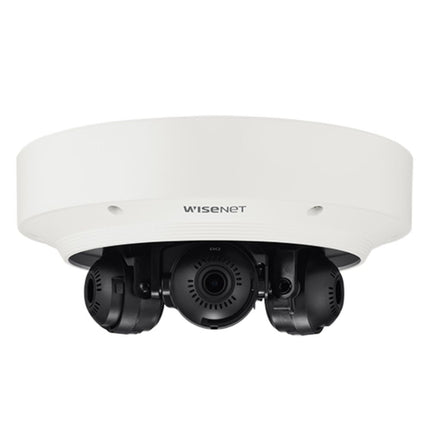

Hanwha Wisenet 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 – 6mm - PNM-8082VT

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

Hanwha’s outdoor multi-directional camera has 3x 2MP sensors, essentially making this is a 3 in 1 camera! This is a practical and cost-effective alternative to installing three separate cameras in applications where visibility around corners is a must. Not only are you saving on the hardware as fewer channels are required on an NVR, but you’ll also be saving on analytics and VMS costs as well if they are required. Each of the 3 lenses can move easily along the rail and supports flexible positioning. Additionally, the motorised varifocal lens (3 – 6mm) offers various views with simple focus, with modifications available to suit each different application. The PNM-8082VT is the perfect solution for repeated multi-directional situations.

Features

  • 2MP x 3ch Multi-directional camera
  • Max. 30fps (H.265, H.264, MJPEG)
  • 3.0~6.0mm(2x) motorized varifocal lens
  • H.265, H.264, MJPEG codec, Multi streaming
  • Video analytics, WiseStream Ⅱ
  • IP66, IK10, NEMA4X
Datasheet
Tech Specs

Hanwha Wisenet 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 – 6mm -PNM-8082VT

Video
Imaging Device 1/2.8" CMOS x 3CH
Resolution 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448,
720x576, 720x480, 640x480, 640x360, 320x240
Max. Framerate H.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Min. Illumination Color: 0.04lux(F2.2, 1/30sec)
BW: 0.004lux(F2.2, 1/30sec)
Video Out CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio) 3~6mm(2x) motorized varifocal
Max. Aperture Ratio F2.2(Wide)-F3.1(Tele)
Angular Field of View H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D:
126˚(Wide)~64.3˚(Tele)
Min. Object Distance 0.5m(1.64ft)
Focus Control Simple focus
Lens Type DC auto iris
Pan / Tilt / Rotate
Pan / Tilt / Rotate Range 0~360˚ / 0~73˚ / 0~90˚
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic Range extreme WDR(150dB)
Digital Noise Reduction SSNRⅤ
Digital Image Stabilization Support
Defog Support
Motion Detection 8ea, 8point polygonal zones
Privacy Masking 32ea, polygonal zones
- Color: Grey, Green, Red, Blue, Black, White
- Mosaic
Gain Control Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC Support
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation Flip, Mirror
Analytics Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering,
Virtual line
Alarm Triggers Analytics, Network disconnect
Alarm Events File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC at event triggers
Handover
Network
Ethernet Metal shielded RJ-45(10/100BASE-T)
Video Compression H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec Manual(5ea area), WiseStreamⅡ
Bitrate Control H.264/H.265: CBR or VBR
MJPEG: VBR
Streaming Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles)
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS,
SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS,
DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA)
Application Programming
Interface		 ONVIF Profile S/G/T
SUNAPI(HTTP API)
General
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian,
Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage Micro SD/SDHC/SDXC 2slot 512x2GB
Memory TBD
Environmental & Electrical
Operating Temperature /
Humidity		 -40°C~+55°C(-40°F~+131°F) / Less than 95% RH(Non condensing)
*Start up should be above at -35˚C
Storage Temperature / Humidity -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification IP66, IK10, NEMA4X
Input Voltage PoE+
Power Consumption TBD
Mechanical
Color / Material White / Aluminum
RAL Code RAL9003
Product dimensions / weight Ø251x116.5mm / 3Kg
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF) Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Observe (63PPM/ 19PPF) Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Recognize (125PPM/ 38PPF) Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Identify (250PPM/ 76PPF) Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)

Read more

Hanwha Wisenet 3x 2MP Outdoor Multi Sensor & Directional Camera, 3 – 6mm - PNM-8082VT

Product form

SKU: PNM-8082VT

$1,730.00 Incl. GST
