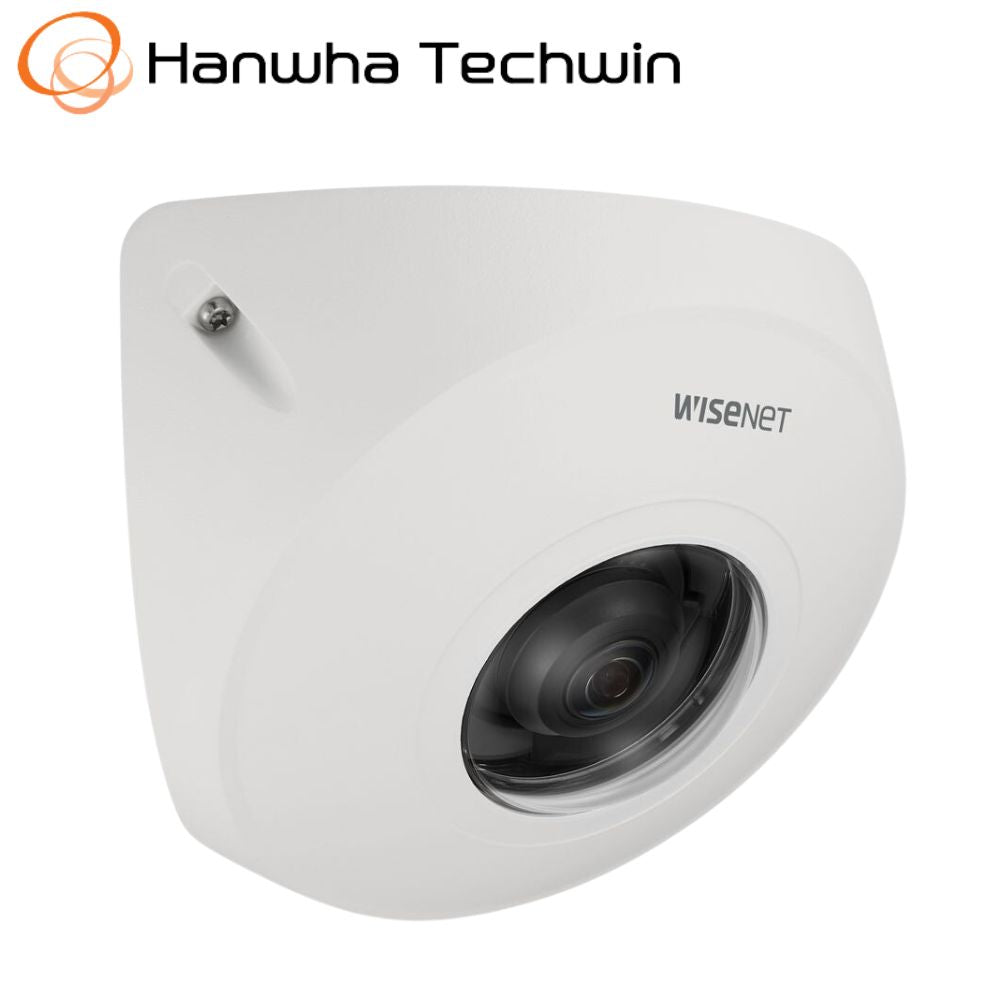

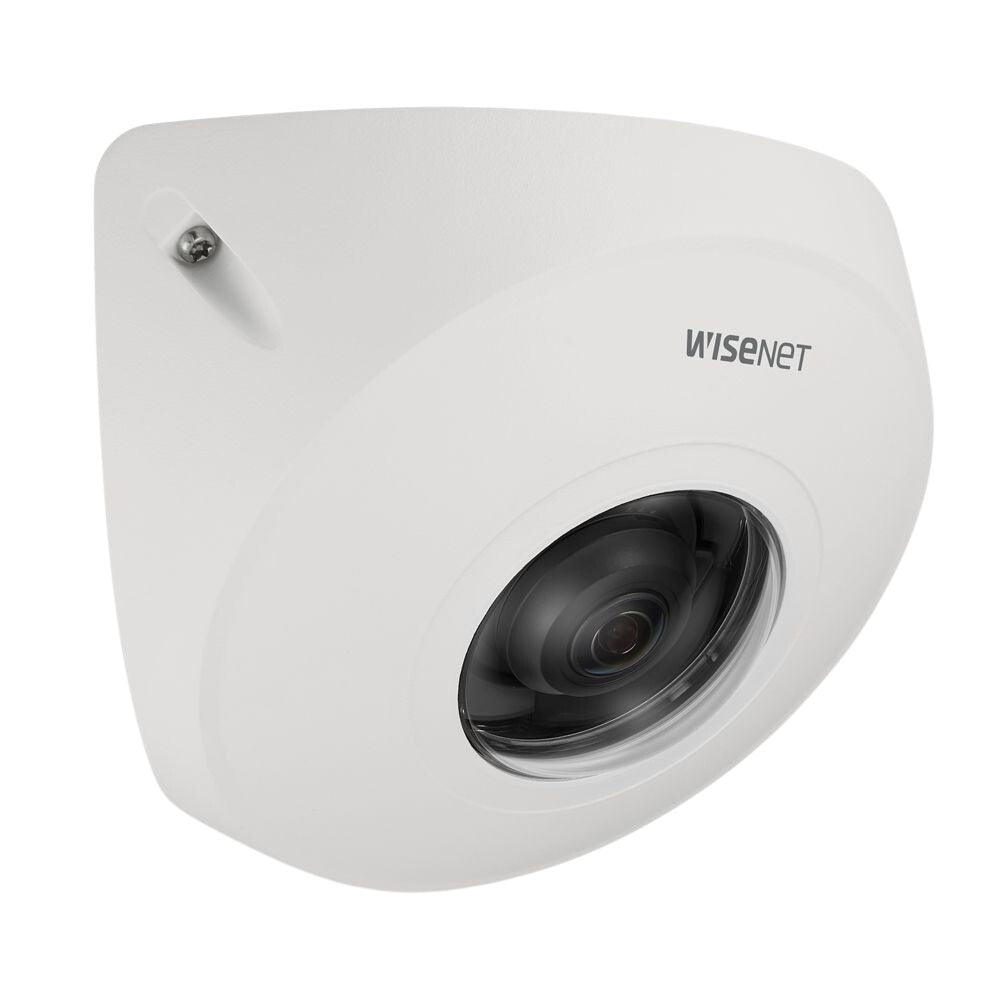

Hanwha Wisenet 5MP Outdoor Compact Corner Mount Camera, WDR, IP66, 2.3mm - HAN-TNV-8010C

Description

Description

With its compact design and wide field of view, Hanwha's compact corner mount camera HAN-TNV-8010C is suitable for applications with limited space, such as elevators. It's anti-ligature design also makes it applicable for correctional and mental health facilities where the prevention of self-harming is a must. This camera supports video output (CVBS/USB) and also includes a built-in alarm and audio I/O, which makes installation very easy as it removes the need for further modifications, especially for facilities where maintenance needs to be minimal. With a wide range of intelligent video analytics, this camera assists users to detect different types of incidents saving time on site.

Features
  • Max. 5MP (2529 x 1944) resolution
  • Max. 30fps (H.265/H.264)
  • Max. 15fps (MJPEG)
  • Built-in 2.3mm fixed lens
  • H.265, H.264, MJPEG codec support, multiple streaming (up to 3 profiles)
  • Day and night
  • Video and audio analytics
  • Shock detection
  • MicroSD/SDHC/SDXC memory slot (Max. 128GB)
  • Hallway view, WiseStream II support
  • PoE only (max 6.49W, typical 4.6W)
  • IP66, IK10
Datasheet
Tech Specs

Video

Imaging Device

1/2.8" CMOS

Resolution

2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576,

720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps (60Hz/50Hz)

Min. Illumination

Color: 0.1 lux (F2.3, 1/30sec) B/W: 0.02 lux (F2.3, 1/30sec)

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation

Lens

Focal Length (Zoom Ratio)

2.3mm fixed

Max. Aperture Ratio

F2.3

Angular Field of View

H: 131°, V: 93.4°, D: 174°

Focus Control

Fixed

Pan / Tilt / Rotate

Tilt Range

-7~+7°

Operational

Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, HLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNR

Digital Image Stabilization

Support

Defog

Support

Motion Detection

4ea, polygonal zones

Privacy Masking

6ea, rectangular zones

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor(include Mercury & Sodium)

LDC

Support

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (2~1/12,000sec)

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, Audio detection

Alarm I/O

Input 1ea / Output 1ea

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and e-mail Notification via e-mail

SD/SDHC/SDXC or NAS recording at event triggers

Alarm output

Audio In

Selectable(mic in/line in)

Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio Out

Line out, Max.output level: 1Vrms


Network

Ethernet

RJ-45(10/100BASE-T)

Video Compression

H.265/H.264: Main/Baseline/High, MJPEG

Audio Compression

G.711 u-law /G.726 selectable G.726(ADPCM) 8KHz, G.711 8KHz

G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps

Smart Codec

Manual(5ea area), WiseStreamⅡ

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, sRTP

Security

HTTPS(SSL) login authentication Digest login authentication

IP address filtering User access log

802.1X authentication(EAP-TLS, EAP-LEAP)

Device certificate(Hanwha Techwin Root CA)

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API)

Wisenet open platform

General

Webpage Language

English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek

Edge Storage

Micro SD/SDHC/SDXC 1slot (128GB)

Memory

512MB RAM, 256MB Flash

Environmental & Electrical

Operating Temperature / Humidity

-10°C ~ +55°C(+14°F ~ +131°F) / Less than 95% RH

Storage Temperature / Humidity

-50°C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH

Certification

IP66, IP6K9K, IK10

Input Voltage

PoE(IEEE802.3af, Class2), PoE Only

Power Consumption

PoE: Max 6.49W, typical 4.6W,


Mechanical

Color / Material

White / Aluminium

RAL Code

RAL9003

Product dimensions / weight

143x122x73.7mm(5.6x4.8x2.9"), 815g(1.79lb)
  • The lastest product information / specification can be found at hanwha-security.com
  • Design and specifications are subject to change without
  • Wisenet is the proprietary brand of , formerly known as Samsung

Read more

Product form

Hanwha Wisenet 5MP Outdoor Compact Corner Mount Camera, WDR, IP66, 2.3mm - HAN-TNV-8010C

SKU: TNV-8010C Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$835.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Hanwha Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote
