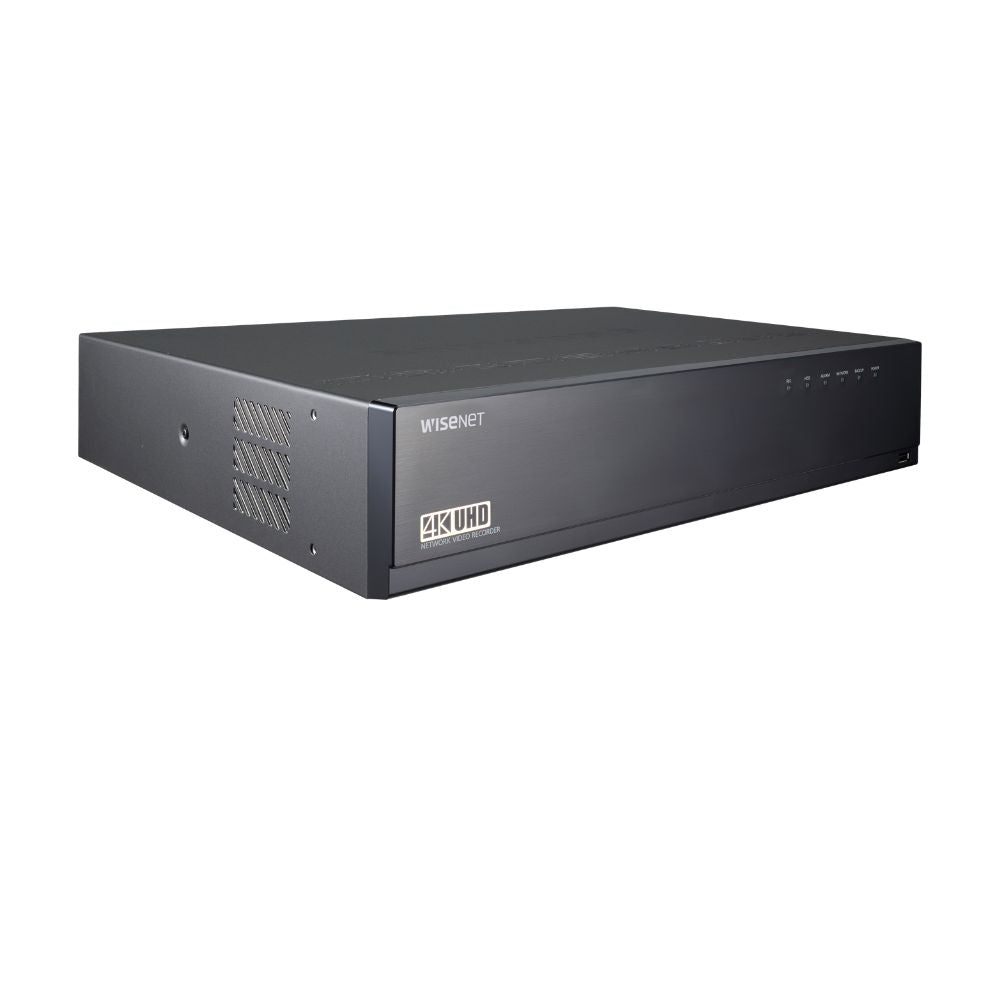

Hanwha Wisenet 64CH 4k NVR, P2P, 300Mbps, 12MP IPC max, no HDD (8 SATA 64TB max) - HAN-XRN-3010A

Description

Description

Stream and record up to 64 video channels with the WiseNet X XRN-3010A 64-Channel 12MP NVR from Hanwha Techwin. Equipped with eight drive bays, each supporting an HDD up to 8TB, this NVR can accommodate up to 64TB of HDD storage (HDDs available separately). The recorder uses H.264, H.265, and MJPEG compression to keep file sizes manageable while maintaining recording and playback quality.

The NVR's interface provides ports for two-way audio communication as well as HDMI and VGA connections for video output. The HDMI connection can output up to 4K UHD resolution video. ONVIF compliance ensures compatibility with a wide range of surveillance equipment.

Features
  • Up to 64CH, Max. 12megapixel camera supported
  • Max. 300Mbps network camera recording
  • 4K video out on HDMI monitor support
  • Dual monitor video out support
  • H.265, H.264, MJPEG compression support
  • WiseStream support
  • Max. 8 internal HDDs (64TB), e-SATA storage support
  • ARB & Failover (N+1) support
  • P2P service (QR code connect) support
    Downloads

    Datasheets

    Tech Specs
    Display
    Video Inputs
    Up to 64 Channels
    Input Resolution
    CIF to 12 MP
    Protocols
    Samsung/WiseNet SUNAPI, ONVIF
    Local Display
    1 x HDMI, 1 x VGA Dual Monitor
    Multi-Screen Display
    Local Monitor: 1, 2V, 3V, 4, 9, 16, 25, 36, Auto Sequence
    Web: 1, 4, 9, 16, 25, 36, Auto Sequence
    Resolution
    Live Local Monitor Performance:
    12 MP at 30 fps
    8.3 MP at 120 fps
    1080p at 480 fps
    720p at 960 fps
    D1 at 1560 fps
    Operating System
    Operating System
    Embedded Linux
    Recording
    Compression
    H.265, H.264, MJPEG, WiseStream (H.265, H.264)
    Bandwidth
    Up to 300 Mb/s
    Recording Resolution
    CIF to 12 MP
    Recording Modes
    Manual, Schedule (Continuous/Event), Event (Pre/Post)
    Event Triggers
    8 x Sensor Inputs, Video Loss, Camera Event (Sensor, Motion Detection, Video Analytics, Defocus)
    Event Actions
    Email, PTZ Preset, Alarm Out, Buzzer, Monitor Out
    Search & Playback
    Bandwidth
    32 Mb/s (16 Channels Simultaneously)
    Number of Simultaneous Users
    4 (1 Local, 3 Remote)
    Search Modes
    Date & Time (Calendar), Event Log List, Text Search (POS, ANPR), ARB Search, Smart Search (Virtual Line with Direction, Enter/Exit)
    Playback Capability
    Local: Up to 16 Channels
    CMS: Up to 16 Channels
    Resolution
    CIF to 12 MP
    360 Camera Dewarp
    Via Web/CMS
    Playback Control
    Fast/Slow Forward, Fast/Slow Backward, Move One Step Up/Down
    Storage
    HDD Capacity
    8 x Drive Bays
    Up to 8 TB HDD per Bay
    HDDs Available Separately
    eSATA
    1 x Port
    Backup
    File Formats
    GUI: Back Up, Executable File
    Network: JPG/AVI
    Built-in Backup Functions
    Multi-Channel Play (Up to 16 Channels), Date-Time / Title Display
    Sensor
    I/O
    8 x Inputs
    4 x Outputs
    NO/NC Selectable
    Audio
    I/O
    64-Channel Input (Network)
    Audio Compression
    G.711, G.726, AAC (16/48 kHz)
    Audio Communication
    2-Way
    Network
    Interface
    2 x RJ45, Gigabit Ethernet
    Protocols
    TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, UPnP, HTTPS, SNMP, ONVIF (Profile S), SUNAPI (Server, Client)
    DDNS
    Hanwha DDNS
    Bandwidth
    512 Mb/s
    Max. Remote Users
    Search: 3
    Live Unicast: 10
    Live Multicast: 20
    IP
    IPv4, iPv6
    Security
    IP Address Filtering, User Access Log, 802.1X Authentication, Encryption
    Languages
    English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, and Thai
    OS Supported
    Windows 7, 8, 10
    Mac OS X 10.8 or Above
    Supported Web Browsers
    Microsoft Internet Explorer, Google Chrome, Mac Safari, Firefox
    Viewer
    Software Type: SSM, Webviewer, SmartViewer, iPOLiS Mobile Viewer
    CMS Support: SDK/CGI (WiseNet SUNAPI)
    Functions
    Camera Setup
    Register: Auto Mode, Manual Mode
    Setup Items: IP Address, Add Profile Edit, Bit Rate, Compression, GOP, Quality, Camera Motion Detection Setup, Camera Video Setup (Simple Focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
    P2P
    QR Code
    PTZ Control
    Via GUI, WebViewer, or Optional SPC-2000 Network Controller
    255 Presets
    Mobile OS Support
    OS: iOS and Android
    Protocol Support: RTP, RTSP, HTTP, CGI (SUNAPI)
    Live 16-Channel Control: Multi-Profile Support, Playback (1 Channel)
    Maximum Remote Users: 3 Search, 10 Live Unicast, 20 Live Multicast
    Redundancy
    Failover: N + 1
    ARB: Yes
    System Control
    Mouse, Web, Optional SPC-2000 Network Controller
    Interface
    Front Panel
    6 x LED Status Indicators: HDD Action, Alarm, Power, Record, Backup, Network
    1 x USB 2.0
    Rear Panel
    1 x HDMI Video Output
    1 x VGA Video Output
    1 x RCA Audio Line Output
    2 x RJ45 (LAN/WAN, 1 Gb/s)
    8 x Alarm Inputs (Terminal Block)
    1 x Alarm Reset Port
    4 x Alarm Outputs (Terminal Block)
    1 x Relay Output (NO/NC/COM)
    3 x Relay Outputs (NO/COM)
    1 x USB 3.0
    1 x eSATA
    1 x RS-232C Serial
    1 x Reset Switch
    1 x AC Input
    HDMI Output
    Up to 3840 x 2160 Resolution in Single-Monitor Mode
    VGA Output
    Sub Mode: Supports Live Screen with up to 16 Divisions
    System
    Log List
    Up to 20,000 for Each System/Event Log
    Certifications
    Certifications and Compliance
    FCC, UL, CE, EAC
    Environmental
    Operating Temperature
    32 to 104°F / 0 to 40°C
    Operating Humidity
    20 to 85% RH
    Electrical
    Input Voltage
    100 to 240 VAC ±10%, 50/60 Hz, 4 to 1.5 A
    Maximum Power Consumption
    99 W (338 Btu) with 8 x 8 TB HDDs
    Physical
    Housing Material
    Metal
    Rack Height
    2 RU
    Dimensions
    17.32 x 3.46 x 15.15" / 440 x 88 x 385 mm
    Weight
    10.71 lb / 4.86 kg, without HDDs

    Read more

    Product form

    Hanwha Wisenet 64CH 4k NVR, P2P, 300Mbps, 12MP IPC max, no HDD (8 SATA 64TB max) - HAN-XRN-3010A

    SKU: XRN-3010A Datasheet

    🔴 OUT OF STOCK
    Discontinued. Contact us for a replacement.
    Surveillance Hard Drive Storage
    💾 Customize Your Storage:
    HDDs are sold separately, so you can choose the exact size you need.     🟢 Surveillance-Grade Hard Drive Western Digital Purple or Seagate SkyHawk
