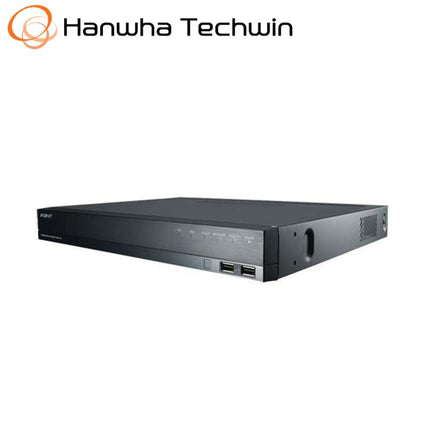

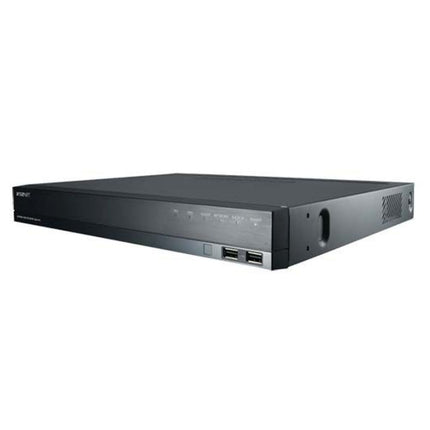

Hanwha Wisenet 8CH 4K PoE NVR, H.265, 100Mbps, 8MP IPC Max, 3TB HDD (2 SATA 12TB max) - XRN-810S-3TB

Description

Description

Hanwha Wisenet XRN-810S-3TB 8ch 4K PoE NVR, H.265, 100Mbps, 8MP IPC max, 3TB HDD (2 SATA 12TB max)

Features

  • Up to 8ch, 8MP camera supported
  • H.265, H.264, MJPEG codec support
  • WiseStream support
  • 100Mbps network camera recording
  • Plug & play by 8 PoE/PoE+ ports
  • Max. 2HDDs supported
  • HDMI / VGA local monitor
  • ARB supported
  • P2P service(QR code connect) support
Datasheet
Tech Specs

Hanwha Wisenet 8CH 4K POE NVR, H.265, 100Mbps, 8MP IPC Max, 3TB HDD (2 SATA 12TB max) - XRN-810S-3TB

DISPLAY
Video Inputs Protocols
Video Resolution CIF ~ 8MP
Video Protocols Samsung, ONVIF
Live Local Display HDMI / VGA
Live Multi Screen Display [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / Auto sequence
[Web] 1 / 4 / 8 / Auto sequence
Live Performance [Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps),
720p (240fps), D1 (240fps)
PERFORMANCE
Operating System Embedded Linux
Recording Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Compression 100Mbps
Recording Resolution CIF ~ 8MP
Recording Mode Manual, Schedule (Continuous / Event), Event (Pre / Post)
Recording Mode Alarm input (4), Video loss,
Camera event (Sensor, MD, Video analytics, Defocus)
Recording Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
Search &
Playback		 Playback Bandwidth 32Mbps (8CH simultaneously)
Search &
Playback		 Performance Max. 3 users (Local 1, Remote 3)
Search &
Playback		 Mode Date & Time (Calendar) / Event log list / Text search (POS, ANPR),
ARB search, Smart search (Virtual Line w/ direction, Enter / Exit)
Search &
Playback		 Simultaneous Playback Up to 8CH (Local, Network)
Search &
Playback		 Resolution CIF ~ 8MP
Search &
Playback		 Playback Control Fast/Slow Forward/Backward, Move one step up/down
Storage Default Built-In 0TB ~ 6TB
Storage Interna 2 (Max.12TB)
Storage Max. Capacity 12TB
Backup File Backup BU/EXE (USB), JPG/AVI (Web, CMS)
Backup Function Multi channel (Up to 8CH) play, Date-time/title display
Sensor Input / Output 4 / 3 (NO 2ea, NO/NC 1ea)
Audio Input 8CH (Network)
Audio Compression G.711, G.726, AAC (16/48KHz)
Audio Audio Communication 2-way
NETWORK
Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server,
Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP,
ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Hanwha security DDNS
Transmission Bandwidth 128Mbps
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
IP IPv4 / IPv6
Security IP address filtering, User access log, 802.1x authentication, Encryption
Language GUI / Web English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
Greek, Norwegian, Finnish, Korean, Chinese(Simplified), Japanese, Thai
OS Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
Web Browser Non-plugin Webviewer
Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
Supported MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Viewer
Software		 Type SSM, Webviewer, SmartViewer, Wisenet mobile
Viewer
Software		 CMS Support SDK / CGI (SUNAPI)
Camera Setup Register PnP mode, Manual mode
Camera Setup Setup Items IP address, Add profile edit, Bitrate, Compression, GOP, Quality,
Camera MD setup, Camera video setup (Simple focus, Brightness /
Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),
Fisheye dewarping (Web), Hallway view setup, Camera webpage
Camera
Control		 PoE Monitor PoE power consumption, On/Off control for each PoE camera,
Remote reset for each PoE camera
Easy Configuration Setup wizard (Date/Time, Network, Auto camera configuration),
P2P (QR code)
Redundancy ARB Yes
PTZ Control / Preset Via GUI, Webviewer, 255 presets
Smart Phone OS Android, iOS
Smart Phone Protocol Support RTP, RTSP, HTTP, CGI (SUNAPI)
Smart Phone Control Live (8CH) : Multi-profile support, Playback (1CH), Event push
Smart Phone Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
System Control Mouse, IR Remocon, Web
INDICATOR / INTERFACE
Front Indicator LED (Status indicator) : 6ea
HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1
Connections VGA 1ea
Connections HDMI 1ea - Support up to 4K (3840 x 2160)
Connections Audio Out 1ea (RCA, Line)
Connections Ethernet 8ea (PoE/PoE+, 100Mbps), 1ea (WAN, 1Gbps) - WAN : Uplink to CMS
Connections Alarm In 4ea (Terminal block) / Out 3ea (Terminal block)
Connections USB Front 2ea (USB 2.0), Rear 1ea (USB 3.0)
Connections Reset Switch (1ea)
Connections Power Cord Included
SYSTEM
Log Log List Max. 20,000 (System log, Event log each)
GENERAL
Electrical Input Voltage / Current 100 ~ 240 V AC ±10%
Electrical Power Consumption/
PoE Budget		 MAX.19W(134BTU, 2TB HDD x 1ea) / Max.100W
Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
Environmental Operating Humidity 20% ~ 85% RH
Mechanical Colour / Material Black / Metal
Mechanical Dimensions (WxHxD) 370.0 x 44.0 x 320.0mm (14.57" x 1.73" x 12.6") (1U)
Mechanical Weight 3.36Kg (7.41 lb) (2TB HDD)

Read more

Product form

Hanwha Wisenet 8CH 4K PoE NVR, H.265, 100Mbps, 8MP IPC Max, 3TB HDD (2 SATA 12TB max) - XRN-810S-3TB

SKU: XRN-810S-3TB Datasheet

🔴 OUT OF STOCK— Product may be EOL/obsolete. Contact us for alternatives.

$879.00 Incl. GST

    American Express Apple Pay Google Pay MastercardPayPalShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Hanwha Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    Description

    Hanwha Wisenet XRN-810S-3TB 8ch 4K PoE NVR, H.265, 100Mbps, 8MP IPC max, 3TB HDD (2 SATA 12TB max)

    Features

    • Up to 8ch, 8MP camera supported
    • H.265, H.264, MJPEG codec support
    • WiseStream support
    • 100Mbps network camera recording
    • Plug & play by 8 PoE/PoE+ ports
    • Max. 2HDDs supported
    • HDMI / VGA local monitor
    • ARB supported
    • P2P service(QR code connect) support
    Datasheet
    Tech Specs

    Hanwha Wisenet 8CH 4K POE NVR, H.265, 100Mbps, 8MP IPC Max, 3TB HDD (2 SATA 12TB max) - XRN-810S-3TB

    DISPLAY
    Video Inputs Protocols
    Video Resolution CIF ~ 8MP
    Video Protocols Samsung, ONVIF
    Live Local Display HDMI / VGA
    Live Multi Screen Display [Local monitor] 1 / 2V / 3V / 4 / 6 / 8 / Auto sequence
    [Web] 1 / 4 / 8 / Auto sequence
    Live Performance [Local Monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps),
    720p (240fps), D1 (240fps)
    PERFORMANCE
    Operating System Embedded Linux
    Recording Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
    Recording Compression 100Mbps
    Recording Resolution CIF ~ 8MP
    Recording Mode Manual, Schedule (Continuous / Event), Event (Pre / Post)
    Recording Mode Alarm input (4), Video loss,
    Camera event (Sensor, MD, Video analytics, Defocus)
    Recording Event Action E-mail, PTZ preset, Alarm out, Buzzer, Monitor out
    Search &
    Playback    		 Playback Bandwidth 32Mbps (8CH simultaneously)
    Search &
    Playback    		 Performance Max. 3 users (Local 1, Remote 3)
    Search &
    Playback    		 Mode Date & Time (Calendar) / Event log list / Text search (POS, ANPR),
    ARB search, Smart search (Virtual Line w/ direction, Enter / Exit)
    Search &
    Playback    		 Simultaneous Playback Up to 8CH (Local, Network)
    Search &
    Playback    		 Resolution CIF ~ 8MP
    Search &
    Playback    		 Playback Control Fast/Slow Forward/Backward, Move one step up/down
    Storage Default Built-In 0TB ~ 6TB
    Storage Interna 2 (Max.12TB)
    Storage Max. Capacity 12TB
    Backup File Backup BU/EXE (USB), JPG/AVI (Web, CMS)
    Backup Function Multi channel (Up to 8CH) play, Date-time/title display
    Sensor Input / Output 4 / 3 (NO 2ea, NO/NC 1ea)
    Audio Input 8CH (Network)
    Audio Compression G.711, G.726, AAC (16/48KHz)
    Audio Audio Communication 2-way
    NETWORK
    Protocol Support TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server,
    Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP,
    ONVIF (Profile-S), SUNAPI(Server, Client)
    DDNS Hanwha security DDNS
    Transmission Bandwidth 128Mbps
    Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
    IP IPv4 / IPv6
    Security IP address filtering, User access log, 802.1x authentication, Encryption
    Language GUI / Web English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch,
    Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian,
    Greek, Norwegian, Finnish, Korean, Chinese(Simplified), Japanese, Thai
    OS Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11
    Web Browser Non-plugin Webviewer
    Supported Browser : Google Chrome 47, MS Edge 20
    Plug-in Webviewer
    Supported MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
    Viewer
    Software    		 Type SSM, Webviewer, SmartViewer, Wisenet mobile
    Viewer
    Software    		 CMS Support SDK / CGI (SUNAPI)
    Camera Setup Register PnP mode, Manual mode
    Camera Setup Setup Items IP address, Add profile edit, Bitrate, Compression, GOP, Quality,
    Camera MD setup, Camera video setup (Simple focus, Brightness /
    Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS),
    Fisheye dewarping (Web), Hallway view setup, Camera webpage
    Camera
    Control    		 PoE Monitor PoE power consumption, On/Off control for each PoE camera,
    Remote reset for each PoE camera
    Easy Configuration Setup wizard (Date/Time, Network, Auto camera configuration),
    P2P (QR code)
    Redundancy ARB Yes
    PTZ Control / Preset Via GUI, Webviewer, 255 presets
    Smart Phone OS Android, iOS
    Smart Phone Protocol Support RTP, RTSP, HTTP, CGI (SUNAPI)
    Smart Phone Control Live (8CH) : Multi-profile support, Playback (1CH), Event push
    Smart Phone Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
    System Control Mouse, IR Remocon, Web
    INDICATOR / INTERFACE
    Front Indicator LED (Status indicator) : 6ea
    HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network 1
    Connections VGA 1ea
    Connections HDMI 1ea - Support up to 4K (3840 x 2160)
    Connections Audio Out 1ea (RCA, Line)
    Connections Ethernet 8ea (PoE/PoE+, 100Mbps), 1ea (WAN, 1Gbps) - WAN : Uplink to CMS
    Connections Alarm In 4ea (Terminal block) / Out 3ea (Terminal block)
    Connections USB Front 2ea (USB 2.0), Rear 1ea (USB 3.0)
    Connections Reset Switch (1ea)
    Connections Power Cord Included
    SYSTEM
    Log Log List Max. 20,000 (System log, Event log each)
    GENERAL
    Electrical Input Voltage / Current 100 ~ 240 V AC ±10%
    Electrical Power Consumption/
    PoE Budget    		 MAX.19W(134BTU, 2TB HDD x 1ea) / Max.100W
    Environmental Operating Temperature +0°C ~ +40°C (+32°F ~ +104°F)
    Environmental Operating Humidity 20% ~ 85% RH
    Mechanical Colour / Material Black / Metal
    Mechanical Dimensions (WxHxD) 370.0 x 44.0 x 320.0mm (14.57" x 1.73" x 12.6") (1U)
    Mechanical Weight 3.36Kg (7.41 lb) (2TB HDD)

    Read more
