Hanwha Wisenet 8CH PoE NVR, AI Search, H.265, 100Mbps, No HDD (2 SATA 12TB) - XRN-820S

Description

Description

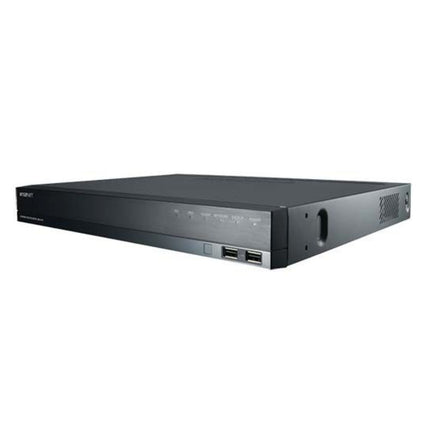

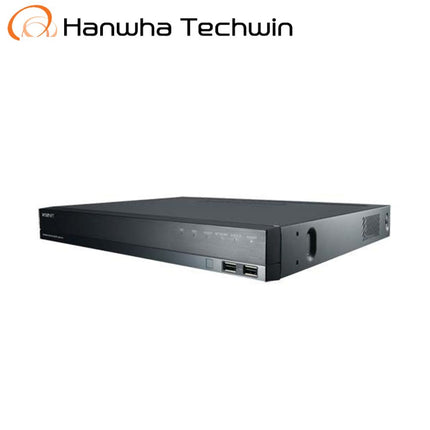

The Hanwha XRN-820S is an 8 channel NVR with the ability to record up to 32-megapixels and can produce a HDMI video output at a resolution of up to 3840 x 2160. The NVR can achieve plug and play via the 8 PoE ports, which are capable of up to 100Mbps. Supporting compression of H.265, this NVR can also sufficiently reduce storage space and costs by up to 50 percent, making it a cost-effective solution for a variety of security scenarios.

Features

  • Up to 8CH 32MP supported
  • Max. 100Mbps network camera recording
  • HDMI out
  • User friendly UI / UX
  • AI search support when working with Wisenet AI camera
  • Dynamic Event support
  • -New event function of cameras is available without software update
  • H.265, H.264, MJPEG codec supported
  • Plug & play by 8 PoE ports
  • Bookmark management (Up to 100 set)
  • SATA 2ea (Up to 12TB)
Datasheet
Tech Specs

Hanwha Wisenet 8CH POE NVR, AI Search, H.265, 100Mbps, No HDD (2 SATA 12TB) - XRN-820S

Display
Network camera Inputs Max. 8CH
Network camera Resolution 32MP ~ CIF
Network camera Protocols SUNAPI, ONVIF
Decoding Local Display FHD : HDMI & VGA Dual monitor
UHD : HDMI Single monitor
Decoding Multi Screen
Display		 [Local Monitor] 1/ 2V/ 2H/ 3V/ 4/ 6/ 8/ 9/ Sequence
[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9
Decoding Resolution [Local Monitior]
FHD Clone mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps),
1080p(240fps), D1(480fps)
UHD Single mode : 32M(15fps, H.265 Only), 12M(30fps, H.265 Only), 8.3M(50fps),
1080p(240fps), D1(270fps)
FHD Expand mode: 32M(12fps, H.265 Only), 12M(25fps, H.265 Only), 8.3M(30fps),
1080p(90fps), D1(200fps)
Expand mode : Max 15fps when displaying 8CH
Performance
Operating System Embedded Linux
Record Compression H.265, H.264, MJPEG
Record Recording
Bandwidth		 Max. 100Mbps
Record Resolution 32MP ~ CIF
Record Mode Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Record Event Trigger Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio),
Dynamic Event
Record Event Action e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play Playback
Bandwidth		 Max. 32Mbps
Search & Play User Max. 4 Users (Local 1, Remote 3)
Search & Play Simultaneous
playback		 Max. 32CH(Local 8CH, Remote 8CH per user)
Search & Play Fisheye
Dewarping		 CMS
Search & Play Mode Date & Time(Calendar), Event list, Text Search, Smart Search
Search & Play Resolution CIF ~ 32MP (Up to H.264 8.3MP, H.265 32MP)
Search & Play Playback Contro Fast/Slow Forward / Backward, Move one step Up / Down
Storage Supported HDD Up to 6TB
Storage HDD Slot SATA 2ea(Max. 12TB)
Backup File backup BU/Exe(GUI), JPG/AVI(Network)
Backup Function Multi channel(Up to 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server,
Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S),
SUNAPI(Server, Client)
DDNS Hanwha DDNS
Transmission Bandwidth Max. 100Mbps
Audio Input/Output 8 CH(network)
Audio Compression G.711, G.726, AAC(16/48KHz)
Audio Audio
Communication		 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer Supported OS Windows 10, macOS 10.13
Web viewer Supported
browser		 Google Chrome, Microsoft Edge, Mac Safari, Firefox
Viewer Software WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup Register Auto, Manual
Camera Setup Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8
point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N,
SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera
Webpage
PTZ Control Via GUI, Webviewer, SPC-2000
PTZ Preset 300 Presets
Smart phone Support Model iOS, Android
Smart phone Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Smart phone Control Live 8CH(Multi-Profile Support), Playback 4CH
Smart phone Max. Remote
Users		 Search(3), Live Unicast(10)
Redundancy Failover N+1
Redundancy ARB Support
Easy configuration P2P(QR code)
Interface
Front Indicator HDD, Alarm, Power, Record, Backup, Network
Storage Ok
HDMI 1EA 3840x2160 30Hz
VGA 1EA 1920x1080 60Hz
Audio Out 1EA
Ethernet PoE RJ-45 8EA (LAN, 10/100), RJ-45 2ea (LAN/WAN 1Gbps)
Alarm In 4EA, Out 2EA
USB 3EA(Front 2 x USB 2.0, Rear 1 x USB 3.0)
Power inlet AC 1EA
System
Log Log List Max. 100,000 (System Log, Event Log each)
System Control Mouse, Web, Controller (SPC-2000)
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech,
Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish,
Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature 0°C to +40°C(32℉ to 104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption Max 160W
PoE Budget 100W
Mechanical
Color / Material Black
Dimension (WxHxD) 370 x 50.7 x 324.3 mm
Weight 2.7Kg
Intelligent Analysis
AI Search Object Attribute Compatible for Wisenet AI Camera

Read more

Hanwha Wisenet 8CH PoE NVR, AI Search, H.265, 100Mbps, No HDD (2 SATA 12TB) - XRN-820S

Product form

SKU: XRN-820S

$1,287.00 Incl. GST

    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products
    📌 Download Datasheet - DataSheet_XRN-820S_210318.pdf
    🔎 View Product Information
