Hanwha Wisenet HD+ 4MP AHD Outdoor Bullet, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCO-7070R

Description

Description

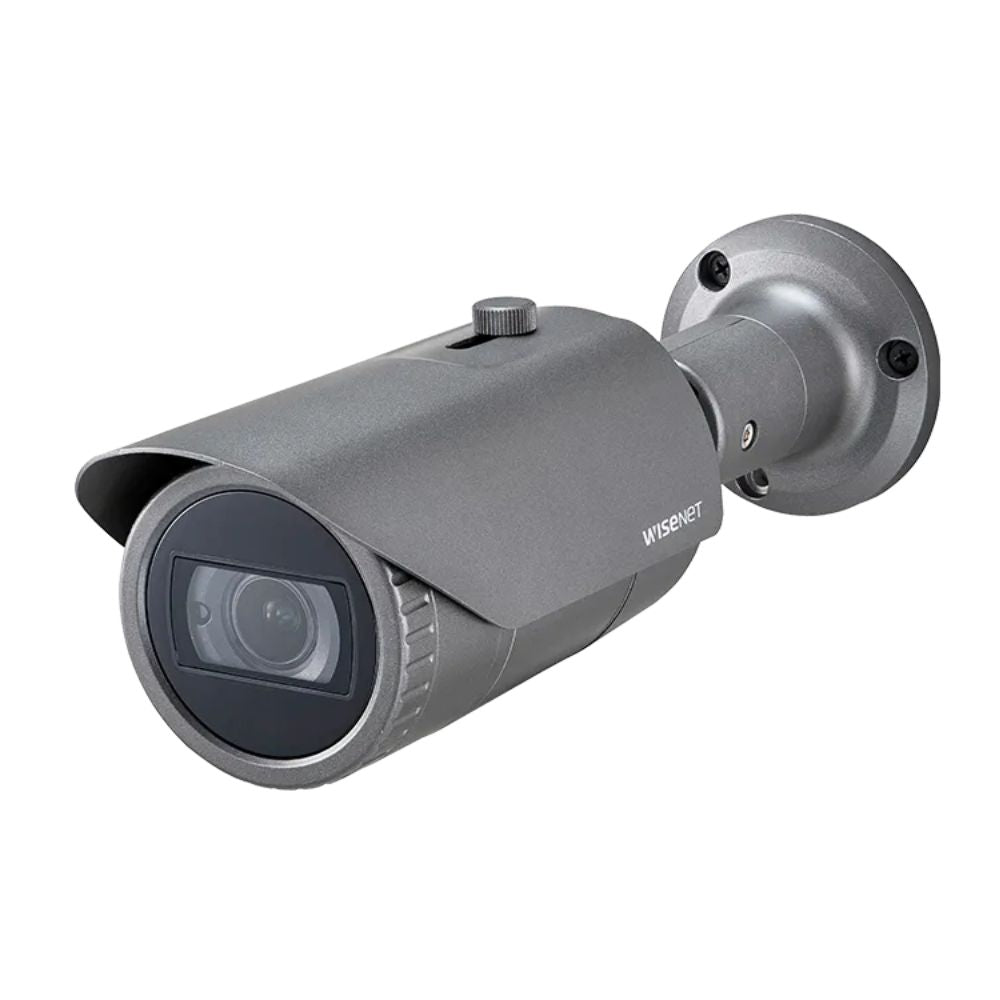

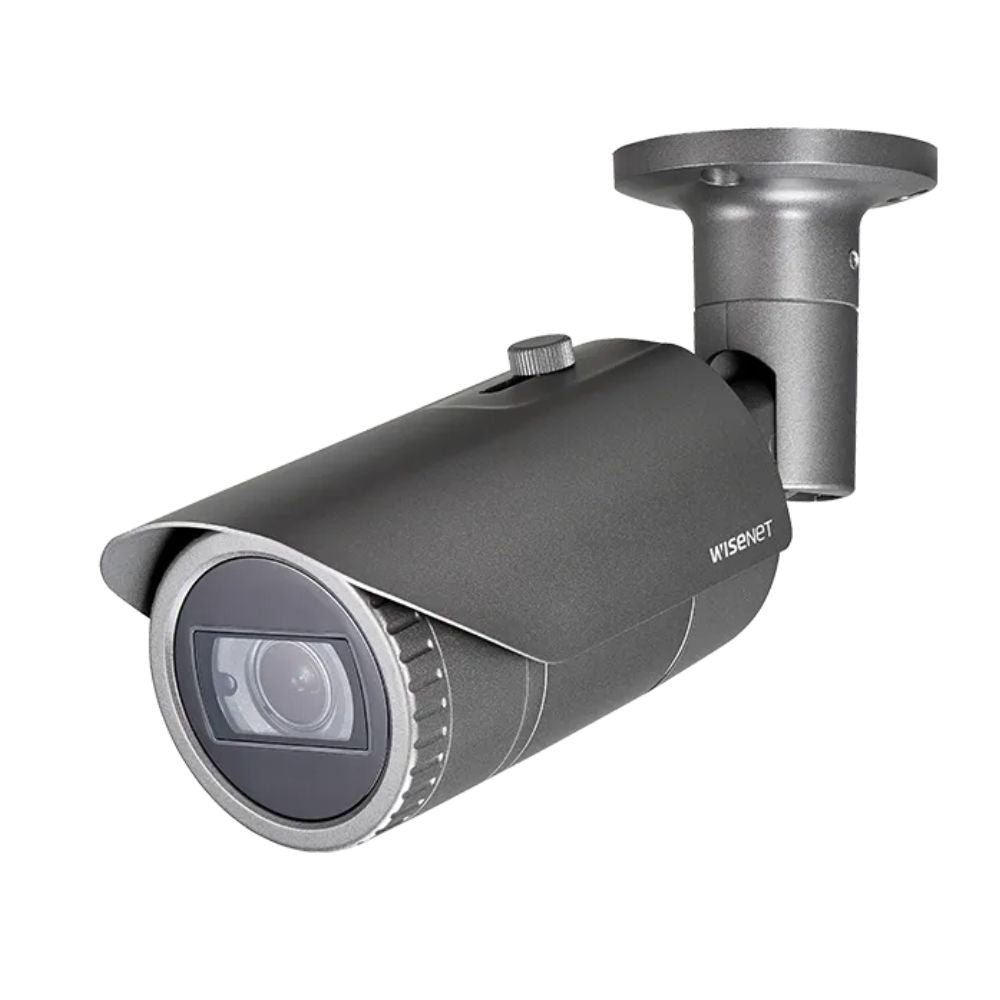

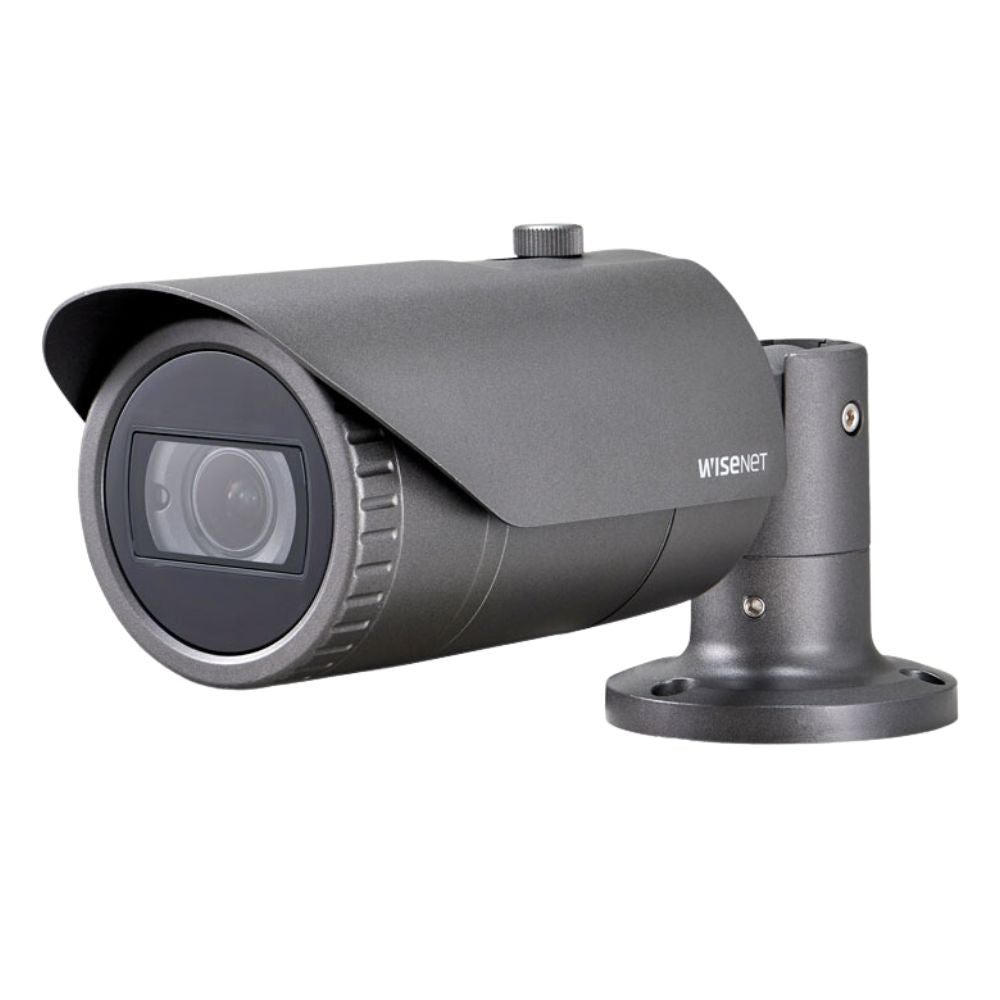

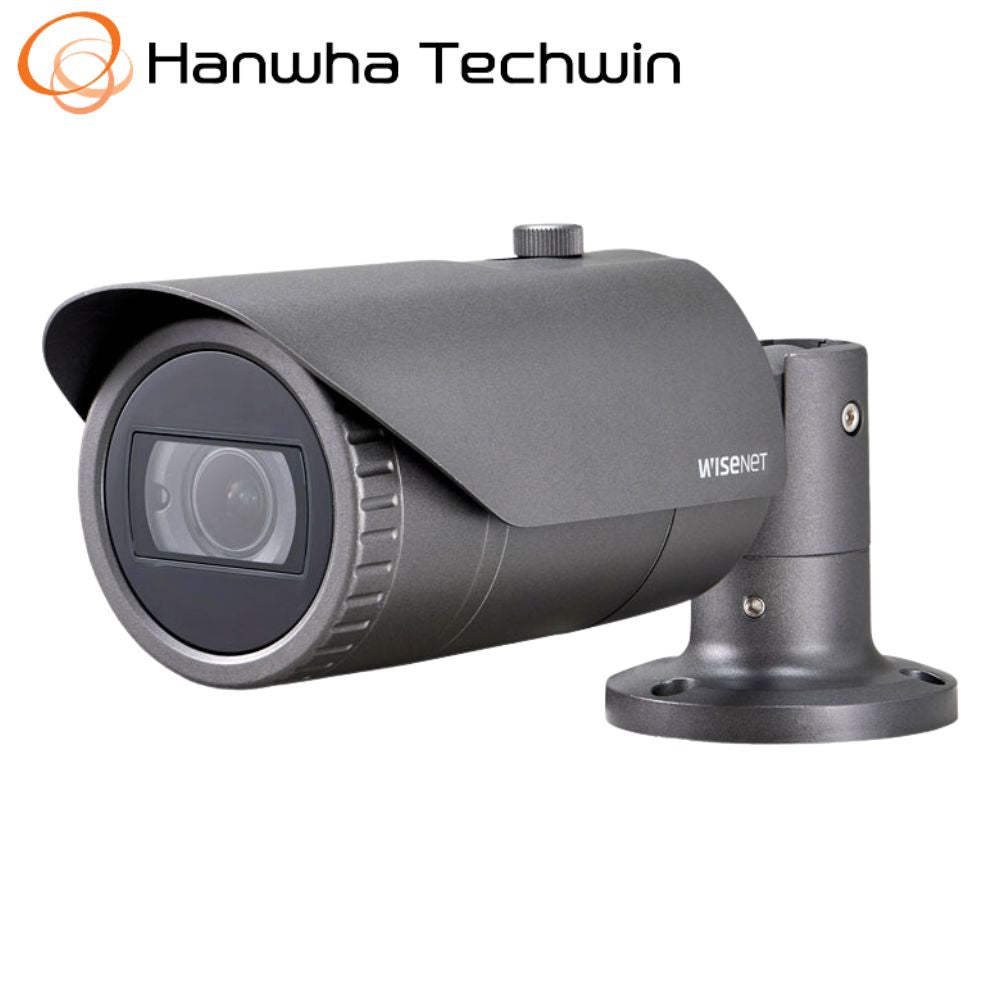

Monitor an outdoor area with the dark gray HCO-7070R 4MP Analog HD Bullet Camera from Hanwha Techwin. This camera uses a 4MP progressive scan CMOS sensor to transmit 2560 x 1440 resolution video at 30 fps. IR LEDs provide up to 98' of night vision. The camera's 3.2-10mm varifocal lens delivers a 93.48 to 29.44° horizontal field of view. AHD and CVBS signal outputs are supported. UTC (Up-the-Coax) connection enables OSD control of the camera.

This bullet camera has a video transmission range up to 1640'. It is housed in an IP66- and IK10-rated aluminum enclosure that is suitable for outdoor use in areas at risk of vandalism.

Features

  • QHD (2560 x 1440, 30fps) resolution
  • Day and night (ICR), DWDR, motion detection
  • Transmission distance max. 500m
  • Easy installation (plug and play), dual power
  • IP66, IK10 support
Datasheet
Tech Specs
Video
Imaging Device 1/1.8" CMOS
Total Pixels (H x V) 3096 x 2094
Effective Pixels (H x V) 2616 x 1976
Scanning System Progressive scan
Minimum Illumination Color: 0.07 lux (f/1.2, 1/30 sec)
B&W: 0 lux (IR LED on)
S/N Ratio 50 dB
Video Out CVBS: 1 V p-p / 75 Ohms composite, 720 x 480 (N), 720 x 576 (P), for installation
USB: Micro-USB type B, 1280 x 720 for installation
Lens
Focal Length (Zoom Ratio) 3.7-9.4mm (2.5x) motorized varifocal
Maximum Aperture Ratio f/1.2
Angular Field of View (D/V/H) 132 to 48.6°
72.7 to 29°
100.2 to 38.7°
Minimum Object Distance 1.6' (0.5 m)
Focus Control Simple focus (Motorized varifocal) / Manual, Remote control via network (Manual, Simple focus)
Lens Type DC auto iris, P-iris
Mount Type Board-in type
Operational
IR Range 164' (50 m)
Camera Title Off / On (Displayed up to 85 characters)
W/W: English / Numeric / Special characters
China: English / Numeric / Special / Chinese characters
Common: Multi-line (maximum 5), Color (Gray / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night Auto (ICR) / Color / B&W / External / Schedule
Backlight Compensation Off / BLC / HLC (Masking / Dimming), WDR
Wide Dynamic Range 120 dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNRV (2D+3D noise filter) (Off / On)
Image Stabilization Digital: Off / On
Defog Off / Auto (input from fog detection) / Manual
Motion Detection Off / On (8 x 8-point polygonal zones), Handover
Privacy Masking Off / On (32, Polygonal)
Color: Gray / Green / Red / Blue / Black / White, Mosaic
Gain Control Off / Low / Middle / High / Manual
White Balance ATW / AWC / Manual / Indoor / Outdoor (included mercury and sodium)
Contrast Level adjustment
Lens Distortion Correction Off / On (5 levels with minimum / maximum)
Electronic Shutter Speed Minimum / Maximum / Anti-flicker (2 to 1/12,000 sec)
Digital PTZ 24x, Digital PTZ (Preset, Group)
Flip / Mirror Off / On, Hallway View: 90/270°
Analytics Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification
Alarm I/O 1 x input / 1 x output
Alarm Triggers Alarm input, motion detection, video & audio analytics, network disconnect
Alarm Events File upload via FTP, email, notification via email, local storage (SD/SDHC/SDXC) or NAS recording on event triggers, external output, DPTZ preset
Pixel Counter Supported
Network
Ethernet RJ45 (10/100Base-T)
Video Compression Format H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High
MJPEG
Resolution 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Frame Rate H.265 / H.264: Maximum 30 fps at all resolutions
MJPEG: Maximum 30 fps
Smart Codec Manual mode (Area-based: 5)
WiseStream II support
Video Quality Adjustment H.265 / H.264: Target bit rate level control
MJPEG: Target bit rate level control
Bit Rate Control H.265 / H.264: CBR or VBR
MJPEG: VBR
Streaming Capability Multiple streaming (up to 10 profiles)
Audio In Selectable (Mic in / Line in)
Supply Voltage: 2.5 VDC (4 mA)
Input Impedance: Approximately 2 kOhms
Audio Out Line out, Maximum Output Level: 1 Vrms
Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8 kHz, G.711 8 kHz
G.726: 16 kbps, 24 kbps, 32 kbps, 40 kbps, AAC-LC: 48 kbps at 8/16/32/48 kHz
Audio Communication Bi-directional (2-way)
IP IPv4, IPv6
Protocols TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS (SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP)
Streaming Method Unicast / Multicast
Maximum User Access 20 users at unicast mode
Edge Storage 2 x SD/SDHC/SDXC slots (Up to 512 GB)
Continuous recording (1st slot to 2nd slot)
NAS (Network Attached Storage), Local PC for instant recording
Application Programming Interface ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform
Webpage Language English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Web Viewer Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Non-plugin Webviewer: Supported Browser: Google Chrome 54, MS Edge 38, Mozilla Firefox 49 (Windows 64-bit only), Apple Safari 9
Mac OS X only
Plugin Webviewer: Supported Browser: MS Explore 11, Apple Safari 9
Mac OS X only
CMS SmartViewer, SSM
Environmental
Operating Temperature / Humidity -40 to 131°F (-40 to 55°C) / Less than 90% RH
Storage Temperature / Humidity -58 to 140°F (-50 to 60°C) / Less than 90% RH
Ingress Protection IP67, IP66, NEMA 4X
Vandal Resistance IK10
Electrical
Input Voltage 24 VAC ±10%, 12 VDC ±10%, PoE (IEEE 802.3af)
Power Consumption Maximum 12.5 W (12 VDC)
Maximum 12.95 W (PoE)
Maximum 14.5 W (24 VAC)
Mechanical
Material Aluminum
Dimensions 3.6 x 14.5" (91 x 368.6 mm) without sunshield
Weight 4.8 lb (2.2 kg)

Read more

Hanwha Wisenet HD+ 4MP AHD Outdoor Bullet, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCO-7070R

Product form

SKU: HCO-7070R

Out of stock

$336.00 Incl. GST
