Hanwha Wisenet HD+ 4MP Outdoor Bullet, DWDR, 20m IR, IP66, IK10, 12VDC, 2.8mm - HAN-HCO-7010R

Description

Description

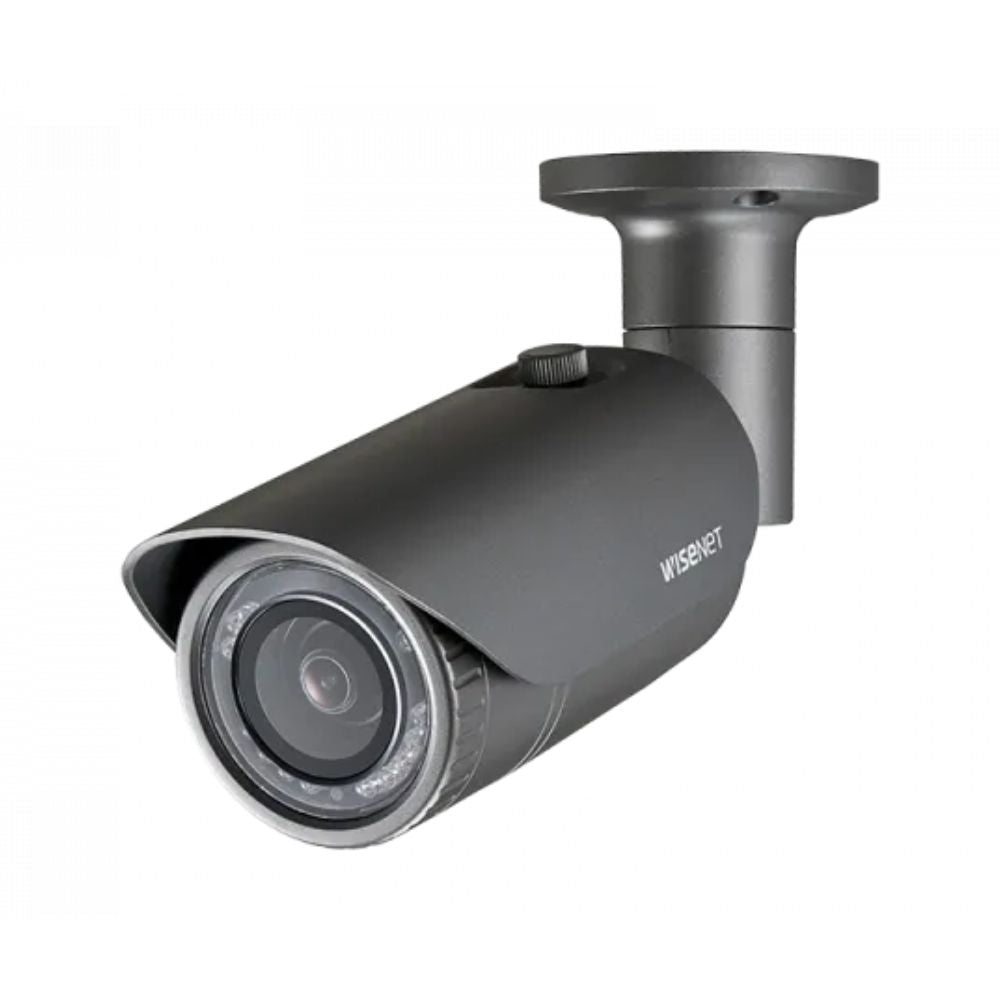

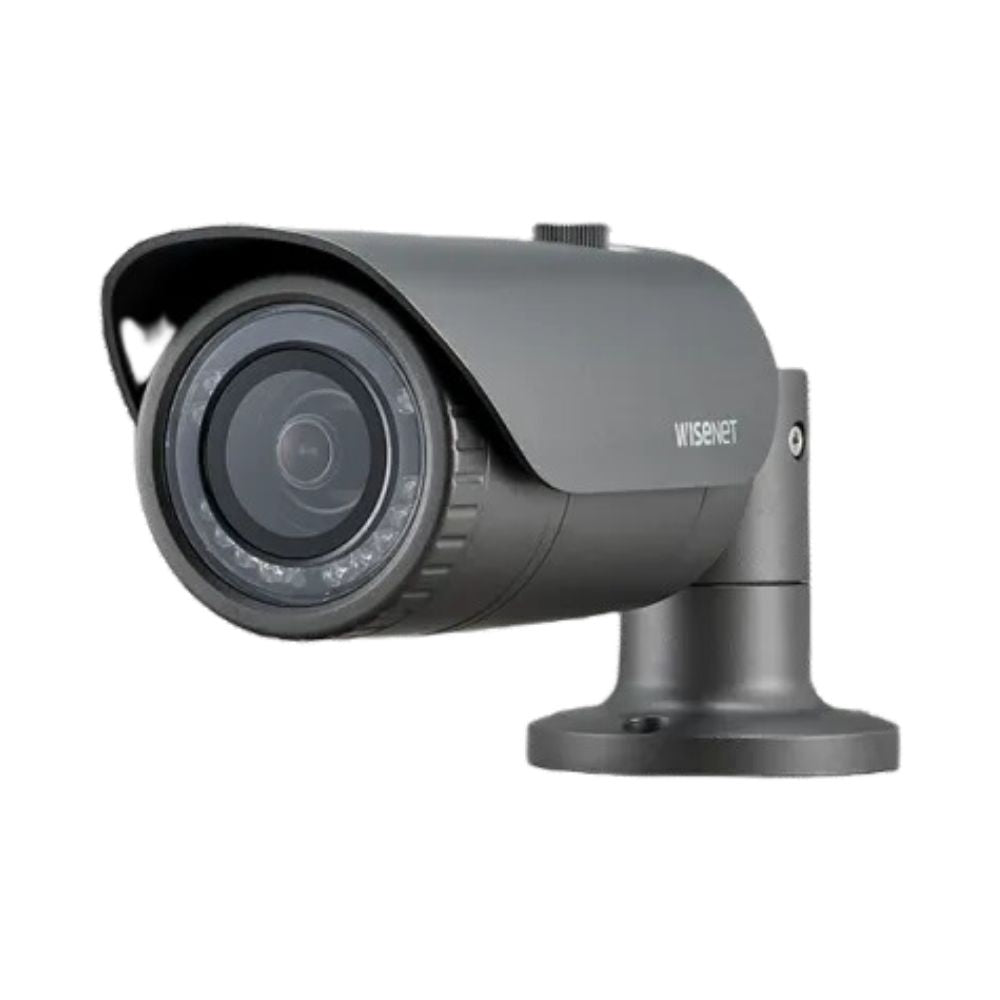

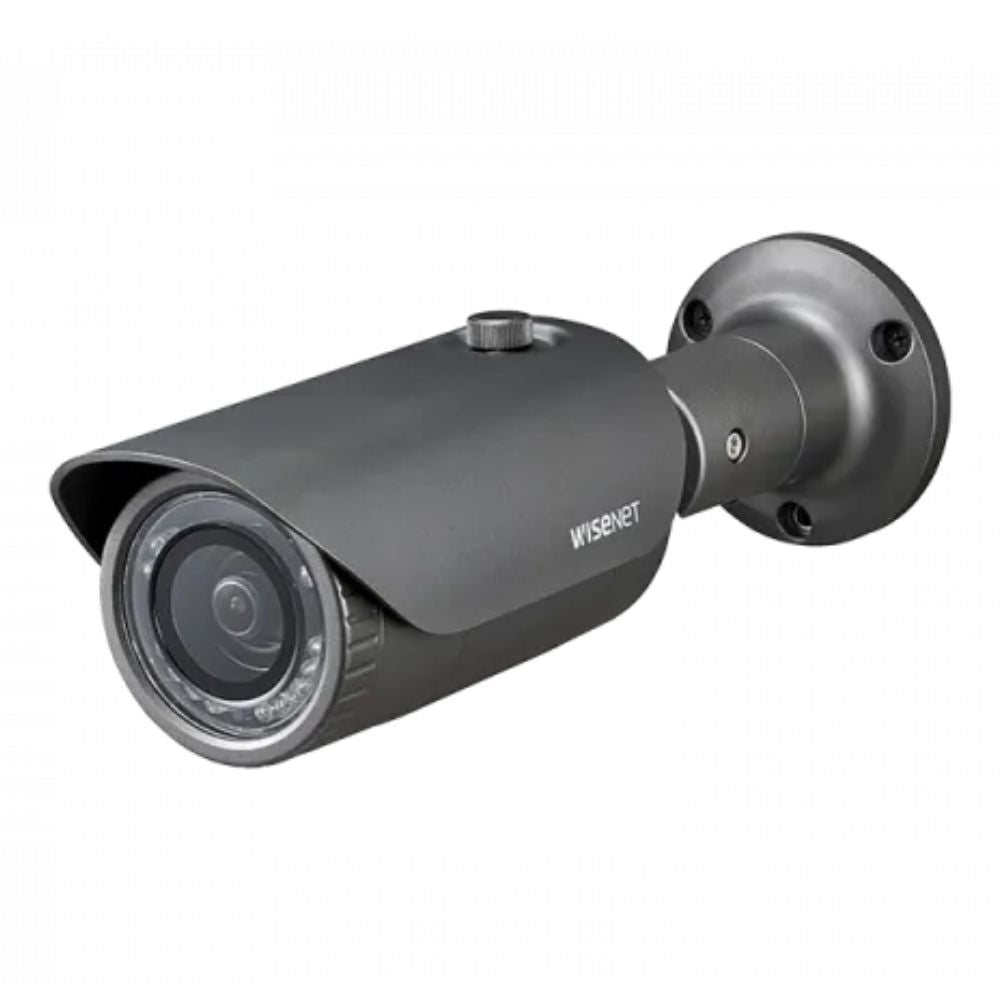

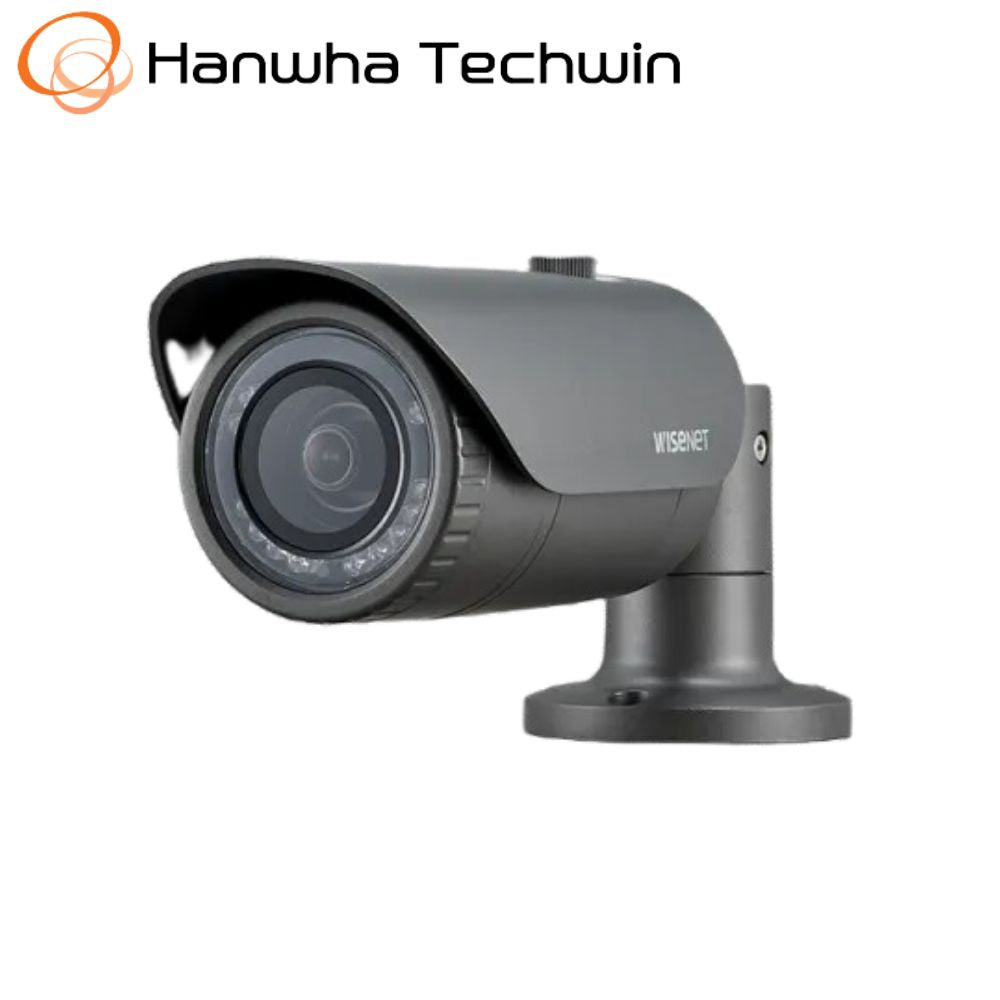

Monitor an outdoor area with the dark gray HCO-7010R 4MP Outdoor Analog HD Bullet Camera from Hanwha Techwin. This camera uses a 4MP progressive scan CMOS sensor to transmit 2560 x 1944 resolution video at 30 fps. IR LEDs provides up to 65' of night vision. The camera's 2.8mm fixed lens delivers a 107.48° horizontal field of view. AHD and CVBS signal outputs are supported. UTC (Up-the-Coax) connection enables OSD control of the camera.

Features

  • QHD (2560 x 1440, 30fps) resolution
  • Day and night (ICR), DWDR, motion detection
  • Transmission distance max. 500m
  • Easy installation (plug and play)
  • IP66, IK10 support
Datasheet
Tech Specs
Camera
Sensor 4 MP 1/3" CMOS
Focal Length 2.8mm
Lens Field of View Horizontal: 107.448°
Vertical: 59.67°
Diagonal: 122.01°
IR Cut Filter Mechanical
Day/Night Yes
Minimum Illumination Color: 0.26 Lux
B&W: 0 Lux
Shutter Speed 1/12,000 to 1/30 Seconds
Video Output
Video Output Connectors 2 x BNC (AHD / Composite)
Output Formats AHD:
2560 x 1440 at 30 fps
Composite:
640 x 480
Automatic Gain Control Yes
Built-In Mic No
PTZ Control
Up-the-Coax Communication Yes
Supported Control Protocols Pelco-C
Proprietary
System Integration
Analytics Motion Detection (4 Zones)
Event Trigger No
Environmental
Operating Temperature -22 to 131°F / -30 to 55°C
Operating Humidity 0 to 90%
IP Rating IP66
IK Rating IK10
General
Pan/Tilt None
I/O Connections 2 x BNC
IR Range 65.62' / 20 m
Supported Languages Czech
Danish
English
French
German
Italian
Polish
Portuguese
Romanian
Russian
Serbian
Spanish
Swedish
Turkish
Internal Storage None
Power Source DC
Power Consumption DC: 5 W
Material of Construction Aluminum
Dimensions ø: 2.8 x L: 9.7" / ø: 70.0 x L: 246.0 mm
Weight 1.47 lb / 670 g

Video

Imaging Device

1/3" 4MP CMOS

Effective Pixels

2688(H)x1520(V)

NETD

None

Pixel Size

None

Min. Illumination

Color: 0.26Lux(F1.8, 1/30sec) BW: 0Lux(IR LED on)

Video Out

BNC(AHD), additional CVBS for installation(2Pin connector type)

Lens

Focal Length (Zoom Ratio)

2.8mm fixed

Max. Aperture Ratio

F1.8

Angular Field of View

H: 107.48˚, V: 59.67˚, D: 122.01˚

Min. Object Distance

0.5m(1.64ft)

Focus Control

None

Lens Type

None

Mount Type

None

Optional Lens

None

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range

None

Pan Range

None

Pan Speed

None

Tilt Range

None

Tilt Speed

None

Rotate Range

None

Sequence

None

Preset Accuracy

None

Azimuth

None

Auto Tracking

None

Operational

IR Viewable Length

20m(65.62ft)

Camera Title

None

Day & Night

Auto(ICR)

Backlight Compensation

UserBLC, HLC, DWDR

Wide Dynamic Range

None

Digital Noise Reduction

2DDNR

Digital Image Stabilization

None

Defog

None

Motion Detection

4 zones

Privacy Masking

2 zones

Gain Control

Low / Middle / High / Very High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

None

Electronic Shutter Speed

1/30 ~ 1/12,000sec(N), 1/25~ 1/12,000sec(P)

Digital PTZ

None

Video Rotation

H-Rev/V-Rev

Analytics

Motion detection

Business Intelligence

None

Serial Interface

None

Alarm I/O

None

Alarm Triggers

None

Alarm Events

None

Audio In

None

Audio Out

None

IR Illuminator (Optional)

None

Wiper

None

Coaxial Protocol

ACP(AHD Coax Protocol), CVBS: Pelco-C(Coaxitron)

Video Transmission Distance

500m(5C2V Coaxial Cable)

Radiometry

Temperature detect range

None

Temperature accuracy

None

Temperature detection

None

Additional

None

Network

Ethernet

None

Video Compression

None

Resolution

2560x1440

Max. Framerate

30fps@4M(N), 25fps@4M(P)

Smart Codec

None

Video Quality Adjustment

None

Bitrate Control

None

Streaming

None

Audio Compression

None

Protocol

None

Security

None

Edge Storage

None

Application Programming Interface

None

Webpage Language

None

Web Viewer

None

Memory

None

Environmental

Operating Temperature / Humidity

-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C

Storage Temperature / Humidity

None

Certification

IP66, IK10

Electrical

Input Voltage

12VDC

Power Consumption

Max 5W

Mechanical

Color / Material

Dark Gray / Aluminum

RAL Code

None

Product dimensions / weight

Ø70.0 x 246.0mm(Ø2.76”x9.69”), 670g(1.48 lb)

Conduit hole

None

Hanging mount(Dome)

None

Skin cover(Dome)

None

Weather cap(Dome)

None

Power module

None

Backbox

None

DORI

Detect

None

Observe

None

Recognize

None

Identify

None

Read more
