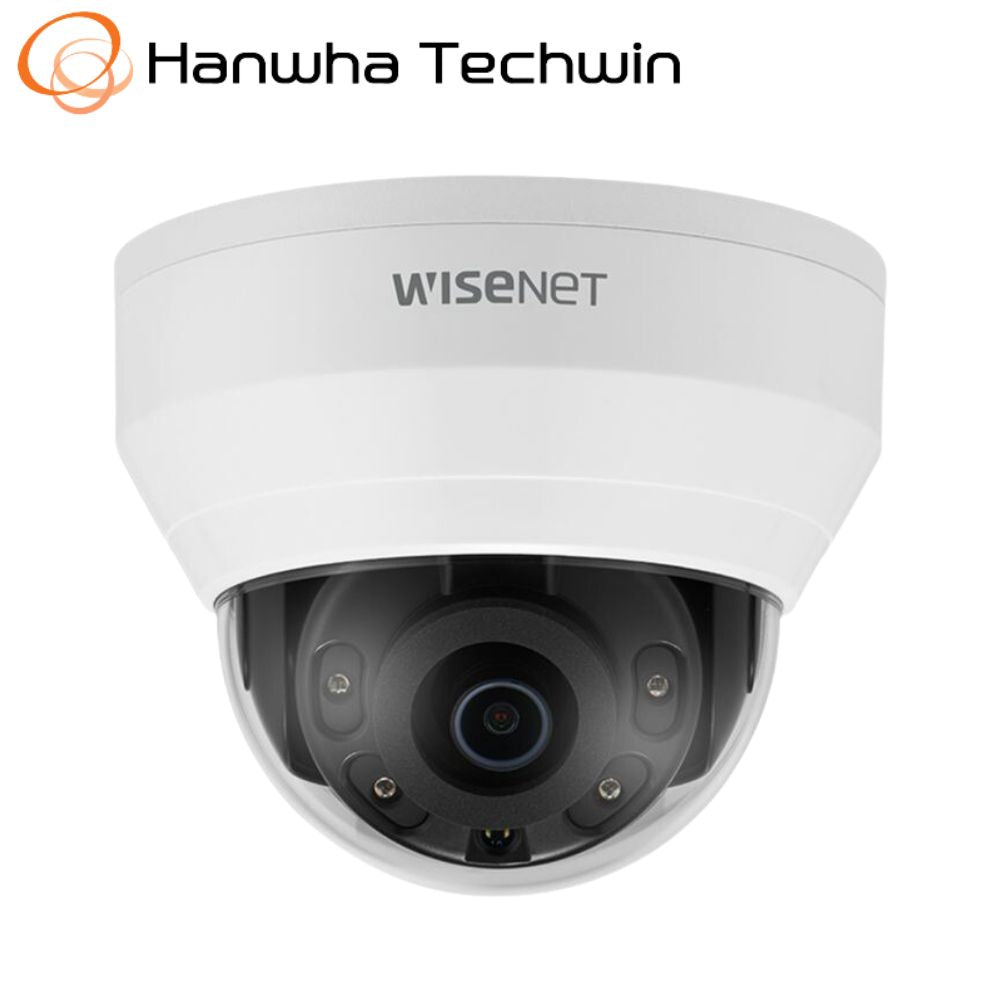

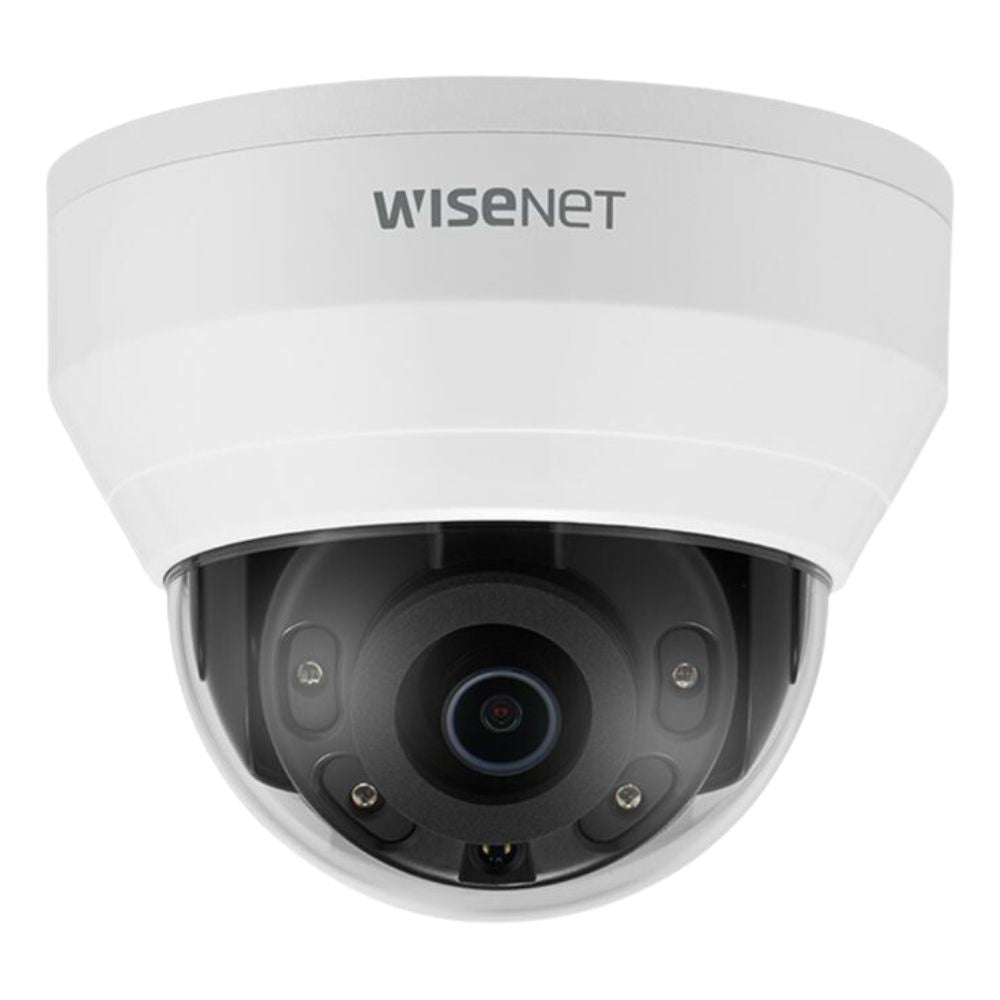

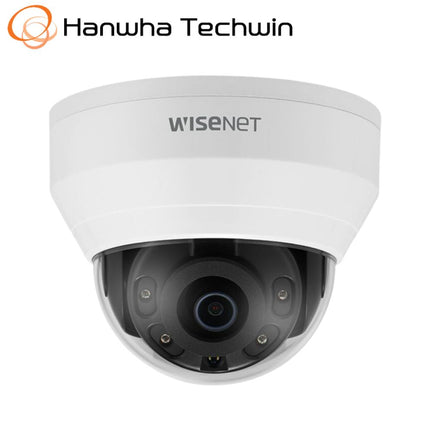

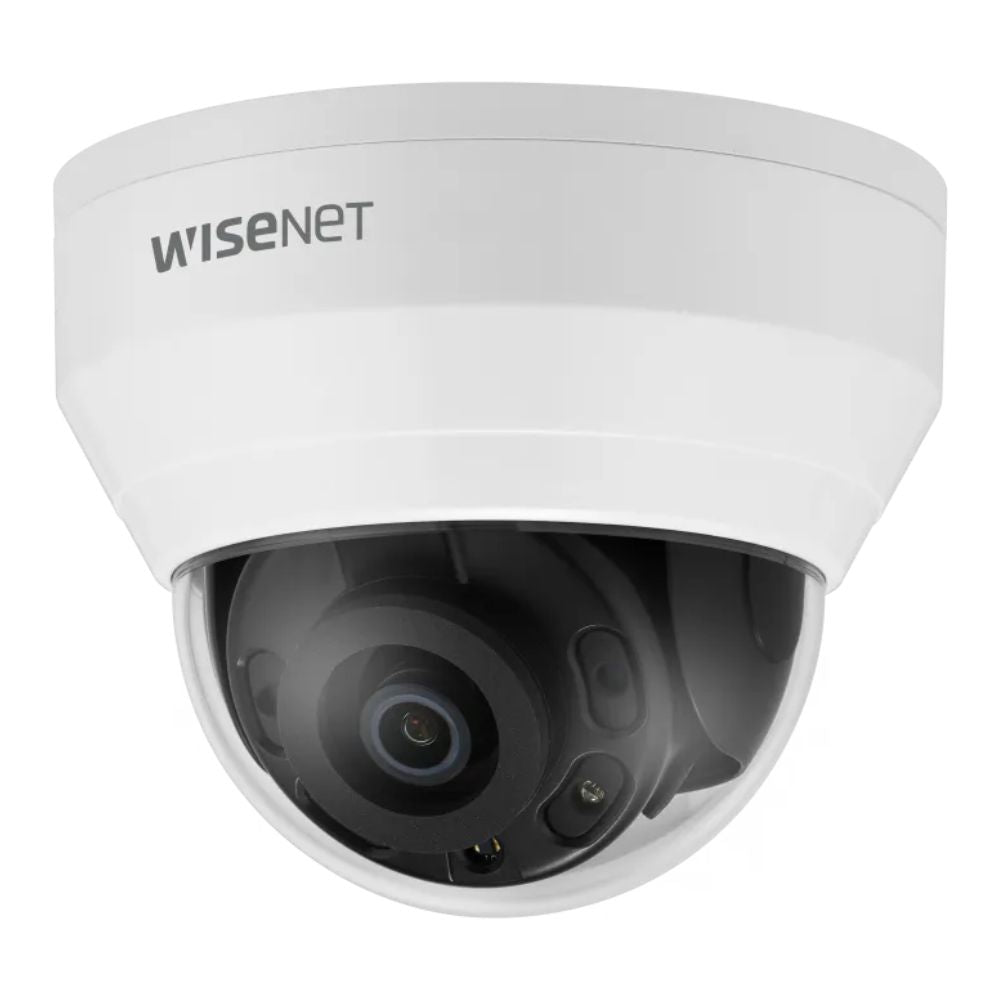

Hanwha Wisenet New-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm - HAN-QND-8020R

Description

Description

Hanwha's 5MP Q series cameras deliver sharp and clear image quality with all essential features to create a safe and secure environment at an affordable price. They are ideal in securing small to medium-sized applications such as retail, banking and offices. The advanced compression technology of WiseStream that is incorporated into the Hanwha HAN-QND-8020R can reduce bandwidth by up to 50 percent and when combined with H.265, the bandwidth efficiency can be improved by up to 75 percent compared to the current H.264 technology. Defocus detection helps to recognise images that are out of focus and significantly improves efficiency. The Hanwha HAN-QND-8020R offers a seamless solution for small to medium-sized applications and ultimately minimises time and costs for installation.

Features

  • Max. 5MP resolution
  • 4mm fixed lens
  • Max. 30fps at 5MP (H.265/H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day and night, WDR (120dB)
  • Motion detection, tampering, defocus detection
  • Hallway view, WiseStream II support
  • 20m IR

Datasheet
Tech Specs

Video

Imaging Device

1/2.8" 5MP CMOS

Effective Pixels

2592(H)x1944(V)

Min. Illumination

Color: 0.15Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on)

Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

Lens

Focal Length (Zoom Ratio)

4.0mm fixed focal

Max. Aperture Ratio

F1.6

Angular Field of View

H: 79.8°/ V: 58.1°/ D: 105.9°

Focus Control

Fixed

Pan / Tilt / Rotate

Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~67˚ / 0˚~355˚

Operational

IR Viewable Length

20m(65.62ft)

Camera Title

Displayed up to 85 characters

Day & Night

Auto(ICR)

Backlight Compensation

BLC, WDR, SSDR

Wide Dynamic Range

120dB

Digital Noise Reduction

SSNR

Motion Detection

4ea, polygonal zones

Privacy Masking

6ea, rectangular zones

Gain Control

Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

LDC

Support

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (1/5~1/12,000sec)

Video Rotation

Flip, Mirror, Hallway view(90˚/270˚)

Analytics

Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line

Alarm I/O

Input 1ea / Output 1ea

Alarm Triggers

Analytics, Network disconnect, Alarm input

Alarm Events

File upload via FTP and e-mail Notification via e-mail

SD/SDHC/SDXC or NAS recording at event triggers Alarm output

Network

Ethernet

RJ-45(10/100BASE-T)

Video Compression

H.265/H.264: Main/High, MJPEG

Resolution

2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576,

720x480, 640x480, 640x360

Max. Framerate

H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz)

Smart Codec

WiseStreamⅡ

Bitrate Control

H.264/H.265: CBR or VBR MJPEG: VBR

Streaming

Unicast(6 users) / Multicast

Multiple streaming(Up to 3 profiles)

Protocol

IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS,

DDNS, QoS, UPnP, Bonjour, LLDP

Security

HTTPS(SSL) Login Authentication Digest Login Authentication

IP Address Filtering User access log

802.1X Authentication(EAP-TLS, EAP-LEAP)

Edge Storage

Micro SD/SDHC/SDXC 1slot 128GB

Application Programming Interface

ONVIF Profile S/G/T SUNAPI(HTTP API)

Wisenet open platform

Web Viewer

Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome

Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)

Memory

512MB RAM, 256MB Flash

Environmental

Operating Temperature / Humidity

-10°C ~ +50°C(+14°F ~ +122°F) / Less than 90% RH

Storage Temperature / Humidity

-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH

Electrical

Input Voltage

PoE(IEEE802.3af, Class3)

Power Consumption

PoE: Max 6.80W, typical 5.00W

Mechanical

Color / Material

White / Plastic, Aluminum

RAL Code

RAL9003

Product dimensions / weight

Ø110.6x89.5mm(Ø4.35x3.52"), 360g(0.79 lb)

DORI

Detect (25PPM/ 8PPF)

62.0m(203.39ft)

Observe (63PPM/ 19PPF)

24.8m(81.36ft)

Recognize (125PPM/ 38PPF)

12.4m(40.68ft)

Identify (250PPM/ 76PPF)

6.2m(20.34ft)

Read more

Hanwha Wisenet New-Q 5MP Indoor Dome Camera, H.265, 120dB WDR, 20m IR, 4mm - HAN-QND-8020R

Product form

SKU: QND-8020R

Out of stock

$375.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Product Information
