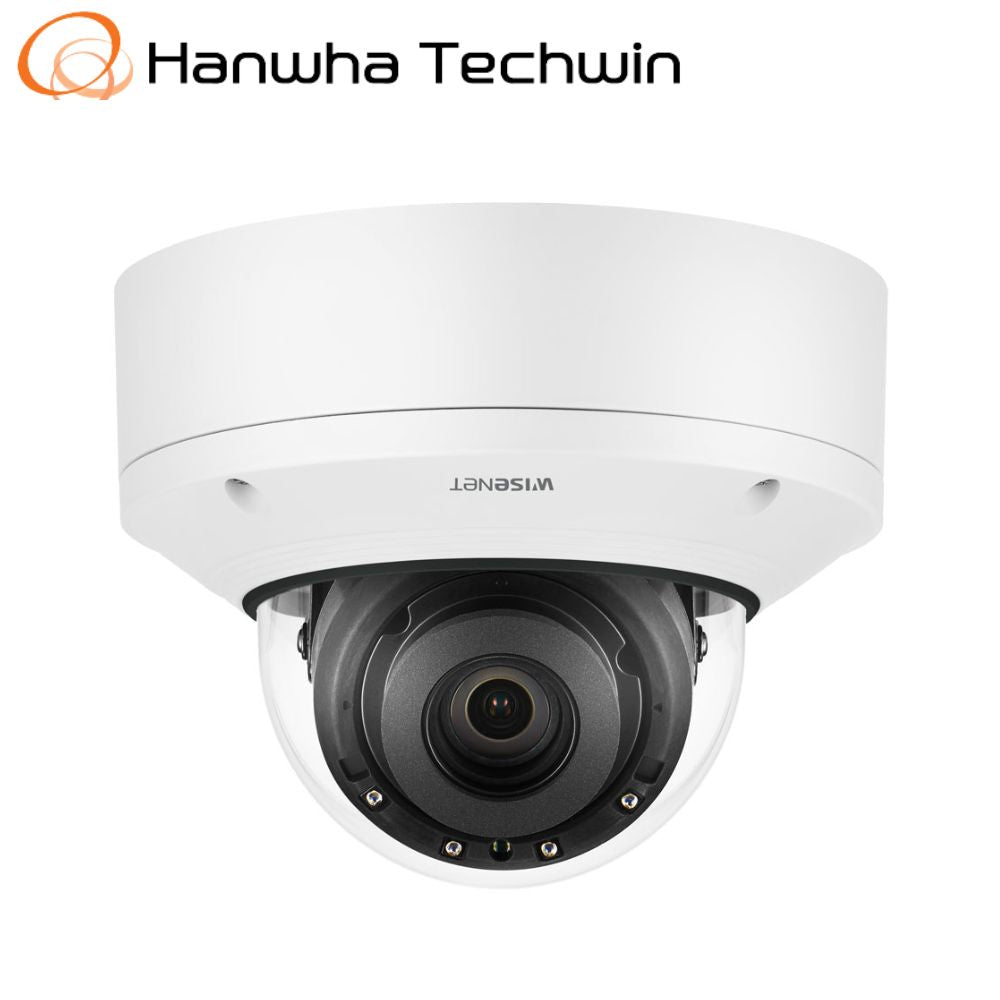

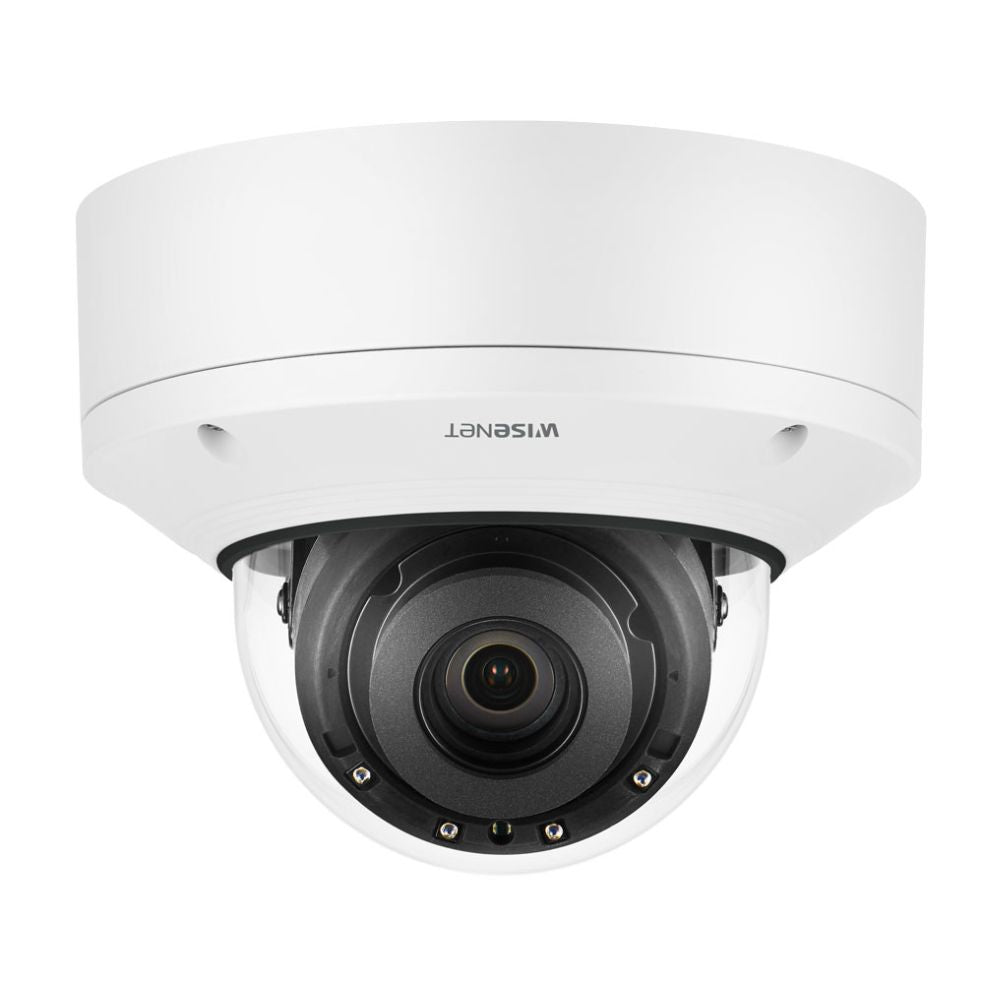

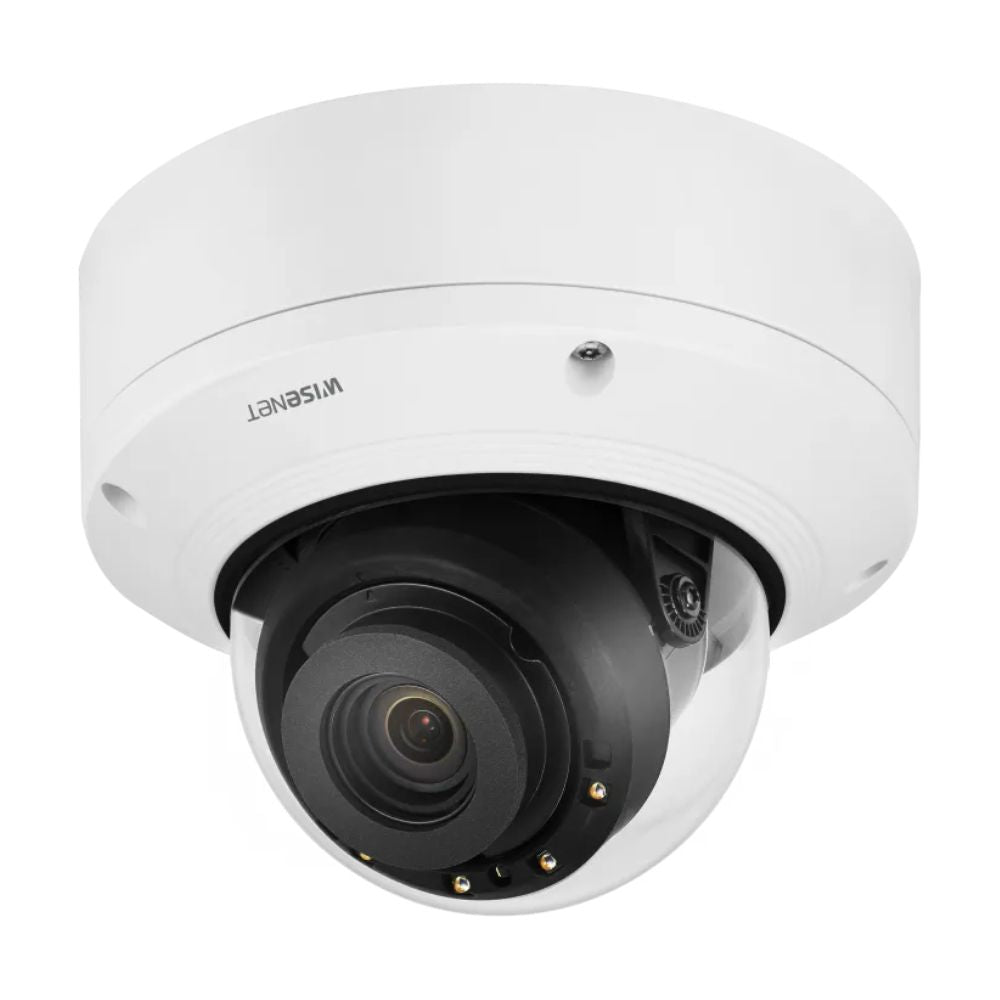

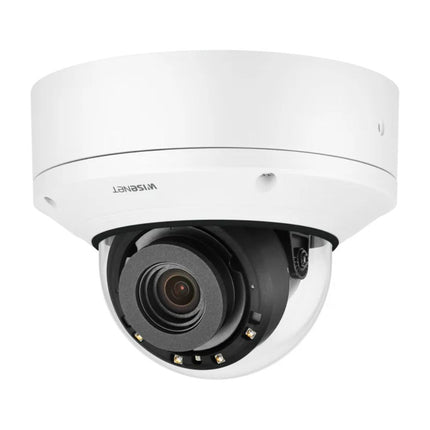

Hanwha Wisenet X Plus 5MP Indoor Dome Camera, H.265, 50m IR, WDR, 3.6-9.4mm - HAN-XND-8081RV

Description

Description

 Special Order

This device is available for special orders only and is not always locally available. Please contact our team by phone or email for more details on its availability and acquisition.

With cutting-edge WDR technology, the Hanwha HAN-XND-8081RV conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X Plus series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XND-8081RV reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality.

Features

  • Max. 5MP resolution
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & night (ICR), WDR (120dB)
  • Modular structure
  • Hallway view, WiseStream II support
  • Video and audio analytics, audio playback
  • DIS and shock detection with built-in gyro sensor
  • IP52, IK10
Datasheet
Tech Specs

Camera

Sensor

6 MP 1/1.8" CMOS

Focal Length

3.6 to 9.4mm

Maximum Aperture

f/1.3

Zoom

Optical: 2.4x
Digital

Lens Field of View

Horizontal: 92.1 to 38.7°
Vertical: 67.2 to 29.0°
Diagonal: 119.9 to 48.6°

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.07 Lux
B&W: 0 Lux

Shutter Speed

1/12,000 to 2 Seconds

Camera Angle Adjustment

Horizontal: 0 to 360°
Vertical: -45 to 85°

Video

Streaming Resolution

2560 x 1920 at 30 fps

Supported Video Compression

H.264, H.265, MJPEG

Multi-View Streaming

Yes, 10 Streams

Audio

1- or 2-Way Audio

Two-Way

Audio Formats

AAC, ADPCM, G.711, G.726

Built-In Mic

No

Built-In Speaker

No

Networking

Security

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

Supported Protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)

SUNAPI (HTTP API)

Analytics

Defocus Detection, Fog Detection, Face Detection, Motion Detection, Digital Auto Tracking, Appear, Disappear, Enter, Exit, Loitering, Tampering, Virtual Line, Directional Detection, Audio Detection, Sound Classification, Shock Detection

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

System Requirements

Windows OS Support

Windows 7, 8.1, 10

Mac OS Support

macOS 10.12, OS X 10.11, OS X 10.10

Environmental

Operating Temperature

-13 to 140°F / -25 to 60°C

Storage Temperature

-58 to 140°F / -50 to 60°C

Operating Humidity

0 to 89%

IP Rating

IP52

IK Rating

IK10

General

Memory

1024 MB RAM / 256 MB Flash

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

Pan/Tilt

None

Alarm I/O

1 / 1

I/O Connections

1 x RJ45
1 x Power

IR Range

164.04' / 50.00 m

Supported Languages

Czech, Dutch, English, French, German, Greek, Hungarian, Italian
Japanese, Korean, Polish, Portuguese, Russian
Spanish, Swedish, Traditional Chinese, Turkish

Certifications

EAC, UL, as per Manufacturer

Internal Storage

None

External Storage Options

NAS

Power Source

DC, PoE 802.3af (15 W)

Power Consumption

PoE: 11 W
DC: 9 W

Material of Construction

Aluminum

Dimensions

ø: 6.3 x H: 4.9" / ø: 160.0 x H: 125.0 mm

Weight

3.19 lb / 1450 g

Packaging Info

Package Weight

5.71 lb

Box Dimensions (LxWxH)

14.1 x 9.3 x 8.1"



Read more
