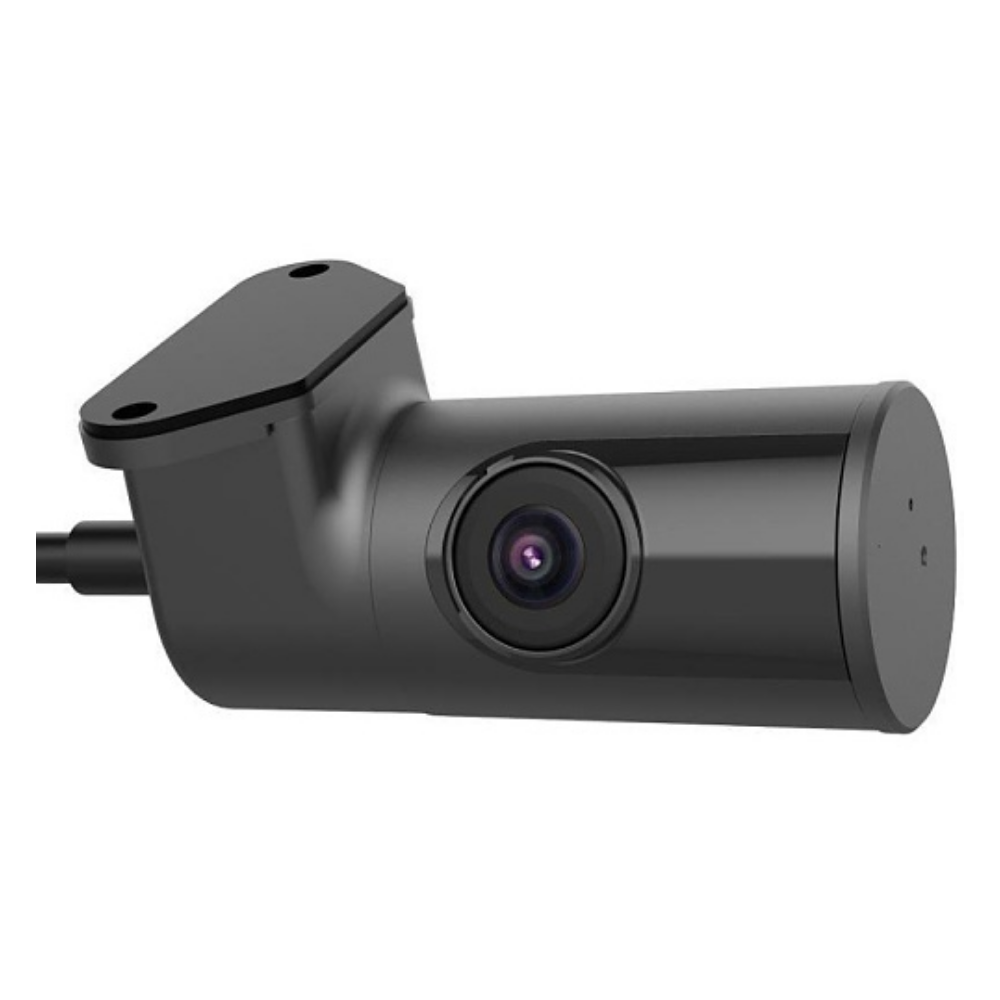

Hikvision AE-VC143T-ITS Vehicle Mounted Camera, 720P, Scan CMOS, Built-in Mic, 2.1mm Lens, 2m Cable Length

Description

The Hikvision AE-VC143T-ITS is a compact vehicle-mounted camera designed to deliver high-definition imaging performance in mobile surveillance applications. Featuring a progressive scan CMOS sensor, HD resolution, and a shock-proof design, it ensures reliable video capture even in demanding on-the-move environments such as buses, vans, and trucks.

Key Features

  • Progressive Scan CMOS Sensor – Captures clear, sharp images with up to 720p HD resolution.
  • Excellent Low-Light Performance – Provides high-quality images in low-light environments with 0.1 Lux sensitivity and IR support for total darkness.
  • Electronic Day & Night Switch – Automatically adjusts for optimal imaging in different lighting conditions.
  • Auto White Balance – Ensures accurate color reproduction under various lighting environments.
  • Shock-Proof Design – Built for vehicle use with a durable structure and 4-pin DIN connector for stable connectivity.
  • Compact and Adjustable – Offers 360° tilt adjustment for flexible installation and positioning.

Downloads

Datasheet Datasheet for AE-VC143T-ITS


Installer Tips

  • Power Supply: Use a regulated 12V DC source for stable operation.
  • Connection Setup: Follow the 4-pin DIN connector order — 1: Power, 2: Ground, 3: Video, 4: Audio.
  • Mounting Angle: Adjust tilt up to 360° to achieve the desired viewing angle inside the vehicle.
  • Environment: Ensure operating temperature stays within -35°C to 65°C for optimal performance.
  • IR Usage: Effective up to 5 meters for low-light or nighttime monitoring.

Quick-Read Specs

Specification Detail
Model AE-VC143T-ITS
Type Vehicle-Mounted Camera
Image Sensor Progressive Scan CMOS
Effective Pixels 1280 × 720
Min. Illumination 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time 1/25 s to 1/50,000 s
Lens 2.1 mm, M12 Mount
Video Output 1-ch Coaxitron High-Definition Output
Audio Built-in Microphone, 1-ch Output (4-pin DIN)
Frame Rate 720p @ 25/30 fps
S/N Ratio 46 dB
IR Range Up to 5 meters
Power Supply 12 VDC
Power Consumption Max. 2.5 W
Operating Temperature -35°C to 65°C (-31°F to 149°F)
Humidity 90%
Dimension (L × W × H) 61 × 39 × 33 mm (2.40" × 1.54" × 1.30")
Weight Approx. 55 g (0.12 lb)
Video Cable 0.3 m (2 m optional)
Angle Adjustment Tilt: 0° to 360°
Day/Night Mode Electronic Switch

Read more
