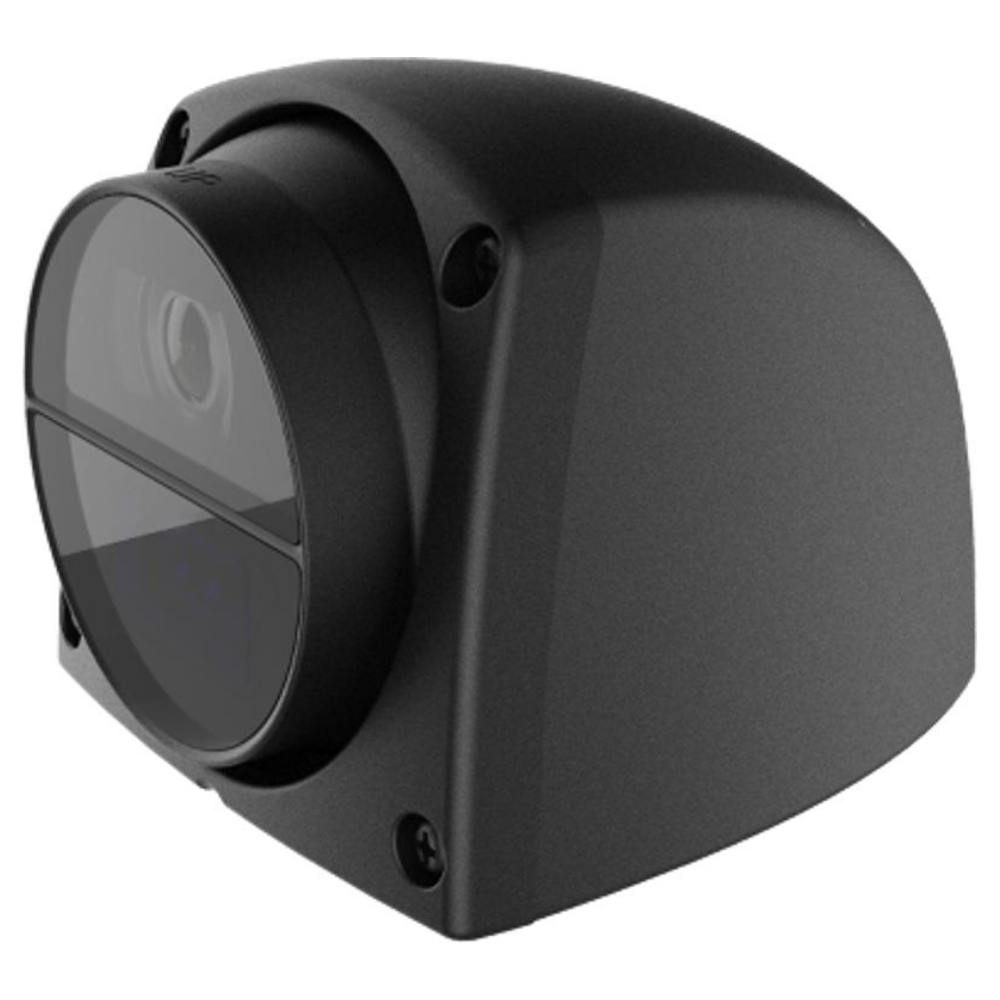

Hikvision AE-VC224T-IT Mobile HD Analog Camera 1080P, IP68

Description

The Hikvision AE-VC224T-IT is an IR waterproof vehicle-mounted camera designed for reliable image capture in motion environments. Built with a durable metal housing, IP68 and IK10 protection, and a shock-proof design, it ensures excellent performance in harsh weather and vibration-prone conditions. With multiple lens options and high-definition imaging, this camera is ideal for transportation and vehicle surveillance applications.

Key Features

  • Progressive Scan CMOS – Prevents motion image aliasing and provides smooth, high-quality video output.
  • Full HD Resolution – Supports 1080P HD coaxial video output for clear, detailed monitoring.
  • Low-Light Performance – Captures images in lighting as low as 0.1 Lux @ (F1.2, AGC ON), and 0 Lux with IR illumination up to 10 meters.
  • Rugged and Weatherproof – IP68 and IK10-rated metal enclosure offers dustproof, waterproof, and impact-resistant protection.
  • Shock-Proof Design – Specially engineered for stable operation in moving vehicles.
  • Flexible Viewing Options – Offers 2.1 mm, 2.8 mm, and 3.6 mm lens choices to meet different field of view requirements.
  • Adjustable Angle – Supports pan, tilt, and rotation for easy installation and optimal positioning.
  • Optional Mirror Mode – Allows left-right mirroring depending on installation needs.

Downloads

Datasheet Datasheet for AE-VC224T-IT
User Manual User Manual for AE-VC224T-IT


Installer Tips

  • Mounting: Use proper vibration-damping mounts when installing on vehicles to maintain image stability.
  • Power Supply: Ensure a regulated 9–16 V DC power input for optimal performance.
  • Cable Connection: Use aviation plug connectors for secure, interference-free transmission.
  • Weatherproofing: Verify all seals are tight to maintain IP68 protection during installation.
  • Lens Choice: Select the lens focal length based on the desired viewing distance and field of view.

Quick-Read Specs

Specification Detail
Model AE-VC224T-IT (2.1 mm / 2.8 mm / 3.6 mm)
Type IR Waterproof Vehicle-Mounted Camera
Image Sensor Progressive Scan CMOS
Resolution 1080P (1920 × 1080)
Lens Options 2.1 mm, 2.8 mm, 3.6 mm fixed lenses
Field of View (FOV) 2.1 mm: H 117°, V 66°, D 143°
2.8 mm: H 96°, V 50°, D 115°
3.6 mm: H 75°, V 42°, D 86°
Shutter Speed 1/50 s to 1/50,000 s
Minimum Illumination 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR Range Up to 10 m
Day/Night Mode Electronic
Wide Dynamic Range 85 dB
Frame Rate 1080P @ 25 fps
Signal-to-Noise Ratio (SNR) 42 dB
Video Output 1 Vpp Composite Output (aviation plug)
Aviation Plug Pin Order 1: Video, 2: Empty, 3: Power, 4: Ground
Mirror Mode Optional Left-Right Mirroring
Power Supply 9 to 16 V DC
Power Consumption Max. 2.5 W
Protection Level IP68, IK10
Material Metal
Angle Adjustment Pan: -7° to 7°; Tilt: -7° to 15°; Rotate: 0° to 360°
Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F), 90% humidity
Dimensions 74.7 × 65.8 × 57.3 mm (2.9" × 2.6" × 2.3")
Weight Approx. 230 g (0.5 lb)



Read more

Product form

Hikvision AE-VC224T-IT Mobile HD Analog Camera 1080P, IP68
