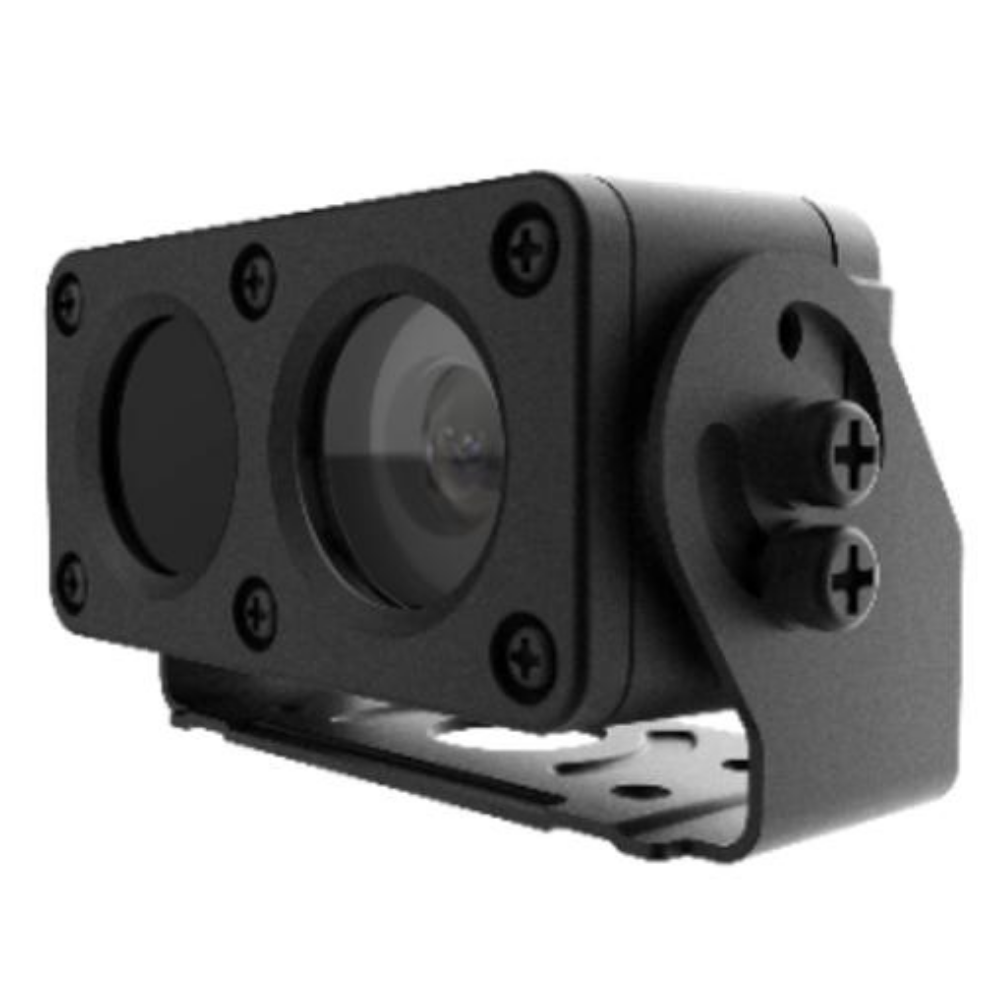

Hikvision AE-VC253T-IT Rear Vision Camera, 1080P, 20M IR, IP68, Aviation Plug, 2.8mm

Description

The Hikvision AE-VC253T-IT is a square analog camera designed for clear and stable video surveillance in various environments. It features a progressive scan CMOS sensor with up to 1080P resolution, offering high image quality even under low illumination. With IP68 protection, durable metal housing, and optional fixed lenses, it is ideal for both indoor and outdoor monitoring applications.

Key Features

  • High-Definition Imaging – Equipped with a progressive scan CMOS sensor supporting up to 1920×1080 resolution for sharp image capture.
  • Low-Light Performance – Operates effectively in 0.1 lux @ (F1.2, AGC ON) and 0 lux with IR illumination up to 15 meters.
  • Rugged and Weatherproof – IP68-rated metal housing ensures reliable operation in harsh environments.
  • Automatic Adjustments – Supports electronic day/night switching, auto white balance, and left & right mirror mode.
  • Flexible Lens Options – Available with 2.1 mm or 2.8 mm fixed focal lenses, providing wide-angle views suitable for different monitoring needs.

Downloads

Datasheet Datasheet for AE-VC253T-IT
User Manual User Manual for AE-VC253T-IT


Installer Tips

  • Mounting: Ensure installation on a stable surface and maintain proper sealing for outdoor applications.
  • Power Supply: Use a regulated 9–16 V DC power source for reliable performance.
  • IR Use: Avoid placing reflective surfaces directly in front of the lens to prevent IR glare.
  • Maintenance: Clean the lens cover regularly for optimal image clarity.

Quick-Read Specs

Specification Detail
Model AE-VC253T-IT (2.1 mm / 2.8 mm)
Type Square Analog Camera
Image Sensor Progressive Scan CMOS
Resolution 1920 × 1080 (1080P)
Lens Type Fixed focal lens (2.1 mm or 2.8 mm)
Field of View (FOV) 2.1 mm: H 98°, V 81°, D 125°
2.8 mm: H 96°, V 51°, D 115°
Minimum Illumination 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
IR Distance Up to 15 m
Shutter Speed 1/25 s to 1/50,000 s
Wide Dynamic Range 85 dB
Day/Night Mode Electronic
Frame Rate 1080P @ 25 fps
Signal-to-Noise Ratio (SNR) 42 dB
Video Output TVI, 1 Vpp Composite Output (aviation plug)
Audio No built-in microphone or speaker
Power Supply 9 to 16 V DC
Power Consumption Max. 2.5 W
Protection Level IP68
Material Metal
Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F)
Dimensions 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")



Read more

Product form

Hikvision AE-VC253T-IT Rear Vision Camera, 1080P, 20M IR, IP68, Aviation Plug, 2.8mm

SKU: AE-VC253T-IT Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$191.00 Incl. GST

    PayPalAmerican Express Apple Pay Google Pay MastercardShop Pay Visa

    Trusted by 5000+ happy customers

    FREE Express Delivery over $200

    Easy 30-Day Returns Policy

    Australian Warranty & Tech Support

    3-Year Hikvision Warranty

    Official Dahua Online Reseller | Australia’s #1 Dahua Specialist | Backed by Real Support

    We Sell Australian Stock Only, No Grey Import Products
    Order before 2pm for same day dispatch
    Click & Collect Learn More
    Bulk Pricing Available—Message Us On Whatsapp | Get a Quote

    Description

    The Hikvision AE-VC253T-IT is a square analog camera designed for clear and stable video surveillance in various environments. It features a progressive scan CMOS sensor with up to 1080P resolution, offering high image quality even under low illumination. With IP68 protection, durable metal housing, and optional fixed lenses, it is ideal for both indoor and outdoor monitoring applications.

    Key Features

    • High-Definition Imaging – Equipped with a progressive scan CMOS sensor supporting up to 1920×1080 resolution for sharp image capture.
    • Low-Light Performance – Operates effectively in 0.1 lux @ (F1.2, AGC ON) and 0 lux with IR illumination up to 15 meters.
    • Rugged and Weatherproof – IP68-rated metal housing ensures reliable operation in harsh environments.
    • Automatic Adjustments – Supports electronic day/night switching, auto white balance, and left & right mirror mode.
    • Flexible Lens Options – Available with 2.1 mm or 2.8 mm fixed focal lenses, providing wide-angle views suitable for different monitoring needs.

    Downloads

    Datasheet Datasheet for AE-VC253T-IT
    User Manual User Manual for AE-VC253T-IT


    Installer Tips

    • Mounting: Ensure installation on a stable surface and maintain proper sealing for outdoor applications.
    • Power Supply: Use a regulated 9–16 V DC power source for reliable performance.
    • IR Use: Avoid placing reflective surfaces directly in front of the lens to prevent IR glare.
    • Maintenance: Clean the lens cover regularly for optimal image clarity.

    Quick-Read Specs

    Specification Detail
    Model AE-VC253T-IT (2.1 mm / 2.8 mm)
    Type Square Analog Camera
    Image Sensor Progressive Scan CMOS
    Resolution 1920 × 1080 (1080P)
    Lens Type Fixed focal lens (2.1 mm or 2.8 mm)
    Field of View (FOV) 2.1 mm: H 98°, V 81°, D 125°
    2.8 mm: H 96°, V 51°, D 115°
    Minimum Illumination 0.1 Lux @ (F1.2, AGC ON), 0 Lux with IR
    IR Distance Up to 15 m
    Shutter Speed 1/25 s to 1/50,000 s
    Wide Dynamic Range 85 dB
    Day/Night Mode Electronic
    Frame Rate 1080P @ 25 fps
    Signal-to-Noise Ratio (SNR) 42 dB
    Video Output TVI, 1 Vpp Composite Output (aviation plug)
    Audio No built-in microphone or speaker
    Power Supply 9 to 16 V DC
    Power Consumption Max. 2.5 W
    Protection Level IP68
    Material Metal
    Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F)
    Dimensions 83.2 mm × 46 mm × 41.6 mm (3.28" × 1.81" × 1.64")
