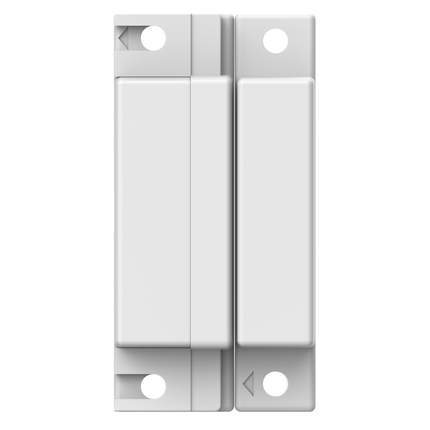

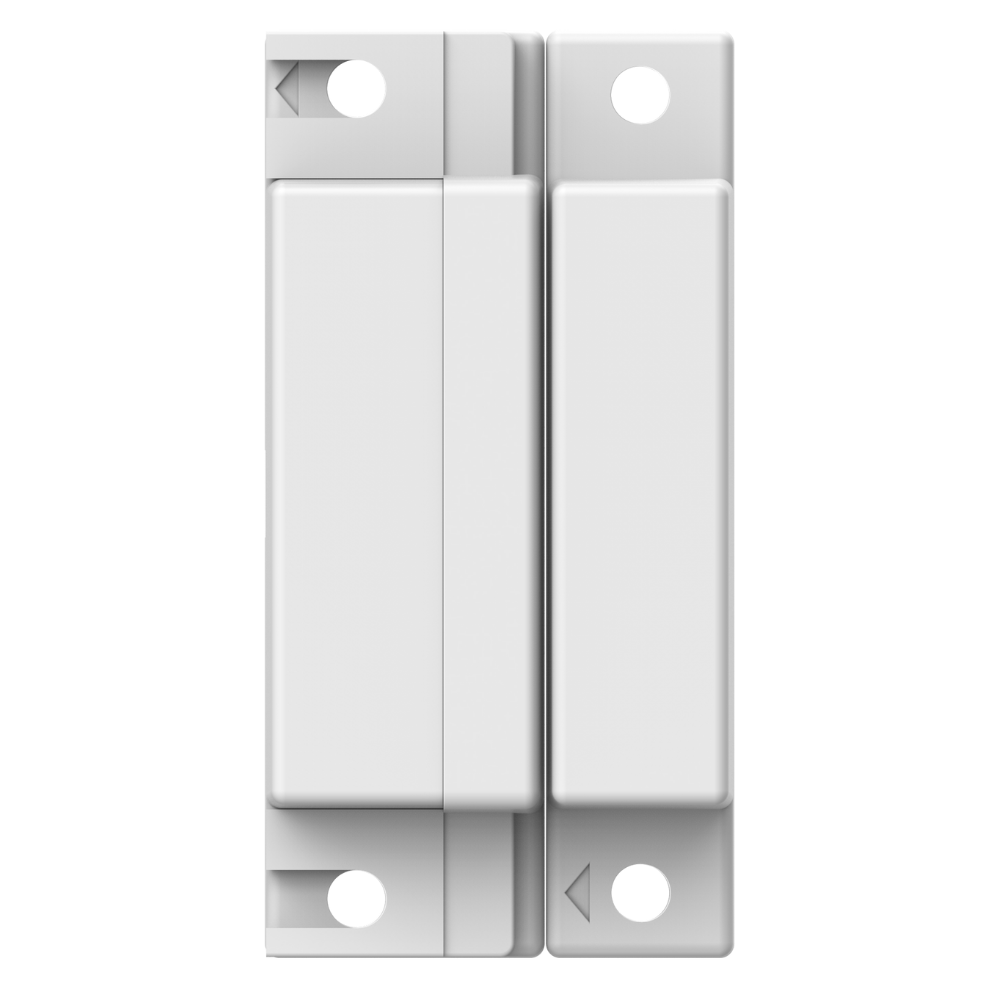

The Hikvision DS-PD1-MC-WS is a compact wired magnetic contact sensor designed for reliable intrusion detection. Built with a durable ABS shell and surface-mount design, it is optimized for wooden doors and ensures secure perimeter protection. Featuring a normally closed (NC) connection and a wide detection gap, it offers a simple yet effective solution for alarm systems in residential and commercial applications.
Key Features
-
Durable Shell – Flame-retardant ABS housing for long-term reliability.
-
Secure Connection – Normally Closed (NC) contact type for alarm integration.
-
Easy Installation – Designed for surface mounting on wooden doors.
-
Wide Detection Gap – Supports a detection gap of ≥17 mm for stable performance.
-
Compact Design – Slim profile ensures discreet installation.
Downloads
Installer Tips
-
Mounting Surface: Install on flat, stable wooden doors for best performance.
-
Gap Alignment: Ensure detection gap is ≤17 mm between sensor and magnet.
-
Wiring: Use proper shielded cable to minimize interference in alarm systems.
-
Environmental Conditions: Avoid installation in extreme humidity or corrosive environments.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-PD1-MC-WS |
| Detection Gap |
≥17 mm |
| Alarm Output |
Normally Closed (NC) |
| Typical Voltage |
≤100 VDC |
| Typical Current |
≤500 mA |
| Operating Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity |
10% to 90% |
| Material |
Flame Retardant ABS |
| Dimensions |
63.5 × 12.5 × 15.7 mm / 63.5 × 12.5 × 12.5 mm |
| Installation |
Surface mount on wood door |
Extra Info
Compact Security Sensor
The DS-PD1-MC-WS is designed with a slim and discreet profile, making it an excellent choice for both residential and commercial environments. Its unobtrusive appearance allows it to blend naturally with wooden doors and other entry points, ensuring reliable intrusion detection without compromising interior aesthetics.
Durable ABS Material
Built with a high-quality, flame-retardant ABS housing, the sensor provides excellent resistance to wear, impact, and environmental factors. This durable construction ensures a long service life, while its safety-focused material minimizes fire risks, making it suitable for demanding and high-traffic settings.
Wide Compatibility
Engineered for flexibility, the DS-PD1-MC-WS integrates seamlessly with a wide range of security and alarm systems. Supporting normally closed (NC) magnetic contact operation, it can be easily connected to standard control panels and intrusion detection devices, ensuring smooth deployment in both new and existing installations.
Reliable Intrusion Detection
The magnetic contact design delivers dependable monitoring by instantly detecting door openings or tampering attempts. When triggered, it sends a signal to the connected alarm system, providing fast and accurate intrusion alerts for enhanced perimeter protection.
Easy Installation
Thanks to its lightweight build and compact form factor, the DS-PD1-MC-WS is installer-friendly. It can be mounted on a variety of door types with minimal tools, making it a convenient solution for security professionals and DIY users alike.
Q&A
Q1: What type of doors is it designed for?
It is designed for wooden doors with surface mounting.
Q2: What is the detection gap?
The contact supports a detection gap of ≥17 mm.
Q3: What type of alarm output does it provide?
It provides a Normally Closed (NC) output.
Q4: Can it be used outdoors?
It is primarily designed for indoor use; outdoor installation requires protective housing.
Q5: What is the operating temperature range?
It operates reliably between -10 °C and 55 °C (14 °F to 131 °F).
